Tanks

M1 Abrams

Also known as
  • Abrams
  • XM1
  • M-1A1 Abrams
  • M1A1 Abrams
  • M1A1SA Abrams
  • M1A1 SA
  • M1A1 SA Abrams
  • M1A1 Special Armor
  • M1A1 Situational Awareness
  • M1A2 Abrams
  • M1A2 SEP
  • M1A2 SEPv3
  • M1A2 SEP v3
  • M1A2 SEP v4
  • M1E3 Abrams

A U.S. tracked main battle tank family that evolved from the original 105 mm M1 into 120 mm M1A1, export-upgrade, M1A2 SEP, and planned M1E3 modernization paths, with documented combat use from Desert Storm through Ukraine.

M1 Abrams, Main battle tank, Tanks

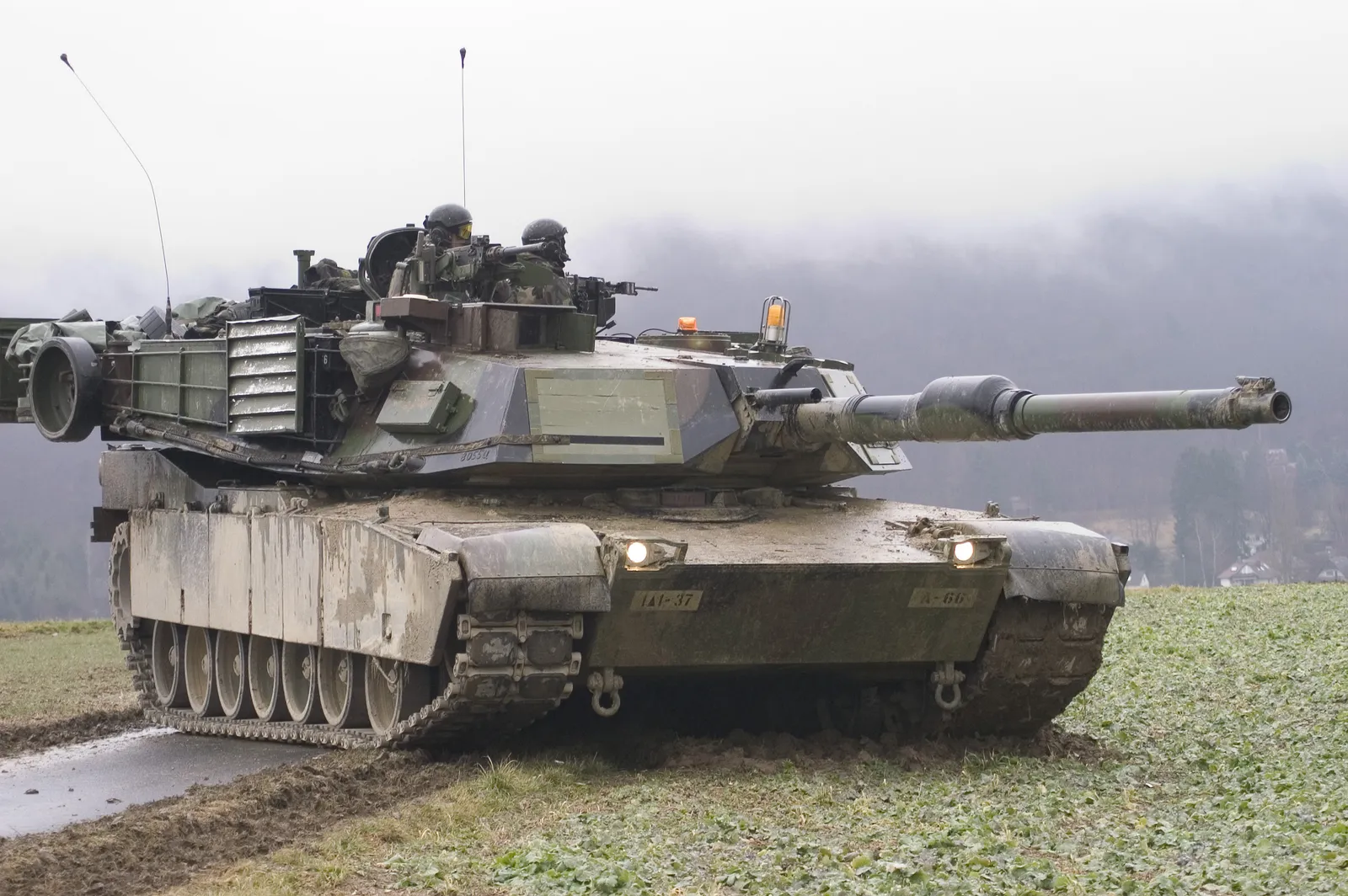

Image source: Wikimedia Commons: U.S. Army M1A1 Abrams

Role in Conflicts

2011 Sinai Insurgency
Role in conflict
Counterinsurgency tank fire support

Egypt's M1A1 Abrams fleet was tied to Egyptian Army operations against Islamic State-affiliated militants in Sinai through a DSCA-notified 120 mm ammunition package for M1A1 crews and combat stocks.

2013 War in Iraq
Role in conflict
Urban assault fire support

A U.S.-supplied Iraqi M1A1 Abrams known as the 'Beast' backed Iraqi forces during the 2016 clearing of Hit in Anbar province, firing on ISIS positions, vehicles, and IED emplacements.

M1A1SA Upgrade Path

M1A1SA is an upgraded M1A1 branch used in export and partner-force modernization records, so it belongs on the Abrams family page as a configuration lineage rather than as an unrelated tank.

RecordWhat it showsCatalog relevance
Morocco FMS noticeEnhancement of M1A1 tanks to M1A1 Special Armor configuration with support equipment, training, and ammunition.Supports the M1A1SA alias and export-upgrade variant row.
General Dynamics contractUpgrade of 150 M1A1 Abrams tanks to the M1A1 SA situational-awareness configuration for Morocco.Connects the M1A1SA designation to General Dynamics Land Systems modernization work.
Iraqi FMS deliveryDelivery and fielding of 140 modern digital M1A1 Abrams tanks to Iraqi Army tank regiments.Documents the export M1A1 branch that later appears in Iraq conflict-use coverage.
Ukraine transfer decisionU.S. transfer planning shifted to refurbished M1A1 Abrams tanks to speed delivery for Ukraine.Explains why recent combat-use coverage often identifies the Ukrainian tanks as M1A1 Abrams rather than M1A2s.
Production Snapshot

The Abrams family is best understood as a long production line with major modernization waves, not a single frozen tank design.

PeriodDocumented detailSource
1972Army MBT task-force work begins the XM1 lineage.An Independent Assessment of the Next Generation Armor/Anti-Armor Strategy
1980The original M1 enters U.S. Army service.AMC-developed weapons remain vital to Army
1979-19853,273 M1 tanks are produced.AMC-developed weapons remain vital to Army
1986-1992About 6,000 M1A1 tanks are produced.AMC-developed weapons remain vital to Army
FY2020The Army budget line for M1A2 Abrams covers 165 vehicles, which yields an approximate $12.8 million average per vehicle.FY2020 Weapons: M1A2 Abrams main battle tank
2023The Army redirects the next major modernization path from M1A2 SEP v4 toward M1E3 Abrams.Army Announces Plans for M1E3 Abrams Tank Modernization
2025The Army announces full-rate production approval for the M1147 AMP round used by Abrams crews.M1147 120mm Advanced Multi-Purpose Round Enters Full Rate Production
2026The Army unveils an early M1E3 Abrams prototype with reduced-weight and open-architecture design goals.US Army Unveils Early Abrams Prototype
Profile / Specs

Profile

Origin
United States
Type
Main battle tank
Service note
Modern Western armor
Designed
1972
Unit cost
about US$12.8 million per M1A2 SEP v3 vehicle (FY2020 procurement average, derived from US$2.1147 billion for 165 tanks)
Produced
1979-1992 for original M1/M1A1 production; M1A2 SEP modernization and production continuing
Number built
3,273 M1 tanks and about 6,000 M1A1 tanks through 1992; later M1A2/SEP rebuild and production totals vary by program

Specifications

Crew
4
Armament
Original M1 variants carried the 105 mm M68A1 gun; later M1A1 and M1A2 variants use the 120 mm M256 smoothbore, plus .50 cal and 7.62 mm machine guns
Weight
About 63 short tons for M1A1; many M1A2 variants exceed 69 short tons
Mobility
About 67 km/h road speed; about 426 km range
Protection
Composite armor with later survivability upgrades by variant
Variants

Abrams designations combine baseline vehicle generations, rebuild programs, export armor packages, and electronics upgrades; the M1A1SA label belongs to the upgraded M1A1 branch rather than to a separate tank family.

VariantConfigurationDesignation notes
M1Original 105 mm production tank

The U.S. Army dates M1 service entry to 1980 and lists 3,273 original M1 tanks built from 1979 to 1985.

Sources: AMC-developed weapons remain vital to Army

M1A1120 mm gun production variant

Army historical coverage lists about 6,000 M1A1 tanks built from 1986 to 1992; later combat and export records often identify M1A1-family vehicles rather than only base M1 tanks.

Sources: AMC-developed weapons remain vital to Army, M1A2 Abrams Main Battle Tank

M1A1SASituational Awareness / Special Armor export-upgrade configuration

Morocco's 2012 FMS notice covered enhancement of 200 M1A1 tanks to M1A1 Special Armor configuration, and General Dynamics later received a contract to upgrade 150 tanks to the M1A1 SA situational-awareness configuration.

Sources: Kingdom of Morocco - M1A1 SA Abrams Tank Enhancement, General Dynamics Awarded $358 Million for 150 M1A1 SA Abrams Tanks for Morocco

M1A1MIraqi Army export M1A1 configuration

U.S. Army reporting on Iraq's 140-tank FMS program described the delivered vehicles as modern digital M1A1 Abrams tanks for Iraqi Army tank regiments.

Sources: Iraqi Army Receives Last Shipment of Abrams Tanks

M1A2Improved command and fire-control branch

The M1A2 line retained the 120 mm main gun while adding later electronics and survivability improvements that led into the SEP modernization series.

Sources: M1A2 Abrams Main Battle Tank, FY2020 Weapons: M1A2 Abrams main battle tank

M1A2 SEP v3System Enhancement Package modernization

Army program and manufacturer material identify M1A2 SEP v3 as the current production Abrams branch, with upgraded power, digital architecture, ammunition data-link, and survivability features.

Sources: FY2020 Weapons: M1A2 Abrams main battle tank, General Dynamics Land Systems Abrams, Project Manager Abrams

M1E3 AbramsNext modernization path

The U.S. Army announced in September 2023 that it would close out M1A2 SEP v4 and develop M1E3, then unveiled an early M1E3 prototype in January 2026 with emphasis on lower weight, reduced logistics burden, digital controls, and open architecture.

Sources: Army Announces Plans for M1E3 Abrams Tank Modernization, US Army Unveils Early Abrams Prototype

Carrier Aircraft

Abrams deployment depends on heavy strategic lift for long-distance movement.

CarrierCarrier typeCarriage evidence
C-5 Galaxy, Strategic airlifter / transport aircraft family, Aircraft & UAVsC-5 GalaxyOutsize cargo transport aircraft

The U.S. Air Force Academy says the C-5 is capable of carrying two M1 Abrams battle tanks.

Sources: The Contrails: Aircraft, Weapons Systems: C-5A/B/C/M Galaxy

Ammunition Fired

Later Abrams variants use 120 mm tank ammunition tailored for armored and complex-target direct fire.

AmmunitionAmmunition typeFiring evidence
M1147 120 mm advanced multipurpose round, 120 mm high-explosive multipurpose tank cartridge, MunitionsM1147 120 mm advanced multipurpose round120 mm multipurpose tank cartridge

The Army describes the M1147 AMP as a 120 mm round for M1 Abrams tank crews with programmable point-detonate, delayed, and airburst modes.

Sources: M1147 120mm Advanced Multi-Purpose Round Enters Full Rate Production

Protection Systems

Abrams survivability upgrades include add-on active-protection work as anti-armor threats evolve.

Compatible itemItem typeCompatibility evidence
Trophy active-protection system, Hard-kill active protection system, Support EquipmentTrophy active-protection systemHard-kill active protection system

Army and Rafael material identify Trophy as the active-protection path selected or fielded for Abrams-family vehicles.

Sources: Army Developing Improved Active Protection Systems for Vehicle Armor, Trophy APS: Operational Active Protection System

Armored Recovery Support

Abrams units depend on heavy recovery vehicles that can tow, evacuate, and help repair disabled tanks without using another tank as the recovery asset.

Compatible itemItem typeCompatibility evidence
M88 recovery vehicle, Tracked armored recovery vehicle, Support EquipmentM88 recovery vehicleTracked armored recovery vehicle

DoD acquisition reporting says the M88A2 provides single-vehicle recovery, evacuation, and battle-damage repair for the Abrams main battle tank and other combat vehicles up to 70 tons.

Sources: DoD M88A2 SAR 2019

Timeline

M1 Abrams Key Events

  1. Army starts the MBT task-force effort

    An Army assessment traces the Abrams lineage to the 1972 MBT task force and the XM1 development effort that followed.

    Sources: An Independent Assessment of the Next Generation Armor/Anti-Armor Strategy

  2. M1 enters U.S. Army service

    Army historical coverage says the M1 entered service in 1980 as the original production tank in the Abrams family.

    Sources: AMC-developed weapons remain vital to Army

  3. Original M1 production runs to 3,273 tanks

    The Army says 3,273 M1 tanks were produced during the original production run.

    Sources: AMC-developed weapons remain vital to Army

  4. M1A1 production reaches about 6,000 tanks

    Army historical coverage says about 6,000 M1A1 tanks were built from 1986 to 1992.

    Sources: AMC-developed weapons remain vital to Army

  5. Abrams sees large-scale combat in Desert Storm

    GAO's early Desert Storm assessment reviewed Bradley and Abrams battlefield performance after the U.S.-led ground campaign in Kuwait and Iraq.

    Sources: Operation Desert Storm: Early Performance Assessment of Bradley and Abrams

  6. M1A1 tanks deploy to Afghanistan

    Air Mobility Command reported the first U.S.-owned Abrams deployment for Operation Enduring Freedom when C-17 crews delivered M1A1 tanks for forces in Afghanistan.

    Sources: Air Force C-17s Deliver Abrams Tanks to Afghanistan

  7. Morocco M1A1SA upgrade notified

    A U.S. arms-sale notice covered refurbishment of Moroccan M1A1 tanks to the M1A1 Special Armor configuration with support equipment, training, and ammunition.

    Sources: Kingdom of Morocco - M1A1 SA Abrams Tank Enhancement

  8. General Dynamics receives Morocco M1A1SA contract

    General Dynamics announced a Foreign Military Sales contract to upgrade 150 M1A1 Abrams tanks to the M1A1 SA situational-awareness configuration for Morocco.

    Sources: General Dynamics Awarded $358 Million for 150 M1A1 SA Abrams Tanks for Morocco

  9. U.S. switches Ukraine package to M1A1 Abrams

    The Defense Department said Ukraine would receive refurbished M1A1 Abrams from U.S. inventory to speed delivery compared with the earlier M1A2 plan.

    Sources: Ukrainians to Get U.S. Tanks by Fall

  10. SIPRI records M-1A1 Abrams delivery to Ukraine

    SIPRI's arms-transfer register records 31 second-hand M-1A1 Abrams tanks delivered from the United States to Ukraine in 2023.

    Sources: SIPRI Arms Transfers Database

  11. Army redirects modernization to M1E3 Abrams

    The U.S. Army announced it would close the M1A2 SEP v4 effort and move to the M1E3 Abrams modernization program.

    Sources: Army Announces Plans for M1E3 Abrams Tank Modernization

  12. Australia announces M1A1 Abrams for Ukraine

    Australia announced that it would gift 49 M1A1 Abrams tanks to Ukraine as part of continued military assistance against Russia's invasion.

    Sources: Australia to Provide Abrams Tanks to Ukraine

  13. M1147 AMP reaches full-rate production

    The Army announced full-rate production approval for the M1147 120 mm advanced multipurpose round for Abrams tank crews.

    Sources: M1147 120mm Advanced Multi-Purpose Round Enters Full Rate Production

  14. Army unveils early M1E3 Abrams prototype

    The Army unveiled an early M1E3 Abrams prototype at the North American International Auto Show, describing reduced weight, digital controls, and open systems architecture.

    Sources: US Army Unveils Early Abrams Prototype

Media

M1 Abrams Videos

M1 Abrams Images

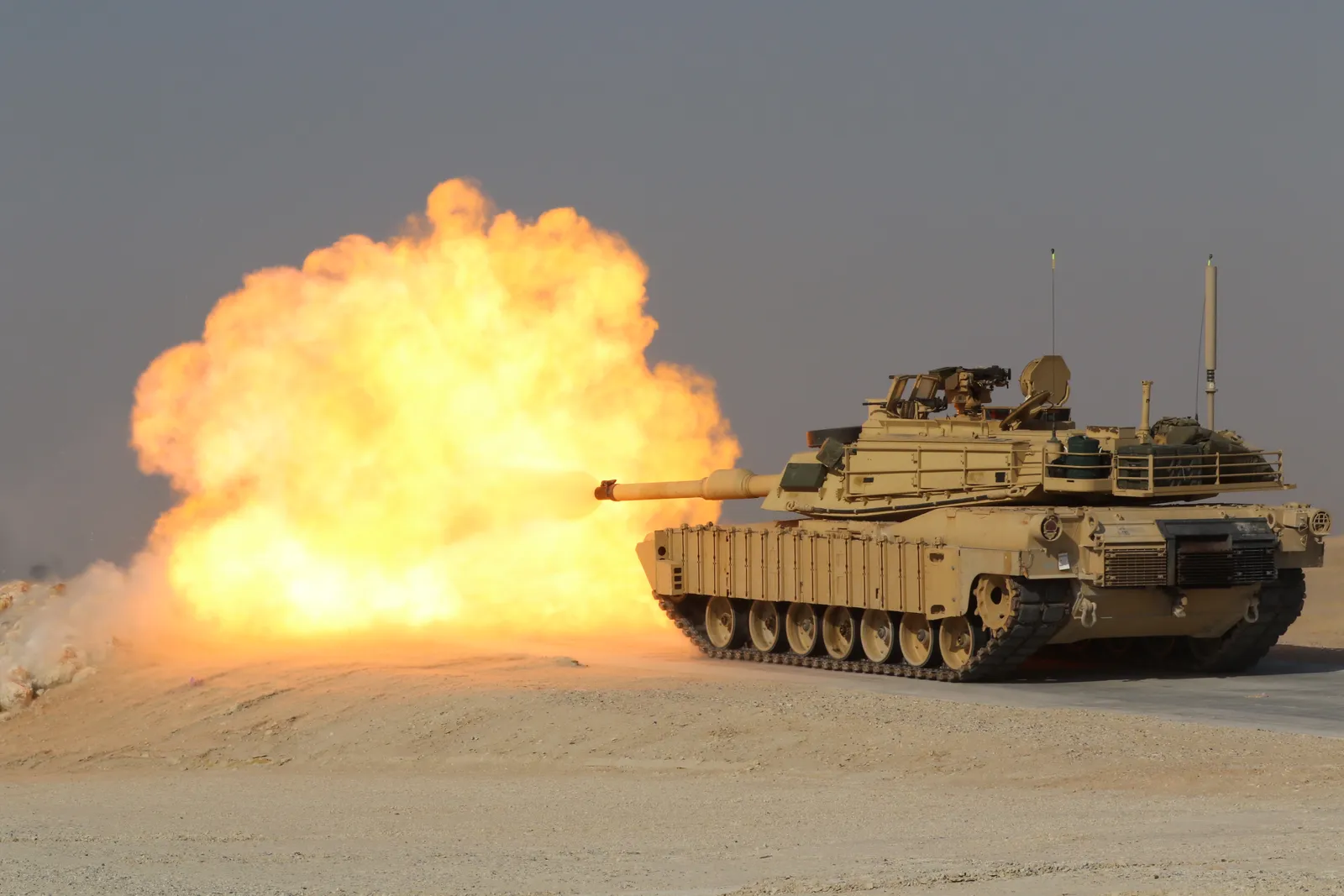

M1 Abrams, Main battle tank, Tanks - view 1
Source: Wikimedia Commons: M1A2 Abrams Firing

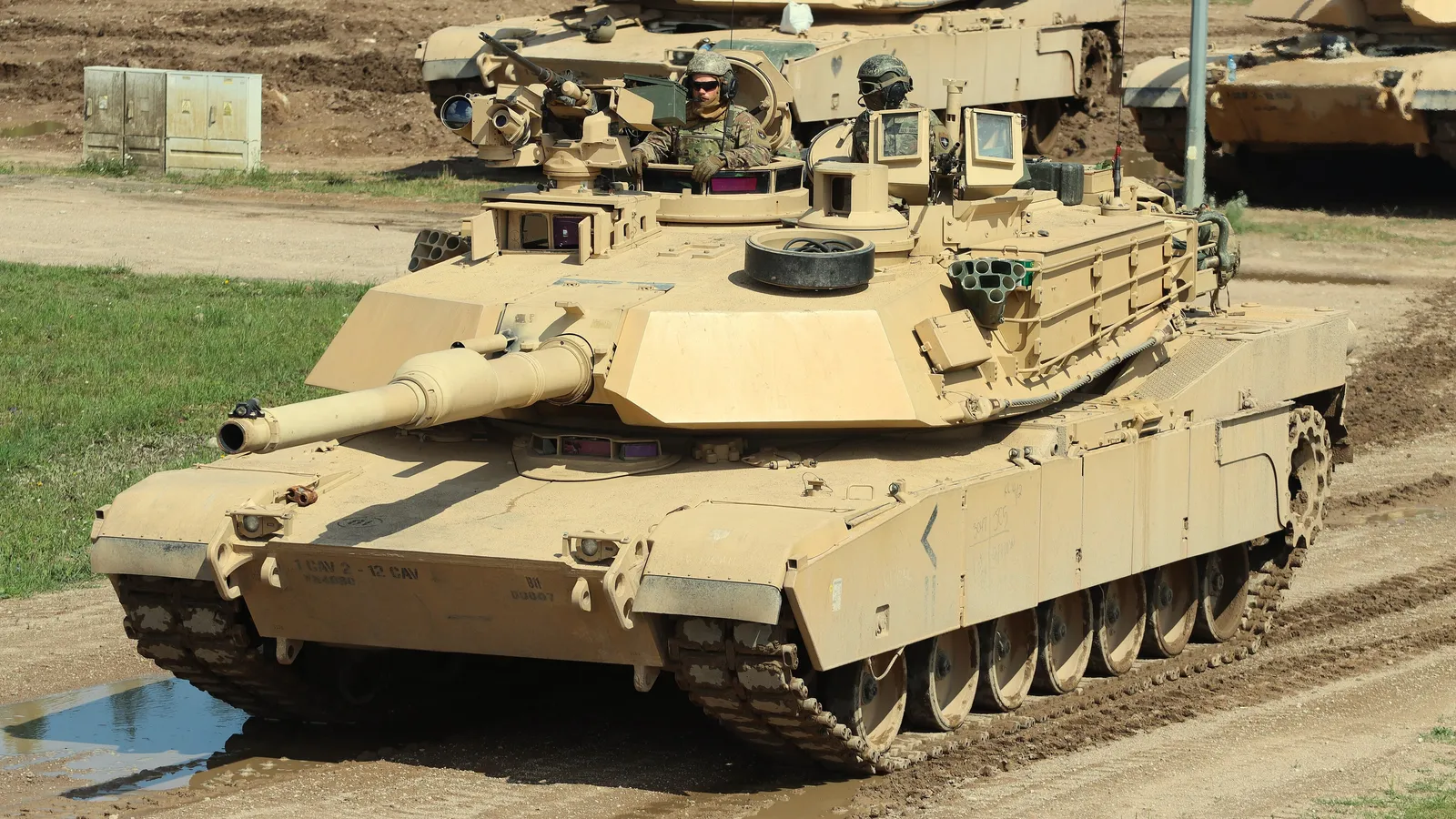

M1 Abrams, Main battle tank, Tanks - view 2
Source: Wikimedia Commons: M1A2 SEP v3
Related Weapon Systems
T-72M1, Main battle tank, TanksTanksT-72M1Main battle tankThe T-72M1 is a T-72A-derived export and licensed-production main battle tank built around a three-person crew, an autoloaded 125 mm gun, improved turret protection, and an added glacis armor plate compared with earlier T-72M export tanks. Poland, Czechoslovakia, and Soviet production made the model common in Warsaw Pact and export inventories, and Polish, Czech, and Bulgarian stocks became part of Ukraine's armored force during the full-scale phase of the Russia-Ukraine War.

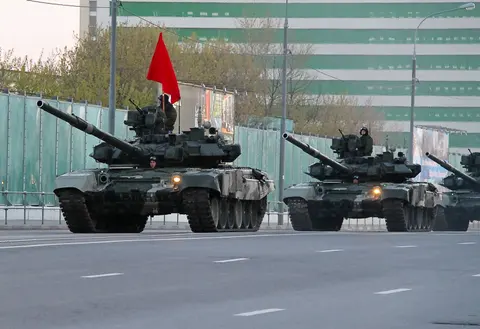

T-90, Main battle tank, TanksTanksT-90Main battle tankThe T-90 is a Russian main battle tank family developed from the late Soviet T-72B line and built by Uralvagonzavod. This baseline page covers the original T-90 and Russian-service T-90A/T-90AK branch, separating it from the catalog's export T-90S/T-90SA and modernized T-90M records. Direct conflict evidence places T-90A-family tanks with Russian forces in eastern Ukraine and in the full-scale Russia-Ukraine War, and with Syrian government forces and later captured users during the Syrian Civil War.
