M1147 120 mm advanced multipurpose round

Also known as

M1147 AMP
M1147 Advanced Multi-Purpose
120 mm AMP
XM1147
HEMP-T

The M1147 AMP is a U.S. 120 mm high-explosive multipurpose tank cartridge for Abrams tanks. U.S. Army and DOT&E material describe it as an Abrams-employed line-of-sight round that consolidates several legacy 120 mm cartridge roles into a programmable munition with point-detonate, delayed, and airburst settings.

M1147 120 mm advanced multipurpose round, 120 mm high-explosive multipurpose tank cartridge, Munitions

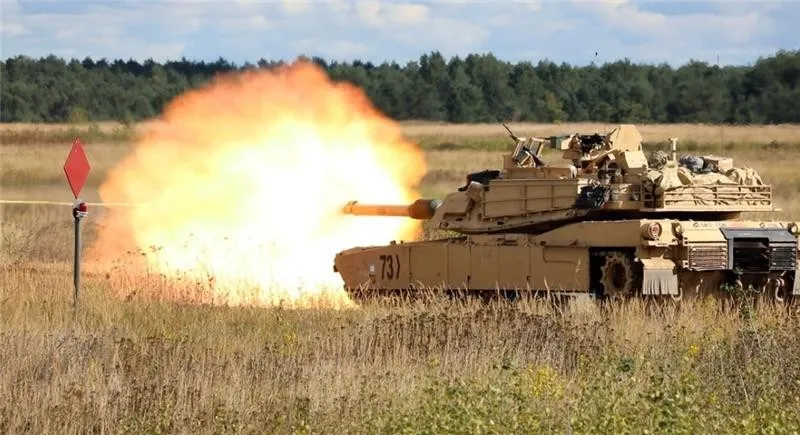

Image source: M1147 120mm Advanced Multi-Purpose Round Enters Full Rate Production

Profile / Specs

Profile

Origin: United States
Built by: Northrop Grumman
Type: 120 mm high-explosive multipurpose tank cartridge
Service note: Modern Abrams ammunition
Produced: Full-rate production approved 2024

tank ammunition direct firemultipurpose munition

Specifications

Caliber: 120 mm NATO tank cartridge
Role: High-explosive multipurpose line-of-sight tank munition
Fuze modes: Point detonate, point-detonate delay, and airburst
Documented platform: M1 Abrams main battle tank
Program status: U.S. Army full-rate production approval announced in January 2025

Media

M1147 120 mm advanced multipurpose round Videos

M1147 Advanced Multi-Purpose Round (AMP)

M1147 120 mm advanced multipurpose round Images

M1147 120 mm advanced multipurpose round, 120 mm high-explosive multipurpose tank cartridge, Munitions - view 1 — Source: M1147 120mm Advanced Multi-Purpose Round Enters Full Rate Production

Related Weapon Systems

L31 HESH round, 120 mm HESH shell, Munitions

MunitionsL31 HESH round120 mm HESH shellThe L31 HESH round is a British 120 mm high-explosive squash-head projectile for rifled Royal Ordnance tank guns, including the Challenger 2's L30A1. RO Defence/Jane's describes it as a general-purpose round for armor, fortifications, structures, and possible indirect fire, while 2003 Iraq War reporting documents Challenger 2 HESH fire in a 2003 Basra-area fratricide incident.

M339 120 mm multipurpose tank projectile, 120 mm HE-MP-T tank cartridge, Munitions

MunitionsM339 120 mm multipurpose tank projectile120 mm HE-MP-T tank cartridgeThe M339 is an Israeli 120 mm HE-MP-T tank cartridge, also known as Kalanit or Hatzav, developed by Israel Military Industries for urban direct fire from Merkava and other NATO-standard smoothbore tank guns. Elbit Systems describes the round as a programmable, multi-purpose cartridge for bunkers, light armored vehicles, infantry, and urban structures, while Gaza and Lebanon investigations have identified M339-family remnants in Israeli tank-fire incidents.

OCC 105 F3 HEAT-FS, 105×527R HEAT-FS round, Munitions

MunitionsOCC 105 F3 HEAT-FS105×527R HEAT-FS roundOCC 105 F3 is a French 105×527R fin-stabilized HEAT round for the AMX-10RC and AMX-10RCR GIAT 105-F2 gun. Jane's lists the round with a 13.85 kg cartridge, 5.65 kg projectile, 0.92 kg explosive fill, and 1,120 m/s muzzle velocity, while 2025 Getty imagery documents OCC 105 F3 ammunition with Ukrainian AMX-10 RC crews in Donetsk Oblast.

OFL 105 F3 APFSDS, 105×527R APFSDS round, Munitions

MunitionsOFL 105 F3 APFSDS105×527R APFSDS roundOFL 105 F3 is a French 105×527R APFSDS round for the AMX-10RC and AMX-10RCR 105 mm F2 gun. French and U.S. reference material describes a monobloc tungsten-alloy penetrator, 12.8 kg complete mass, 3.8 kg projectile mass without sabot, and 1,400 m/s muzzle velocity, while 2025 Getty imagery documents OFL 105 F3 ammunition with Ukrainian AMX-10 RC crews in Donetsk Oblast.

M325 120 mm tank projectile, 120 mm HEAT-MP-T tank cartridge, Tanks

TanksM325 120 mm tank projectile120 mm HEAT-MP-T tank cartridgeThe M325 is Elbit Systems' Israeli 120 mm HEAT-MP-T tank cartridge. Elbit catalogs it for NATO 120 mm L44/L55 guns and Merkava 3 and 4 tanks, while conflict reporting identified the round as Israeli tank ammunition used in Gaza.

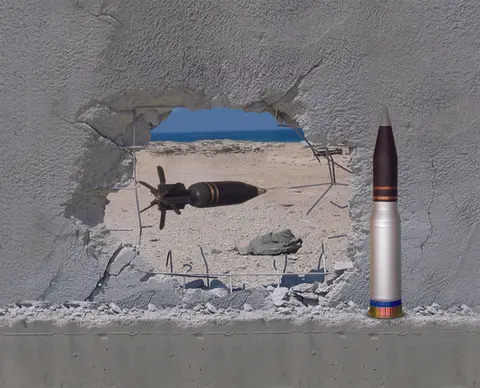

M329 APAM 120 mm tank projectile, 120 mm multipurpose tank projectile, Tanks

TanksM329 APAM 120 mm tank projectile120 mm multipurpose tank projectileThe M329 APAM, also reported as Hatzav and known as Calanit/Kalanit, is an Israeli 120 mm multipurpose tank projectile for NATO-standard smoothbore guns. Reuters reported IDF service by 2011, and later Gaza investigations linked the round to the 2025 Nasser Hospital strike.

Sources

M1147 120mm Advanced Multi-Purpose Round Enters Full Rate ProductionPublisher: U.S. Army | Note: Supports M1147 full-rate production approval, Abrams use, programmable fuze modes, legacy-round consolidation, and Army image provenance. | Accessed: 2026-06-30 DOT&E FY2022 M1147 AMP AssessmentPublisher: Director, Operational Test and Evaluation | Note: Supports M1147 system description, Abrams employment, program status, and Northrop Grumman Defense Systems as a major contractor. | Accessed: 2026-06-30 Northrop Grumman U.S. Army Mission ReadinessPublisher: Northrop Grumman | Note: Supports Northrop Grumman M1147 AMP program context and full-rate production status for Abrams tank ammunition. | Accessed: 2026-06-30
