Used by VMA-211 AV-8B Harrier crews from USS Makin Island and forward-deployed sites in combat operations against ISIL in Iraq and Syria from October 2014 to March 2015.
Role detailsAircraft & UAVs
AV-8B Harrier II
Also known as
- AV-8B
- Harrier II
- AV-8B Harrier
- AV-8B II+
- AV-8B Harrier II+
- AV-8B Harrier II Plus
- Harrier II Plus
- AV-8B Night Attack
- AV-8B(NA)
- TAV-8B
- TAV-8B Harrier II
- Harrier jump jet
The AV-8B Harrier II is a second-generation Harrier built around vectored-thrust V/STOL light attack missions: expeditionary close air support, armed reconnaissance, interdiction, shipboard strike, and dispersed forward-base operations. Developed by McDonnell Douglas with British Aerospace participation, it added a larger composite wing, improved Pegasus-powered performance, and later Night Attack and Harrier II Plus radar configurations. The U.S. Marine Corps formally sundowned the type at Cherry Point on June 3, 2026, while Italian and Spanish naval Harriers remained a separate service caveat.
Role in Conflicts
- Side
- United States and Libyan Government of National Accord
Used by 22nd MEU AV-8B Harrier II crews from USS Wasp during Operation Odyssey Lightning precision air strikes against ISIL targets in Sirte, Libya.
Used by 22nd MEU AV-8B Harrier II crews from Al Dhafra Air Base in April 2019 while supporting Operation Freedom's Sentinel and Afghan National Army support through the U.S. coalition.
Role detailsProfile / Specs
Profile
- Origin
- United States
- Built by
- McDonnell Douglas; Boeing
- Type
- V/STOL light attack and close-air-support aircraft
- Service note
- 1985-2026 in U.S. Marine Corps AV-8B service; still in Italian and Spanish naval service as of June 2026
- Designer
- McDonnell Douglas and British Aerospace
- Designed
- 1970s-1981
- Unit cost
- Not readily published for the AV-8B Harrier II as a common fleet figure
- Produced
- 1981-2003
- Number built
- 340 aircraft delivered, including AV-8B attack jets, TAV-8B trainers, and YAV-8B prototypes
Specifications
- Crew
- 1 in AV-8B attack variants; 2 in TAV-8B trainer
- Primary function
- Close air support, intermediate-range intercept, and attack missions
- Basing
- Carriers and other suitable seagoing platforms, advanced bases, expeditionary airfields, and remote tactical landing sites
- Engine
- One Rolls-Royce Pegasus F402 vectored-thrust turbofan
- Day Attack thrust
- About 20,280 lb thrust with F402-RR-406
- Night Attack / radar thrust
- About 22,200 lb thrust with F402-RR-408A
- Wingspan
- 30 ft 4 in (9.25 m)
- Length
- 46 ft 4 in (14.12 m)
- Height
- 11 ft 8 in (3.55 m)
- Maximum speed
- 630 mph
- Ferry range
- 1,700 nautical miles unrefueled
Variants
The AV-8B family began as a redesigned second-generation Harrier for Marine Corps V/STOL light attack missions, then moved from Day Attack aircraft into Night Attack, radar-equipped Harrier II Plus, and two-seat TAV-8B training configurations.
| Variant | Configuration | Designation notes |
|---|---|---|
| YAV-8B | Prototype | McDonnell Douglas proposed the AV-8B in May 1975, and the YAV-8B prototype first flew on November 9, 1978. Sources: Boeing Last AV-8B Harrier Jet |
| AV-8B Harrier II Day Attack | Initial single-seat attack variant | NAVAIR describes the AV-8B as replacing the AV-8A and A-4M; Day Attack aircraft used the F402-RR-406 engine and later became candidates for remanufacture. Sources: NAVAIR AV-8B Harrier, NAVAIR AV-8B Litening II |
| AV-8B Night Attack | Night-capable attack variant | The Night Attack configuration used the higher-thrust F402-RR-408A engine and night-attack avionics. Sources: NAVAIR AV-8B Harrier |
| AV-8B Harrier II Plus | Radar-equipped night/radar configuration | The U.S., Spain, and Italy developed the Plus version in the 1990s; it first flew on September 22, 1992, and NAVAIR identifies the APG-65 radar and remanufacture path from Day Attack aircraft. Sources: Boeing Last AV-8B Harrier Jet, NAVAIR AV-8B Harrier, NAVAIR AV-8B Litening II |
| TAV-8B | Two-seat trainer | NAVAIR identifies the TAV-8B as the two-seat trainer version of the AV-8B; the upgrade program added night-vision compatibility, Pegasus 408 engines, structural enhancements, and mission software for representative fleet training. Sources: NAVAIR First Upgraded TAV-8B |
Carried Missiles and Guided Bombs
The Harrier's published AV-8B fact file and U.S. Air Force JDAM fact sheet document representative air-to-air and precision air-to-ground stores.
| Carried item | Item type | Carriage evidence |
|---|---|---|
 | Short-range air-to-air missile | The AV-8B PDF fact file lists Sidewinder missiles among the Harrier's carried air-to-air weapons. Sources: NHHC AV-8B PDF Fact File |
 | Air-to-surface guided missile | The AV-8B PDF fact file lists the AGM-65 Maverick among the Harrier's carried attack weapons. Sources: NHHC AV-8B PDF Fact File |
 | 500-pound laser-guided bomb | The AV-8B PDF fact file lists GBU-12 among the Harrier's air-to-ground weapons, and this catalog entry represents the Mk 82/Paveway-Lizard guided-bomb family that includes the GBU-12 configuration. Sources: NHHC AV-8B PDF Fact File |
 | 1,000-pound laser-guided bomb | The AV-8B PDF fact file lists GBU-16 among the Harrier's air-to-ground weapons. Sources: NHHC AV-8B PDF Fact File |
 | JDAM guided-bomb family | The Air Force JDAM fact sheet lists JDAM as currently compatible with the AV-8B and identifies GBU-31, GBU-32, and GBU-38 JDAM variants. Sources: Air Force JDAM Fact Sheet |
 | 2,000-pound hard-target JDAM | The Air Force JDAM fact sheet lists GBU-31 as part of the JDAM family and identifies JDAM as compatible with the AV-8B. Sources: Air Force JDAM Fact Sheet |
 | 1,000-pound JDAM bomb | The AV-8B PDF fact file lists GBU-32 among the Harrier's air-to-ground weapons. Sources: NHHC AV-8B PDF Fact File |
 | 500-pound JDAM bomb | The Air Force JDAM fact sheet lists GBU-38 as part of the JDAM family and identifies JDAM as compatible with the AV-8B. Sources: Air Force JDAM Fact Sheet |
 | 500-pound dual-mode guided bomb | The AV-8B PDF fact file lists GBU-54 among the Harrier's air-to-ground weapons. Sources: NHHC AV-8B PDF Fact File |
Rocket Stores
The Harrier's air-to-ground stores list includes unguided 2.75-inch and 5-inch rockets, while NAVAIR documents later fixed-wing APKWS fielding on AV-8B Harriers.
| Carried item | Item type | Carriage evidence |
|---|---|---|
 | Unguided 2.75-inch rocket family | The Navy fact file lists 2.75-inch rockets among the AV-8B's air-to-ground stores. Sources: NHHC AV-8B PDF Fact File |
 | Laser-guided 2.75-inch rocket family | NAVAIR reported that the Navy delivered the first fixed-wing APKWS variant to VMA-223 operating AV-8B Harriers in theater in March 2016. Sources: NAVAIR APKWS fixed-wing AV-8B |
 | Unguided 5-inch rocket family | The Navy fact file lists 5-inch rockets among the AV-8B's air-to-ground stores. Sources: NHHC AV-8B PDF Fact File |
Incendiary Bomb Stores
The Harrier's air-to-ground stores list also includes Mk-77 fire bombs.
| Carried item | Item type | Carriage evidence |
|---|---|---|
 | Incendiary bomb family | The Navy fact file lists Mk-77 (Mod 2/4) fire bombs among the AV-8B's air-to-ground stores. Sources: NHHC AV-8B PDF Fact File |
Targeting Pods
The Harrier II Plus transformation adds extended war-fighting capability with LITENING II Targeting Pods.
| Carried item | Item type | Carriage evidence |
|---|---|---|
 | Targeting pod | NAVAIR described the AV-8B Harrier II Plus configuration as gaining extended war-fighting capability with LITENING II Targeting Pods. Sources: NAVAIR AV-8B Litening II |
Timeline
AV-8B Harrier II Key Events
AV-8B proposed
McDonnell Douglas proposed the AV-8B as a new advanced vectored-thrust V/STOL light attack aircraft.
Sources: Boeing Last AV-8B Harrier Jet
YAV-8B first flight
The YAV-8B prototype flew for the first time, beginning the AV-8B Harrier II program.
Sources: Boeing Last AV-8B Harrier Jet
First operational AV-8B squadron
VMA-331 became the Marine Corps' first operational AV-8B squadron.
Sources: USMC VMA-223 Harrier Sundown
Harrier II Plus first flight
The AV-8B Harrier II Plus first flew as a U.S., Spanish, and Italian radar/avionics upgrade effort.
Sources: Boeing Last AV-8B Harrier Jet
Production ended
Production ended with delivery of the last AV-8B to Spain; Boeing counts 340 delivered aircraft including attack jets, trainers, and prototypes.
Sources: Boeing Last AV-8B Harrier Jet
Marine Corps Harrier sundown
The Marine Corps held the official AV-8B sundown ceremony at MCAS Cherry Point as VMA-223 concluded final Harrier operations.
Sources: USMC AV-8B Harrier Sundown Ceremony, USMC VMA-223 Harrier Sundown
Media

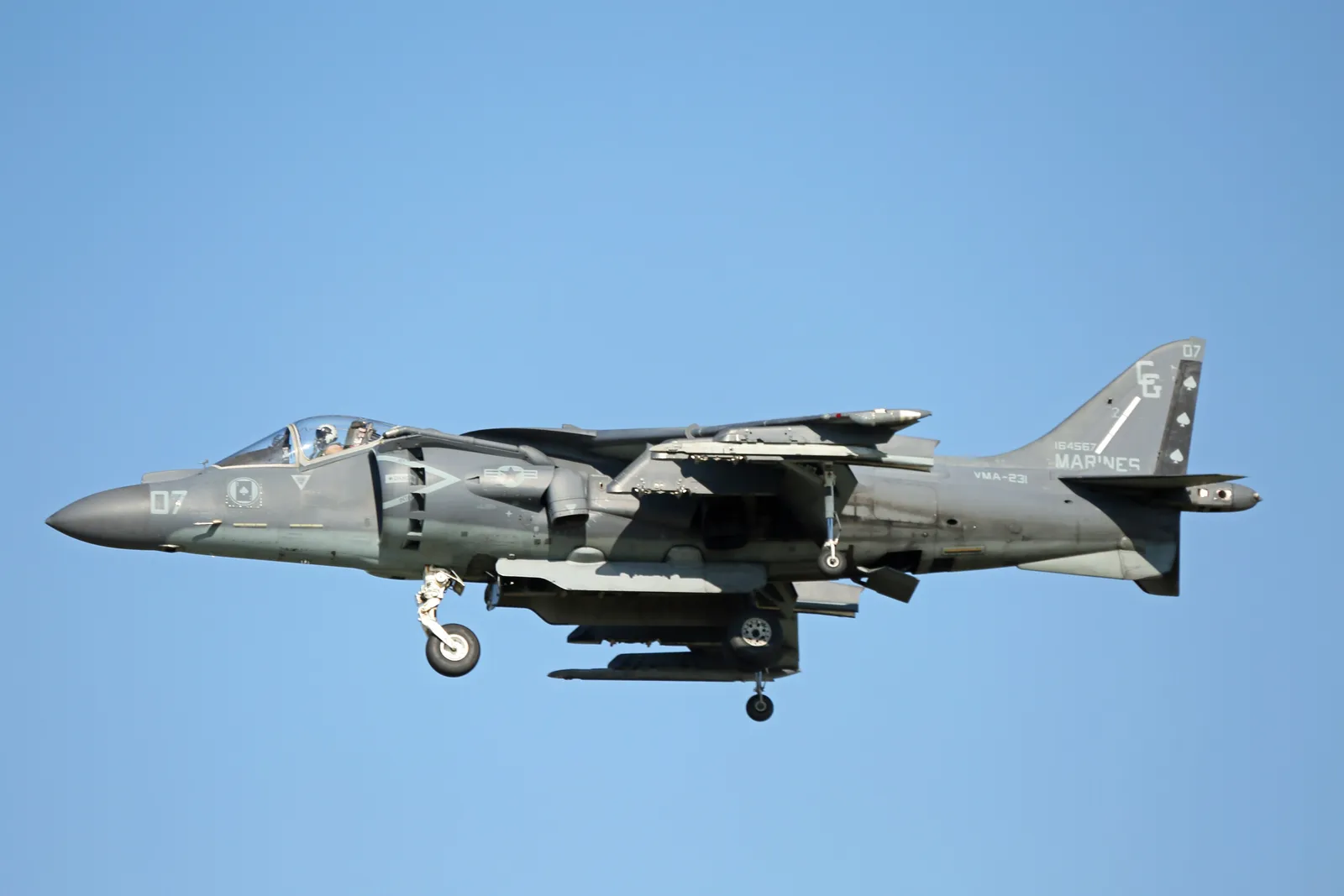

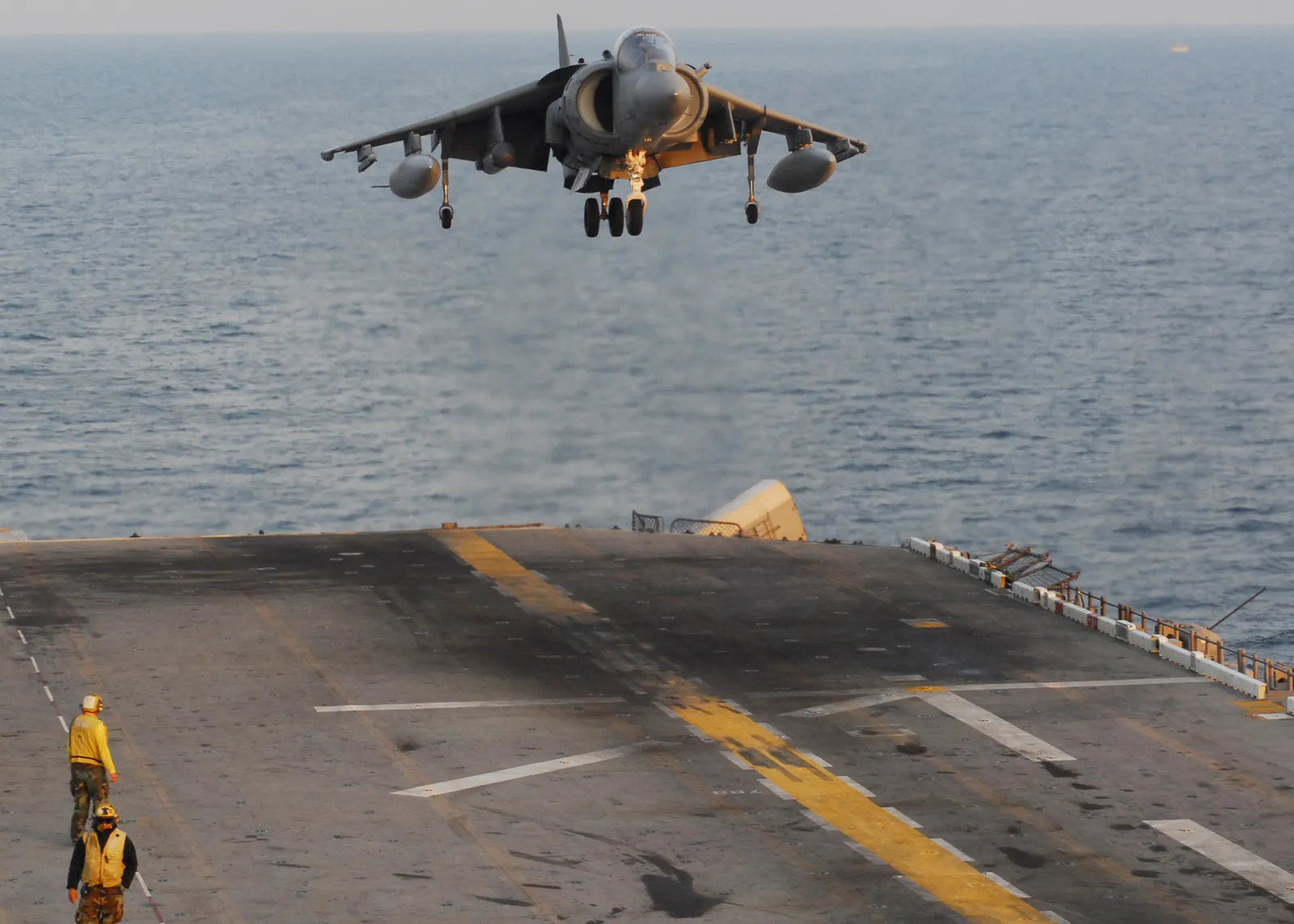

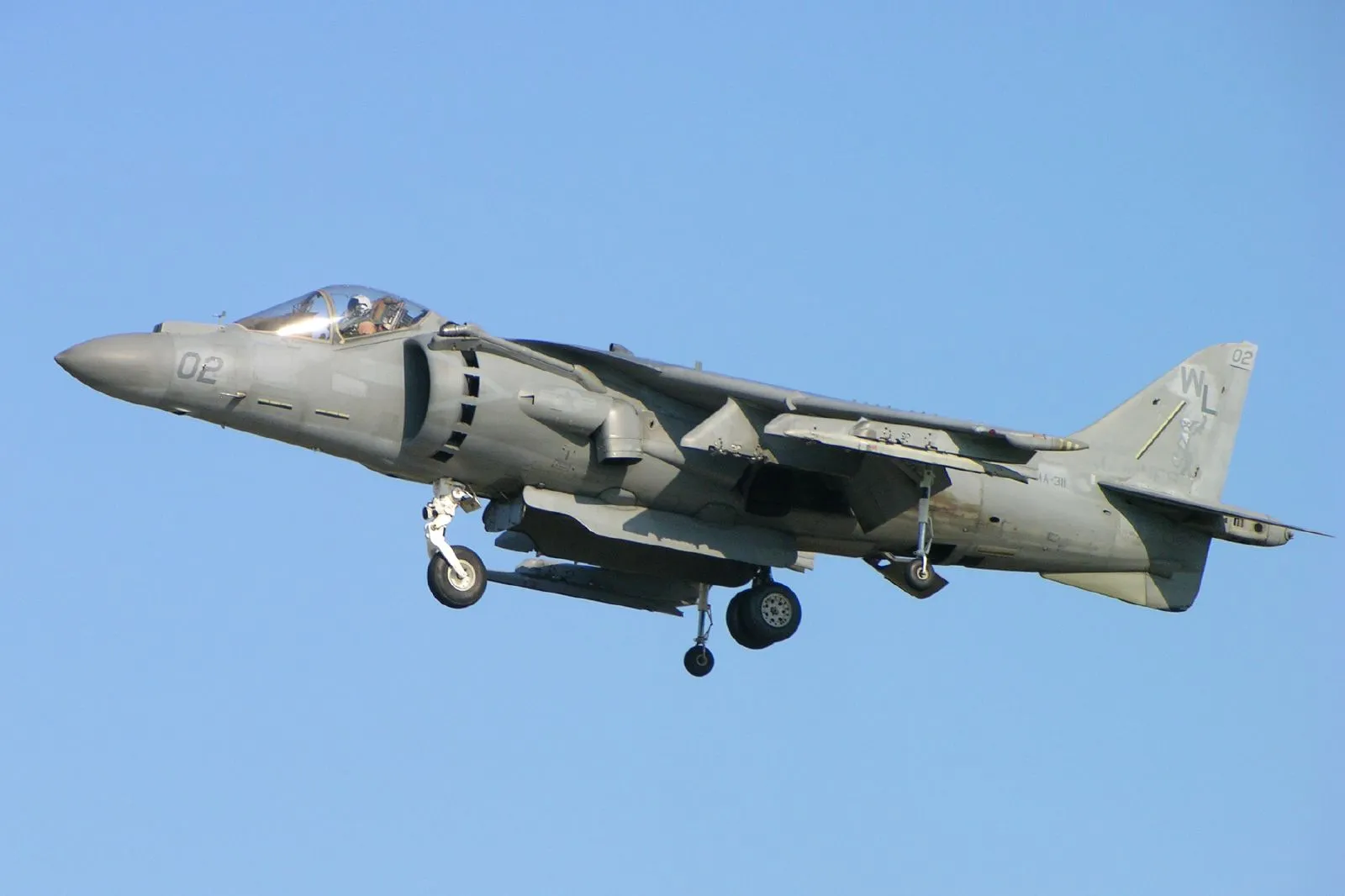

AV-8B Harrier II Images
