Aircraft & UAVs

A-4 Skyhawk

Also known as
  • A4D
  • A4D Skyhawk
  • Douglas A-4
  • Douglas A-4 Skyhawk
  • Skyhawk
  • Ayit

The Douglas A-4 Skyhawk is a compact United States carrier-based attack aircraft designed by Ed Heinemann for the Navy and Marine Corps. Built by Douglas and later McDonnell Douglas, it became a long-lived light-attack platform with documented combat use in Vietnam, the Middle East, the Falklands, East Timor, and the 1990 Gulf War.

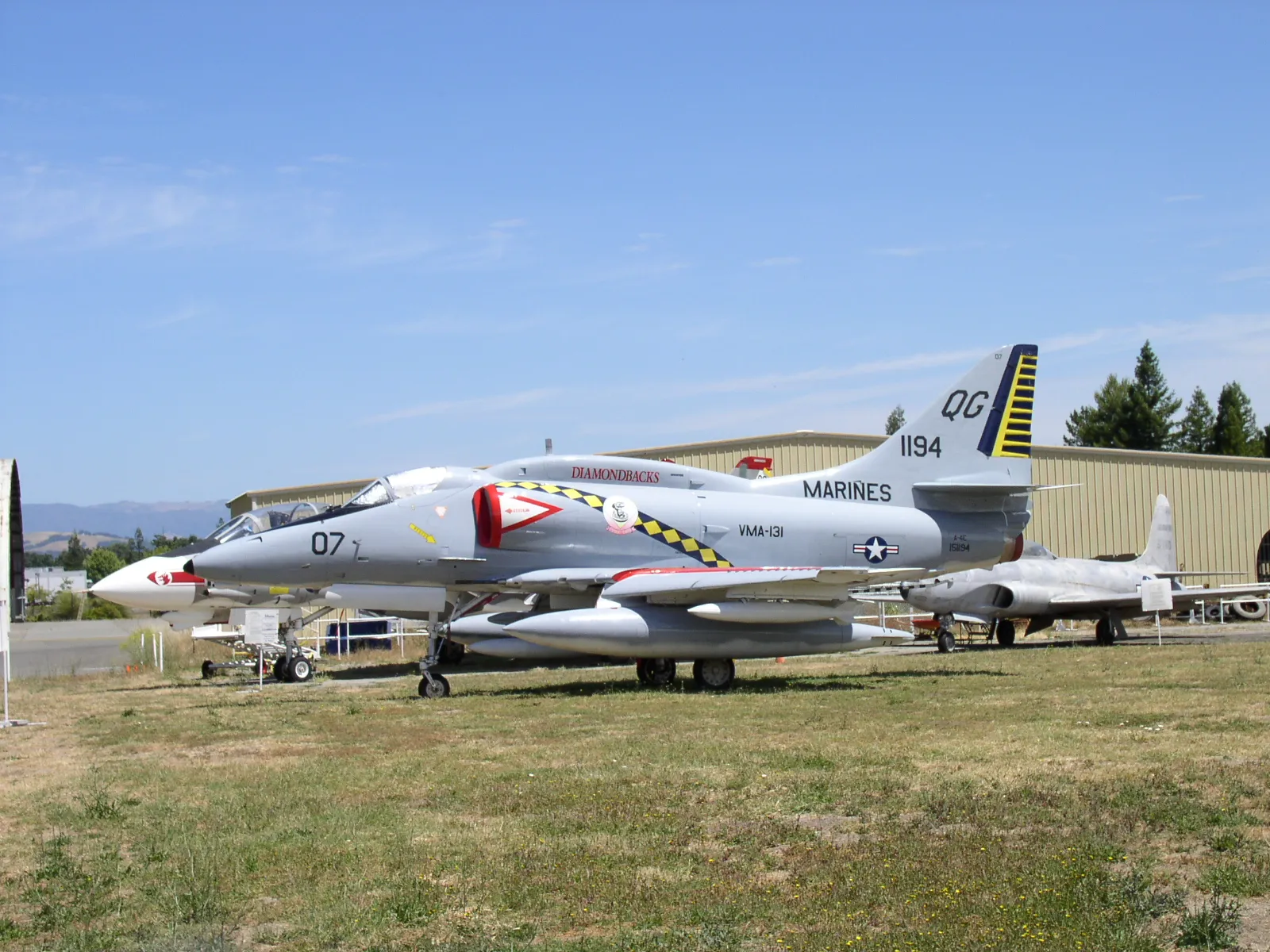

A-4 Skyhawk, Carrier-based light attack aircraft, Aircraft & UAVs
Image source: File:A-4E Skyhawk.jpg | Wikimedia Commons

Role in Conflicts

1982 Lebanon War
Fire Support
Side
Israel

Israeli A-4 Skyhawks flew strike missions during the opening day of the 1982 Lebanon War; one was reported shot down over Lebanon on 6 June 1982.

Profile / Specs

Profile

Origin
United States
Type
Carrier-based light attack aircraft
Service note
Cold War and long-lived export service
Designer
Ed Heinemann
Designed
First flight on 22 June 1954; introduced to operational service on 1 October 1956
Unit cost
About $860,000 average for the first 500 production aircraft
Produced
1954-1979
Number built
2,960

Specifications

Crew
One
Length
40 ft 1 1/2 in
Wingspan
27 ft 6 in
Height
15 ft 2 in
Empty weight
9,853 lb
Gross weight
24,500 lb
Power plant
One 8,500 lb.-thrust turbojet
Maximum speed
673 mph at sea level
Service ceiling
33,800 ft
Range
2,525 miles
Armament
Two 20 mm cannon and up to 8,200 lb. of ordnance
Variants

The Skyhawk family spans the original U.S. Navy A4D/A-4 attack-aircraft sequence, Marine Corps and trainer models, and export rebuilds for Israel, Kuwait, Singapore, and other operators.

VariantConfigurationDesignation notes
A-4AInitial production variant

The A4D-1 was redesignated A-4A under the 1962 U.S. aircraft designation system.

Sources: A-4 Skyhawk Production History | The Skyhawk Association

A-4EJ52-powered production variant

The A4D-5/A-4E added the Pratt & Whitney J52 engine, two additional wing stations, increased airframe strength, and navigation and bombing-system upgrades.

Sources: A-4 Skyhawk Production History | The Skyhawk Association

A-4FRefined U.S. Navy attack variant

The A-4F was similar to the A-4E but added nose-wheel steering, wing lift spoilers, and an upgraded Escapac ejection seat.

Sources: A-4 Skyhawk Production History | The Skyhawk Association

A-4MU.S. Marine Corps Skyhawk II

The A-4M was built for Marine Corps use with the J52-P408 engine, a larger canopy, drag chute, IFF changes, and later avionics and weapons-delivery improvements.

Sources: A-4 Skyhawk Production History | The Skyhawk Association

A-4NIsraeli A-4M-derived variant

Israel received A-4N aircraft based on the A-4M, with the J52-P408 engine, 30 mm cannon fit, head-up display, and defensive-system changes.

Sources: A-4 Skyhawk Production History | The Skyhawk Association

TA-4JTwo-seat trainer

The TA-4J trainer removed the TA-4F tactical weapons system and aerial-tanker components and used the J52-P6 engine.

Sources: A-4 Skyhawk Production History | The Skyhawk Association

A-4KUKuwaiti single-seat export variant

The A-4KU was an A-4M variant tailored for Kuwait and later sold on to Brazil as the AF-1.

Sources: A-4 Skyhawk Production History | The Skyhawk Association

A-4SUSingapore Super Skyhawk upgrade

Singapore A-4S airframes were later upgraded under the A-4SU designation.

Sources: A-4 Skyhawk Production History | The Skyhawk Association

Carried Munitions

The Skyhawk ordnance page identifies Bullpup, Shrike, and Walleye among the A-4's smart weapons and lists multiple A-4 variants provisioned for them.

Carried itemItem typeCarriage evidence
AGM-12 Bullpup, Air-to-surface guided missile, MunitionsAGM-12 BullpupAir-to-surface guided missile

The Skyhawk ordnance page identifies AGM-12 Bullpup as part of the A-4 smart-weapon set and notes the Bullpup-capable variants.

Sources: Skyhawk Ordnance | The Skyhawk Association

AGM-45 Shrike, Air-to-surface anti-radiation missile, MunitionsAGM-45 ShrikeAir-to-surface anti-radiation missile

The Skyhawk ordnance page lists AGM-45 Shrike among the A-4's smart weapons and names A-4C/E/F/K/L/M/N and TA-4F/J/K as Shrike-capable variants.

Sources: Skyhawk Ordnance | The Skyhawk Association

AGM-62 Walleye, TV-guided glide bomb family, MunitionsAGM-62 WalleyeTV-guided glide bomb

The Skyhawk ordnance page lists AGM-62 Walleye among the A-4's smart weapons and names Walleye-provisioned A-4 variants.

Sources: Skyhawk Ordnance | The Skyhawk Association

Carried Rocket Pods

The Skyhawk ordnance page lists LAU-series rocket pods and Zuni pods among the A-4's dumb weapons.

Carried itemItem typeCarriage evidence
LAU-series rocket pod, Aircraft rocket pod family, MunitionsLAU-series rocket podReusable aircraft rocket pod family

The Skyhawk ordnance page lists LAU-series rocket pods and Zuni pods among the A-4's dumb weapons.

Sources: Skyhawk Ordnance | The Skyhawk Association

Carried Bombs

Public-domain U.S. Marine Corps photography and the Skyhawk ordnance page document Mark 81 and Mk 82 bomb carriage.

Carried itemItem typeCarriage evidence
Mark 81 bomb, 250-pound general-purpose bomb, MunitionsMark 81 bomb250-pound unguided bomb

The photo caption identifies three Mark 81 general-purpose bombs aboard a Douglas A-4F Skyhawk aircraft from Marine Attack Squadron 133 at Naval Air Station Fallon in 1982.

Sources: Mark 81 bombs.jpg | Wikimedia Commons

Mk 82 500-pound unguided bomb, Air-delivered 500-pound low-drag general-purpose bomb, MunitionsMk 82 500-pound unguided bomb500-pound low-drag bomb

The Skyhawk ordnance page shows Mk-82 bombs ready for loading aboard VA-144 Roadrunner Skyhawks and lists Mk-82 among the A-4's bomb options.

Sources: Skyhawk Ordnance | The Skyhawk Association

Carried Missiles
Carried itemItem typeCarriage evidence
AIM-9 Sidewinder missile, Short-range air-to-air missile family, MunitionsAIM-9 Sidewinder missileShort-range air-to-air missile

The Skyhawk ordnance page lists Sidewinder among the A-4's factory-installed weapon provisions for multiple Skyhawk variants.

Sources: Skyhawk Ordnance | The Skyhawk Association

AGM-65 Maverick, Air-to-surface guided missile, MunitionsAGM-65 MaverickAir-to-surface guided missile

The Skyhawk ordnance page lists AGM-65 Maverick among the A-4's smart weapons.

Sources: Skyhawk Ordnance | The Skyhawk Association

Timeline

A-4 Skyhawk Key Events

  1. First flight

    The XA4D-1 prototype first flew on 22 June 1954.

  2. Operational introduction

    The Skyhawk entered operational service on 1 October 1956.

  3. 1955 Vietnam War first strikes

    Official Navy history says A-4s participated in the first strikes of the 1955 Vietnam War after attacks against American destroyers in the Tonkin Gulf.

  4. 1973 Yom Kippur War

    Israeli Air Force history says the A-4 was the main attack plane during the 1973 Yom Kippur War and flew about 1,000 operational sorties on the southern front.

Media

A-4 Skyhawk Videos

A-4 Skyhawk Images

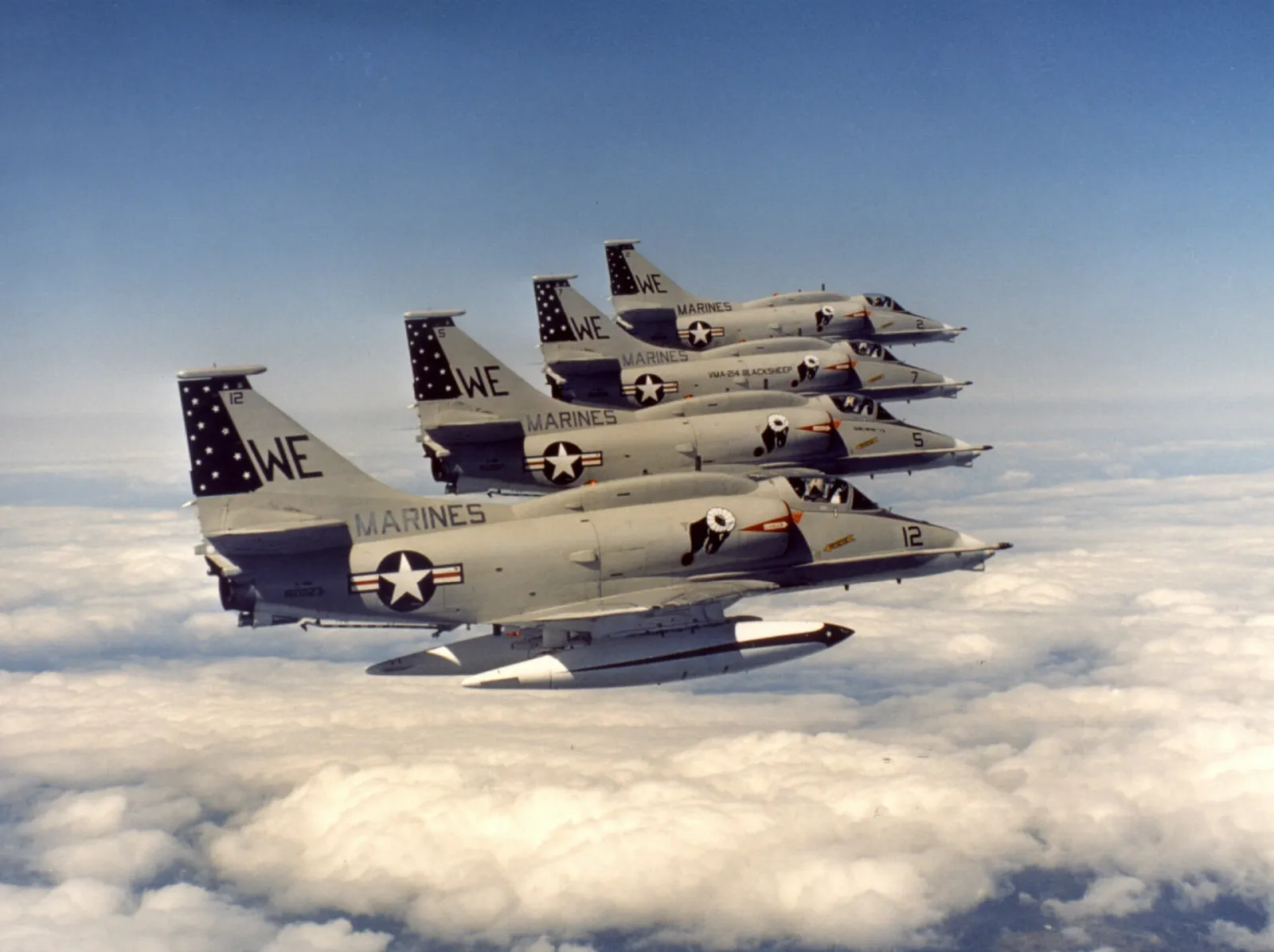

A-4 Skyhawk, Carrier-based light attack aircraft, Aircraft & UAVs - view 1
Source: File:A-4M Skyhawks of VMA-214 in flight in the 1970s.jpg | Wikimedia Commons

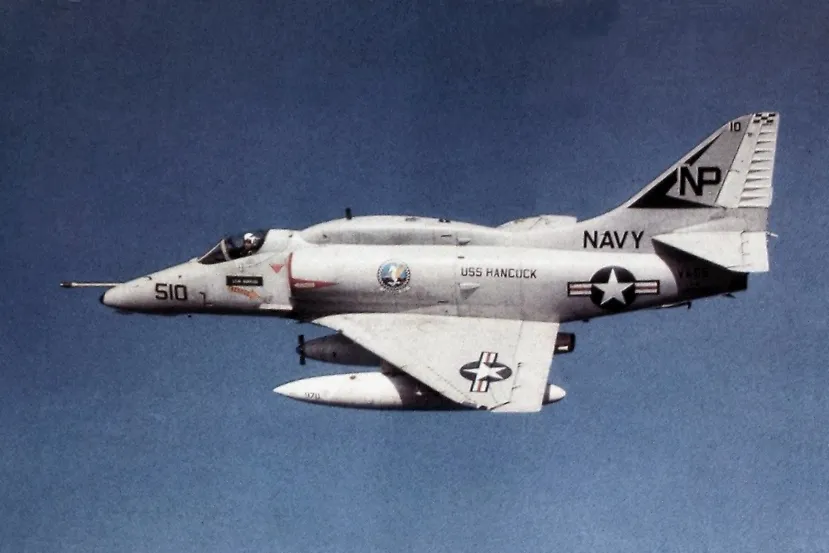

A-4 Skyhawk, Carrier-based light attack aircraft, Aircraft & UAVs - view 2
