U.S. Air Force reporting documented the first Afghan-theater GBU-54 combat drop by F-16 airmen operating from Bagram Airfield in October 2010, and DVIDS later reported Marine F/A-18 Hornet combat employment of the weapon in Afghanistan.
Role detailsMunitions
GBU-54 Laser Joint Direct Attack Munition
Also known as
- Laser JDAM
- LJDAM
- GBU-54/B
- GBU-54 LJDAM
- GBU-54 Laser JDAM
The GBU-54 Laser Joint Direct Attack Munition is Boeing's 500-pound JDAM variant with a DSU-38 laser seeker, combining GPS/INS navigation with terminal laser guidance for moving or relocatable targets. U.S. military and specialist reporting document combat use by F-16s in Iraq and Afghanistan, AV-8B Harriers during Operation Odyssey Lightning in Libya, and Israeli F-16s over Gaza.
Role in Conflicts
U.S. Air Forces Central said F-16s made the first GBU-54 combat employment in Iraq on 12 August 2008, using Laser JDAMs against a moving enemy vehicle.
Role details- Side
- United States and Libyan Government of National Accord

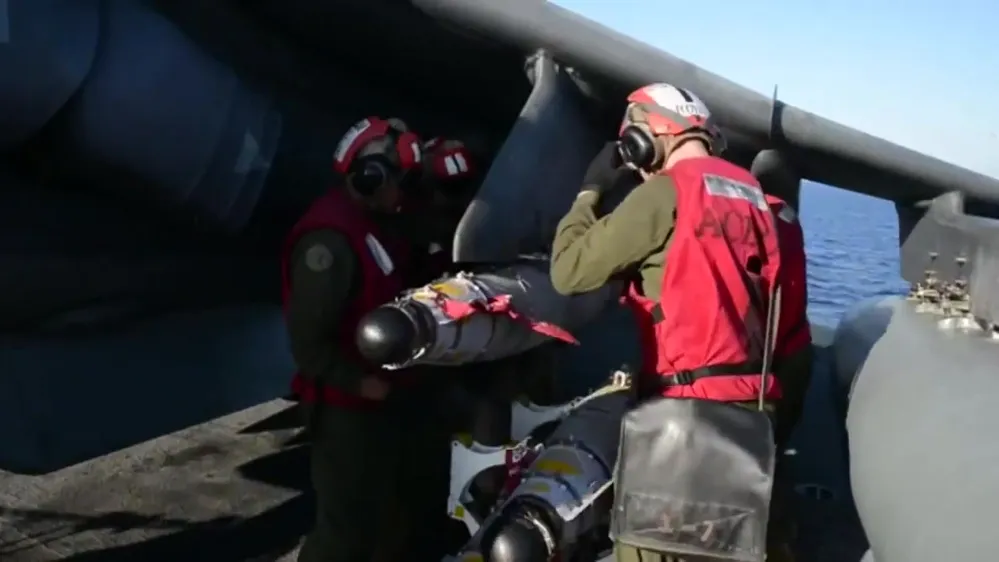

DVIDS documented U.S. Marines loading a GBU-54 onto an AV-8B Harrier aboard USS Wasp on 1 August 2016 for Operation Odyssey Lightning strikes against Daesh targets in Sirte, Libya.
- Side
- Israel
The Aviationist reported GBU-54 Laser JDAM configurations on Israeli Air Force F-16 strike sorties over Gaza during the 2023 Israel-Hamas War.
Role detailsCombat Use Milestones
Publicly documented GBU-54 combat-use reporting clusters around U.S. and allied aircraft using the weapon where laser terminal guidance helped with moving, relocatable, or closely controlled targets.
| Date | Conflict | Documented aircraft and use |
|---|---|---|
| 2008-08-12 | 2003 Iraq War | U.S. Air Forces Central reported F-16 first combat employment against a moving enemy vehicle. |
| 2010-10-01 | 2001 War in Afghanistan | Air Force reporting documented an Afghan-theater drop from Bagram, while DVIDS later reported Marine F/A-18 Hornet combat employment in Afghanistan. |
| 2016-08-01 | 2016 U.S. Campaign Against ISIS in Libya | DVIDS documented Marines loading a GBU-54 onto an AV-8B aboard USS Wasp for Operation Odyssey Lightning strikes around Sirte. |
| 2023-10-12 | 2023 Israel-Hamas War | The Aviationist reported GBU-54 Laser JDAM configurations on Israeli F-16 strike sorties over Gaza. |
Profile / Specs
Profile
- Origin
- United States
- Built by
- Boeing
- Type
- 500-pound dual-mode guided bomb
- Service note
- 2000s-present
- Designer
- Boeing
- Designed
- 2000s
- Unit cost
- Approximately $24,164 per bomb
- Produced
- 2000s-present
- Number built
- Not publicly disclosed
Specifications
- Warhead
- 500 lb bomb body such as Mk 82 or BLU-111
- Weight
- 575 lb (USAF) or 591 lb (USN)
- Length
- 93.7 in (2.38 m)
- Diameter
- 17 in (43 cm)
- Guidance
- GPS/INS with DSU-38 laser terminal seeker
- Target set
- Moving or relocatable targets
- Range
- Glides up to 15 miles (24 km)
Variants
GBU-54 is the 500-pound Laser JDAM member, pairing the GBU-38/Mk 82 weight class with the Laser JDAM seeker concept while remaining in the broader JDAM family.
| Variant | Configuration | Designation notes |
|---|---|---|
 | 500-pound GPS/INS JDAM baseline | GBU-54 adds Laser JDAM terminal guidance to the 500-pound GBU-38 JDAM class rather than replacing the GPS/INS tailkit concept. Sources: Boeing Laser JDAM product card, Designation Systems JDAM page |
 | 1,000-pound Laser JDAM family member | Designation references place GBU-55 as the adjacent 1,000-pound Laser JDAM designation between the 500-pound GBU-54 and 2,000-pound GBU-56 classes. Sources: Designation Systems JDAM page |
 | 2,000-pound Laser JDAM family member | GBU-56 applies the Laser JDAM guidance concept to the 2,000-pound Mk 84 class, making it the heavier same-family counterpart to GBU-54. Sources: Boeing Laser JDAM product card, Designation Systems JDAM page |
Carrier Aircraft
The B-1B Lancer is documented as carrying GBU-54 Laser JDAMs. The AV-8B Harrier II is documented as carrying and loading the GBU-54 for operational strikes. Public reporting and test coverage show the GBU-54 on multiple fighter types, including wartime F-16 and F/A-18 employment and an F-35C test release.
| Carrier | Carrier type | Carriage evidence |
|---|---|---|
 | Multirole fighter aircraft | Boeing's Advanced F-15 weapons inventory lists GBU-54 Mk-82 Laser JDAM among the aircraft's external carriage options. Sources: Advanced F-15 Weapons Inventory |
 | Long-range bomber | The Air Force B-1B fact sheet lists GBU-54 Laser Joint Direct Attack Munitions in the bomber's carried precision-attack load. Sources: B-1B Lancer GBU-54 load |
 | Fighter aircraft | The Air Force said the first combat employment of the GBU-54 happened on F-16s in Iraq in 2008, and The Aviationist later reported GBU-54 Laser JDAM configurations on Israeli F-16s over Gaza. Sources: Air Force employs first combat use of laser joint direct attack munition in Iraq, The Aviationist IAF aircraft in the fight against Hamas |
 | Carrier-capable multirole strike fighter | DVIDS reported that Marine Fighter Attack Squadron 122 became the first Marine F/A-18 Hornet squadron to employ the GBU-54 Laser JDAM in combat while deployed in Afghanistan. Sources: Werewolves serve as guardians to ground forces in Afghanistan |
 | Fighter aircraft | AFOTEC reported the first dual, external release of a GBU-54 Laser Joint Direct Attack Munition from an F-35C in 2025. |
 | Close air support attack aircraft | Air Force Materiel Command reported an A-10C made the first ever drop of a GBU-54 Laser Joint Direct Attack Munition from an A-10. |
 | V/STOL attack aircraft | The AV-8B PDF fact file lists GBU-54 among the Harrier's air-to-ground weapons, and DVIDS documented Marines loading a GBU-54 onto an AV-8B aboard USS Wasp during Operation Odyssey Lightning. Sources: NHHC AV-8B PDF Fact File, DVIDS Marines load munitions for Operation Odyssey Lightning |
Design Notes
The GBU-54 sits between the coordinate-only JDAM and a traditional laser-guided bomb. Boeing and Navy descriptions show it as a 500-pound dual-mode weapon that adds laser terminal guidance to the JDAM tailkit.
| Topic | Reader note |
|---|---|
| Base weapon | Built around the JDAM conversion kit on a 500-pound bomb body. |

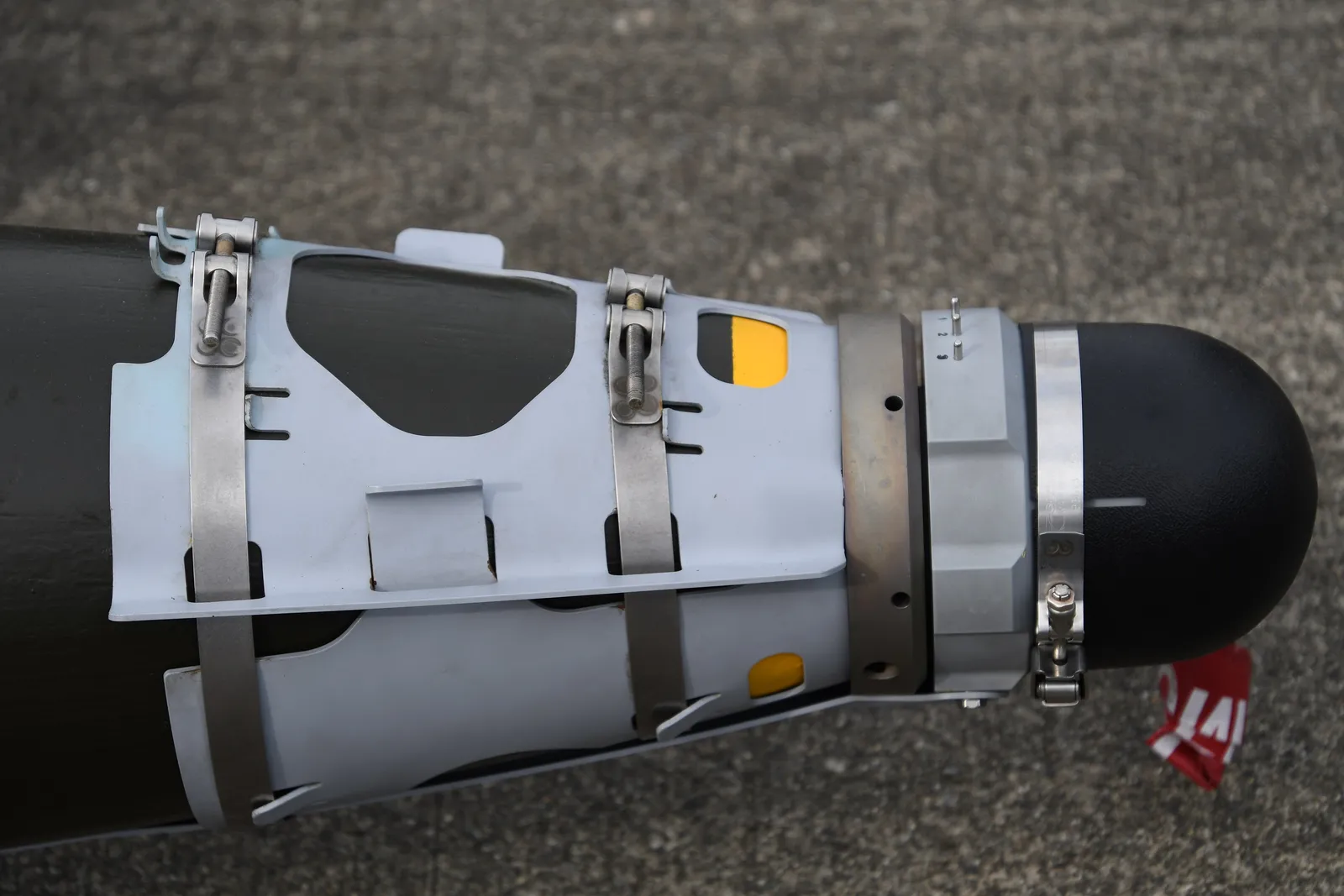

| Terminal guidance | The DSU-38 laser seeker gives it a moving-target option when coordinates alone are not enough. |
| IOC and cost | The Navy fact file says LJDAM reached IOC in FY2012 and lists a unit cost of about $24,164. |
| Family link |  |
Timeline
GBU-54 Laser Joint Direct Attack Munition Key Events
First combat use in Iraq
The Air Force said the GBU-54 was first employed in combat by F-16s against a moving enemy vehicle in Iraq on 12 August 2008.
Sources: Air Force employs first combat use of laser joint direct attack munition in Iraq
First Afghan-area combat drop
Airmen from the 510th Fighter Squadron used the GBU-54 at Bagram Airfield in the Afghan area of operations; DVIDS later reported Marine F/A-18 combat employment of the weapon in Afghanistan.
Sources: Airmen make impact with first GBU-54 combat drop in Afghanistan, Werewolves serve as guardians to ground forces in Afghanistan
LJDAM reaches IOC
The Navy fact file says LJDAM reached initial operational capability in fiscal year 2012.
Sources: Joint Direct Attack Munition (JDAM) - Navy
AV-8B loadout for Operation Odyssey Lightning
DVIDS documented Marines loading a GBU-54 onto an AV-8B Harrier aboard USS Wasp as U.S. forces conducted precision strikes against Daesh targets in Sirte, Libya.
Sources: DVIDS Marines load munitions for Operation Odyssey Lightning
Israeli F-16 loadouts reported with GBU-54s
The Aviationist reported GBU-54 Laser JDAM configurations on Israeli Air Force F-16 strike sorties over Gaza.
Sources: The Aviationist IAF aircraft in the fight against Hamas
F-35 dual external release
AFOTEC reported the first dual, external GBU-54 release from an F-35C.
Sources: UOTT Conducts First Dual, External GBU-54 Release
