GBU-56 Mk-84 Laser JDAM

Also known as
  • GBU-56 Laser JDAM
  • GBU-56 Laser Joint Direct Attack Munition
  • GBU-56 LJDAM
  • GBU-56(V)/B
  • Mk-84 Laser JDAM
  • 2,000-pound Laser JDAM

The GBU-56 Mk-84 Laser JDAM is Boeing's 2,000-pound Laser JDAM configuration for the Mk 84 and related 2,000-pound bomb bodies. It combines JDAM GPS/INS guidance with a laser terminal seeker for moving, relocatable, and maritime targets, while public Air Force and Navy material places it in training, production, and Navy penetrator-replacement context rather than directly documented conflict use.

GBU-56 Mk-84 Laser JDAM, 2,000-pound laser-guided bomb, Munitions
Image source: DVIDS GBU-56 photo, image 1 of 2
Profile / Specs

Profile

Origin
United States
Built by
Boeing
Type
2,000-pound laser-guided bomb
Service note
2010s-present
Designer
Boeing

Specifications

Warhead
Mk 84 2,000-pound bomb body; Navy material also describes a BLU-109 penetrator application
Guidance
GPS/INS JDAM guidance with a laser terminal seeker
Weapon weight
2,120 lb for the U.S. Air Force configuration; 2,135 lb for the U.S. Navy configuration
Length
151.7 in (3.85 m)
Diameter
25.3 in (64.3 cm)
Range
Glides up to 15 miles (24 km)
Guidance section
KMU-556 guided bomb guidance section documented on GBU-56C assembly imagery
Target set
Moving, relocatable, and maritime targets
Laser seeker notes
Boeing's product card describes a DSU-38 laser sensor; later U.S. government sale notices describe DSU-42/B or DSU-40 laser-sensor configurations for GBU-56-related kits
Variants

Public sources describe GBU-56 as the 2,000-pound member of the Laser JDAM family, adjacent to smaller Laser JDAM and baseline JDAM configurations.

VariantConfigurationDesignation notes
GBU-54 Laser Joint Direct Attack Munition, 500-pound dual-mode guided bomb, MunitionsGBU-54 Laser Joint Direct Attack Munition500-pound Laser JDAM family member

Boeing describes the GBU-54 as the 500-pound Laser JDAM that preceded the 2,000-pound GBU-56 integration effort.

Sources: Boeing Laser JDAM product card

GBU-31 JDAM (Mk 84 / BLU-109), 2,000-pound GPS/INS-guided bomb configuration, MunitionsGBU-31 JDAM (Mk 84 / BLU-109)2,000-pound GPS/INS JDAM baseline

Federal Register sale notices describe DSU-40 or DSU-42 laser-sensor hardware as turning a standard GBU-31 JDAM into a GBU-56 Laser JDAM.

Sources: Federal Register UAE Laser JDAM upgrade notice

Carrier Aircraft

Public carrier evidence is strongest for F-15 carriage and F-15E test activity; the links here avoid treating general JDAM combat use as GBU-56 conflict use.

CarrierCarrier typeCarriage evidence
F-15 family fighter aircraft, Fighter aircraft family, Aircraft & UAVsF-15 family fighter aircraftMultirole fighter aircraft

Boeing's Advanced F-15 weapons inventory explicitly lists the GBU-56 Mk-84 Laser JDAM in the aircraft's external carriage matrix.

Sources: Advanced F-15 Weapons Inventory

F-15E Strike Eagle, Dual-role strike fighter, Aircraft & UAVsF-15E Strike EagleStrike fighter aircraft

DVIDS identified an F-15E Strike Eagle from the 422nd Test and Evaluation Squadron taxiing for an April 2023 GBU-56C test mission at Nellis Air Force Base.

Sources: DVIDS F-15E GBU-56C test mission

Design Notes

Boeing's Laser JDAM material frames the GBU-56 as the 2,000-pound member of the family, adding a laser terminal sensor to JDAM GPS/INS guidance for moving, relocatable, and maritime targets.

Base bomb

Mk 84 2,000-pound bomb body in Boeing's product-card specification, with Navy material also identifying a BLU-109 penetrator application.

Guidance

JDAM GPS/INS navigation with a laser terminal-seeker option for the final attack phase.

Sensor designations

Public sources do not use one uniform sensor designation: Boeing's product card names DSU-38, while later government sale and acquisition records name DSU-42/B and DSU-40 in GBU-56-related contexts.

Timeline

GBU-56 Mk-84 Laser JDAM Key Events

  1. Boeing announces first Mk 84 Laser JDAM flight tests

    Boeing reported that two inert 2,000-pound Mk 84 Laser JDAM weapons were released from an Air Force F-16 during the first flight tests at Eglin Air Force Base.

  2. Boeing product card describes 2,000-pound Laser JDAM integration

    Boeing's Laser JDAM product card described integration of the laser sensor onto the 2,000-pound Mk 84 JDAM, to become the GBU-56, as nearing completion.

  3. Selected Acquisition Report covers GBU-56 laser-sensor production

    The FY 2020 JDAM Selected Acquisition Report listed Navy-led Laser JDAM sensor procurement for GBU-54 and GBU-56 and noted Air Force GBU-56 test assets.

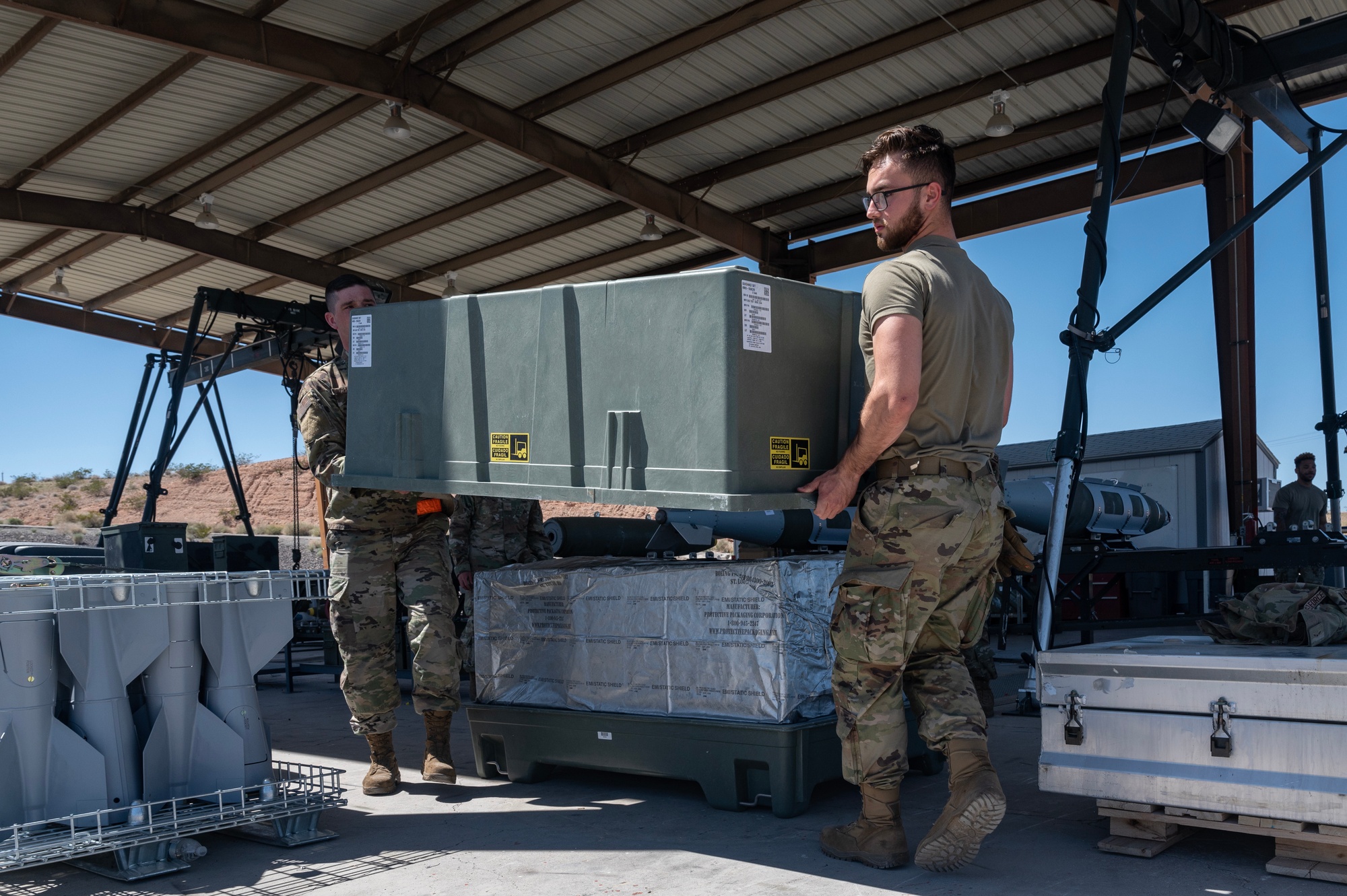

  4. 57th Munitions Squadron builds GBU-56C weapons at Nellis

    DVIDS imagery and video from Nellis Air Force Base documented 57th Munitions Squadron airmen assembling GBU-56C weapons for 422nd Test and Evaluation Squadron tasking.

  5. AFCOMAC class assembles GBU-56 bombs

    The Air Force reported that AFCOMAC class 24-004 at Beale Air Force Base was the first class tasked with assembling GBU-56 bombs under an updated munitions curriculum.

  6. Federal Register publishes UAE GBU-56V1 and GBU-56V3 upgrade notice

    The notice described GBU-56V1 Laser JDAMs with KMU-556 tail kits, DSU-40 sensors, and Mk 84 bombs, plus GBU-56V3 Laser JDAMs with KMU-557 tail kits, DSU-42 sensors, and BLU-109 bombs.

Media

GBU-56 Mk-84 Laser JDAM Images

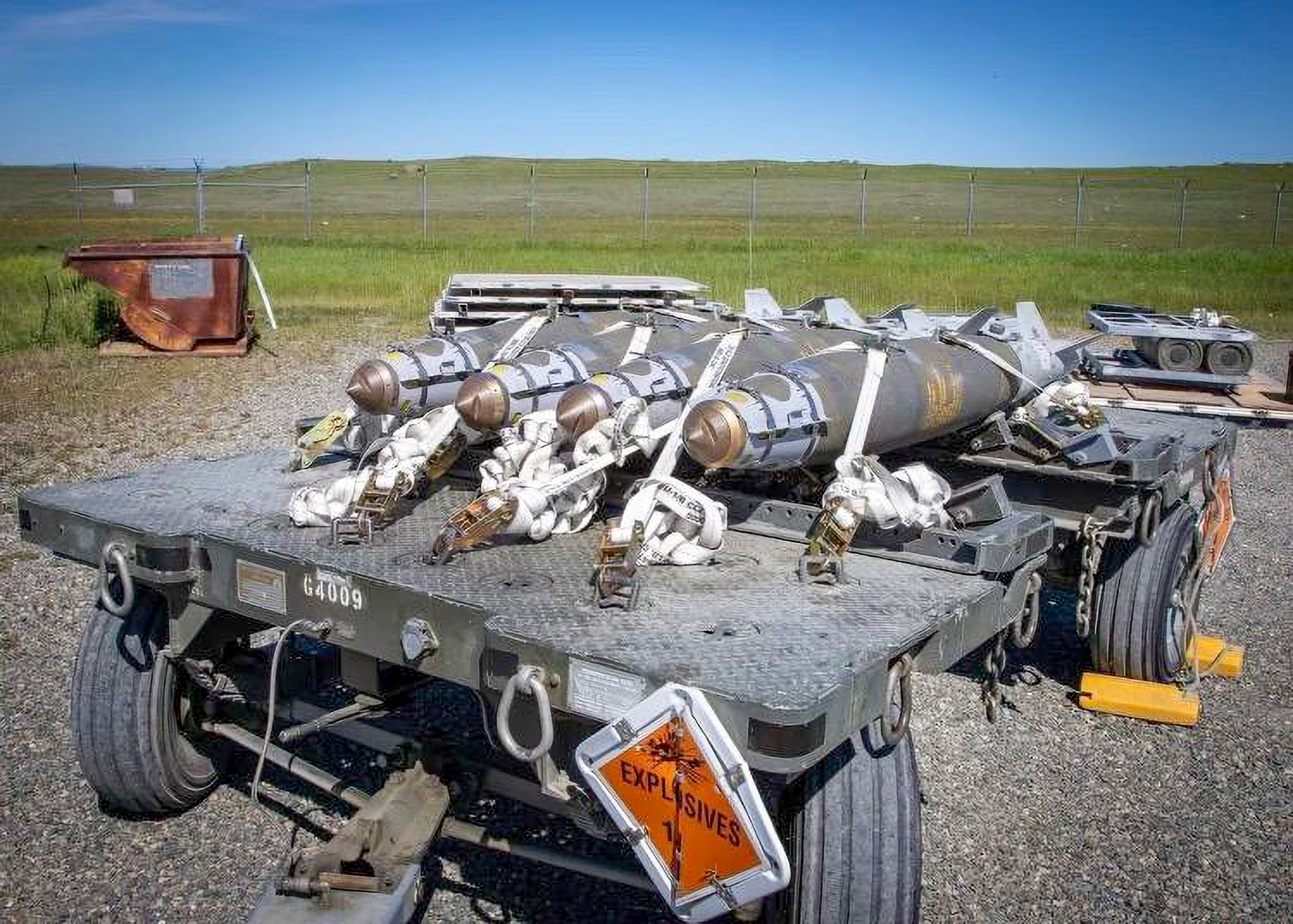

GBU-56 Mk-84 Laser JDAM, 2,000-pound laser-guided bomb, Munitions - view 1
Source: DVIDS GBU-56 photo, image 1 of 2

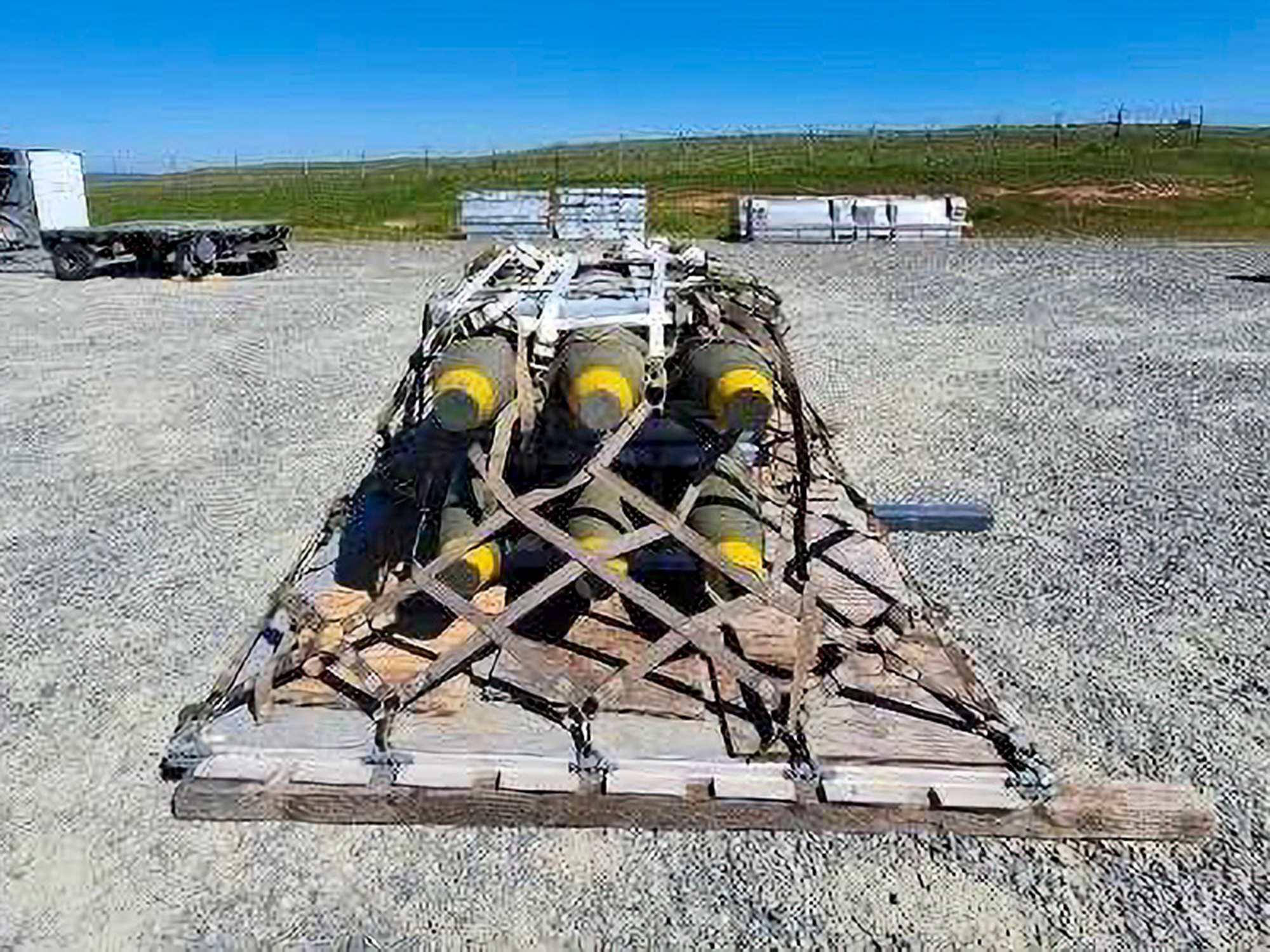

GBU-56 Mk-84 Laser JDAM, 2,000-pound laser-guided bomb, Munitions - view 2
Source: DVIDS GBU-56 photo, image 1 of 2
