GBU-31 JDAM (Mk 84 / BLU-109)

Also known as
  • GBU-31 JDAM
  • GBU-31 Mk-84, BLU-109 JDAM
  • GBU-31 2,000-pound JDAM
  • GBU-31 Mk 84 JDAM
  • GBU-31 BLU-109 JDAM
  • GBU-31 Mk-84 JDAM
  • KMU-556
  • KMU-557

The GBU-31 JDAM is the 2,000-pound Joint Direct Attack Munition configuration built around Boeing's GPS/INS tail kit and either a Mk 84-class general-purpose bomb body or a BLU-109 hard-target penetrator body. U.S. military and Federal Register sources distinguish the KMU-556 Mk 84 configuration from the KMU-557 BLU-109 configuration, while direct conflict-use reporting traces GBU-31/JDAM employment from Kosovo and Afghanistan to Iraq, Yemen, Operation Inherent Resolve, the Israel-Hamas war, and the 2025 Israel-Iran conflict.

GBU-31 JDAM (Mk 84 / BLU-109), 2,000-pound GPS/INS-guided bomb configuration, Munitions

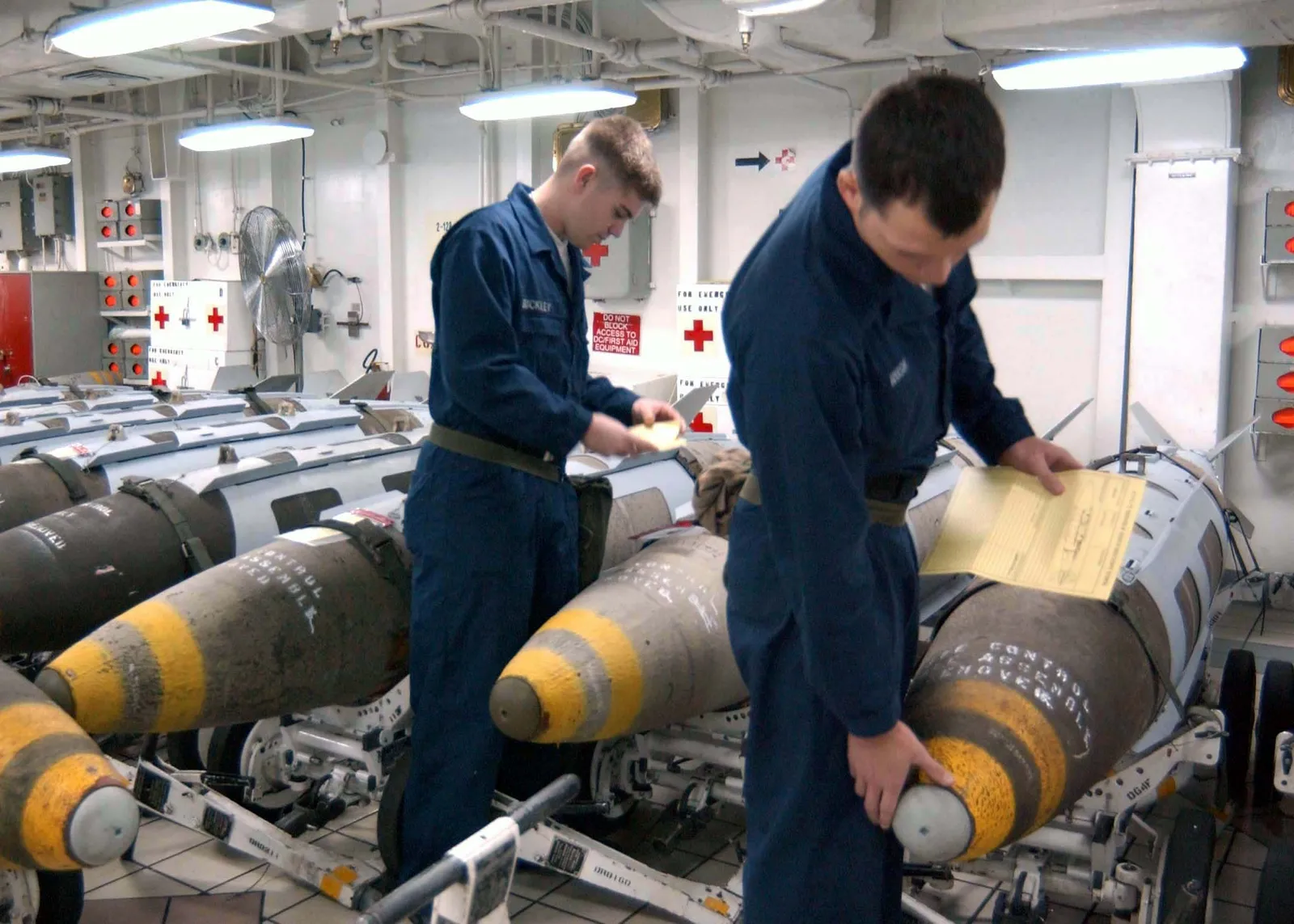

Image source: US Navy GBU-31 loading photo

Role in Conflicts

2025 Israel-Iran Conflict
Long-Range Strike
Side
Israel

During the 2025 Israel-Iran Conflict, OSMP's June 2025 collection included an Israeli air-delivered bomb entry dated June 13 and tentatively identified as BLU-109, GBU-31 JDAM, and JDAM kit.

Profile / Specs

Profile

Origin
United States
Built by
Boeing
Type
2,000-pound GPS/INS-guided bomb configuration
Service note
Late 1990s-present
Designer
U.S. Air Force, U.S. Navy, and Boeing predecessor McDonnell Douglas
Designed
JDAM development began in 1992.
Unit cost
About $22,000 per tail kit in fiscal 2007 dollars, excluding the bomb body.
Produced
Late 1990s-present

Specifications

Guidance
GPS-aided inertial navigation tail kit
Mk 84 configuration
KMU-556 tail kit for a 2,000-pound Mk 84-class GBU-31 bomb body
BLU-109 configuration
KMU-557 tail kit for a 2,000-pound BLU-109 GBU-31 penetrator bomb body
Payload class
2,000-pound GBU-31 JDAM family
Launch platforms
Fighter and bomber aircraft, including F-15-family carriage documented by Boeing
Accuracy
About 5 meters CEP or less in the most accurate GPS-aided mode
Range
Up to 15 miles
GBU-31(V)1/B dimensions
152.7 inches long, 2,036 pounds launch weight, 25-inch wingspan
GBU-31(V)3/B dimensions
148.6 inches long, 2,115 pounds launch weight, 25-inch wingspan
Delivery envelope
Low to high altitude release in dive, toss, loft, straight-and-level, on-axis, or off-axis delivery
Variants

GBU-31 is the 2,000-pound JDAM class. The Mk 84 general-purpose body and BLU-109 penetrator body are normally separated by the GBU-31(V)1/B and GBU-31(V)3/B designations.

VariantConfigurationDesignation notes
GBU-31(V)1 Joint Direct Attack Munition, 2,000-pound JDAM bomb, MunitionsGBU-31(V)1/BMk 84 / BLU-117 general-purpose bomb-body configuration

Federal Register source language identifies KMU-556 as the GBU-31 tail kit for a 2,000-pound Mk 84 bomb body; the Air Force fact sheet lists the GBU-31(V)1/B length and launch weight.

Sources: Federal Register JDAM Tail Kit Notice, Air Force JDAM Fact Sheet

GBU-31(V)3/B Joint Direct Attack Munition, 2,000-pound GPS/INS-guided hard-target penetrator bomb, MunitionsGBU-31(V)3/BBLU-109 hard-target penetrator configuration

Federal Register source language identifies KMU-557 as the GBU-31 tail kit for a 2,000-pound BLU-109 bomb body; Air Force and Navy fact sheets identify BLU-109 as a GBU-31/JDAM payload path.

Sources: Federal Register JDAM Tail Kit Notice, Air Force JDAM Fact Sheet, Navy JDAM Fact File

Bomb Body Configurations

GBU-31 designation language separates the 2,000-pound JDAM family into general-purpose and penetrator bomb-body paths.

Compatible itemItem typeCompatibility evidence
Mk 84 Mod 4 2,000-pound unguided bomb, 2,000-pound unguided general-purpose bomb, MunitionsMk 84 Mod 4 2,000-pound unguided bomb2,000-pound general-purpose bomb body

Federal Register source language describes KMU-556 as the JDAM tail kit for a 2,000-pound Mk 84 bomb-body GBU-31 configuration.

Sources: Federal Register JDAM Tail Kit Notice

BLU-109 penetrator warhead, 2,000-pound hard-target penetrator warhead, MunitionsBLU-109 penetrator warhead2,000-pound hard-target penetrator body

Federal Register source language identifies KMU-557 as the JDAM tail kit for a 2,000-pound BLU-109 GBU-31 configuration; the Navy fact file identifies BLU-109 as the 2,000-pound hard-target-penetrator payload used in JDAM.

Sources: Federal Register JDAM Tail Kit Notice, Navy JDAM Fact File

Carrier Aircraft

Official and manufacturer sources document GBU-31 or JDAM carriage across several fighter and bomber platforms; the F-15 matrix explicitly lists the Mk 84 and BLU-109 GBU-31 configuration, while NAVAIR and U.S. Air Force sources document F-35 and B-2 carriage examples.

CarrierCarrier typeCarriage evidence
F-15 family fighter aircraft, Fighter aircraft family, Aircraft & UAVsF-15 family fighter aircraftMultirole fighter family

Boeing's Advanced F-15 weapons inventory lists the GBU-31 Mk-84 and BLU-109 JDAM configuration in the F-15 external carriage matrix.

Sources: Advanced F-15 Weapons Inventory

F-15E Strike Eagle, Dual-role strike fighter, Aircraft & UAVsF-15E Strike EagleStrike fighter

The Air Force JDAM fact sheet lists F-15E integration for the GBU-31/32/38 JDAM family.

Sources: Air Force JDAM Fact Sheet

B-1B Lancer, Long-range, multi-role supersonic bomber, Aircraft & UAVsB-1B LancerLong-range bomber

The Air Force B-1B fact sheet lists GBU-31 2,000-pound JDAMs in the bomber's precision-attack ordnance load.

Sources: B-1B Lancer GBU-31 load

B-2 Spirit, Low-observable strategic heavy bomber, Aircraft & UAVsB-2 SpiritStealth bomber

U.S. Air Force video documentation shows airmen loading GBU-31 and GBU-38 Joint Direct Attack Munitions into B-2 Spirit aircraft for a QUICKSINK maritime test.

Sources: B-2 Spirit loads JDAMs for maritime test

F-35 Lightning II, Fifth-generation stealth multirole fighter, Aircraft & UAVsF-35 Lightning IIStealth multirole fighter

NAVAIR reported F-35C test aircraft CF-2 ejecting a 2,000-pound GBU-31 JDAM from an internal weapons bay during pit-drop testing and later carrying external 2,000-pound GBU-31 JDAMs during final SDD flight-test work.

Sources: F-35C GBU-31 Pit Drop Testing, F-35 SDD Final Flight

F-16 Fighting Falcon, Multirole fighter aircraft, Aircraft & UAVsF-16 Fighting FalconMultirole fighter

The Air Force JDAM fact sheet lists F-16C/D integration for the GBU-31/32/38 JDAM family.

Sources: Air Force JDAM Fact Sheet

F/A-18E/F Super Hornet, Carrier-capable multirole strike fighter, Aircraft & UAVsF/A-18E/F Super HornetCarrier-capable strike fighter

The Air Force JDAM fact sheet lists F/A-18E/F integration for the GBU-31/32/38 JDAM family.

Sources: Air Force JDAM Fact Sheet

Timeline

GBU-31 JDAM (Mk 84 / BLU-109) Key Events

  1. JDAM development begins

    Air Force background material traces JDAM development to 1992, when the program set out to turn unguided bomb bodies into GPS/INS-guided weapons.

  2. Operational service

    The Air Force places JDAM's first operational service in 1999, before the family became a standard U.S. precision-guided bomb kit.

  3. Combat debut over Kosovo

    Air Force reporting says B-2 Spirits released more than 650 JDAMs during Operation Allied Force, marking the weapon's first combat use.

  4. Iraq urgent operational testing

    Air Force Test Center history describes urgent GBU-31 JDAM testing after Block 30 F-16 pilots reported release problems during combat missions over Iraq.

  5. Afghanistan airpower reports

    AFCENT daily reporting documented F-15E and B-1B GBU-31 JDAM strikes in Afghanistan during Operation Enduring Freedom.

  6. Mastaba market strike

    Human Rights Watch reported GBU-31 JDAM remnants at the March 2016 Mastaba market strike in northern Yemen.

  7. Operation Inherent Resolve assembly

    AFCENT reporting showed GBU-31(V)3 bomb assembly in Southwest Asia and said GBU-31 munitions built there had been used to support Operation Inherent Resolve.

  8. Israeli wartime loadouts

    The Aviationist identified Israeli F-16C sorties with GBU-31(V)1 JDAMs during the Israel-Hamas war and later reported F-35I close-air-support use of 2,000-pound GBU-31 JDAMs in Gaza.

  9. OSMP records BLU-109 GBU-31 JDAM in Israel-Iran collection

    OSMP entry 1450, part of its June 2025 Iran-Israel conflict collection, lists an Israeli air-delivered bomb as BLU-109, GBU-31 JDAM, and JDAM kit.

  10. Tail-kit designations restated

    A Federal Register arms-sales notice described KMU-556 as the tail kit for a 2,000-pound Mk 84 GBU-31 and KMU-557 as the tail kit for a 2,000-pound BLU-109 GBU-31.

Media

GBU-31 JDAM (Mk 84 / BLU-109) Videos

GBU-31 JDAM (Mk 84 / BLU-109) Images

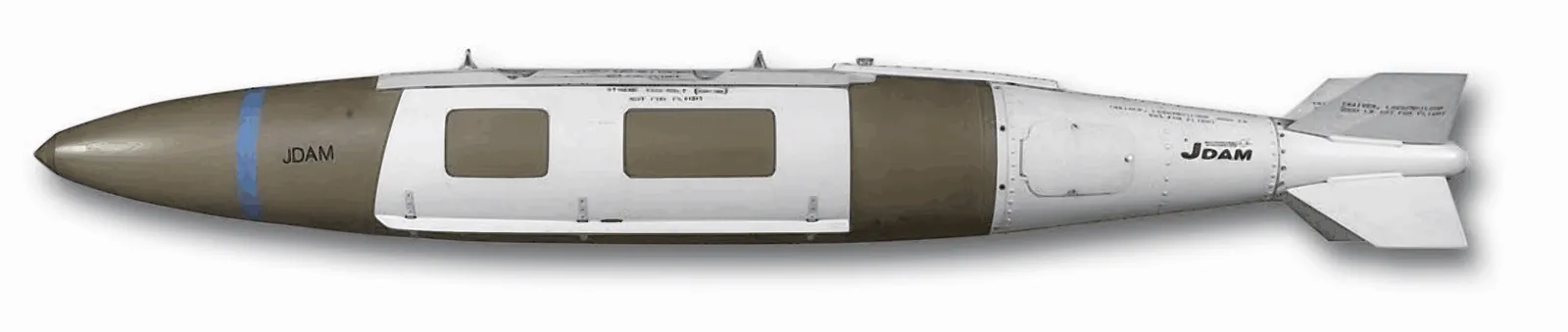

GBU-31 JDAM (Mk 84 / BLU-109), 2,000-pound GPS/INS-guided bomb configuration, Munitions - view 1
Source: GBU-31 JDAM SVG
GBU-31 JDAM (Mk 84 / BLU-109), 2,000-pound GPS/INS-guided bomb configuration, Munitions - view 2
Source: GBU-31 MK-84 warhead diagram
GBU-31 JDAM (Mk 84 / BLU-109), 2,000-pound GPS/INS-guided bomb configuration, Munitions - view 3
Source: GBU-31 BLU-109 warhead diagram
