MO-120 RT

Also known as
  • MO-120-RT
  • MO-120-RT61
  • MO-120 RT-61
  • MO 120 RT
  • 120 mm RT F1
  • RT F1
  • Mortier 120 mm raye tracte
  • Mortar 120mm F1

The MO-120 RT is a French 120 mm rifled towed heavy mortar developed by Brandt and later associated with TDA/Thales production. Its rifled barrel, two-wheel carriage, and rocket-assisted ammunition option give it longer range than many smoothbore infantry mortars, while keeping the system towable by light or medium vehicles. The family also appears through derivatives such as the U.S. Marine Corps M327 EFSS and Turkey's HY-12, giving the page conflict evidence from Ukraine, Mali, Afghanistan, Yemen, and Colombia.

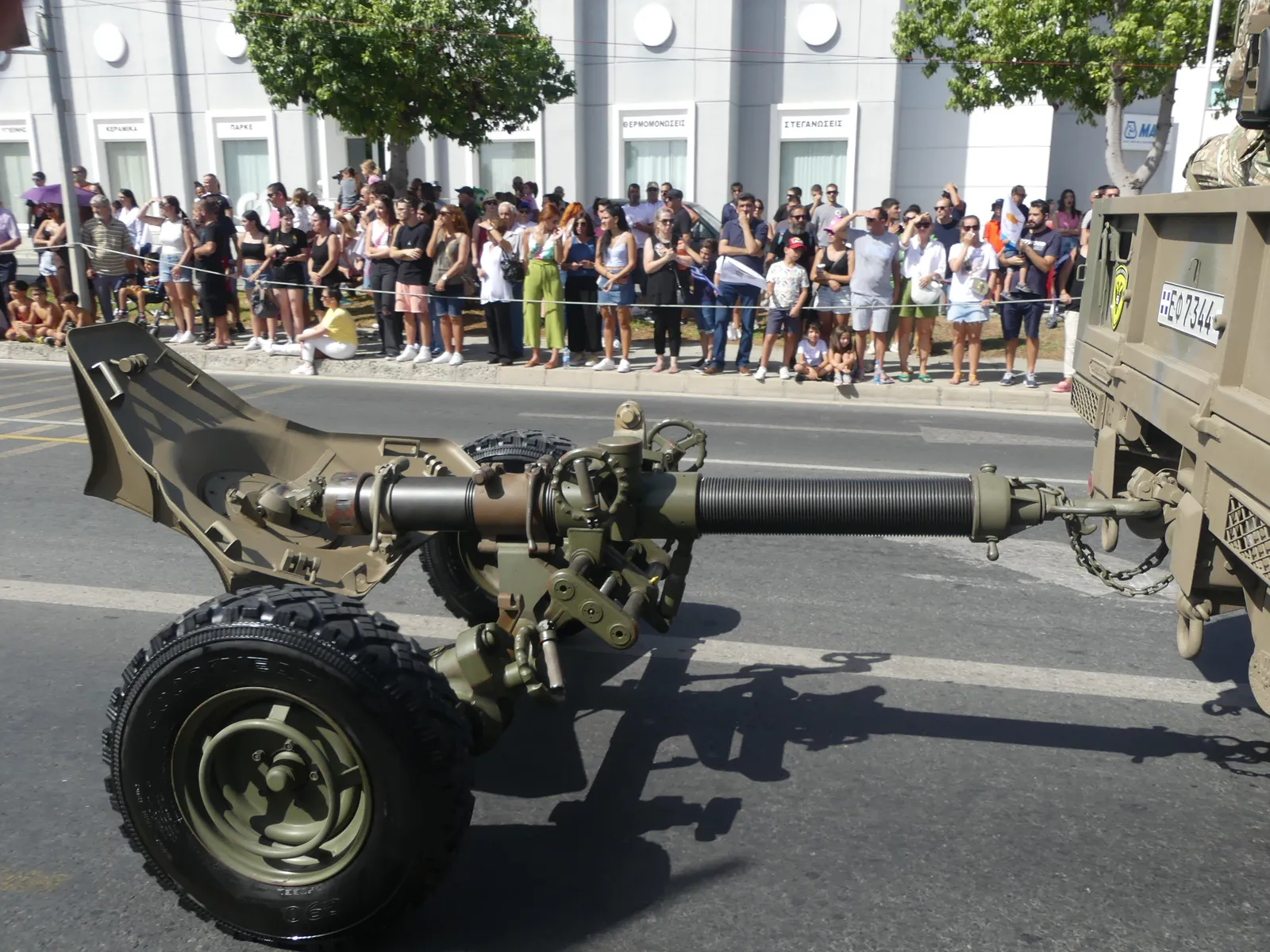

MO-120 RT, 120 mm rifled towed heavy mortar, Artillery
Image source: Mortar 120mm F1.jpg

Role in Conflicts

Family And Firing Package

The MO-120 RT page covers a rifled 120 mm mortar family rather than a single national inventory item. That matters because documented conflict use often names national packages or licensed derivatives.

DesignationDocumented packageReader context
MO-120-RT-61 / RT F1French rifled towed heavy mortarThe baseline system combines a rifled 120 mm barrel with a two-wheel towing carriage and conventional or rocket-assisted ammunition.
M327 EFSSU.S. Marine Corps expeditionary fire-support systemThe Marine Corps package wrapped the 120 mm RT mortar into a light expeditionary set with vehicle, trailer, fire-control, and ammunition components.
HY-12 TosamTurkish-derived 120 mm rifled mortarColombian service reporting connects HY-12 mortars to the MO-120 RT lineage and documents their use as infantry fire-support weapons.
Profile / Specs

Specifications

Caliber
120 mm rifled mortar
Length
3.01 m
Tube length
2.080 m
Weight
About 582 kg
Range
About 8.1 km with standard rounds; up to about 13 km with rocket-assisted rounds
Rate of fire
Up to 18 rounds per minute maximum; about 10 rounds per minute normal
Elevation
+30 to +85 degrees
Traverse
14 degrees
Mobility
Fixed two-wheel carriage for towing by light truck or dedicated mortar tractor
Variants

The catalog treats MO-120 RT as a family page because several conflict-use records involve close derivatives rather than only French-built RT F1 mortars.

VariantConfigurationDesignation notes
M327 EFSSU.S. expeditionary fire-support package

The Marine Corps Expeditionary Fire Support System paired a 120 mm RT rifled mortar with a light vehicle, trailer, fire-control, and ammunition package for expeditionary units.

Sources: EFSS Ammunition, 26th MEU EFSS First Combat Rounds

HY-12 TosamTurkish MO-120 RT-derived mortar

Infodefensa describes Colombia's HY-12 as a Turkish version of the French MO-120 RT, with Colombian service and upgrade context.

Sources: El Ejercito de Colombia evalua actualizar sus morteros HY-12, Colombia despliega sus morteros turcos HY-12 en acciones de fuego real

Timeline

MO-120 RT Key Events

  1. Brandt develops a rifled 120 mm mortar

    The French Brandt design created the rifled, towed heavy-mortar family later known through MO-120 RT and RT F1 designations.

    Sources: 120mm MO-120-RT

  2. French service and export baseline

    Reference sources place the MO-120 RT-61 in early-1960s service and describe continuing use with French and export operators.

    Sources: MO-120 RT-61 (MO-120-RT) French 120mm Heavy Mortar, 120mm MO-120-RT

  3. M327 EFSS fires combat rounds in Afghanistan

    U.S. Marine Corps reporting from Combat Outpost Ouellette documented the M327 EFSS firing in Afghanistan with 26th MEU mortar Marines.

    Sources: 26th MEU EFSS First Combat Rounds

  4. French MO 120 RT documented at Gossi

    ECPAD cataloged a 93e RAM MO 120 RT being put into battery at Gossi, Mali.

    Sources: Mise en batterie d'un mortier de 120 mm raye tracte MO 120 RT a Gossi

  5. Belgian mortars reach Ukraine

    Open-source reporting documented four Belgian MO-120 RT mortars supplied to Ukraine after Russia's full-scale invasion.

    Sources: (No Longer) A Show Of Shame - Belgian Weapons Deliveries To Ukraine

  6. Colombia deploys HY-12 mortars in live fire

    Infodefensa reported Colombian Army HY-12 fire-support actions during operations against Estado Mayor Central dissidents.

    Sources: Colombia despliega sus morteros turcos HY-12 en acciones de fuego real

Media

MO-120 RT Videos

MO-120 RT Images

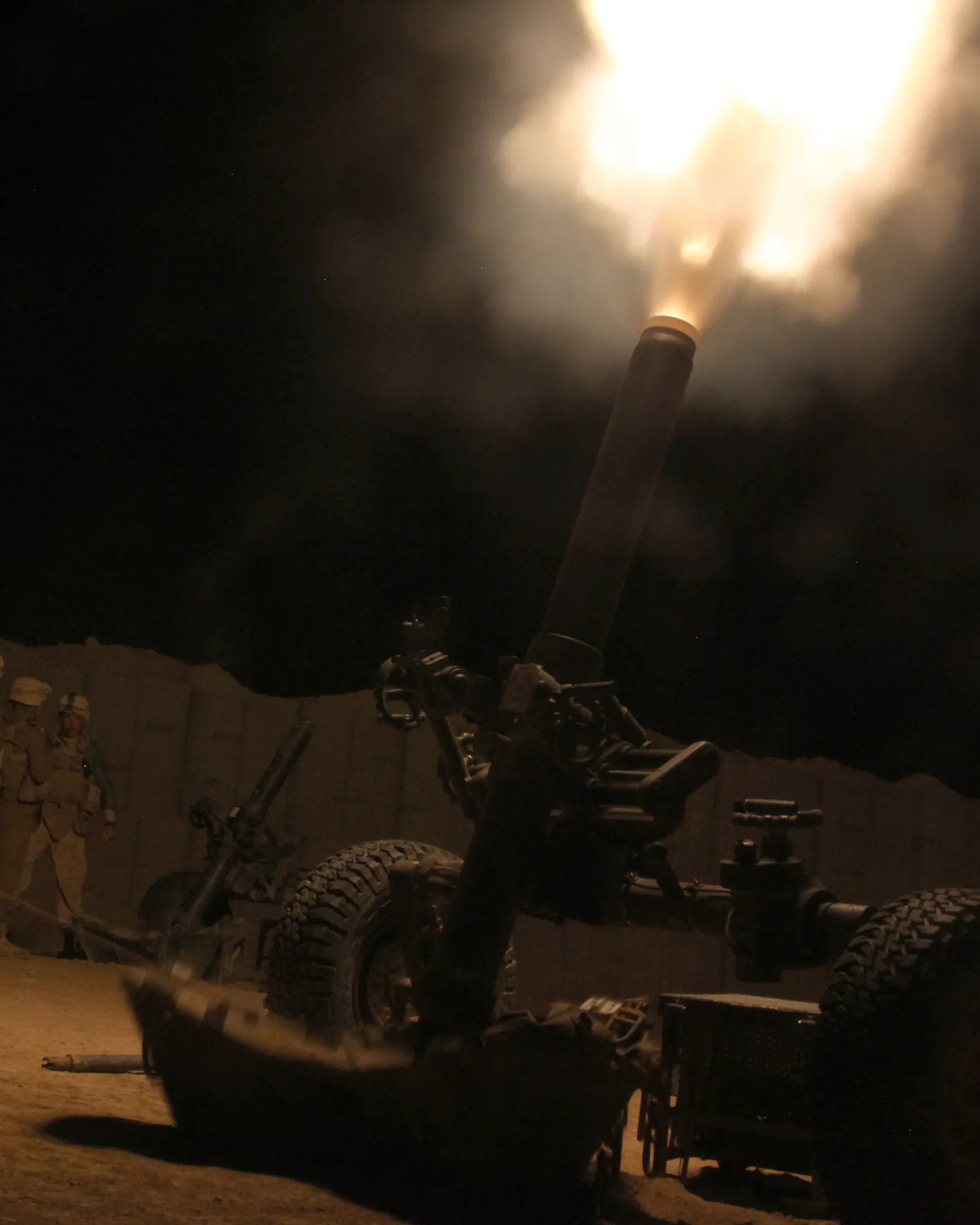

MO-120 RT, 120 mm rifled towed heavy mortar, Artillery - view 1
Source: USMC-110205-M-8012P-046.jpg
