A Philippine report on the Armed Forces of the Philippines Special Operations Command Marawi museum said M249 and SAW weapons were among more than 400 firearms recovered from enemy forces after the 2017 Battle of Marawi; the source documents captured weapons rather than observed firing.
Infantry Weapons
FN Minimi light machine gun
Also known as
- FN MINIMI
- Minimi
- M249
- M249 SAW
- M249 Squad Automatic Weapon
- C9 light machine gun
- F89 Minimi
- Para Minimi

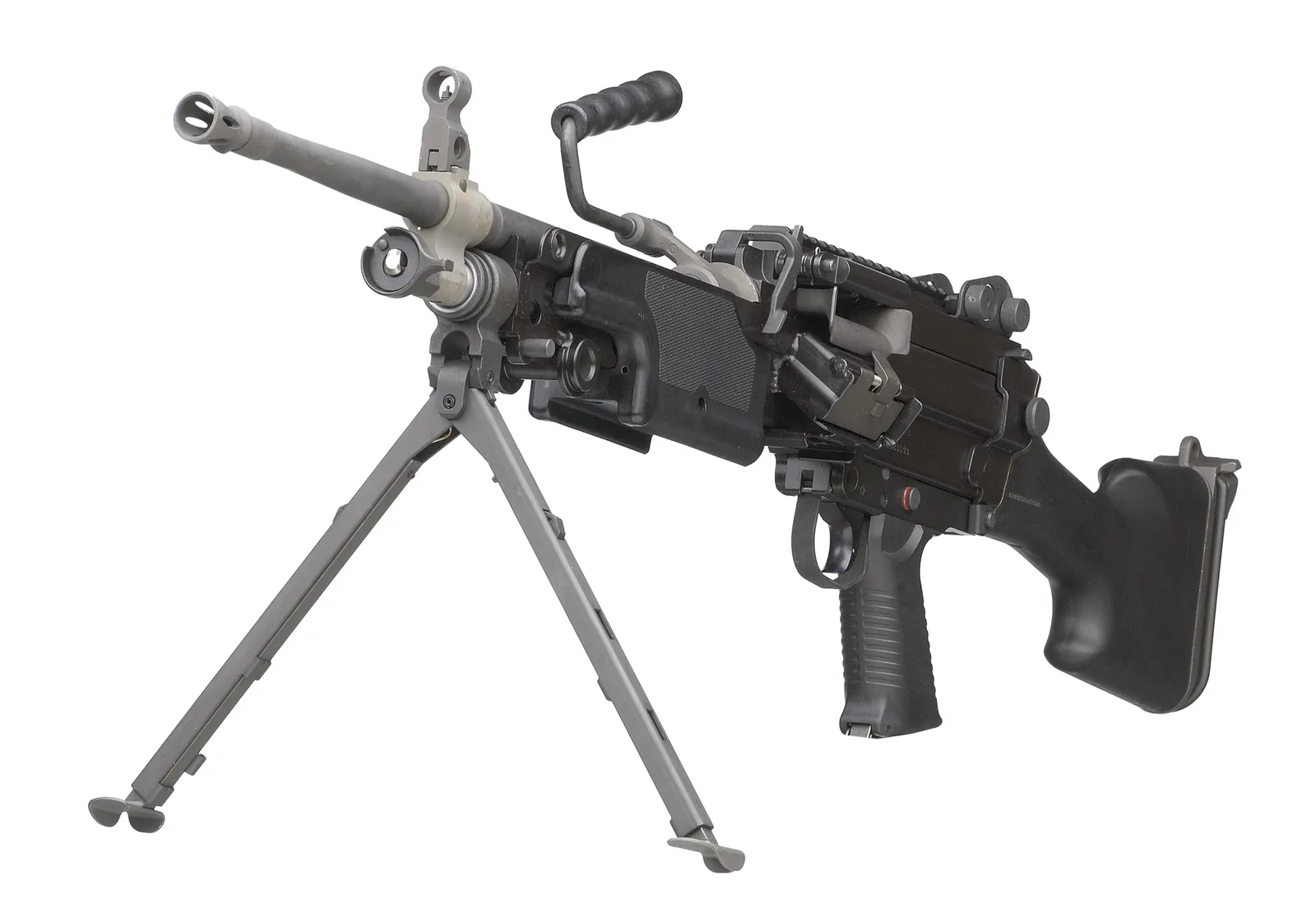

The FN Minimi is a Belgian belt-fed light machine gun developed by Fabrique Nationale for squad automatic fire, with 5.56 mm NATO models widely fielded as national variants such as the U.S. M249, Canadian C9, and Australian F89. In the 2014 Yemen Civil War, Amnesty International reported Belgian Minimis deployed by The Giants Brigades, tying the weapon to UAE-backed coalition-aligned ground forces around the Hodeidah offensive.
Role in Conflicts
CJTF-OIR imagery from Camp Taji documented an Iraqi 73rd Brigade, 16th Division soldier with a newly issued M249 light machine gun during equipment fielding in June 2015, tying the weapon to coalition partner-force support in 2014 Operation Inherent Resolve.
DVIDS imagery from Afghanistan documented a Task Force Iron Eagles UH-60 crew chief manning an assigned M249 while flying across the combined joint operations area in support of Operation Freedom's Sentinel and Resolute Support in 2019.
Role details
Amnesty International documented Belgian Minimi light machine guns being deployed by The Giants Brigades, a UAE-backed militia involved in the Hodeidah fighting during the 2014 Yemen Civil War.
Role detailsProfile / Specs
Profile
- Origin
- Belgium
- Built by
- FN HerstalFN America
- Built in
- BelgiumUnited States
- Type
- 5.56x45mm NATO light machine gun
- Service note
- Late 1970s-present
- Designer
- Ernest Vervier / Fabrique Nationale
- Designed
- Early 1970s
- Produced
- 1977-present
Specifications
- Caliber
- 5.56x45mm NATO
- Operation
- Gas-operated, rotating-bolt automatic weapon; open-bolt operation is typical of the Minimi family
- Feed
- Belt-fed with box or pouch, with magazine feed compatibility on many 5.56 mm models
- Barrel length
- 465 mm on standard 5.56 mm models; 349 mm short barrel listed for FN Minimi 5.56 Mk3 short-barrel configurations
- Weight
- About 7.1 kg empty for a standard 5.56 mm Minimi Mk 2 pattern; about 8 kg for the FN Minimi 5.56 Mk3 short-barrel technical-data example
- Rate of fire
- About 700-850 rounds per minute on standard setting; FN Minimi 5.56 Mk3 data sheet lists about 800 rounds per minute
- Effective range
- WeaponSystems.net cites about 500 m for point targets and 800 m for area targets
Family And Feed System
The Minimi family is useful as a family-level catalog record because the same Belgian design appears under national designations while keeping the same basic light-machine-gun role: a portable automatic weapon for squad or section fire support.
Core layout
FN Herstal and U.S. Marine training material describe a gas-operated, open-bolt automatic weapon built around belt feed, with magazine feed available on many 5.56 mm configurations.
Mk3 configuration split
FN Herstal separates current 5.56 Mk3 models by barrel length and stock: Standard, Para, Tactical SB, Tactical LB, and SF.
National designations
The U.S. M249, Australian F89/F89A1/Para Minimi, Canadian C9A2, and Mk 46 are treated here as sourced Minimi-family designations rather than separate unrelated systems.
Source labels used here: FN MINIMI 5.56 MK3; M249 Light Machinegun Student Handout; FN M249 SAW; FN MK 46 MOD 1; FN MK 46 MOD 2; F89 and Para Minimi; F89A1 Minimi; C9A2 Light Machine Gun.
Variants
The Minimi page covers the Belgian FN family and national 5.56 mm derivatives where sources identify them as Minimi/M249/C9/F89 light support weapons rather than separate unrelated machine guns.
| Variant | Configuration | Designation notes |
|---|---|---|
| FN MINIMI 5.56 Mk3 Standard | Long-barrel fixed-buttstock Mk3 configuration | FN Herstal lists the Standard as a long-barrel, fixed-buttstock member of the 5.56 Mk3 lineup. Sources: FN MINIMI 5.56 MK3 |

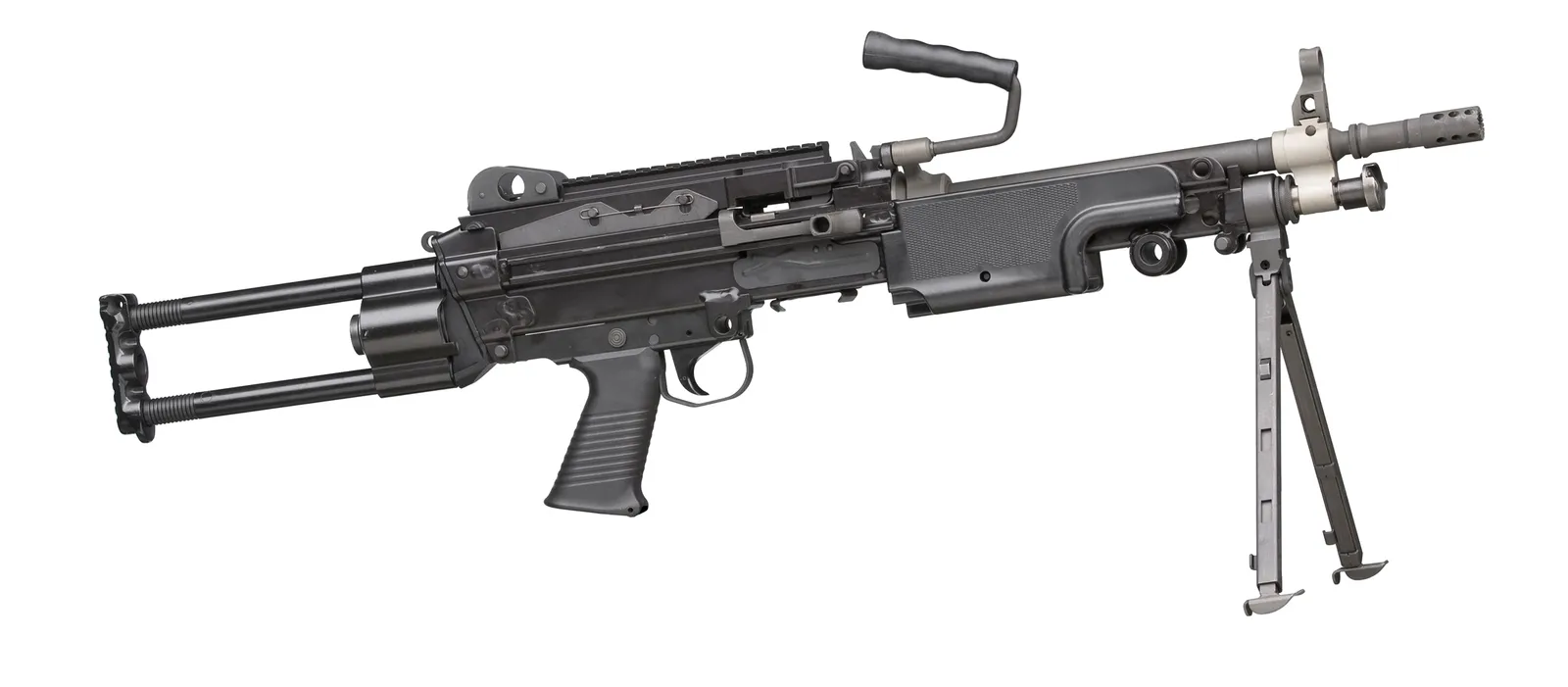

| FN MINIMI 5.56 Mk3 Para | Short-barrel telescopic-buttstock Mk3 configuration | FN Herstal distinguishes the Para from Standard and Tactical configurations by its short barrel and telescopic buttstock. Sources: FN MINIMI 5.56 MK3 |
| FN MINIMI 5.56 Mk3 Tactical SB | Short-barrel adjustable-buttstock Mk3 configuration | FN Herstal lists Tactical SB as a short-barrel Mk3 model with an adjustable buttstock and shoulder rest. Sources: FN MINIMI 5.56 MK3 |
| FN MINIMI 5.56 Mk3 Tactical LB | Long-barrel adjustable-buttstock Mk3 configuration | FN Herstal lists Tactical LB as the long-barrel adjustable-buttstock Mk3 model. Sources: FN MINIMI 5.56 MK3 |
| FN MINIMI 5.56 Mk3 SF | Special-forces short-barrel Mk3 configuration | FN Herstal describes the SF row as a short-barrel model with an adjustable buttstock, convex butt plate, and no shoulder rest. Sources: FN MINIMI 5.56 MK3 |
| M249 Squad Automatic Weapon | U.S. military Minimi-family squad automatic weapon | FN America identifies the M249 SAW as also known as the FN Minimi, while the U.S. Army describes it as the squad-level automatic weapon/fire-support system. Sources: FN M249 SAW, M249 Squad Automatic Weapon |
| FN MK 46 MOD 1 | Lightweight U.S. special-operations M249 variant | FN America describes the 5.56 mm Mk 46 Mod 1 as the lightweight U.S. special operators' variant of the M249 SAW. Sources: FN MK 46 MOD 1 |
| FN MK 46 MOD 2 | Updated lightweight U.S. special-operations M249 variant | FN America describes the Mk 46 Mod 2 as a lightweight M249 variant with improved receiver pins, feed-tray retention pawls, rail/handguard updates, ergonomic controls, and adjustable stock improvements. Sources: FN MK 46 MOD 2 |
| F89 and Para Minimi | Australian Army light support weapon family | The Australian Army identifies the F89 and Para Minimi as 5.56 mm light support weapons, with the Para Minimi used by special-forces teams and parachute-group units. Sources: F89 and Para Minimi |
| F89A1 Minimi | Australian service Minimi designation | The Royal Australian Navy identifies the F89A1 Minimi as an FN Herstal light support weapon with belt feed, gas operation, 5.56 mm NATO chambering, and a 465 mm barrel. Sources: F89A1 Minimi |
| C9A2 | Canadian upgraded C9 light machine gun | The Canadian Army identifies the C9A2 as an upgrade from the C9 and C9A1 light machine guns with low-infrared-signature parts, a foldable/extendable butt, longer rail cover, and short-barrel option. Sources: C9A2 Light Machine Gun |
Fired Cartridges
| Ammunition | Ammunition type | Firing evidence |
|---|---|---|
 | 5.56x45mm NATO cartridge | FN Herstal's ammunition page explicitly names the FN MINIMI 5.56 as a light support weapon that uses 5.56x45mm NATO cartridges, confirming the cartridge-family link from the Minimi side. Sources: 5.56X45MM NATO |
Timeline
FN Minimi light machine gun Key Events
M249/Minimi development baseline
A U.S. Marine Corps training handout says Fabrique Nationale of Herstal developed the M249 in 1974 after the Defense Department requirement for a light automatic weapon to supplement 5.56 mm rifle firepower.
Sources: M249 Light Machinegun Student Handout
Minimi production era begins
WeaponSystems.net places Minimi production from 1977 onward and ties the family to Belgian FN development and later international designations.
Sources: FN Minimi
M249 becomes a long-running U.S. service weapon
FN America describes the M249 SAW, also known as the FN Minimi, as a U.S. military mainstay since 1986 and a weapon in service in more than 30 countries.
Sources: FN M249 SAW
U.S. Army M249 contract announced
FN America announced a firm-fixed-price U.S. Army contract for M249 Squad Automatic Weapons, with work expected to continue through 2025.
Sources: FN Awarded U.S. Army Contract for M249 SAW
