Infantry Weapons

IWI Negev NG5 light machine gun

Also known as
  • Negev NG5 LMG
  • Negev NG-5
  • NG5 LMG

The IWI Negev NG5 is Israel's 5.56 NATO light machine gun, part of IWI's belt-fed Negev family and built around open-bolt selective fire with belt, drum, and STANAG magazine feeding. IWI's current series page groups it with the 7.62 NATO NG7 and special-forces variants, while source-backed service examples include Israeli wartime imagery and Georgian ISAF use in Afghanistan.

IWI Negev NG5 light machine gun, 5.56×45mm NATO light machine gun, Infantry Weapons
Image source: File:Operation Gideon's Chariots 11.webp

Role in Conflicts

2006 Lebanon War
Fire Support
Side
Israel

A Commons-hosted IDF Spokesperson's Unit photograph from the 2006 Lebanon War is categorized as showing the IMI Negev in that conflict.

Documented Service Use

The source trail for the 5.56 mm Negev spans Israeli wartime imagery and foreign coalition service rather than a single operator-only record.

ContextDocumented operatorSource-backed detail
2001 War in AfghanistanGeorgian ISAF troops at the Camp Leatherneck areaSmall Arms Defense Journal identified Israeli IWI 5.56x45 mm Negev light machine guns among the Georgian small-arms set.
2006 Lebanon WarIsrael Defense ForcesA Commons-hosted IDF Spokesperson's Unit image from the war is categorized as showing the IMI Negev.
2023 Israel-Hamas WarIsrael Defense ForcesA 2025 Gaza image shows a Golani Brigade soldier firing an IMI Negev 5.

Sources: ISAF Armament of the Georgian Battalion Liaison Soldiers; File:2006 Lebanon War. VIII.jpg; File:Operation Gideon's Chariots 11.webp.

Profile / Specs

Profile

Origin
Israel
Type
5.56×45mm NATO light machine gun
Service note
1990s-present
Designer
Israel Military Industries
Designed
Mid-1980s to 1992
Unit cost
Reportedly in excess of US$9,000 per gun

Specifications

Caliber
5.56 NATO
Weight
16.98 lbs
Barrel length
18 in
Overall length
40.16 in (stock extended)
Feed
Belt-fed, drum, standard NATO STANAG magazines
Action
Auto, open bolt, semi-auto
Operating system
Gas on piston head, rotating locking bolt
Rifling
1:7 in, 6 RH grooves
Sights
Picatinny rail, front post sight, rear aperture sight
Rate of fire
About 850-1,050 rounds per minute
Variants

IWI presents the NG5 as the 5.56 NATO branch of the Negev series, alongside a short-barreled NG5 SF and the larger 7.62 NATO NG7 line.

VariantConfigurationDesignation notes
Negev NG5 SF LMGShort-barreled 5.56 NATO variant

IWI's Negev series material lists the NG5 SF with a 13 in barrel, compared with the 18 in standard NG5 LMG.

Sources: Negev Belt-Fed Machine Guns - 5.56 & 7.62 | IWI US, IWI Negev and ULMG brochure

IWI Negev NG7 general-purpose machine gun, 7.62×51mm NATO general-purpose machine gun, Infantry WeaponsIWI Negev NG7 general-purpose machine gun7.62 NATO family counterpart

The NG7 is the 7.62x51 mm Negev branch, with standard and short-barreled variants listed alongside the NG5 family.

Sources: Negev Belt-Fed Machine Guns - 5.56 & 7.62 | IWI US, IWI Negev and ULMG brochure

Compatible Fire-Control System

IWI and launch reporting show Arbel installed on the Negev platform as a computerized lower-receiver upgrade.

Compatible itemItem typeCompatibility evidence
Arbel computerized fire-control weapon system, Computerized small-arms fire-control system, Infantry WeaponsArbel computerized fire-control weapon systemComputerized fire-control system

IWI's brochure and launch coverage place Arbel on the Negev platform, including an IWI-credited image published by Globes.

Sources: IWI ARBEL brochure, Globes Arbel launch report

Negev Series Snapshot

IWI groups the NG5 with the NG7 and their special-forces variants on its current Negev series page. The NG5 is the 5.56 NATO model, while the NG7 is the 7.62 NATO counterpart.

ModelCaliberBarrelNote
Negev NG5 LMG5.56 NATO18 inStandard belt-fed model with STANAG magazine compatibility.
IWI Negev NG7 general-purpose machine gun, 7.62×51mm NATO general-purpose machine gun, Infantry WeaponsNegev NG7 LMG7.62 NATO (7.62x51 mm)20 inIWI's larger Negev counterpart.
Negev NG5 SF LMG5.56 NATO13 inShort-barreled special-forces variant.
Negev NG7 SF LMG7.62 NATO (7.62x51 mm)16.5 inShort-barreled special-forces variant.

Sources: Negev Belt-Fed Machine Guns - 5.56 & 7.62 | IWI US; IWI Negev and ULMG brochure.

Timeline

IWI Negev NG5 light machine gun Key Events

  1. Negev Development Starts

    Small Arms Review says IMI began developing the Negev in the mid-1980s as an experimental machine gun intended to replace the Galil ARM.

    Sources: The Elusive Israeli Negev LMG | Small Arms Review

  2. IDF Approves The Design

    Small Arms Review reports that the IDF approved the Negev design in 1992 after a long development period kept relatively secret.

    Sources: The Elusive Israeli Negev LMG | Small Arms Review

  3. IDF Adoption Reaches Service

    Small Arms Review says the IDF had adopted the Negev by 1996, establishing the family in active Israeli service before the later NG5 catalog era.

    Sources: The Elusive Israeli Negev LMG | Small Arms Review

  4. Negev Documented In Lebanon War Imagery

    A Commons-hosted IDF Spokesperson's Unit image from the 2006 Lebanon War is categorized under the IMI Negev, documenting wartime IDF use of the 5.56 mm family.

    Sources: File:2006 Lebanon War. VIII.jpg

  5. Georgian ISAF Use Published

    Small Arms Defense Journal described Georgian ISAF troops at the Camp Leatherneck area using Israeli IWI 5.56x45 mm Negev light machine guns in Afghanistan.

    Sources: ISAF Armament of the Georgian Battalion Liaison Soldiers

Media

IWI Negev NG5 light machine gun Videos

IWI Negev NG5 light machine gun Images

IWI Negev NG5 light machine gun, 5.56×45mm NATO light machine gun, Infantry Weapons - view 1
Source: File:IDF soldier carrying IWI Negev LMG.jpg
IWI Negev NG5 light machine gun, 5.56×45mm NATO light machine gun, Infantry Weapons - view 2

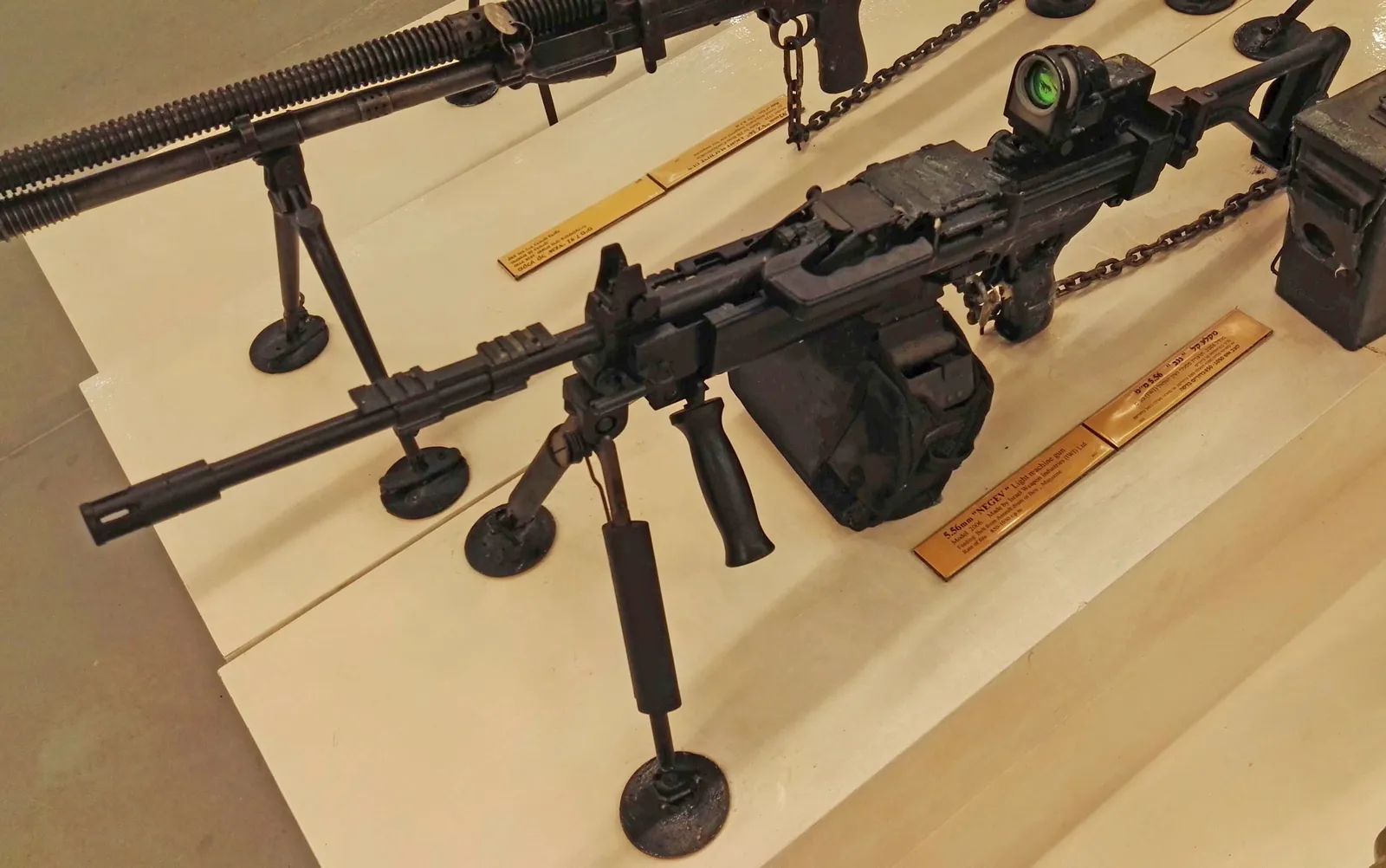

Source: File:IMI-Negev-machine-gun-batey-haosef-2.jpg
IWI Negev NG5 light machine gun, 5.56×45mm NATO light machine gun, Infantry Weapons - view 3
Source: File:2006 Lebanon War. VIII.jpg
Related Weapon Systems
IWI Negev NG7 general-purpose machine gun, 7.62×51mm NATO general-purpose machine gun, Infantry WeaponsInfantry WeaponsIWI Negev NG7 general-purpose machine gun7.62×51mm NATO general-purpose machine gunThe IWI Negev NG7 is Israel Weapon Industries' 7.62×51mm NATO general-purpose machine gun, introduced in 2012 and built for belt-fed infantry fire support with semi-automatic mode and assault-drum compatibility. The family now includes shorter special-forces and lightweight ULMG configurations, India ordered 16,479 Negev 7.62 mm guns in 2020, and IDF imagery documents NG7 use in the 2023 Israel-Hamas War.
FN Minimi light machine gun, 5.56x45mm NATO light machine gun, Infantry WeaponsInfantry WeaponsFN Minimi light machine gun5.56x45mm NATO light machine gunThe FN Minimi is a Belgian belt-fed light machine gun developed by Fabrique Nationale for squad automatic fire, with 5.56 mm NATO models widely fielded as national variants such as the U.S. M249, Canadian C9, and Australian F89. In the 2014 Yemen Civil War, Amnesty International reported Belgian Minimis deployed by The Giants Brigades, tying the weapon to UAE-backed coalition-aligned ground forces around the Hodeidah offensive.
IWI Arad assault rifle, Modular assault and battle rifle family, Infantry WeaponsInfantry WeaponsIWI Arad assault rifleModular assault and battle rifle familyThe IWI Arad assault rifle is Israel Weapon Industries' modular AR-pattern rifle family, spanning the 5.56x45mm/.300 BLK ARAD and the 7.62x51mm/6.5 Creedmoor ARAD 7 line. Official IWI material describes short-stroke gas-piston operation, ambidextrous controls, quick-change barrels, and accessory rails, while government and defense-industry sources document Israeli procurement, Peruvian assembly, and reported ARAD-7 use by Israeli police and special-forces units during the 2023 Israel-Hamas War.
Galil assault rifle, Selective-fire assault rifle family, Infantry WeaponsInfantry WeaponsGalil assault rifleSelective-fire assault rifle familyThe Galil is an Israeli Kalashnikov-derived assault rifle family originally produced by Israel Military Industries and later modernized by Israel Weapon Industries as the Galil ACE line. Recent conflict reporting places Galil or Galil ACE rifles in irregular small-arms stocks from the Lake Chad Basin to FARC dissident operations in Colombia and trafficked gang arsenals in Haiti, where they appear as portable infantry weapons rather than heavy support systems.
