HumAngle reported that Boko Haram deserters near Bama surrendered weapons including an FN MAG in August 2021, documenting the gun in insurgent-held stocks rather than confirmed battlefield firing.
Infantry Weapons
FN MAG general-purpose machine gun
Also known as
- FN MAG
- MAG 58
- FN MAG 58
- M240
- M240B
- M240C
- M240G
- M240H
- M240L
- L7A2
- L7A2 GPMG
- GPMG
- Ksp 58
- C6

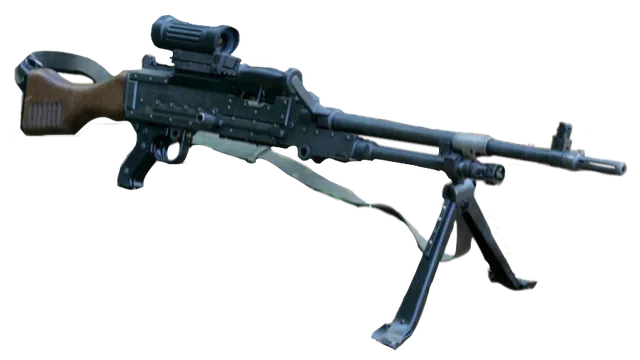

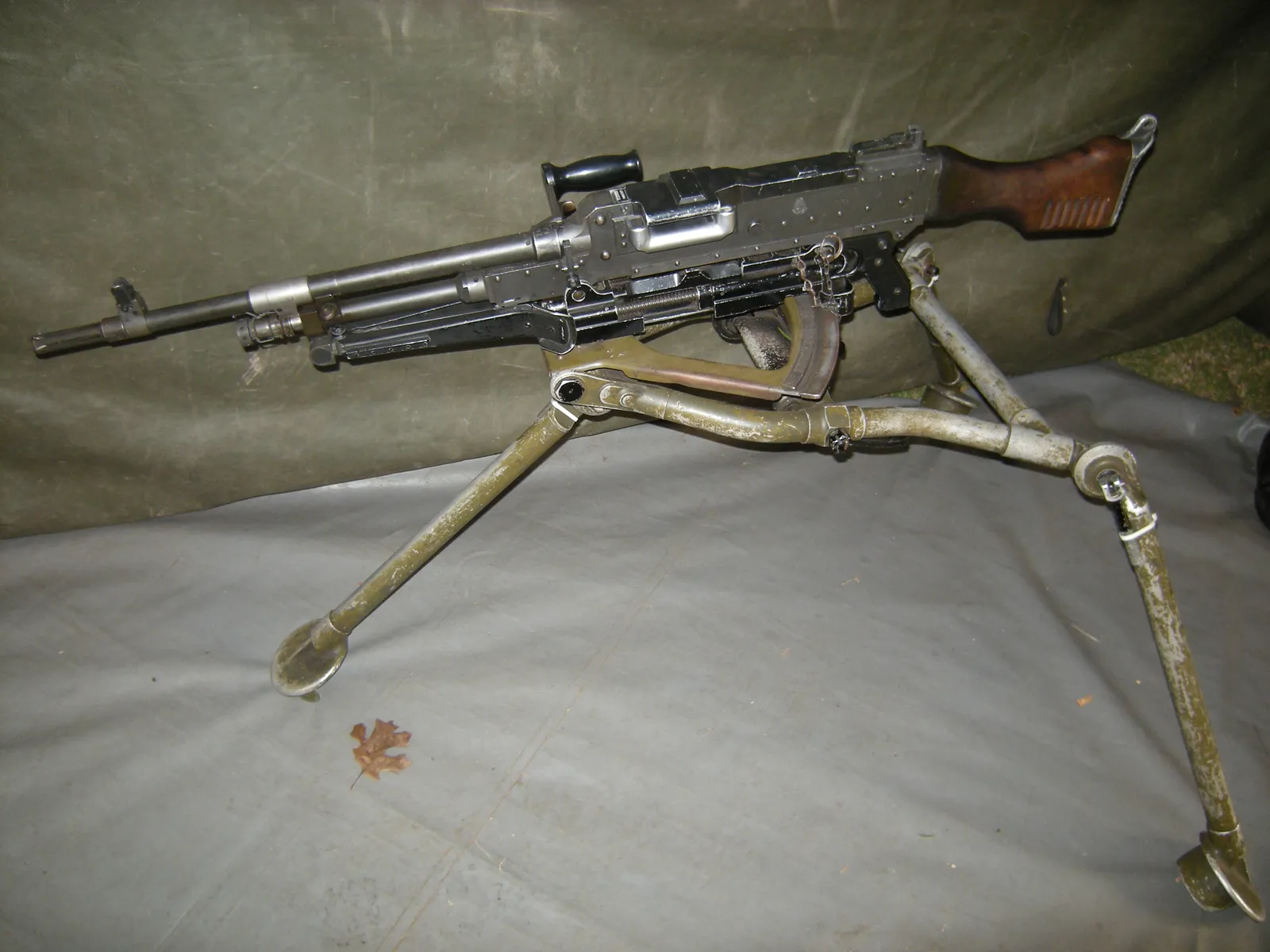

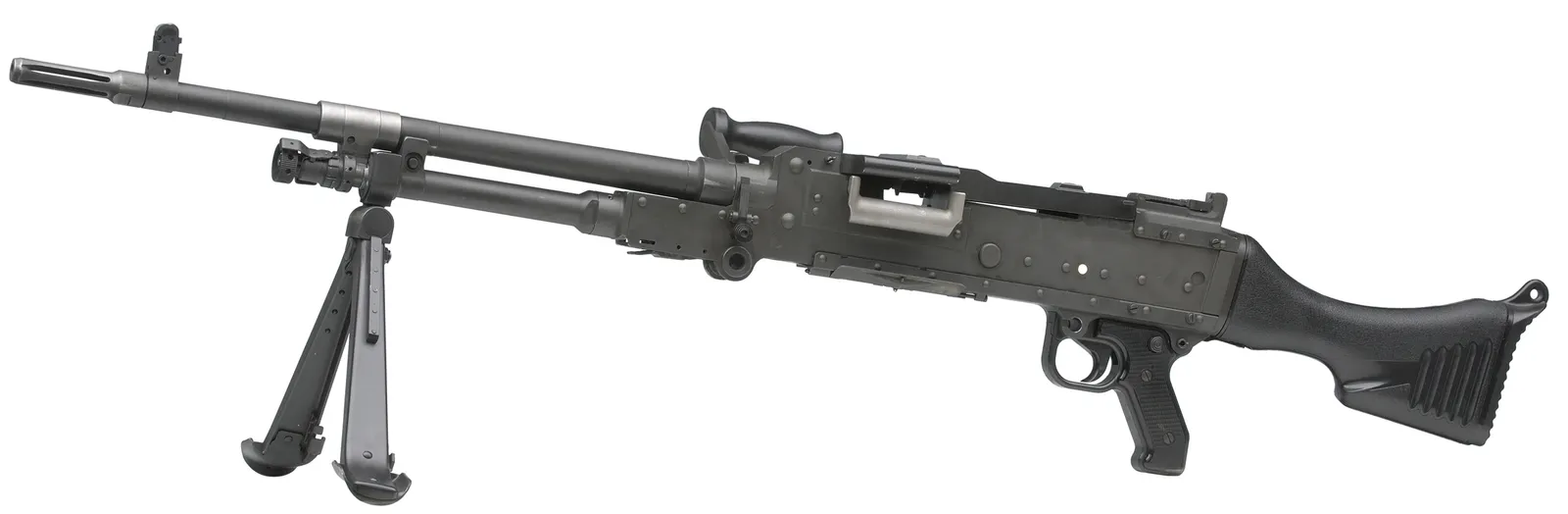

The FN MAG is FN Herstal's Belgian 7.62x51mm NATO belt-fed general-purpose machine gun family, fielded from infantry bipods, tripods, vehicles, aircraft, ships, and boats. The catalog record connects the MAG and its M240/L7A2/MAG 58 designations to directly sourced conflict evidence: surrendered Boko Haram-held stocks in Nigeria, coalition base-defense training during Operation Inherent Resolve, and Afghan special-operations weapons training during the War in Afghanistan.
Role in Conflicts
U.S. Army and DVIDS reporting documented M240B and FN Mag-family guns used by coalition personnel during weapons familiarization and base-defense live-fire training at Al Asad Air Base and elsewhere in the OIR theater.
A 2018 DVIDS report from near Kabul said Afghan National Army Special Operations Command soldiers received advanced weapons training on squad-level weapons including the M240 general-purpose machine gun during the Resolute Support phase of the 2001 War in Afghanistan.
Role detailsProfile / Specs
Profile
- Origin
- Belgium
- Type
- 7.62x51mm NATO general-purpose machine gun
- Service note
- 1958-present service life; documented in Boko Haram-linked arms holdings in 2021
- Designer
- Ernest Vervier and FN Herstal design team
- Designed
- Early-to-mid 1950s
- Produced
- 1958-present
Specifications
- Caliber
- 7.62x51mm NATO
- Operation
- Gas-operated, open-bolt, fully automatic, belt-fed
- Feed
- NATO M13 disintegrating link belt; some FN MAG versions were made for German DM1 non-disintegrating belts
- Barrel
- Quick-change barrel with gas regulator
- Effective range
- 800 m in light role; up to 1,800 m in sustained-fire/area-target roles depending on mount and variant
- Rate of fire
- About 750-1,000 rounds per minute for MAG 58/L7A2 references; U.S. M240B listed by FN America at 550-650 rpm
- Mounting
- Infantry bipod, tripod, vehicle, aircraft, ship/boat, pintle, coaxial, and remote weapon station configurations
- M240B length
- 48.5 in / 1,232 mm overall
- L7A2 sustained-fire range
- Up to 1,800 m from tripod with C2 optical sight
Variants
FN Herstal and service sources treat the MAG as a family of 7.62x51mm NATO machine guns adapted to national designations and mounting roles, including infantry, coaxial, aircraft, vehicle, naval, and lightweight U.S. configurations.
| Variant | Configuration | Designation notes |
|---|---|---|
| FN MAG 58 / MAG 58 | Original MAG family designation | FN Herstal lists MAG 58 among the designations for the 7.62x51mm MAG family, while Australian service pages use MAG 58 for a belt-fed, gas-operated 7.62 mm general-purpose machine gun. Sources: FN MAG, MAG 58, From Innovation to Legend: The Story of the FN MAG |
| M240 family | U.S. military MAG derivative | FN America identifies the M240 as the FN MAG or FN MAG 58 family in U.S. service; U.S. Army portfolio material distinguishes M240B ground, M240L lightweight, and M240H aviation versions. Sources: FN M240B, M240B/L/H 7.62mm Medium Machine Gun |
| M240C | U.S. right-feed coaxial variant | FN America says the M240C entered U.S. inventory in 1983 and uses right-side ammunition feed for coaxial mounting. Sources: FN M240/C |
| M240L | Lightweight U.S. Army variant | U.S. Army and FN America describe the M240L as an M240B-derived variant using a titanium receiver and lighter configuration. Sources: M240B/L/H 7.62mm Medium Machine Gun, FN M240L |
| M240H | U.S. aviation variant | U.S. Army CPE Ground describes the M240H as an aviation self-defensive armament subsystem for UH-60 and CH-47 helicopters with emergency ground-use capability. Sources: M240B/L/H 7.62mm Medium Machine Gun |
| L7A2 GPMG | British service variant | British Army and museum sources identify the L7A2 GPMG as a British 7.62x51mm belt-fed version of the Belgian FN MAG family. Sources: General Purpose Machine Gun, Machine Gun, 7.62mm, L7A1, L7A2 7.62 mm General Purpose Machine Gun, 1975 |
Compatible Ammunition
FN Herstal identifies the FN MAG as engineered for 7.62x51mm NATO cartridges.
| Compatible item | Item type | Compatibility evidence |
|---|---|---|
 | Cartridge | FN Herstal says the FN MAG is engineered for the 7.62x51mm NATO cartridge. Sources: FN unveils advanced new features for the legendary FN MAG GPMG |
Mounted on HMMWV
Operation Cold Steel documents the M240B on mounted military vehicle platforms including Humvees.
| Carrier | Carrier type | Carriage evidence |
|---|---|---|
 | Light tactical vehicle | Army Reserve Cold Steel materials say soldiers train on M240B machine guns on mounted military vehicle platforms including Humvees. Sources: Cold Steel mounted weapons |
Mounted on Bushmaster PMV
| Carrier | Carrier type | Carriage evidence |
|---|---|---|
 | Protected mobility vehicle | Australian Army reporting shows soldiers firing a MAG 58 general purpose machine gun off a Bushmaster protected mobility vehicle. Sources: Setting sights on year ahead |
Timeline
FN MAG general-purpose machine gun Key Events
First MAG service adoption
FN Herstal says Sweden first adopted the FN MAG family in 1958 as the Ksp 58, initially in 6.5 mm caliber.
Sources: From Innovation to Legend: The Story of the FN MAG
British L7 accepted after trials
The National Army Museum says the British GPMG, a modified FN MAG, was accepted by the British Army in 1961 after four years of trials.
Sources: L7A2 7.62 mm General Purpose Machine Gun, 1975
Licensed British production begins
IWM and National Army Museum records say Royal Small Arms Factory Enfield production followed the first Belgian-built L7 guns.
Sources: Machine Gun, 7.62mm, L7A1, L7A2 7.62 mm General Purpose Machine Gun, 1975
U.S. M240 adoption follows armored-vehicle trials
FN Herstal says U.S. armored-vehicle testing in the mid-1970s led to adoption of the FN MAG as the M240 coaxial machine gun.
Sources: From Innovation to Legend: The Story of the FN MAG
M240C enters U.S. inventory
FN America says the right-feed M240C appeared in the U.S. inventory in 1983 for coaxial mounting.
Sources: FN M240/C
M240B base-defense training in Iraq
DVIDS documented U.S. Army M240B guns set up for coalition live-fire base-defense training at Al Asad Air Base during Operation Inherent Resolve.
Sources: Coalition M240B Live Fire Exercise
Media
FN MAG general-purpose machine gun Videos
FN MAG general-purpose machine gun Images
Related Weapon Systems
Sources
FN MAGPublisher: FN Herstal | Note: Supports manufacturer background, caliber, original design/manufacture by FN Herstal, and use from ground, tripod, vehicle, aircraft, ship, or boat mountings. | Accessed: 2026-07-04From Innovation to Legend: The Story of the FN MAGPublisher: FN Herstal | Note: Supports FN MAG family history, Ernest Vervier-led design work, 1958 Swedish Ksp 58 adoption, British L7 adoption and licensed production, U.S. M240 adoption context, feed/operating details, and current FN production sites in Belgium, Great Britain, and the United States. | Accessed: 2026-07-04FN unveils advanced new features for the legendary FN MAG GPMGPublisher: FN Herstal | Note: Supports the FN MAG being engineered for the 7.62x51mm NATO cartridge and current FN MAG Tactical with Long Rail video/product context. | Accessed: 2026-07-04MAG 58Publisher: Royal Australian Navy | Note: Supports general FN MAG/MAG 58 specifications including 7.62 mm caliber, gas operation, belt feed, rate of fire, and 800 m maximum effective range in the light support role. | Accessed: 2026-07-04General Purpose Machine GunPublisher: British Army | Note: Supports L7A2 GPMG identity, 7.62x51mm belt-fed configuration, light and sustained-fire roles, tripod/C2 sight context, 800 m light-role range, 1,800 m sustained-fire range, and mounted use on vehicles and helicopters. | Accessed: 2026-07-04Machine Gun, 7.62mm, L7A1Publisher: Imperial War Museums | Note: Supports British L7 lineage: a MAG version developed by Fabrique Nationale, adopted for British Army service in 1961, produced under license at RSAF Enfield from 1963, and later modified into the L7A2. | Accessed: 2026-07-04L7A2 7.62 mm General Purpose Machine Gun, 1975Publisher: National Army Museum | Note: Supports L7A2 variant context, British Army acceptance in 1961 after trials, early FN production, 1963 RSAF Enfield production, and the L7A2 50-round cartridge-box change. | Accessed: 2026-07-04M240B/L/H 7.62mm Medium Machine GunPublisher: U.S. Army Capability Program Executive - Ground Soldier Systems | Note: Supports M240B, M240L, and M240H variant roles, M240B ground reconfiguration, M240L lightweight/titanium changes, M240H aviation role, and U.S. Army M240 family specifications. | Accessed: 2026-07-04FN M240BPublisher: FN America | Note: Supports the M240 as the FN MAG/FN MAG 58 family in U.S. service, M240B specifications, belt feed, open-bolt operation, and effective-range data. | Accessed: 2026-07-04FN M240LPublisher: FN America | Note: Supports M240L lightweight variant context, including titanium receiver, shorter barrel, collapsible buttstock, rail kit, and relationship to the FN MAG/M240 family. | Accessed: 2026-07-04FN M240/CPublisher: FN America | Note: Supports M240C right-side feed, 1983 U.S. inventory entry, coaxial/armor and aircraft deployment role, and M240C specifications. | Accessed: 2026-07-04Setting sights on year aheadPublisher: Australian Government Defence | Note: Supports mounted-fire context: soldiers fired a MAG 58 general purpose machine gun off a Bushmaster protected mobility vehicle. | Accessed: 2026-07-04Military's Conduct Encouraging Defection Of Boko Haram FightersPublisher: HumAngle | Note: Supports 2009 Boko Haram Insurgency direct-use context: an FN MAG was fielded by or surrendered by Boko Haram fighters near Bama with other weapons in August 2021. | Accessed: 2026-07-04Weapon Supplies Fueling Terrorism in the Lake Chad CrisisPublisher: Conflict Armament Research | Note: Supports background context that CAR documented weapons and ammunition seized from Boko Haram and ISWAP-linked groups around Lake Chad. | Accessed: 2026-07-0475th Field Artillery Brigade Soldiers Train on Small Arms DownrangePublisher: U.S. Army | Note: Supports 2014 War Against the Islamic State direct conflict use under Operation Inherent Resolve: Supports 2014 Operation Inherent Resolve direct-use context: U.S. soldiers fired and operated the M240B while deployed in support of 2014 Operation Inherent Resolve. | Accessed: 2026-07-04Coalition M240B Live Fire ExercisePublisher: Defense Visual Information Distribution Service | Note: Supports 2014 War Against the Islamic State direct conflict use under Operation Inherent Resolve: Supports 2014 Operation Inherent Resolve direct-use context: U.S. Army M240B machine guns were fielded by coalition forces for live-fire base-defense training at Al Asad Air Base, Iraq. | Accessed: 2026-07-04Afghan Special Operators Grow LeadersPublisher: Defense Visual Information Distribution Service | Note: Supports 2001 War in Afghanistan direct-use context: the M240 general-purpose machine gun was used by Afghan special operators in advanced weapons training near Kabul during the Resolute Support phase. | Accessed: 2026-07-04Cold Steel mounted weaponsPublisher: U.S. Army Reserve | Note: Supports HMMWV carriage of the M240B machine gun on mounted military vehicle platforms including Humvees. | Accessed: 2026-07-047.62X51MM NATOPublisher: FN Herstal | Note: Supports the 7.62x51mm NATO cartridge being a compatible ammunition choice for the FN MAG. | Accessed: 2026-07-04FN MAG Machine Gun Left.jpgPublisher: Wikimedia Commons | Note: Image provenance and licensing page for the primary FN MAG image, credited to FN Herstal under CC BY-SA 2.0. | Accessed: 2026-07-04FN MAG.pngPublisher: Wikimedia Commons | Note: Image provenance and licensing page for a cropped FN MAG image under CC BY-SA 4.0. | Accessed: 2026-07-04FN MAG tripode.JPGPublisher: Wikimedia Commons | Note: Image provenance and licensing page for an FN MAG on a tripod released into the public domain by the uploader. | Accessed: 2026-07-04
