DVIDS documented U.S. Marine CH-53D, CH-53E, and UH-1Y aircraft carrying or operating GAU-21/A .50-caliber machine guns in Afghanistan, including HMH-362 missions over Musa Qal'ah and HMH-461 aerial operations over Helmand during Operation Enduring Freedom.
Role detailsInfantry Weapons
GAU-21
Also known as
- FN M3M
- M3M
- FN M3M (GAU-21)
- Gun, Aircraft, Unit-21

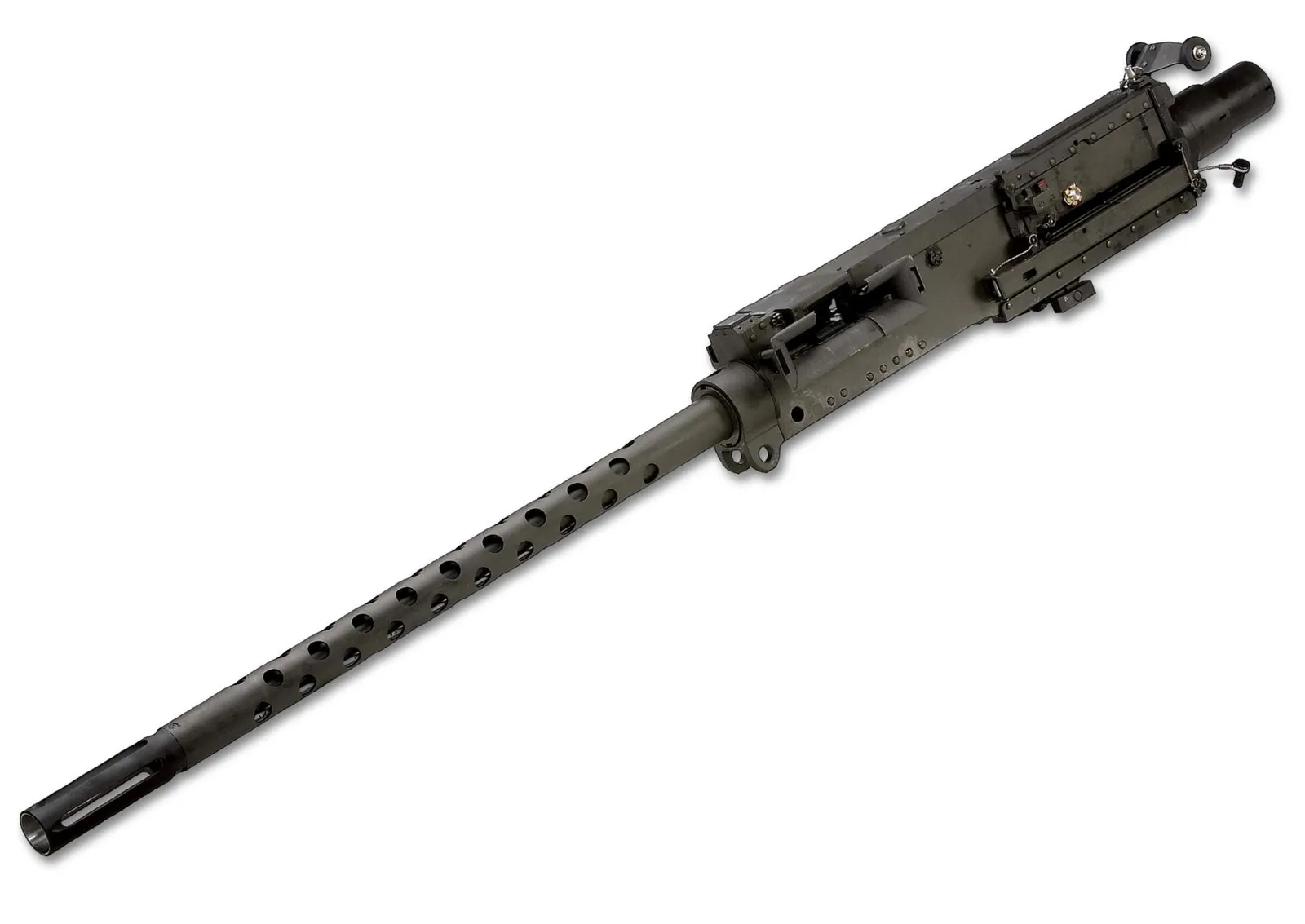

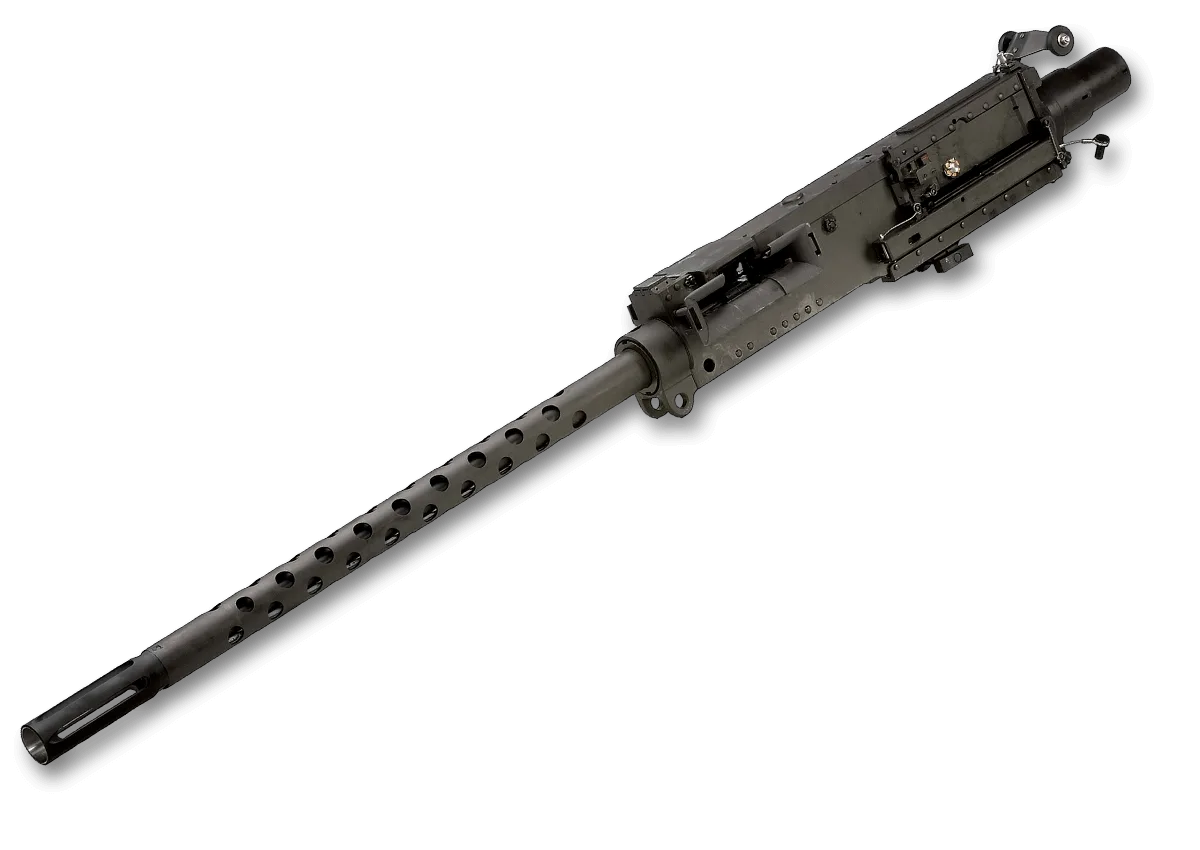

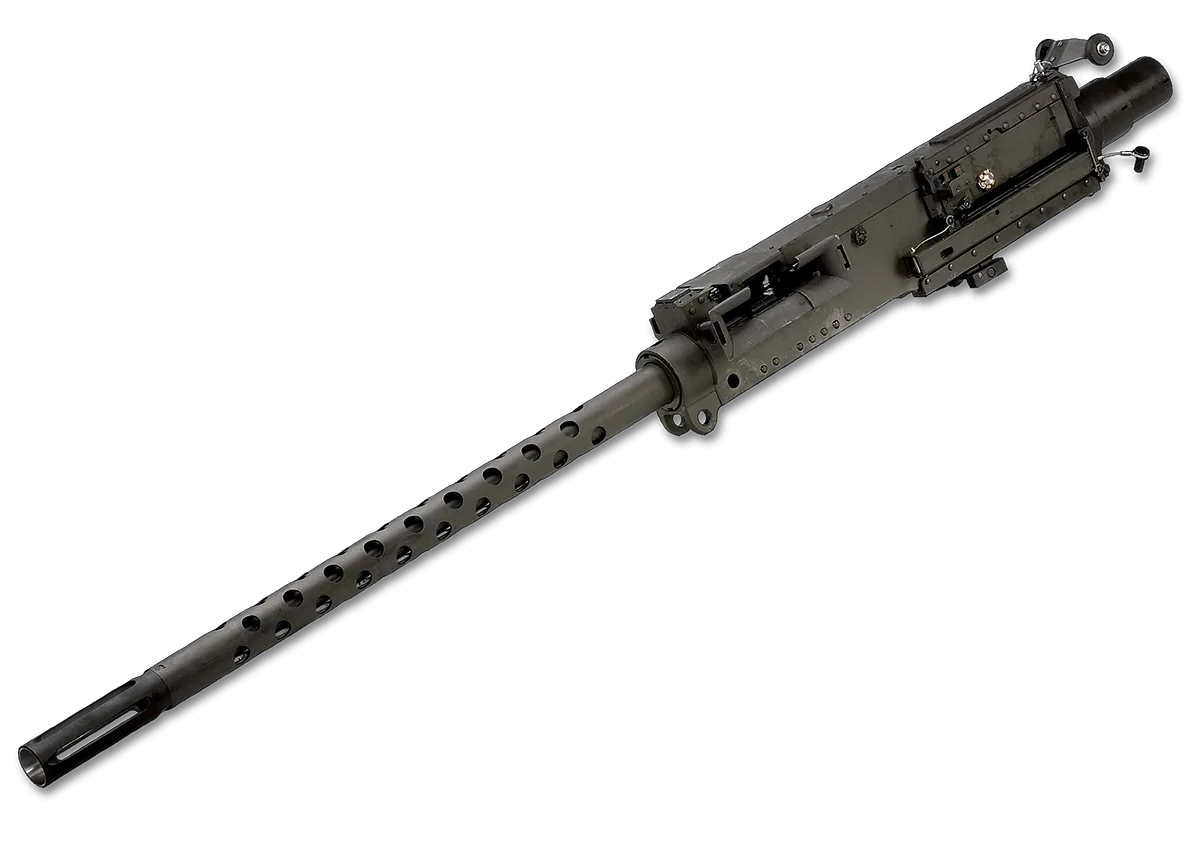

The GAU-21 is the U.S. Navy designation for FN Herstal's M3M .50-caliber machine gun, a high-rate, open-bolt aircraft gun for rotary-wing mounts. NAVAIR's 2004 contract notice framed it as a common Navy and Marine Corps assault-support weapon system, and DVIDS imagery documents Marine GAU-21/A use from CH-53 and UH-1Y helicopters in Afghanistan and Iraq.
Role in Conflicts
DVIDS documented Marine Heavy Helicopter Squadron 463 crew chiefs firing a GAU-21 ramp-mounted weapon system during a May 2006 test fire outside Al Asad, Iraq, in an Operation Iraqi Freedom-tagged deployment context.
Role detailsProfile / Specs
Profile
- Origin
- Belgium
- Built by
- FN Herstal
- Type
- .50-caliber machine gun
- Service note
- 2004-present
- Designer
- FN Herstal
- Unit cost
- Military pricing on request
- Produced
- 2004-present
Specifications
- Caliber
- 12.7x99 mm NATO / .50 BMG
- Operation
- Short-recoil, open-bolt
- Rate of fire
- 950-1,100 rounds per minute
- Weight
- 81.6 lb
- Barrel length
- 36 in
- Effective range
- Nearly 2,000 m
- Capacity
- 100-600 rounds
- Mounting
- Rotary-wing aircraft, other U.S. service mounts, and naval applications
Documented Rotary-Wing Platforms
Official sources document the GAU-21 on specific H-60-family aircraft, with NAVAIR also listing broader CH-46, CH-53, H-60, UH-1, and MV-22 integration paths in the original Navy contract notice.
| Firing weapon | Weapon type | Firing evidence |
|---|---|---|
 | Heavy-lift helicopter | DVIDS says HMH-461 Marines fired GAU-21 .50-caliber machine guns from CH-53K King Stallion helicopters during an August 2022 exercise. Sources: U.S. Marines with HMH-461 shoot .50-caliber machine guns |
 | Combat rescue helicopter | DVIDS says the 41st Rescue Squadron was the first in the U.S. Air Force to test the GAU-21 .50-caliber machine gun on the HH-60W Jolly Green II in March 2022; a 2025 DVIDS video later documented USAFE HH-60W integration at Aviano. Sources: 41 RQS tests GAU-2C, GAU-21 weapon systems, HH-60W GAU-21 Integration and Employment |
 | Multi-mission naval helicopter | NAVAIR says MH-60S Armed Helo developmental testing included the GAU-21 .50-caliber machine gun as part of the aircraft's armed mission-kit work. |
 | Shipboard maritime helicopter | The Royal Australian Navy identifies the GAU-21 as a Fleet Air Arm MH-60R weapon for offensive and defensive firepower, and NAVAIR reported MH-60R/S fleet use by 2010. Sources: GAU-21 deploys with UH-1Y, GAU-21 | Royal Australian Navy |
Designation And Mounting
The GAU-21 name is the U.S. Navy designation for FN Herstal's M3M aircraft machine-gun system. The useful distinction for readers is that the catalog entry is covering the flexible aircraft gun and mount ecosystem, not a ground-tripod M2HB or the fixed FN M3P branch.
| Topic | Detail | Source-backed context |
|---|---|---|
| Designation | GAU-21 / M3M | FN identifies GAU-21 as the U.S. Navy designation adopted for the FN M3M in 2004, and NAVAIR describes it as the Navy configuration of the M3M system. |
| Mounting | Flexible aircraft weapon | NAVAIR listed CH-46, CH-53, H-60, UH-1, and MV-22 integration paths in the original contract notice; FN describes current use across U.S. Navy, Marine Corps, and Air Force rotary-wing platforms. |
| Operation | Open-bolt, soft-mount system | FN and the Royal Australian Navy both describe an open-bolt, dual-buffer design intended to reduce heat, recoil, and airframe vibration while supporting high cyclic rates. |
Timeline
GAU-21 Key Events
NAVAIR announces GAU-21 contract
NAVAIR announced a contract for 136 M3M guns and spare weapons from FN Herstal, describing the GAU-21 as the Navy configuration planned for Navy and Marine Corps assault-support rotary-wing aircraft.
Sources: NAVAIR Awards Contract for GAU-21 .50 Caliber Weapon System
Al Asad GAU-21 test fire photographed
DVIDS photographed HMH-463 crew chiefs firing the GAU-21 ramp-mounted weapon system outside Al Asad, Iraq.
Sources: Test Fire [Image 2 of 5]
MH-60S Armed Helo testing completed
NAVAIR reported that MH-60S Armed Helo developmental testing included the GAU-21 .50-caliber machine gun, M240 machine gun, and AGM-114 Hellfire missile.
Sources: MH-60S 'Armed Helo' completes developmental test
UH-1Y deployment and fleet use reported
NAVAIR reported GAU-21 deployment with UH-1Y helicopters and said the fleet was also using the weapon system on CH-53D/E ramp and window mounts and MH-60R/S helicopters.
Sources: GAU-21 deploys with UH-1Y
GAU-21/A mounted over Helmand
DVIDS photographed a Marine mounting a GAU-21/A aboard an HMH-362 CH-53D over Musa Qal'ah district in Helmand province.
Sources: HMH-362 supports combat operations in Musa Qal'ah district [Image 4 of 4]
Operation Enduring Freedom aerial operation
DVIDS documented an HMH-461 crew chief operating a GAU-21 from a CH-53E over Helmand province during an Operation Enduring Freedom aerial operation.
Sources: Operation Nightmare [Image 8 of 12]
HH-60G Pave Hawk test effort reported
Air Force Materiel Command reported HH-60G Pave Hawk ballistic-dispersion testing with a GAU-21 mounted through the Gun Mount/Ammunition Handling System.
Sources: Test team aims at new machine gun for Pave Hawk
HH-60W live-fire testing documented
DVIDS documented the 41st Rescue Squadron testing the GAU-21 .50-caliber machine gun on the HH-60W Jolly Green II at Grand Bay Georgia Bombing and Gunnery Range.
Sources: 41 RQS tests GAU-2C, GAU-21 weapon systems
CH-53K live-fire exercise
DVIDS documented HMH-461 Marines firing GAU-21 .50-caliber machine guns from CH-53K King Stallion helicopters at Mountain Home Air Force Base.
Sources: U.S. Marines with HMH-461 shoot .50-caliber machine guns
USAFE HH-60W integration highlighted
DVIDS published AFN Aviano footage on GAU-21 integration and employment with HH-60W helicopters at Aviano Air Base, describing it as the first USAFE history use of the weapon system on the HH-60W.
Sources: HH-60W GAU-21 Integration and Employment
