GAU-18/A machine gun

Also known as

GAU-18
GAU-18A
GAU 18/A
GAU-18/A .50 caliber machine gun

The GAU-18/A is a U.S. .50-caliber helicopter machine gun in the Browning M2/M3 family. Air Force testing ties it to HH-60W rescue-helicopter armament, and FN's EMGS system supports window-mounted installation on that airframe.

GAU-18/A machine gun, .50 caliber machine gun, Infantry Weapons

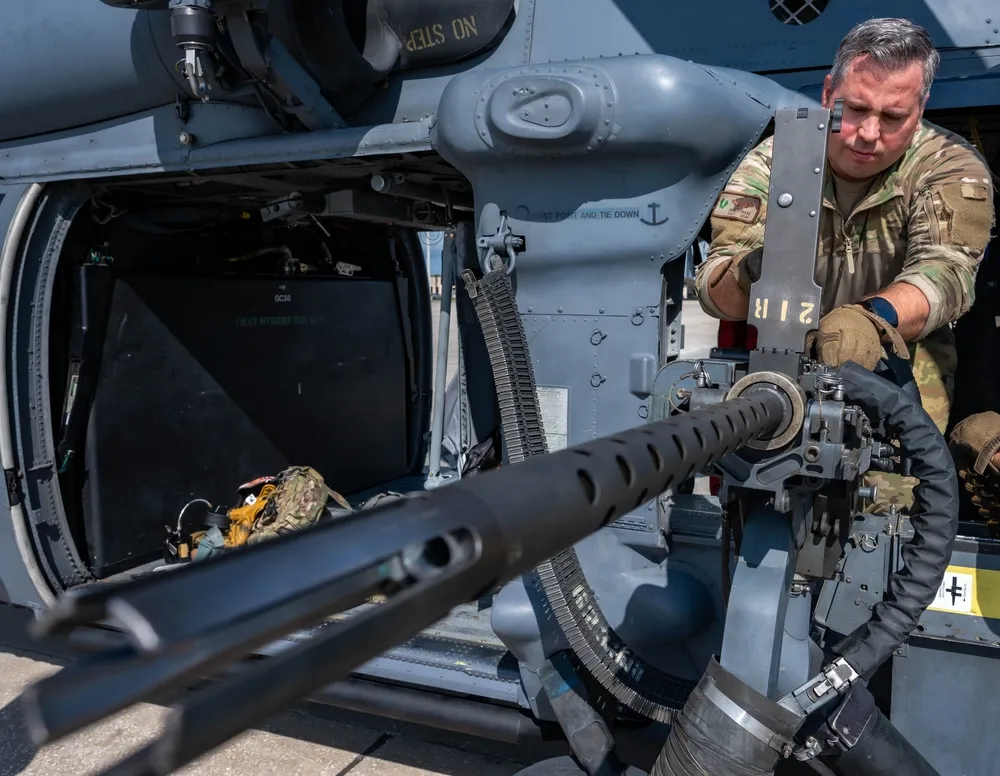

Image source: GAU-18A .50 caliber machine gun [Image 6 of 7]

Profile / Specs

Profile

Origin: United States
Built by: BrowningU.S. military contractors
Type: .50 caliber machine gun
Service note: Cold War to present helicopter armament
Designer: John M. Browning

machine gun heavy machine gun aircraft armament helicopter belt-fed

Specifications

Caliber: 12.7x99 mm NATO / .50 BMG
Action: Single-barrel, close-bolt, air-cooled
Feed: Left-hand feed and right-hand charging; HH-60 EMGS installs use a feed chute from external ammunition containers
Rate of fire: 650-850 rounds per minute

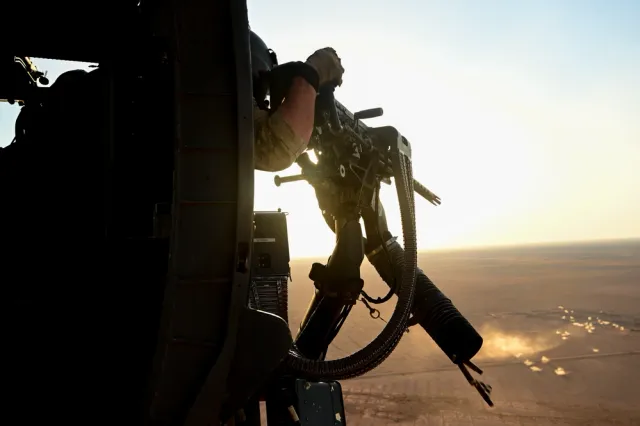

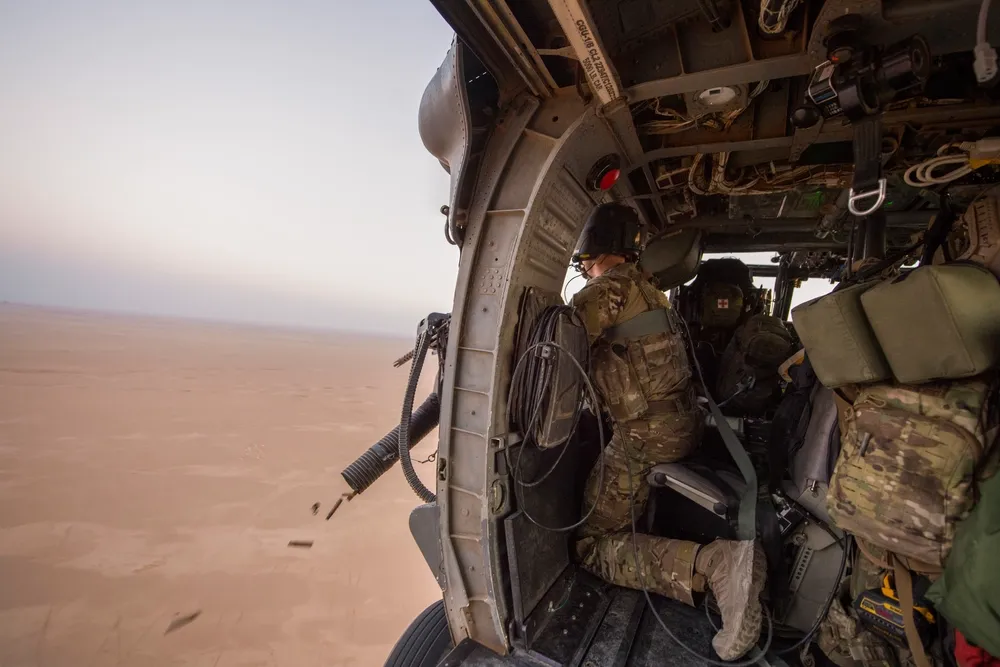

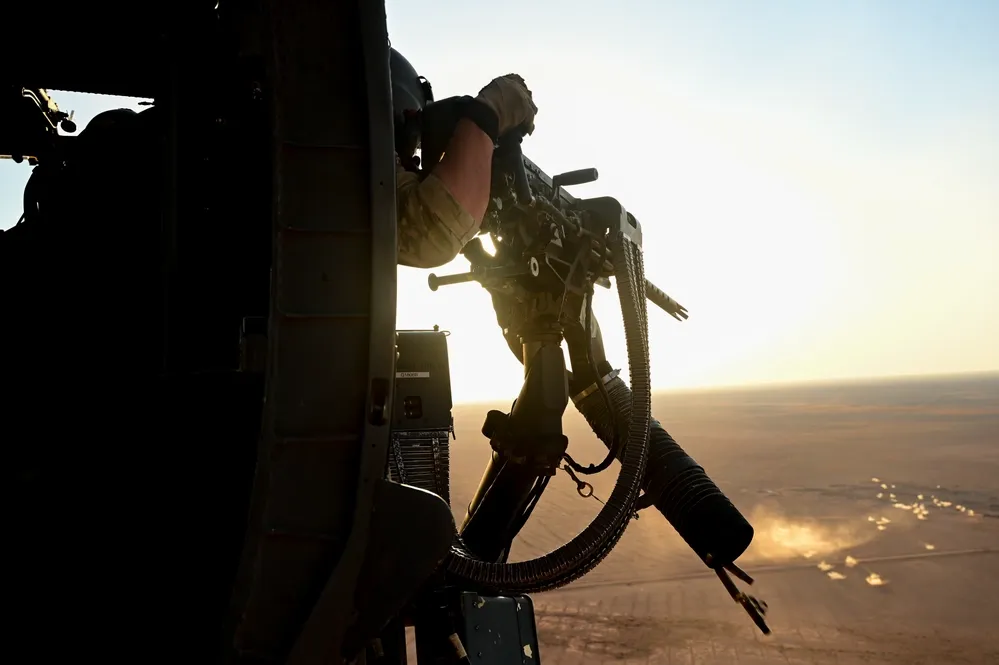

Mounting: Helicopter window or door-gun installation on HH-60 and MH-53 aircraft

Compatible Helicopters

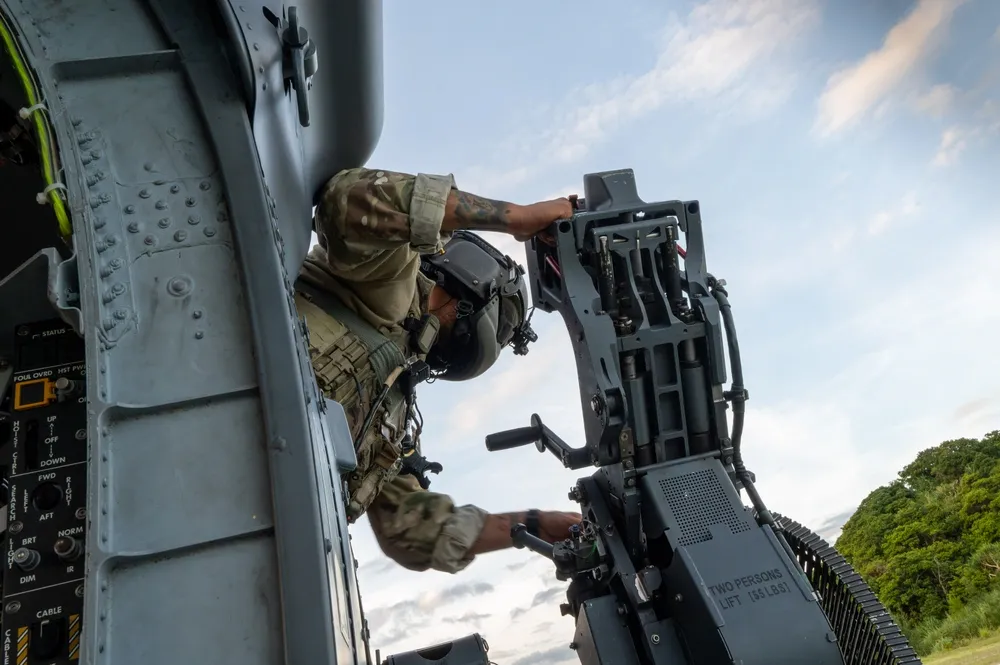

FN Herstal's HH-60W EMGS material says the unmodified GAU-18/A can be installed on HH-60W windows.

Compatible item

Item type

Compatibility evidence

HH-60W Jolly Green II, Combat rescue helicopter, Aircraft & UAVs

HH-60W Jolly Green II

Combat rescue helicopter

FN Herstal says the HH-60W windows can install the GAU-18/A machine gun through the external mounted gun system.

Sources: FN HH-60W EMGS, FN EMGS

Service And Conflict Use

Service History

In service: Used on USAF MH-53 Pave Low and HH-60 Pave Hawk helicopters; FN's EMGS material shows HH-60W window integration for the unmodified GAU-18/A.
Used by: United States Air Force
