Aircraft & UAVs

Black Hawk helicopter

The Black Hawk is Sikorsky's twin-engine medium-lift military utility helicopter family, developed from the U.S. Army's 1972 UTTAS requirement and fielded from 1978-79. The family includes the U.S. Air Force HH-60G Pave Hawk combat search-and-rescue variant, which added rescue-focused mission equipment, aerial refueling, and night and all-weather systems for personnel recovery and medevac work.

Profile

Origin
United States
Built by
Sikorsky Aircraft Corporation
Type
Medium-lift military utility helicopter family
Service note
1970s-present
Designer
Sikorsky Aircraft
Designed
1972-1974
Produced
1974-present
Number built
Over 5,000 delivered
Variants
UH-60A, UH-60L, UH-60M, UH-60V, HH-60M, MH-60M, HH-60G, MH-60K

Also Known As

  • UH-60 Black Hawk
  • UH/HH-60
  • S-70 Black Hawk
  • S-70i Black Hawk
  • Pave Hawk
  • HH-60 Pave Hawk
  • HH-60G Pave Hawk
helicopterutilityair assaultmedevacspecial operations

Specifications

Rotor system
Four-blade main rotor and four-blade tail rotor
Powerplant
Two General Electric T700 turboshaft engines
External cargo hook capacity
9,000 lb on the UH-60L
Mission support
ESSS stub wings can carry external fuel tanks and a wide variety of weapon systems
Performance
UH-60L first production model cruise speed of 152 knots at 4,000 ft and 95 degrees F

Service And Conflict Use

Service History

In service
U.S. Army service since 1979; still in production for military and allied users.
Used by
United States Army, Allied and partner militaries

Conflict Usage

Side
🏳️Unspecified

Exact model: Sikorsky UH-60M Black Hawk. The UH-60M is a modernized Black Hawk variant used by the U.S. Army and allies; public combat use includes Afghanistan and Iraq service, and Black Hawk-family use in Ukraine, although many Ukrainian aircraft are UH-60A/S-70 rather than UH-60M.

Side
🏳️Unspecified

Exact model: Sikorsky UH-60M Black Hawk. The UH-60M is a modernized Black Hawk variant used by the U.S. Army and allies; public combat use includes Afghanistan and Iraq service, and Black Hawk-family use in Ukraine, although many Ukrainian aircraft are UH-60A/S-70 rather than UH-60M.

Side
🏳️Unspecified

Exact model: Sikorsky UH-60M Black Hawk. The UH-60M is a modernized Black Hawk variant used by the U.S. Army and allies; public combat use includes Afghanistan and Iraq service, and Black Hawk-family use in Ukraine, although many Ukrainian aircraft are UH-60A/S-70 rather than UH-60M.

Side
🏳️Unspecified

Sikorsky S-70 / S-70i Black Hawk export family. S-70/UH-60-family aircraft have been used by multiple operators in Afghanistan, Iraq, Colombia, and Ukraine; exact exported S-70 variants vary by operator.

Timeline

Black Hawk helicopter Key Events

  1. UTTAS requirement launched

    The Army sought a simple, robust, reliable utility helicopter to meet projected air-mobile requirements around the world.

    Sources: Black Hawk Helicopter celebrates 40 years with the Army | Army

  2. First production aircraft accepted

    The Army accepted the first production UH-60A Black Hawk in 1978.

    Sources: Black Hawk Helicopter celebrates 40 years with the Army | Army

  3. Army service begins

    The Black Hawk entered service with Army aviation units in 1979.

    Sources: Black Hawk Helicopter celebrates 40 years with the Army | Army

  4. UH-60L development begins

    Sikorsky and the Army began the UH-60L upgrade to restore performance lost to weight growth in the earlier A model.

    Sources: Sikorsky S-70A: UH-60L Black Hawk Family | Sikorsky Archives

  5. UH-60L production starts

    The first UH-60L was delivered to the Army, adding more power and an external cargo hook capacity of 9,000 pounds.

    Sources: Sikorsky S-70A: UH-60L Black Hawk Family | Sikorsky Archives

  6. Battle of Mogadishu

    Army anniversary coverage says two MH-60L Black Hawk helicopters were downed during the Task Force Ranger operation in Mogadishu, Somalia.

    Sources: Remembering a golden legacy: The Battle of Mogadishu 25 years later

  7. Operation Allied Force

    The Air Force fact sheet says Pave Hawks provided continuous combat search and rescue coverage for NATO air forces during Operation Allied Force and recovered two isolated Air Force pilots.

    Sources: HH-60G Pave Hawk | Air Force

  8. Program reaches 50 years from first flight

    The Sikorsky archives note the Black Hawk's first flight on October 17, 1974, and more than 5,000 deliveries to customers.

    Sources: Sikorsky S-70A: UH-60L Black Hawk Family | Sikorsky Archives

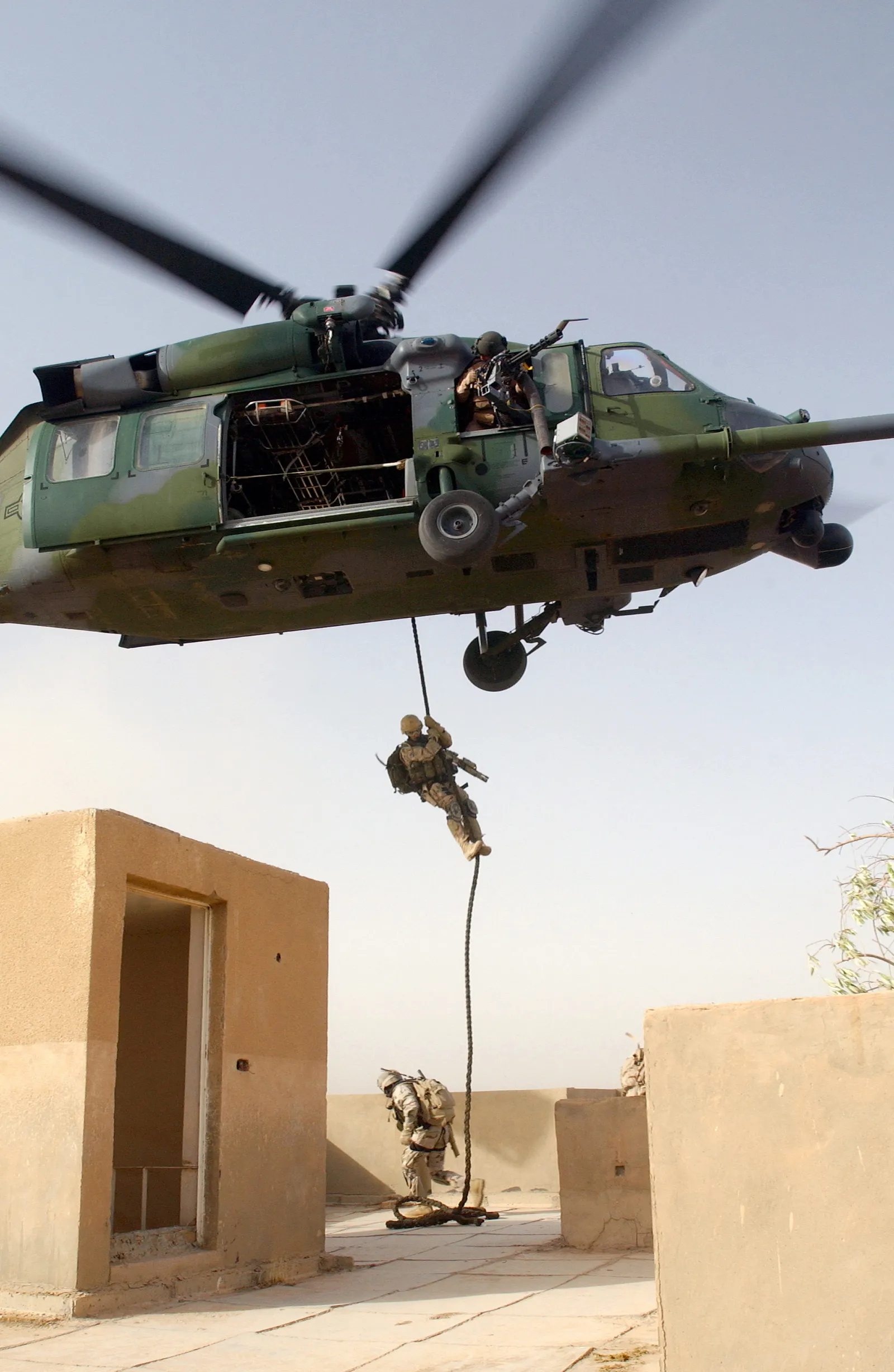

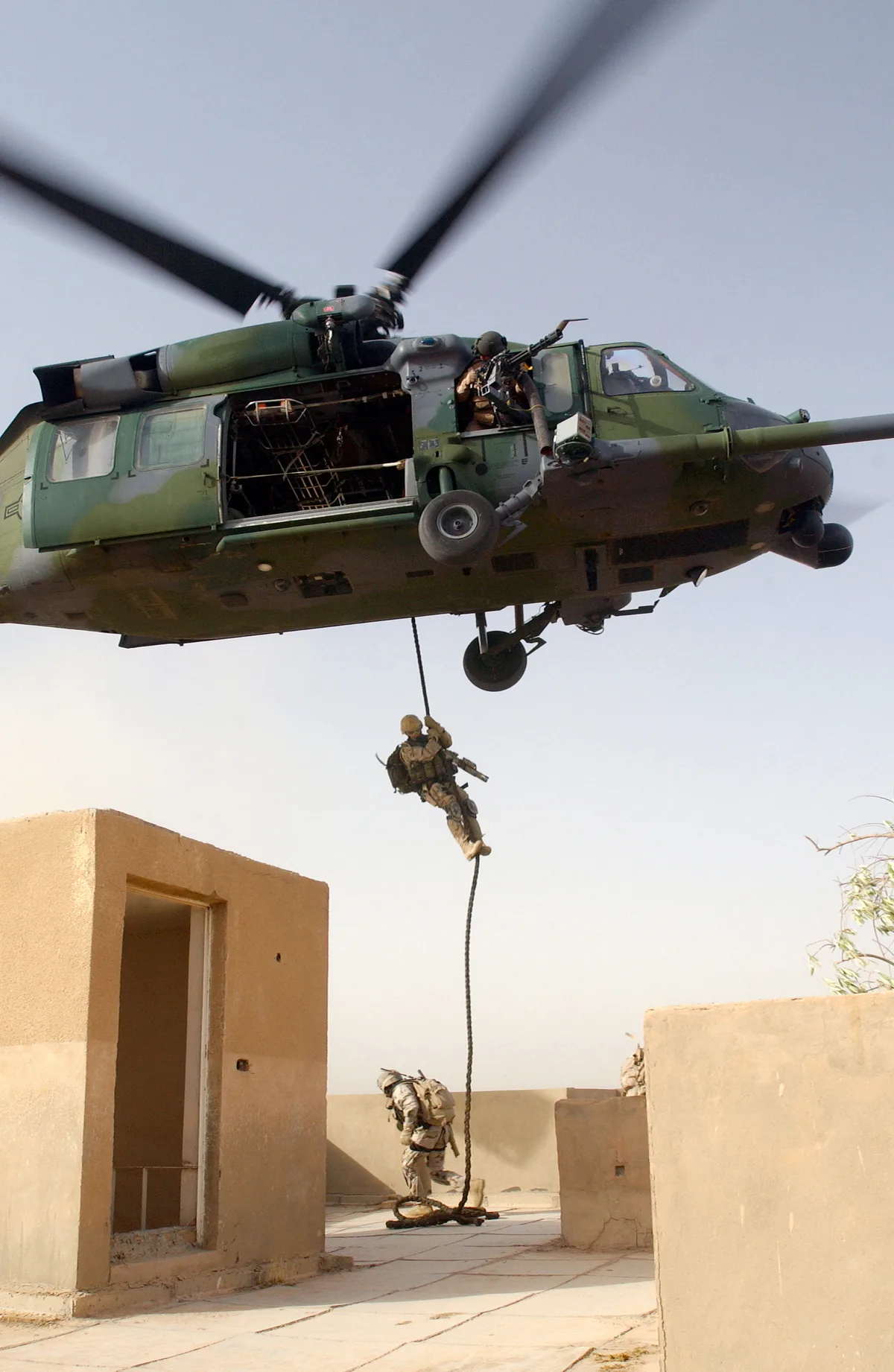

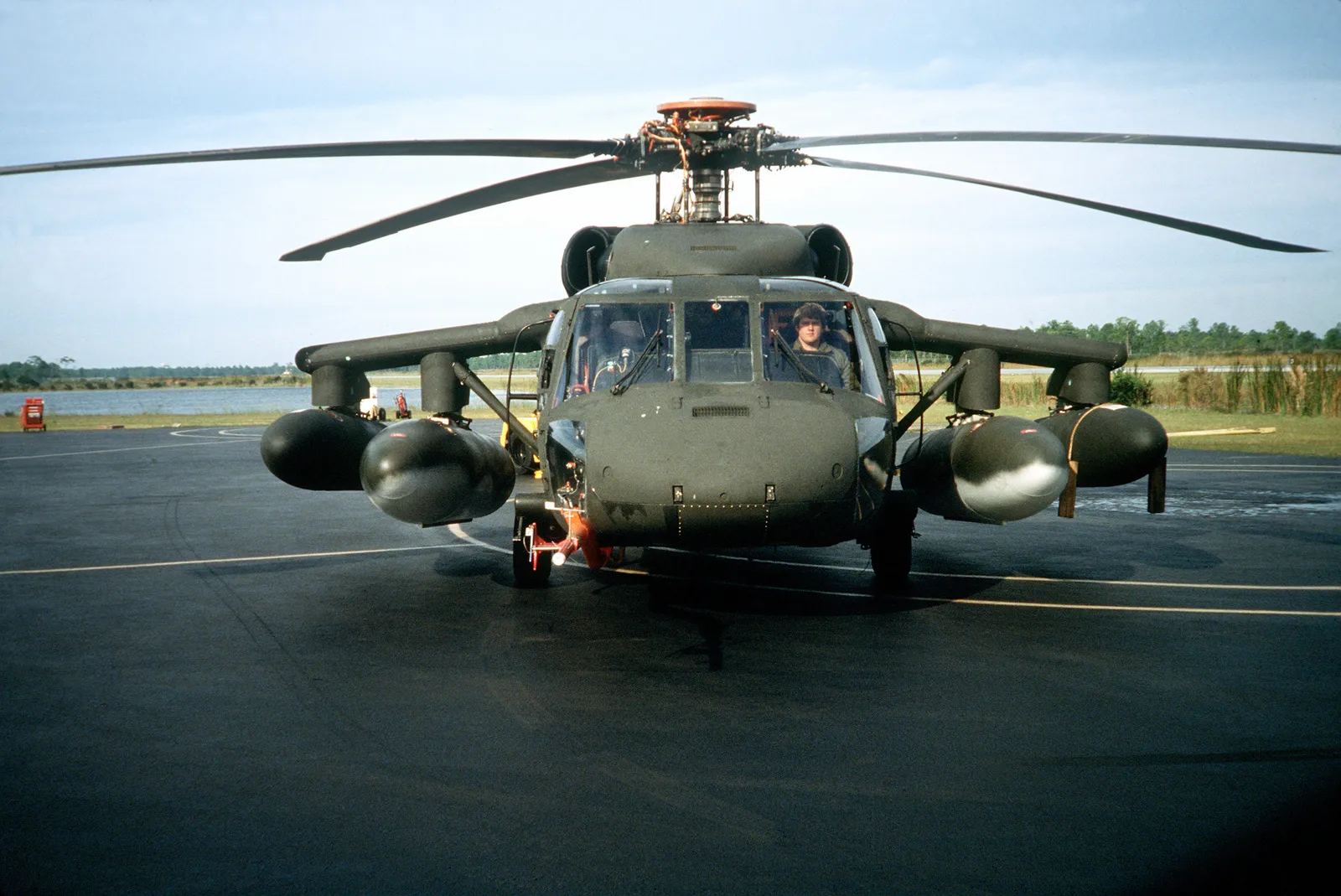

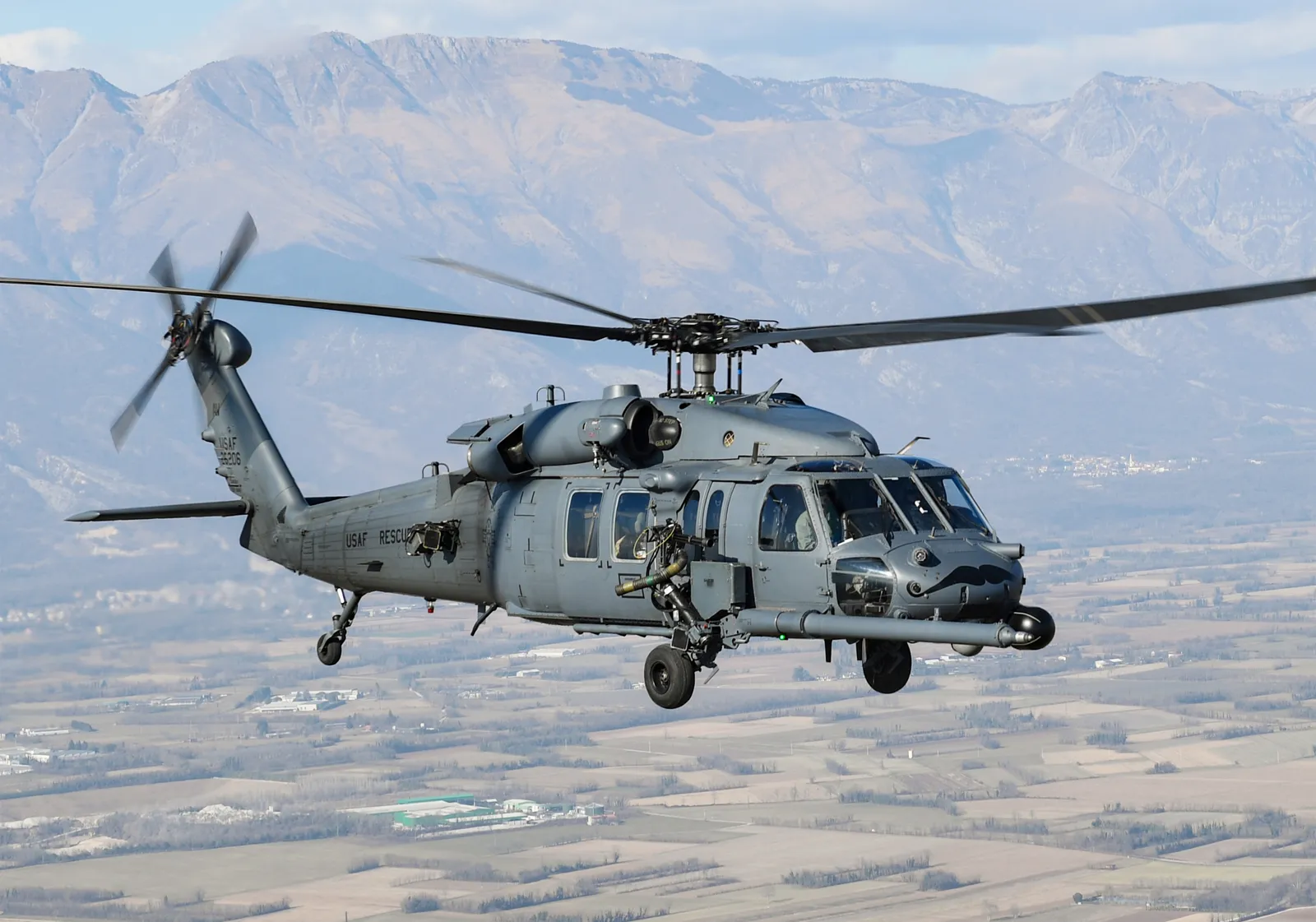

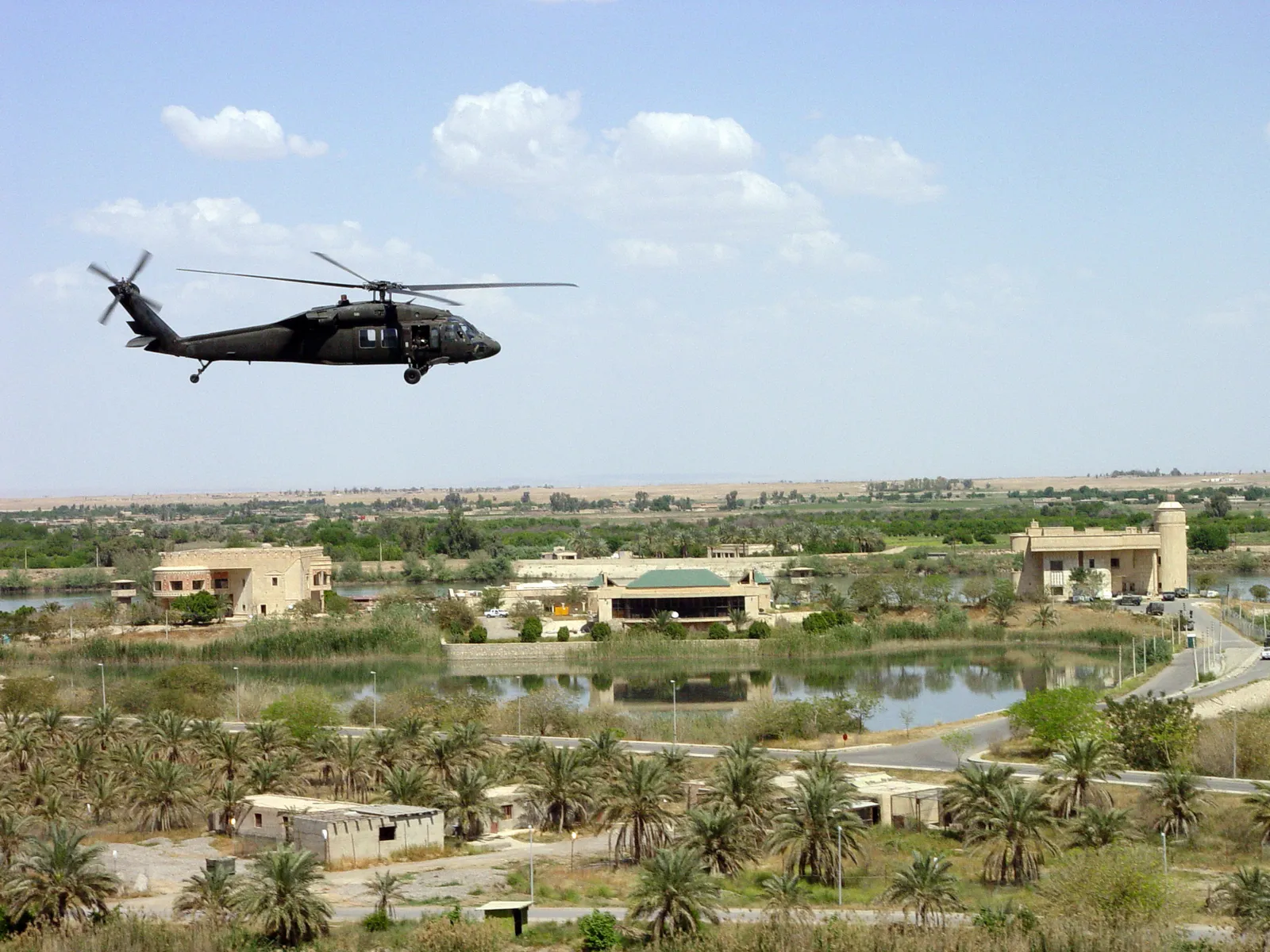

Black Hawk helicopter Images
