Infantry Weapons

GAU-19 machine gun

Also known as

GAU-19 Weapon System
GAU-19/A
GAU-19/B

Fulcrum Concepts' GAU-19 machine gun is a lightweight three-barrel Gatling gun family for air, land, and sea mounts. The current weapon system uses .50 caliber M9-linked ammunition, electric drive, and roughly 1,300 rounds per minute.

GAU-19 machine gun, machine gun, Infantry Weapons

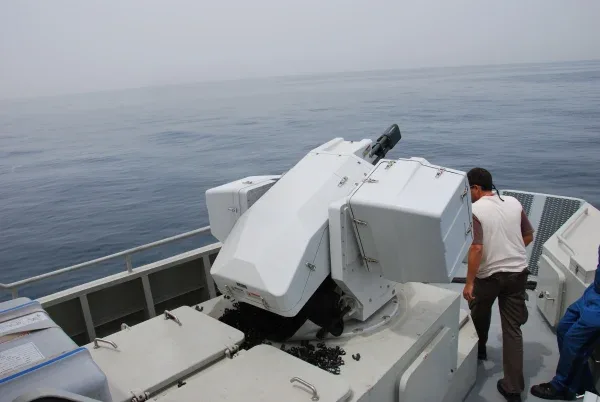

Image source: Fulcrum GAU-19 Weapon System

Profile / Specs

Profile

Origin: United States
Built by: Fulcrum Concepts, LLC
Type: machine gun

machine gun heavy machine gunrotary machine gunaircraft armament

Specifications

Caliber: .50 caliber / 12.7 mm
Action: Three-barrel Gatling, electrically driven
Feed: NATO-qualified .50 caliber (12.7 mm) M9-linked ammunition
Rate of fire: 1,300 rounds per minute
Power: 24-32 VDC electric drive
Weight: 575 lb at 1,300 shots/min
Mounts: Air, land, and sea operations

Carrier Aircraft

The GAU-19 weapon system is documented on the AH-60 as part of the helicopter's armament fit.

Carrier

Carrier type

Carriage evidence

AH-60L Arpia, Armed utility / attack helicopter, Aircraft & UAVs

Attack helicopter

The AH-60 IV fact sheet lists four GAU-19 machine guns among the helicopter's armament.

Sources: AH-60 fact sheet

Service And Conflict Use

Service History

In service: Field-proven on air, land, and sea mounts by US and allied forces.

Media

GAU-19 machine gun Images

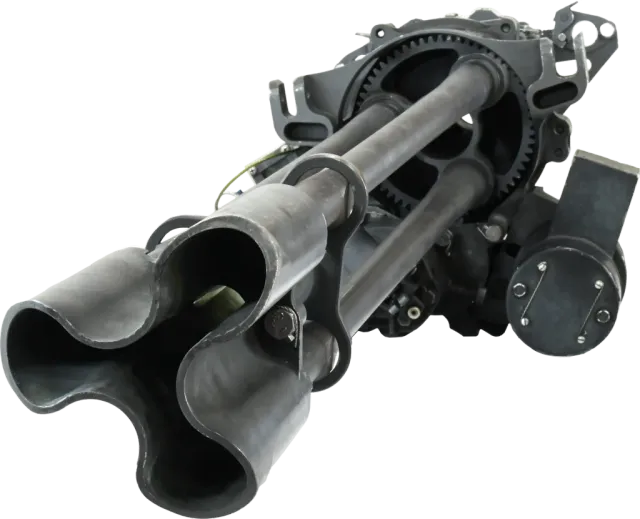

GAU-19 machine gun, machine gun, Infantry Weapons - view 1 — Source: Fulcrum GAU-19 Weapon System

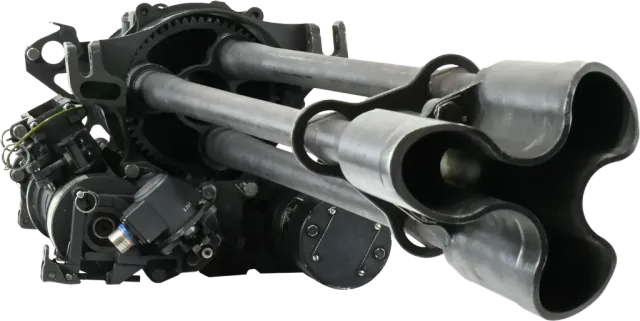

GAU-19 machine gun, machine gun, Infantry Weapons - view 2 — Source: Fulcrum GAU-19 Weapon System

Related Weapon Systems

FN M3P .50-caliber machine gun, Remote-fired .50-caliber machine gun, Infantry Weapons

Infantry WeaponsFN M3P .50-caliber machine gunRemote-fired .50-caliber machine gunThe FN M3P is FN Herstal's .50-caliber (12.7x99 mm) single-barrel high-rate-of-fire machine gun for remote firing from aircraft, ground vehicles, naval craft, and remote weapon stations. FN says the M3P entered U.S. service on the Avenger in 1989, and Army reporting later shows it reused on the OH-58D Kiowa Warrior.

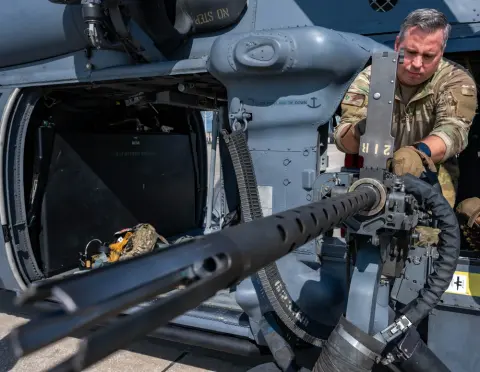

GAU-18/A machine gun, .50 caliber machine gun, Infantry Weapons

Infantry WeaponsGAU-18/A machine gun.50 caliber machine gunThe GAU-18/A is a U.S. .50-caliber helicopter machine gun in the Browning M2/M3 family. Air Force testing ties it to HH-60W rescue-helicopter armament, and FN's EMGS system supports window-mounted installation on that airframe.

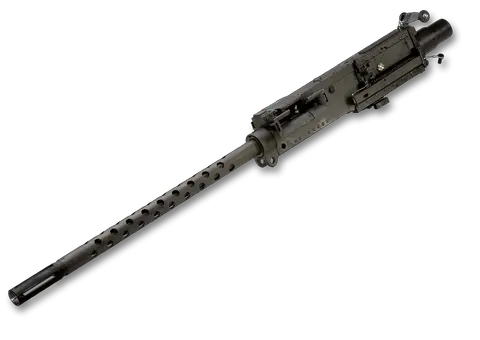

GAU-21, .50-caliber machine gun, Infantry Weapons

Infantry WeaponsGAU-21.50-caliber machine gunThe GAU-21 is FN Herstal's U.S. Navy designation for the M3M .50-caliber machine gun, a remote-fired rotary-wing gun for helicopter and aircraft mounts. FN says the design is an evolution of the M3 family, and DVIDS documents HH-60W testing with the weapon in 2022.

GAU-2C mini-gun, 7.62 mm minigun, Infantry Weapons

Infantry WeaponsGAU-2C mini-gun7.62 mm minigunThe GAU-2C mini-gun is a U.S. 7.62 mm electrically driven six-barrel minigun in the GAU-2 family. Air Force and DVIDS reporting documented the 41st Rescue Squadron testing it on the HH-60W Jolly Green II in March 2022, and rescue-helicopter coverage places the GAU-2C in the HH-60 weapon fit.

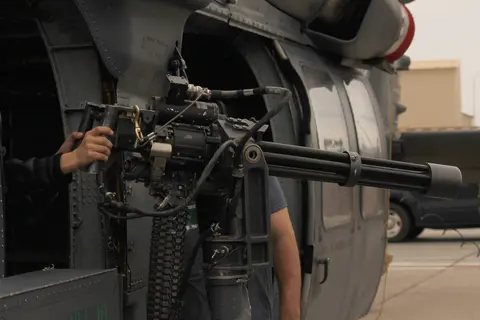

M134 Minigun, 7.62 mm minigun, Infantry Weapons
