Munitions

GP-19 gun pod

Also known as
  • Fulcrum GP-19
  • GP-19 Gun Pod
  • GP-19

The GP-19 is a Fulcrum Concepts aircraft gun pod built around the .50 caliber GAU-19 Gatling gun. Fulcrum describes it as a self-contained pod with simple aircraft integration, 14-inch mounting lugs, integrated ammunition handling, removable magazine support, bore-sight adjustment, and a 600-round maximum capacity.

GP-19 gun pod, Aircraft gun pod for GAU-19 .50 caliber Gatling gun, Munitions
Image source: Fulcrum GP-19 Gun Pod
Profile / Specs

Profile

Origin
United States
Type
Aircraft gun pod for GAU-19 .50 caliber Gatling gun
Service note
Modern

Specifications

Weapon core
.50 caliber GAU-19 Gatling gun
Empty weight
214 lb with gun
Gross weight
385 lb fully loaded
Maximum capacity
600 rounds
Rate of fire
1,100-1,300 shots/min
Battery life
10 magazines without recharge
Dimensions
86.1 in long x 72.2 in wide x 17.7 in high
Mounting
14-inch lugs
Compliance
MIL-STD-8591
Variants

Fulcrum presents the GP-19 as the baseline self-contained GAU-19 gun pod and the GP-19 Extended Capacity Pod as the expanded-capacity version.

VariantConfigurationDesignation notes
GP-19 Extended Capacity Pod, Expanded-capacity aircraft gun pod for GAU-19 .50 caliber Gatling gun, MunitionsGP-19 Extended Capacity PodExpanded-capacity GP-19 family pod

Fulcrum describes the ECP as the expanded version of the GP-19, with a larger magazine and 861-round capacity.

Sources: Fulcrum GP-19 Extended Capacity Pod, Fulcrum GP-19 ECP Fact Sheet

Weapon Core And Ammunition

The GP-19 is a podded aircraft installation for the GAU-19 and its linked .50 caliber ammunition path rather than a separate gun mechanism.

Compatible itemItem typeCompatibility evidence
GAU-19 machine gun, .50 caliber rotary heavy machine gun, Infantry WeaponsGAU-19 machine gun.50 caliber Gatling gun

Fulcrum identifies the GP-19 as a self-contained aircraft pod built around the .50 caliber GAU-19 and lists the GAU-19 weapon system as a related product.

Sources: Fulcrum GP-19 Gun Pod, Fulcrum GP-19 Fact Sheet

12.7x99mm NATO / .50 BMG, 12.7 mm heavy machine-gun cartridge, Munitions12.7x99mm NATO / .50 BMGLinked .50 caliber ammunition

The GP-19 packages the GAU-19 gun, and Fulcrum's GAU-19 air-based literature specifies .50 caliber / 12.7 mm M9-linked ammunition for the aircraft gun installation.

Sources: Fulcrum GP-19 Fact Sheet, Fulcrum GAU-19 Air Based Solutions

Aircraft Integration

The public product literature frames the GP-19 as a self-contained aircraft pod for host-aircraft integration, not as a conflict-documented fielded pod. Fulcrum's fact sheet says the pod needs trigger and arm signals from the host aircraft, can use an optional battery trickle charge, and uses 14-inch mounting lugs.

Ammunition handling

The pod includes a simple feed system, integrated ammunition booster motor, removable magazine, and optional brass-and-link collection.

Maintenance access

Fulcrum lists quick-access fairings, integrated bore-sight adjustment, and increased maintenance intervals among the pod features.

Procurement context

A 2019 arms-sales notice placed GP-19 pods and GAU-19B guns in a proposed Czech UH-60M package, which supports integration-package relevance without proving delivery, installation, or conflict use.

Sources: Fulcrum GP-19 Gun Pod; Fulcrum GP-19 Fact Sheet; Czech UH-60M Arms Sales Notification.

Timeline

GP-19 gun pod Key Events

  1. Czech UH-60M package included GP-19 pods

    A Federal Register notice for a proposed Czech UH-60M sale listed 12 GP-19 machine-gun pods and 12 GAU-19B machine guns in the package, supporting procurement-package relevance but not delivery or combat use.

    Sources: Czech UH-60M Arms Sales Notification

  2. Fulcrum acquired GAU-19 OEM role

    Fulcrum announced its acquisition of the GAU-19/A and GAU-19/B Gatling gun line from General Dynamics Ordnance and Tactical Systems, placing the GP-19's core gun family under Fulcrum support.

    Sources: Fulcrum GAU-19 Acquisition

  3. GP-19 and ECP listed in Fulcrum pod family

    Fulcrum's pod product page lists the GP-19 gun pod and the GP-19 Extended Capacity Pod as aircraft pod products built around the .50 caliber GAU-19 family.

    Sources: Fulcrum Pods

Media

GP-19 gun pod Videos

GP-19 gun pod Images

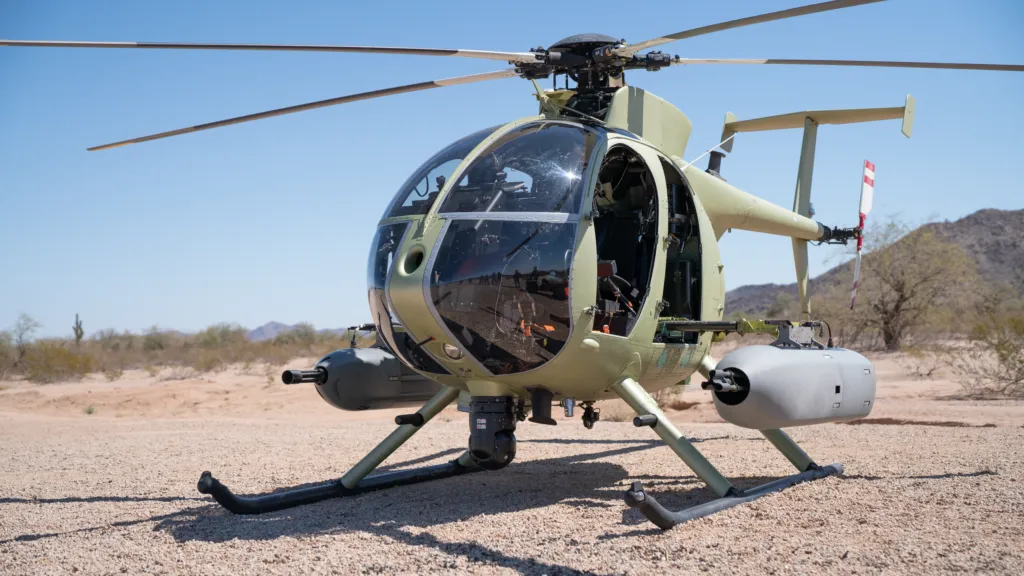

GP-19 gun pod, Aircraft gun pod for GAU-19 .50 caliber Gatling gun, Munitions - view 1
Source: Fulcrum GP-19 Gun Pod

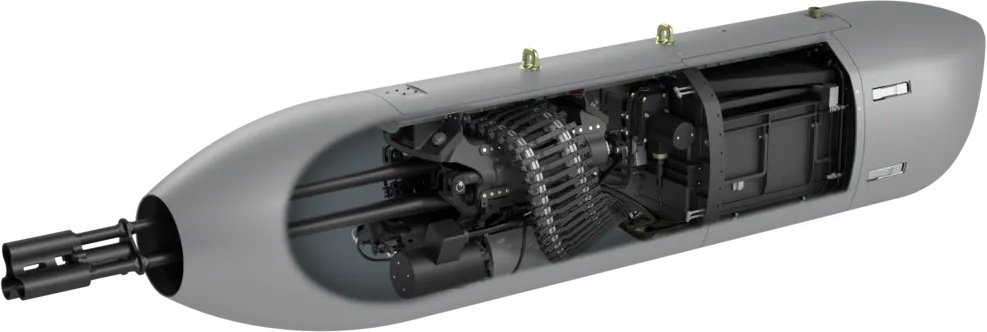

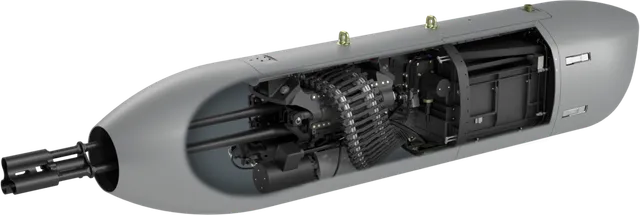

GP-19 gun pod, Aircraft gun pod for GAU-19 .50 caliber Gatling gun, Munitions - view 2
Source: Fulcrum GP-19 Gun Pod
GP-19 gun pod, Aircraft gun pod for GAU-19 .50 caliber Gatling gun, Munitions - view 3
Source: Fulcrum GP-19 Gun Pod
