C-130 Hercules

Also known as
  • C-130
  • Lockheed C-130
  • Hercules
  • C-130E
  • C-130H
  • C-130J Super Hercules
  • C-130J-30 Super Hercules
  • Hercules C4
  • C Mk 4

The Lockheed C-130 Hercules is a U.S. tactical airlift family built by Lockheed Martin Aeronautics Company for rough-strip operations, oversized cargo, airdrop, and theater logistics. Direct sources document Hercules transport use from Vietnam and Desert Storm through Afghanistan, Operation Iraqi Freedom, and the Mosul campaign, while the broader family includes gunship, tanker, rescue, special-operations, and electronic-warfare derivatives.

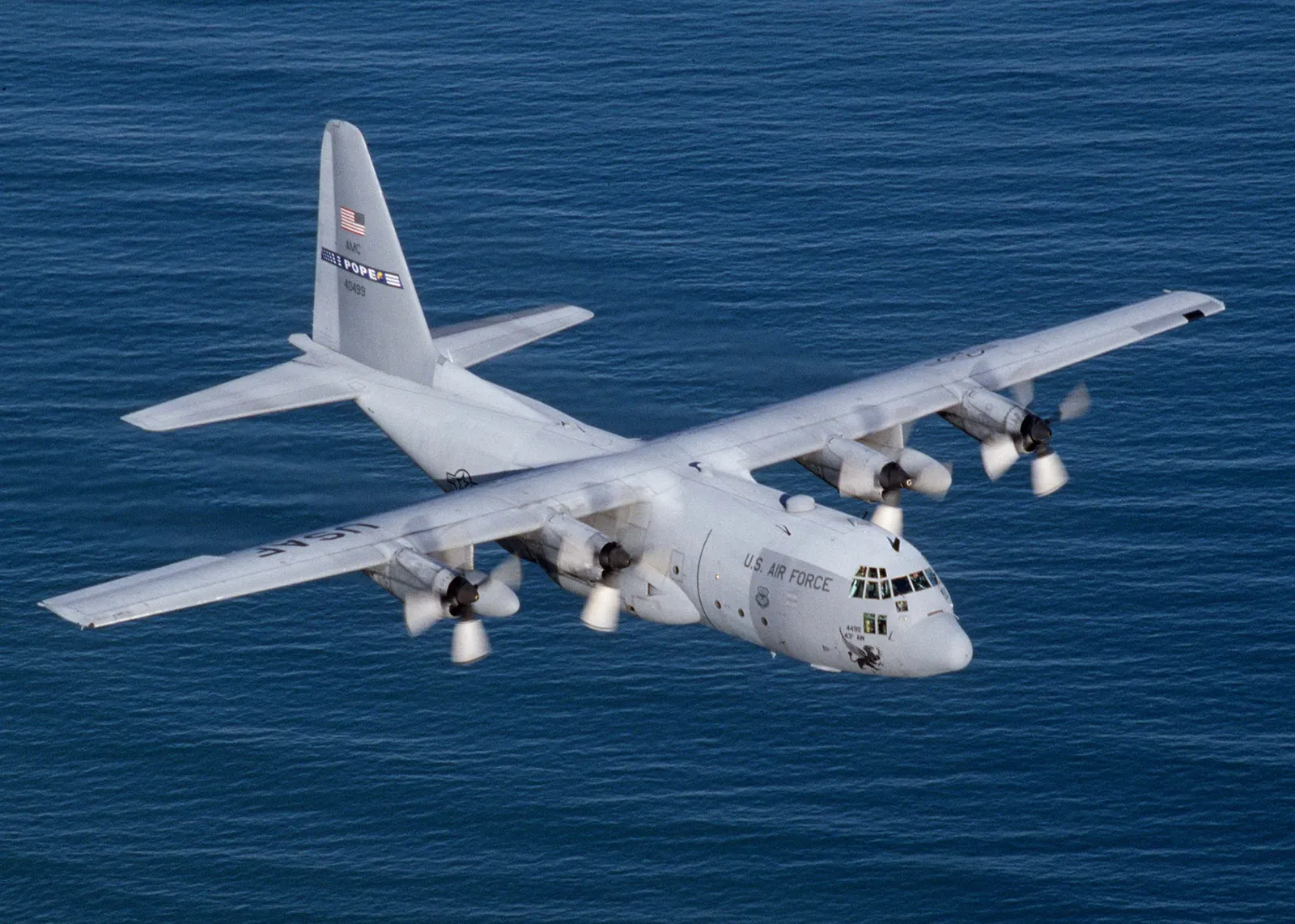

C-130 Hercules, Tactical airlift transport aircraft, Aircraft & UAVs
Image source: Lockheed C-130 Hercules.jpg

Role in Conflicts

1955 Vietnam War
Mobility & Logistics
Side
United States and South Vietnam

C-130 Hercules aircraft were used for tactical airlift and aerial resupply during the Vietnam War, including Khe Sanh supply missions by landing and airdrop under enemy fire.

Profile / Specs

Profile

Origin
United States
Type
Tactical airlift transport aircraft
Service note
1954-present; in U.S. Air Force service since 1956
Designer
Lockheed Martin Aeronautics Company
Designed
1951 original specification; first flight in 1954
Produced
1956-present
Number built
More than 2,500 delivered

Specifications

Primary function
Global and tactical airlift
Maximum allowable payload
C-130E/H/J up to 42,000 lb; C-130J-30 up to 44,000 lb
Crew
5 on C-130E/H; 3 on C-130J/J-30
Speed
C-130E 345 mph / 300 ktas; C-130H 366 mph / 318 ktas; C-130J 417 mph / 362 ktas; C-130J-30 410 mph / 356 ktas
Maximum takeoff weight
C-130E/H 155,000 lb; C-130J 164,000 lb
Maximum normal payload range
C-130E 1,000 nmi; C-130H 1,050 nmi; C-130J 1,800 nmi; C-130J-30 1,700 nmi
Power plant
Four turboprops; T56-A-7 or T56-A-15 on C-130E/H, AE2100D3 on C-130J/J-30
Dimensions
Length 97 feet 9 inches for C-130E/H/J and 112 feet 9 inches for C-130J-30; wingspan 132 feet 7 inches; height 38 feet 10 inches
Cargo compartment
C-130E/H/J cargo floor length 41 ft; C-130J-30 cargo floor length 56 ft; both 123 in wide and 9 ft high
Maximum load configuration
C-130E/H/J: 6 pallets, 72 litters, 16 CDS bundles, 90 combat troops, or 64 paratroopers; C-130J-30: 8 pallets, 97 litters, 24 CDS bundles, 128 combat troops, or 92 paratroopers
Variants

The Hercules family spans baseline tactical airlifters, stretched J-model airlifters, tanker-transports, special-operations aircraft, rescue variants, electronic-warfare aircraft, gunships, weather aircraft, and commercial freighters. This page keeps C-130A/B/E/H/J/J-30 as unlinked baseline variants and links only existing same-family catalog entries.

VariantConfigurationDesignation notes
C-130AInitial production tactical airlifter

Initial production model; U.S. Air Force deliveries began in December 1956.

Sources: C-130 Hercules

C-130BEarly production tactical airlifter

Introduced T56-A-7 turboprops; first aircraft entered Air Force service in May 1959.

Sources: C-130 Hercules

C-130EExtended-range tactical airlifter

Introduced in August 1962 with external fuel tanks and higher maximum takeoff weight capability.

Sources: C-130 Hercules

C-130HImproved legacy tactical airlifter

Introduced in June 1974 with T56-A-15 engines and performance improvements over the C-130E.

Sources: C-130 Hercules

C-130JCurrent-production tactical airlifter

Entered Air Force inventory in February 1999 with AE2100D3 engines, six-bladed composite propellers, digital avionics, and reduced crew requirements.

Sources: C-130 Hercules

C-130J-30Stretched tactical airlifter

Adds 15 feet to the fuselage and increases usable cargo-compartment space.

Sources: C-130 Hercules

AC-130 gunship, Heavily armed fixed-wing gunship, Aircraft & UAVsAC-130 gunshipGunship derivative

The AC-130J is a highly modified C-130J with a Precision Strike Package, electro-optical and infrared sensors, guided-munition capability, and trainable 30 mm and 105 mm weapons.

Sources: AC-130J Ghostrider

MC-130J Commando II, Special operations transport aircraft, Aircraft & UAVsMC-130J Commando IISpecial operations derivative

The MC-130J supports low-visibility infiltration, exfiltration, resupply, and air refueling for special operations forces.

Sources: MC-130J Commando II

KC-130J Hercules, Marine Corps tanker-transport aircraft with former Harvest HAWK armed mission kit, Aircraft & UAVsKC-130J HerculesMarine Corps tanker-transport derivative

NAVAIR describes the KC-130J as a Marine Corps tactical aerial-refueling, assault-support, and cargo-airlift aircraft.

Sources: NAVAIR C/KC-130 Hercules / Super Hercules

HC-130J Combat King II, Fixed-wing personnel recovery and helicopter air-to-air refueling aircraft, Aircraft & UAVsHC-130J Combat King IIPersonnel recovery derivative

The HC-130J is an extended-range C-130J version for personnel recovery, airdrop, airland, helicopter refueling, and forward-area ground refueling.

Sources: HC-130J Combat King II

EC-130H Compass Call, Airborne electronic attack aircraft, Aircraft & UAVsEC-130H Compass CallElectronic attack derivative

The EC-130H Compass Call is a heavily modified C-130H airframe built for airborne tactical electronic attack against command-and-control communications and related signals.

Sources: U.S. Air Force EC-130H Compass Call Fact Sheet

Compatible Airdrop Systems

Air Force and AMC reporting shows C-130 Hercules aircraft airdropping JPADS cargo bundles, so the aircraft is documented with a sourced JPADS compatibility link.

Compatible itemItem typeCompatibility evidence
Joint Precision Air Drop System, GPS-guided airdrop system with steerable parachute bundles, Support EquipmentJoint Precision Air Drop SystemGPS-guided airdrop system

Air Force and AMC reporting document C-130 Hercules aircraft airdropping supplies with JPADS bundles.

Sources: JPADS continues 'revolution in air drop technology', Bagram C-130s drop high-tech cargo delivery system

Carried Munitions

Air Force reporting documents the C-130 Hercules carrying the MOAB for its test-drop sequence.

Carried itemItem typeCarriage evidence
GBU-43/B MOAB, GPS/INS-guided massive ordnance air blast bomb, MunitionsGBU-43/B MOABMassive ordnance air blast bomb

The C-130 Hercules loaded and carried the MOAB during the documented test-drop sequence.

Sources: What to Know About the GBU-43/B, ‘Mother of all Bombs’, Bombs away

Mission Equipment Tested

Air Force reporting documents C-130H operational testing with the LITENING targeting pod for precision-airdrop support.

Carried itemItem typeCarriage evidence
LITENING Advanced Targeting Pod (AN/AAQ-28), Electro-optical targeting pod, Support EquipmentLITENING Advanced Targeting Pod (AN/AAQ-28)Electro-optical targeting pod

AATC tested LITENING on C-130H aircraft to support precision airdrop, including generating drop-location coordinates, avoiding sensitive objects, and tracking supplies after release.

Sources: DM hosts AATC

Timeline

C-130 Hercules Key Events

  1. Original design specification issued

    The Air Force issued the original C-130 design specification in 1951, starting the program that produced the Hercules airlifter family.

    Sources: C-130 Hercules

  2. First flight

    Lockheed Martin says the Hercules made its first flight at Burbank, California, in 1954, launching the program's long production run.

    Sources: C-130 Hercules Airlifter Celebrates 60th Anniversary Aug. 23; Got Stories?

  3. C-130A deliveries begin

    The initial production model, the C-130A, entered delivery in December 1956 after 219 airframes were ordered.

    Sources: C-130 Hercules

  4. C-130B enters Air Force service

    The C-130B introduced Allison T56-A-7 turboprops, with the first of 134 aircraft entering Air Force service in May 1959.

    Sources: C-130 Hercules

  5. C-130E introduced

    The C-130E arrived in August 1962 with external fuel tanks and a higher maximum takeoff weight capability.

    Sources: C-130 Hercules

  6. C-130H introduced

    June 1974 brought the C-130H, which used a more powerful Allison T56-A-15 turboprop and improved performance over earlier models.

    Sources: C-130 Hercules

  7. C-130J enters inventory

    The C-130J entered the Air Force inventory in February 1999 with Rolls-Royce AE2100D3 engines and six-bladed composite propellers.

    Sources: C-130 Hercules

  8. 2,500th C-130 delivered

    The Air Force reported the 2,500th Lockheed Martin-built C-130 entering the fleet at Moody Air Force Base, marking a major production milestone.

    Sources: 2,500th C-130 lands at Moody

  9. C-130J fleet passes 3 million flight hours

    Lockheed Martin reported that the worldwide C-130J Super Hercules fleet had passed 3 million flight hours across variants including C-130J/J-30, KC-130J, MC-130J, HC-130J, AC-130J, EC-130J, WC-130J, and LM-100J.

    Sources: Lockheed Martin C-130J 3 Million Flight Hours

Media

C-130 Hercules Videos

C-130 Hercules Images

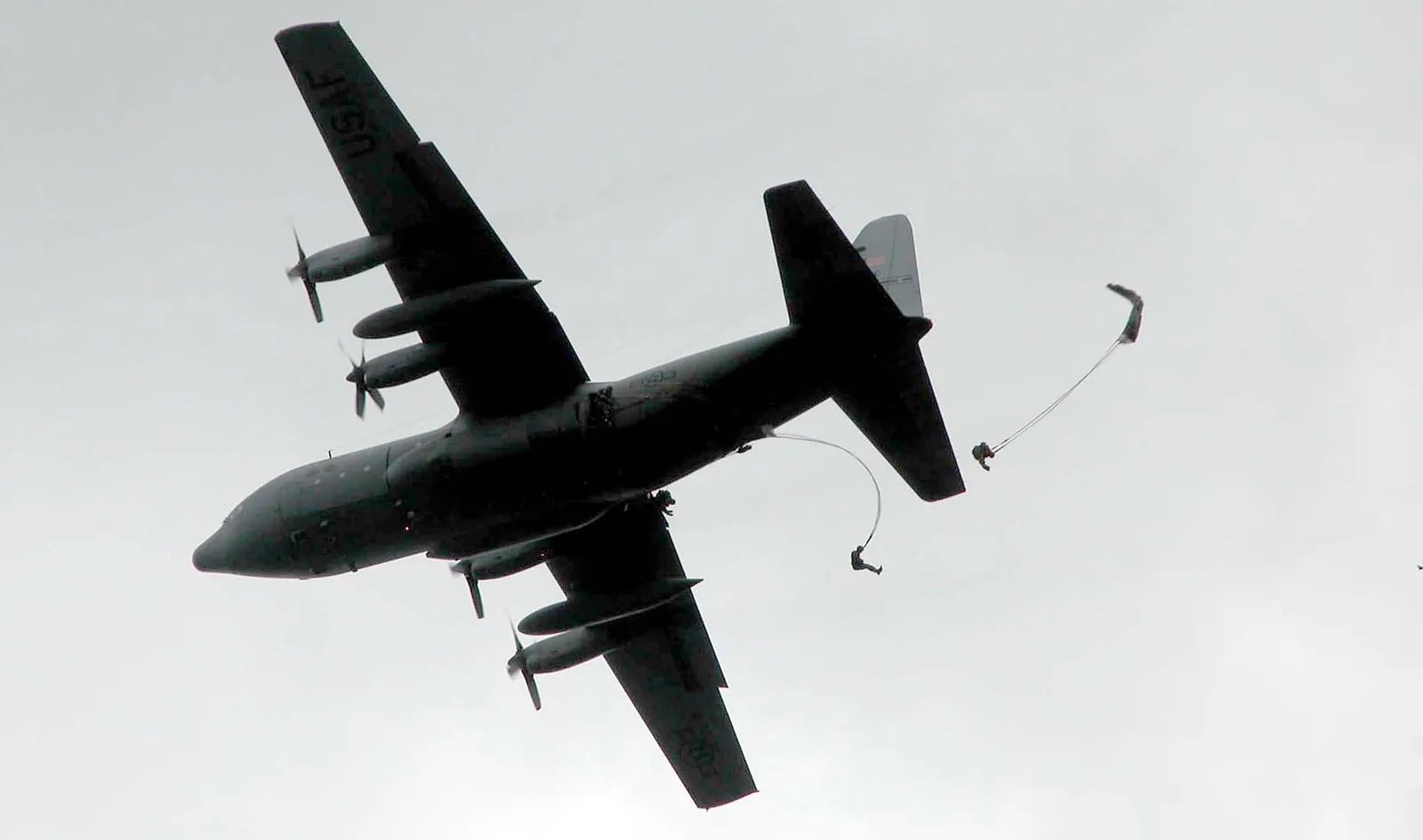

C-130 Hercules, Tactical airlift transport aircraft, Aircraft & UAVs - view 1
Source: C-130 Hercules 1.jpg

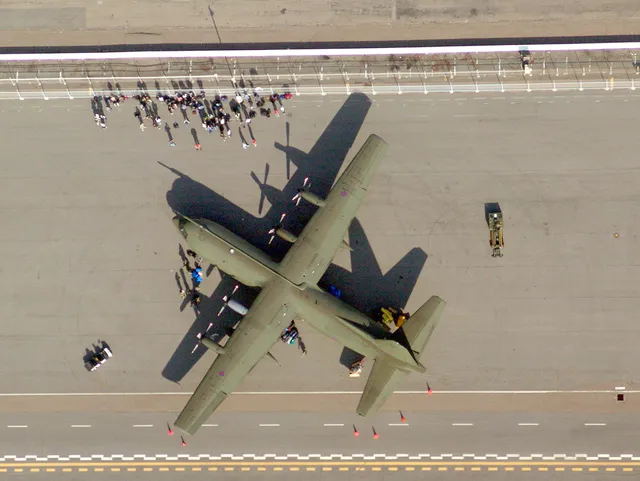

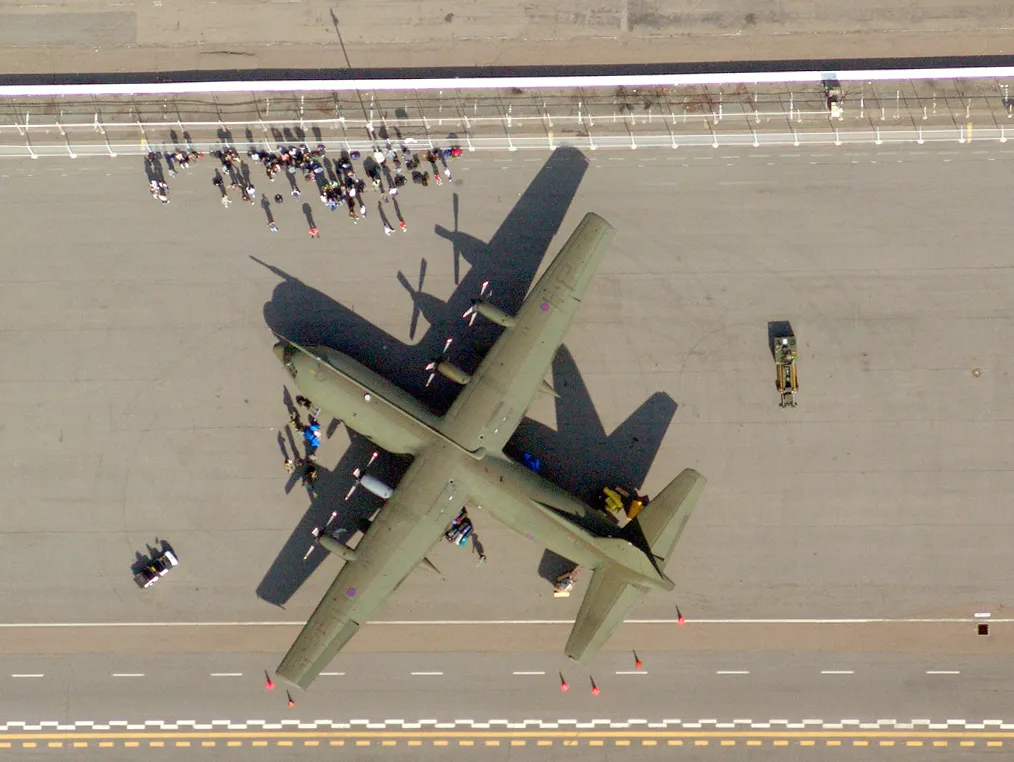

C-130 Hercules, Tactical airlift transport aircraft, Aircraft & UAVs - view 2
