AN/TWQ-1 Avenger

Also known as
  • Avenger Air Defense System
  • Avenger ADS
  • Avenger Missile Launcher
  • M1097 Avenger
  • AN/TWQ-1 M1097 Avenger
  • Boeing Avenger

The AN/TWQ-1 Avenger, often captioned in Army imagery as the M1097 Avenger, is a Boeing-developed short-range air-defense system built around a HMMWV-mounted turret with two Stinger missile pods and an M3P .50-caliber machine gun. Boeing records first firing in April 1984 and first delivery on 1988-11-01, with more than 1,100 systems delivered by 2002. The system appears in the catalog through Gulf War service, Iraq War up-gun conversions, Ukrainian mobile air-defense use against Shahed drones, and U.S. coalition force-protection activity at Al-Tanf in Syria.

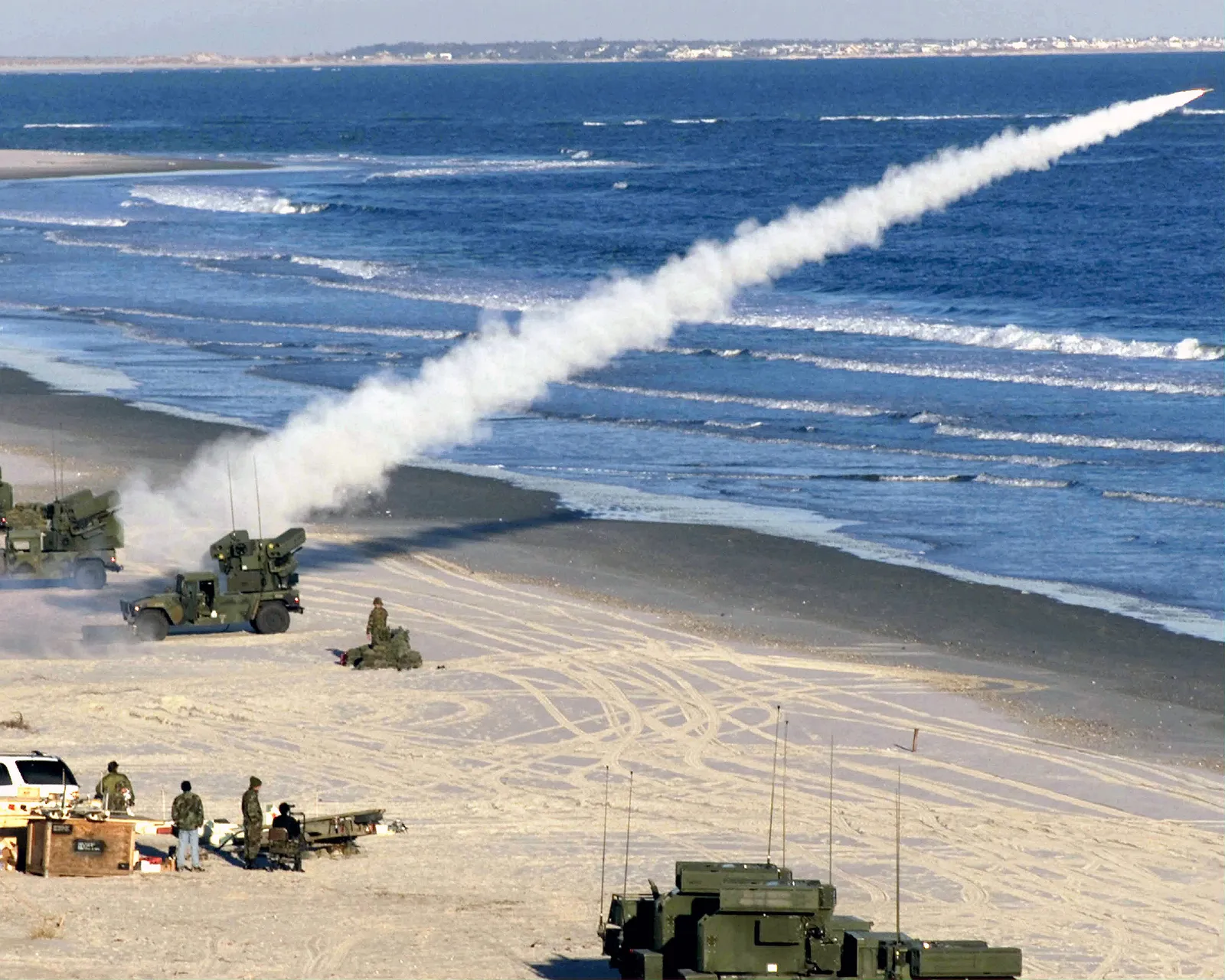

AN/TWQ-1 Avenger, Self-propelled short-range air defense system, Air Defense
Image source: File:Avenger missile.jpg

Role in Conflicts

2014 Russia-Ukraine War
Air DefenseForce Protection

The United States announced four Avenger short-range air defense systems with Stinger missiles for Ukraine on 2022-11-10 and eight more on 2023-01-19; a 2023-04-04 Defense Department fact sheet listed 12 Avengers committed, while SIPRI records 12 delivered in 2023. Ukrainian-side reporting placed Avengers on combat duty in the Northern Operational Zone by April 2023, and later reporting documented Ukrainian crews using Avengers against Russian Shahed drones, including M3P gun engagements when a missile was unnecessary.

Role details
Profile / Specs

Profile

Origin
United States
Built by
Boeing
Type
Self-propelled short-range air defense system
Service note
Late Cold War design; used in the 2014 Russia-Ukraine War after U.S. security assistance deliveries
Designer
Boeing Aerospace Company
Designed
Early 1980s
Produced
First delivered in 1988; Boeing restarted a dormant line for Egyptian deliveries due by September 2008
Number built
More than 1,100 reported produced and delivered

Specifications

Crew
2
Armament
Eight FIM-92 Stinger missiles in two four-round pods and one 12.7 mm M3P machine gun
Missile engagement envelope
About 200 m to 3,800 m range, with targets up to about 3,800 m altitude
Sensors and fire control
Optical tracker, forward-looking infrared system, IFF, fire-control computer, remote-control unit, and Slew-to-Cue integration with external radar tracks
Carrier vehicle
M1097/M1097A1 High Mobility Multipurpose Wheeled Vehicle chassis
Mobility
HMMWV 4x4 chassis; road speed about 105 km/h
Remote operation
Can be operated from a protected position up to 50 m from the fire unit
Transportability
Transportable by UH-60L helicopter or C-130 aircraft; M45 version is air-droppable
Modernization
SLEP Phase II included Mode 5 IFF, a new fire-control computer, digital communications conversion, HVAC, and a new .50-caliber machine gun
Combat weight
About 3,900 kg
Dimensions
4.95 m length; 2.18 m width; 2.59 m height
Variants

Avenger variants mostly reflect fire-control and mission-kit changes around the same HMMWV-mounted Stinger turret rather than separate missile families.

VariantConfigurationDesignation notes
Basic AvengerBaseline HMMWV-mounted Stinger turret

Boeing describes the baseline Avenger as a mobile surface-to-air missile fire unit with eight Stinger missiles in two pods, infrared equipment, communications, a fire-control computer, and a laser rangefinder.

Sources: The Boeing Company Select Products in Boeing History

Slew-to-Cue AvengerRadar-cued targeting-console upgrade

The Army says stored Avengers returned to service with a Slew-to-Cue targeting console that can turn the turret toward targets provided by remote radars, with remaining consoles scheduled for upgrade under SLEP.

Sources: Army rebuilding short-range air defense

Up-Gun AvengerIraq base-security conversion

Missile Defense Advocacy Alliance describes the Up-Gun Avenger as an Iraq War modification that removed the right missile pod and moved the M3P to permit 360-degree fire for ground security.

Sources: Avenger Air Defense System - Missile Defense Advocacy Alliance

Vehicle Chassis

Official Army material identifies the Avenger fire unit as a turreted short-range air-defense system mounted on an M1097 HMMWV chassis.

CarrierCarrier typeCarriage evidence
HMMWV, Light tactical wheeled vehicle, Armored VehiclesHMMWVLight tactical vehicle chassis

Army Europe captions use the AN/TWQ-1 M1097 Avenger designation, and Letterkenny Army Depot describes Avenger as mounted on an M1097 High Mobility Multipurpose Wheeled Vehicle.

Sources: 5th Battalion, 4th Air Defense Artillery Regiment Deploys to Romania, Kenny Letter March/April 2018 Avenger

Mounted Gun

The Avenger mounts the FN M3P as a secondary gun for close-range threats and live-fire drills.

Carried itemItem typeCarriage evidence
FN M3P .50-caliber machine gun, Remote-fired .50-caliber machine gun, Infantry WeaponsFN M3P .50-caliber machine gunRemote-fired .50-caliber machine gun

Army reporting describes the M3P as the Avenger's mounted secondary weapon, and DVIDS shows Avenger crews firing it during live-fire testing and rate-of-fire checks.

Sources: Avenger and Sentinel Advanced Gunnery validates SHORAD capabilities on the Korean Peninsula, U.S. Army Avenger Air Defense System Fires M3P .50-Caliber Machine Gun at Al-Tanf Garrison, Syria

Carried Munitions
Carried itemItem typeCarriage evidence
FIM-92 Stinger, Man-portable air-defense system, Air DefenseFIM-92 StingerInfrared-guided surface-to-air missile

U.S. Army sources describe the Avenger as carrying eight ready-to-fire Stinger missiles in two launcher pods, and Army history identifies Stinger as the missile fired from the Avenger system.

Sources: Avenger and Sentinel Advanced Gunnery validates SHORAD capabilities on the Korean Peninsula, stinger / avenger - Redstone Arsenal Historical Information, Letterkenny Army Depot completes 72nd Avenger in support of deterrence mission

Radar Cueing

Army reporting describes Avenger teams receiving Sentinel radar tracks for Slew-to-Cue handoff, letting the turret orient toward low-altitude targets before visual or infrared engagement.

Compatible itemItem typeCompatibility evidence
AN/MPQ-64 Sentinel, Mobile 3D air-defense radar, Air DefenseAN/MPQ-64 SentinelMobile 3D air-defense radar

U.S. Army articles describe Sentinel radar tracks being sent to nearby Avenger weapon systems and passed through EPLRS to validate Avenger/Sentinel Slew-to-Cue integration.

Sources: Avenger and Sentinel Advanced Gunnery validates SHORAD capabilities on the Korean Peninsula, South Korea-based Short Range Air Defense Battery Integrates Counter-UAS into Core Competencies

Turret And Engagement Roles

The Avenger is best understood as a stabilized turret package rather than only a missile truck. Sources describe the same turret combining ready Stinger missiles, a remotely fired M3P gun, optical and infrared sighting, IFF, and remote operation from cover.

Stinger pods

Two launcher pods carry eight ready-to-fire FIM-92 missiles, giving the HMMWV chassis a mobile short-range surface-to-air missile role.

M3P machine gun

The turret mounts a .50-caliber M3P for close-range fire and gunnery use, including some targets where crews may avoid spending a missile.

Sensors and cueing

Army reporting describes optics, range-finders, FLIR, IFF, and Slew-to-Cue radar handoff for finding and tracking low-altitude threats.

Remote-control unit

Ukrainian reporting notes that operators can fire the weapon system from cover when conditions make the vehicle position too exposed.

Timeline

AN/TWQ-1 Avenger Key Events

  1. First Avenger firing

    Boeing lists April 1984 as the first firing for the Avenger missile launcher.

    Sources: The Boeing Company Select Products in Boeing History

  2. First production delivery

    Boeing records the first Avenger delivery on 1988-11-01 and says more than 1,100 systems had been delivered by 2002.

    Sources: The Boeing Company Select Products in Boeing History

  3. Gulf War service

    Boeing describes the Avenger as a valuable U.S. Army asset during the Persian Gulf War.

    Sources: The Boeing Company Select Products in Boeing History

  4. Up-Gun Avenger conversion in Iraq

    Missile Defense Advocacy Alliance records an April 2005 Up-Gun Avenger modification for eight systems in Iraq, trading one missile pod for a 360-degree M3P ground-security fit.

    Sources: Avenger Air Defense System - Missile Defense Advocacy Alliance

  5. U.S. Army reactivates stored Avengers

    The Army said 72 Avengers were pulled from Letterkenny Army Depot storage to rebuild short-range air-defense capacity.

    Sources: Army rebuilding short-range air defense

  6. United States announces Avengers for Ukraine

    The U.S. Department of Defense announced four Avenger air-defense systems and Stinger missiles for Ukraine.

    Sources: $400 Million in Additional Assistance for Ukraine

  7. Eight additional Avengers announced

    The U.S. Department of Defense announced eight additional Avenger air-defense systems for Ukraine in a larger security-assistance package.

    Sources: Biden Administration Announces Additional Security Assistance for Ukraine

  8. Twelve Avengers listed for Ukraine

    A Defense Department fact sheet listed 12 Avenger air-defense systems committed to Ukraine, a count consistent with SIPRI's later transfer record for 2023 deliveries.

    Sources: Ukraine Fact Sheet - Apr. 4, SIPRI Arms Transfers Database

  9. Avengers reported on Ukrainian combat duty

    Espreso, citing Joint Forces Commander Serhii Nayev, reported that Avenger systems were already on combat duty in Ukraine's Northern Operational Zone.

    Sources: Avenger air defense system is already on combat duty in Ukraine

  10. Ukrainian Shahed engagements described

    Defense Express described Ukrainian Avenger crews using the system against Russian Shahed drones and choosing M3P gunfire when target geometry made a missile unnecessary.

    Sources: How Avenger ADS Chooses Gunfire Over Spending Missiles to Down Russian Shahed Drones

  11. Avenger M3P firing documented at Al-Tanf

    CJTF-OIR material documented U.S. Army Avenger vehicles firing the M3P machine gun at Al-Tanf Garrison, Syria, for rate-of-fire checks.

    Sources: Precision in Action: U.S. Army Avenger System Fires .50-Caliber Machine Gun at Al-Tanf Garrison

Media

AN/TWQ-1 Avenger Videos

AN/TWQ-1 Avenger Images

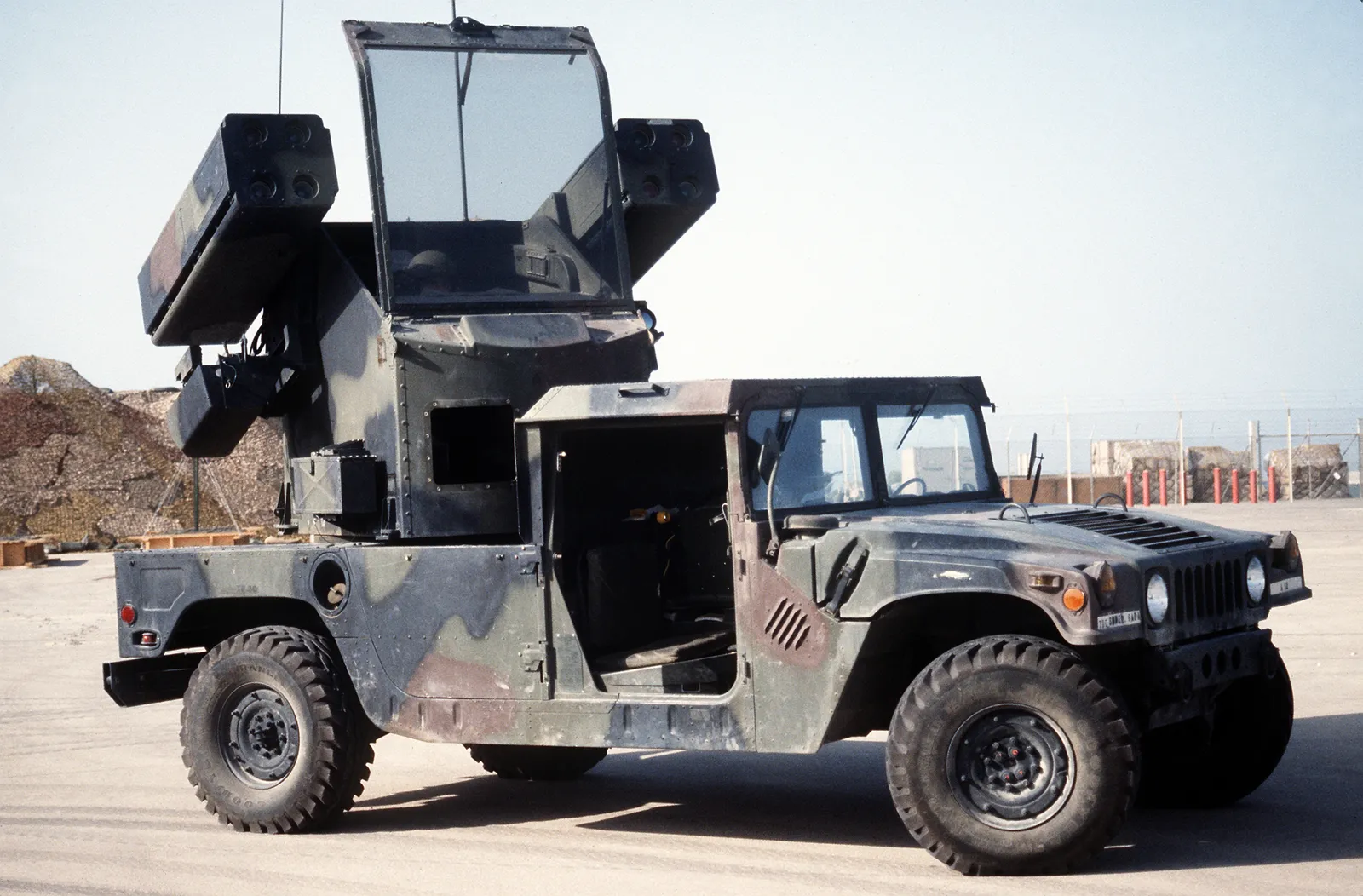

AN/TWQ-1 Avenger, Self-propelled short-range air defense system, Air Defense - view 1
