Air Defense

Counter Rocket, Artillery, and Mortar system / C-RAM

Also known as
  • C-RAM
  • C RAM
  • Counter-Rocket, Artillery, and Mortar
  • Counter Rocket Artillery Mortar
  • Centurion C-RAM
  • Land-Based Phalanx Weapon System
  • Land based Phalanx Weapon System
  • LPWS
  • Mobile Land-Based Phalanx Weapon System
  • MLPWS

Counter Rocket, Artillery, and Mortar system (C-RAM), also known as the Land-Based Phalanx Weapon System, is a U.S. close-in air-defense and force-protection system derived from the Navy Phalanx gun mount. Army and CJTF-OIR sources document LPWS/C-RAM use protecting bases and high-value sites in Iraq, Afghanistan, and Syria, while the shipboard Phalanx lineage also appears in Red Sea close-in missile defense.

Counter Rocket, Artillery, and Mortar system / C-RAM, Land-based close-in weapon system, Air Defense

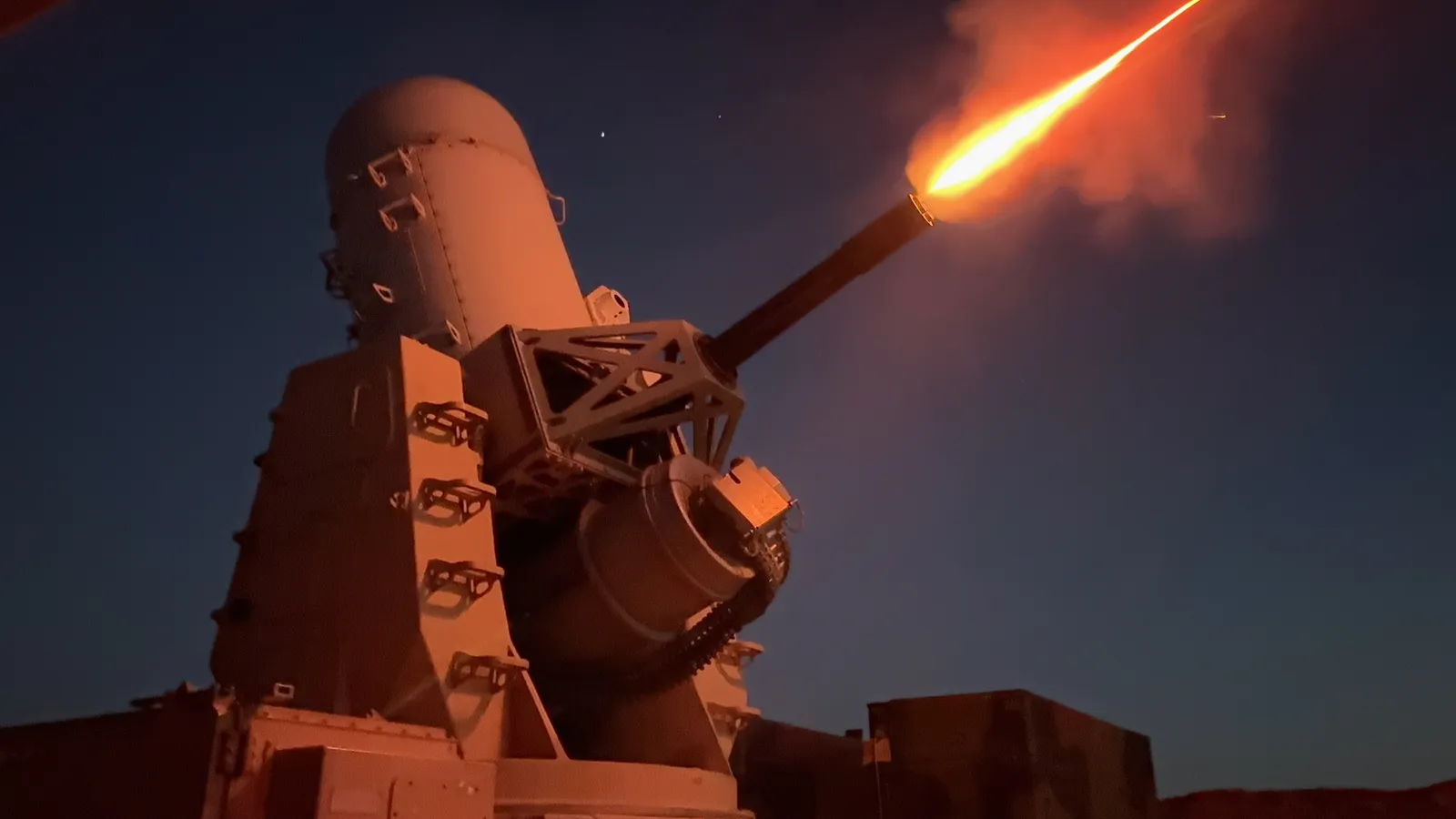

Image source: Commons PACFIRE image

Role in Conflicts

Profile / Specs

Profile

Origin
United States
Built by
Raytheon
Type
Land-based close-in weapon system
Service note
2005-present

Specifications

Gun
20 mm six-barrel Gatling gun
Rate of fire
4,500 rounds per minute
Ammunition
M940 20 mm self-destruct / multi-purpose tracer cartridge family
Mount
Lowboy trailer-mounted land adaptation of the Navy Phalanx
Fire control
Integrated search and track radars, infrared tracker, and automated engagement functions
Architecture
System-of-systems integrating sensors, command-and-control equipment, warning systems, FAAD C2, and LPWS
Mission
Detects and counters rockets, artillery, mortar rounds, close-in air threats, and selected small drones
System Architecture

C-RAM is broader than the gun mount alone. Army budget material describes a system-of-systems that combines multi-service sensors, command-and-control equipment, warning systems, FAAD C2 integration, and the Land-Based Phalanx Weapon System intercept component.

Intercept element

LPWS is a modified Navy Phalanx gun system mounted on a trailer for Army land use.

Command and warning

FAAD C2 integrates sensors, weapons, and warning systems to support warning, intercept, response, and protection decisions.

Ammunition

M940 self-destruct 20 mm ammunition is identified in manufacturer and Army material as part of the land-based Phalanx/C-RAM firing chain.

Variants

The catalog page covers the Phalanx-derived land C-RAM family rather than every shipboard Mk 15 mount. Public sources use LPWS, Centurion, and C-RAM for overlapping land-based configurations.

VariantConfigurationDesignation notes
Land-Based Phalanx Weapon System (LPWS)Lowboy trailer-mounted Army C-RAM configuration

A U.S. contract notice describes LPWS as an Army-used variant of the Mk 15 CIWS mounted on a lowboy trailer.

Sources: DoW LPWS contract notice

Mobile Land-Based Phalanx Weapon System (MLPWS)HEMTT A3-mounted mobile demonstration configuration

Raytheon and Oshkosh demonstrated a mobile configuration that integrated the Centurion Land-Based Phalanx Weapon System on a HEMTT A3 while retaining the Phalanx Block 1B-based functions.

Sources: Raytheon MLPWS demonstration

Ammunition Fired

Northrop Grumman identifies the M940 as the 20 mm cartridge fired from the C-RAM system.

AmmunitionAmmunition typeFiring evidence
M940 MPT-SD cartridge, 20 mm multi-purpose tracer self-destruct cartridge, MunitionsM940 MPT-SD cartridge20 mm multi-purpose tracer self-destruct cartridge

Northrop Grumman says the C-RAM system fires the M940 20 mm cartridge.

Sources: Northrop Grumman Ammunition

Timeline

Counter Rocket, Artillery, and Mortar system / C-RAM Key Events

  1. Land-based fielding begins

    The Army says C-RAM was adapted from the Navy Phalanx CIWS and became a fixture in combat theaters after being fielded for land-based use in 2005.

    Sources: Army BOLC C-RAM overview

  2. First combat intercept

    Army University Press says a C-RAM intercept battery using Phalanx 1B with Army radars achieved its first combat intercept of an incoming mortar round in March 2006.

    Sources: Army University Press C-RAM Adaptation

  3. Mobile LPWS live-fire demonstration

    Raytheon and Oshkosh demonstrated a HEMTT A3-mounted Mobile Land-Based Phalanx Weapon System at Yuma, reporting nine inert mortar targets destroyed during the event.

    Sources: Raytheon MLPWS demonstration

  4. Bagram LPWS combat mission documented

    U.S. Army reporting described 2-44 ADA using LPWS at Bagram Airfield to counter indirect-fire attacks during Operation Enduring Freedom.

    Sources: Army Bagram LPWS Mission

  5. Al-Tanf PACFIRE calibration

    CJTF-OIR documented a 20 mm Land-Based Phalanx Weapon System firing a PACFIRE calibration exercise at Al-Tanf Garrison, Syria.

    Sources: DVIDS Al-Tanf Phalanx PACFIRE Video

Media

Counter Rocket, Artillery, and Mortar system / C-RAM Videos

Counter Rocket, Artillery, and Mortar system / C-RAM Images

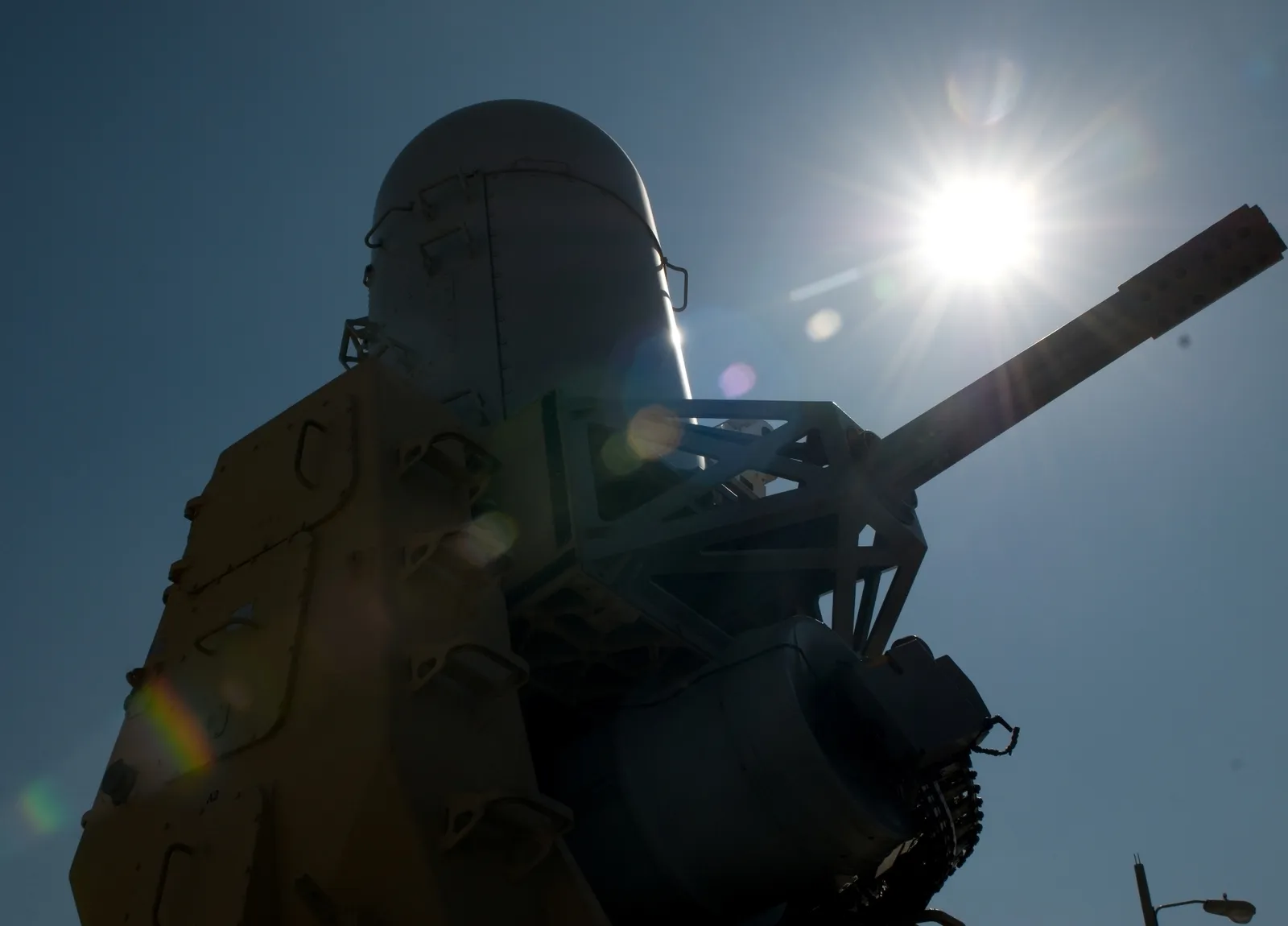

Counter Rocket, Artillery, and Mortar system / C-RAM, Land-based close-in weapon system, Air Defense - view 1
Source: Commons Bagram image

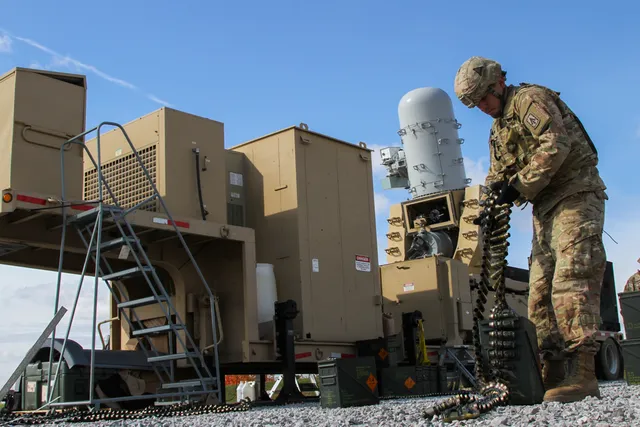

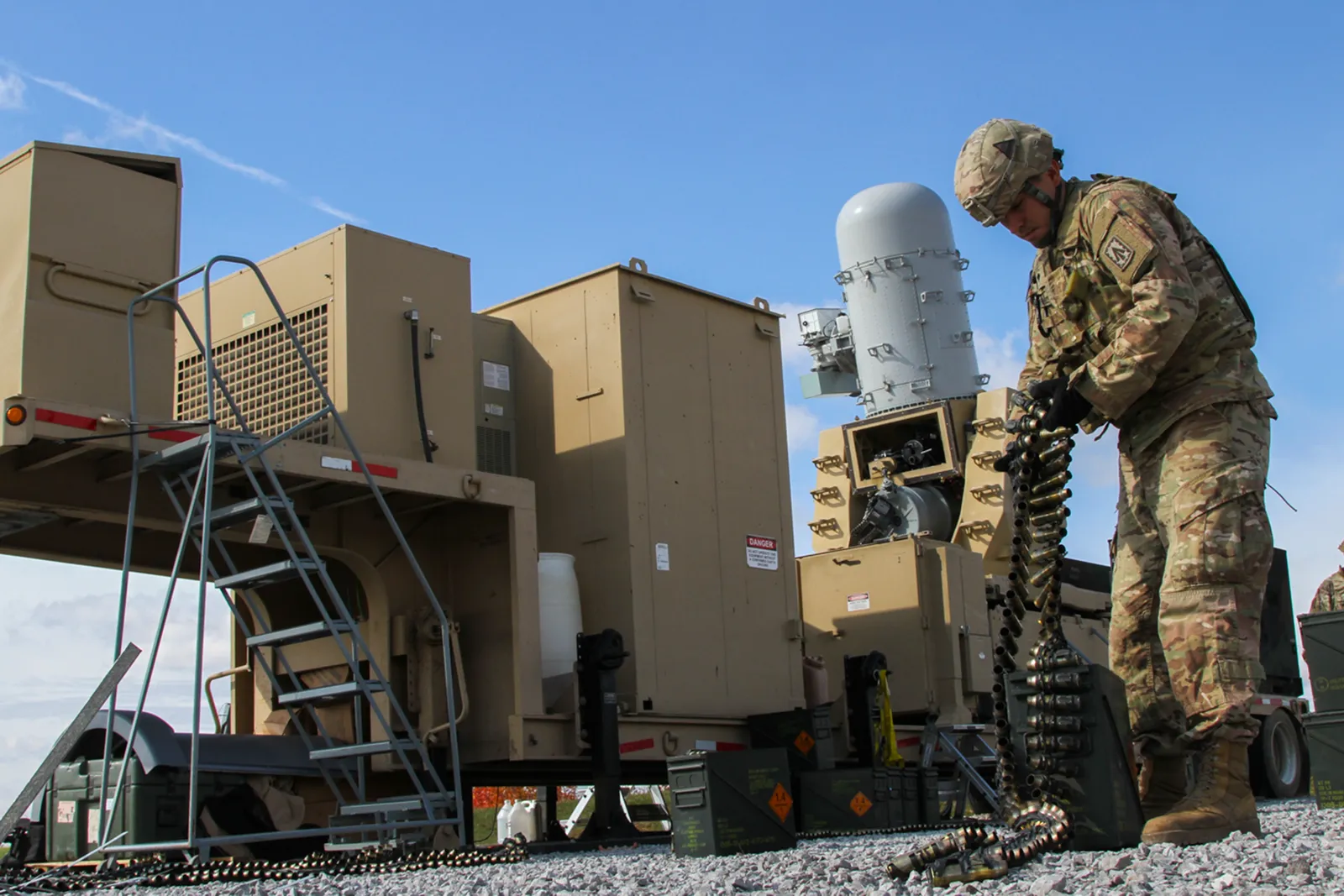

Counter Rocket, Artillery, and Mortar system / C-RAM, Land-based close-in weapon system, Air Defense - view 2
Source: Commons deployment image
Related Weapon Systems
20mm Mk 15 Phalanx, Shipboard close-in weapon system, Naval SystemsNaval Systems20mm Mk 15 PhalanxShipboard close-in weapon systemThe 20mm Mk 15 Phalanx is a U.S.-origin shipboard close-in weapon system built around an M61A1 Gatling gun, self-contained search and track radar, and automated fire-control functions. Navy and manufacturer sources describe it as the U.S. Navy's inner-layer defense against anti-ship missiles, aircraft, unmanned aircraft, and small surface threats; direct combat-use evidence includes USS Jarrett's Gulf War Phalanx firing during the Iraqi Silkworm engagement near USS Missouri and USS Gravely's Red Sea interception of a Houthi anti-ship missile.
RIM-116 Rolling Airframe Missile, Ship-launched surface-to-air missile, MunitionsMunitionsRIM-116 Rolling Airframe MissileShip-launched surface-to-air missileThe RIM-116 Rolling Airframe Missile is a U.S.-German ship self-defense missile used with the MK 31 RAM guided missile weapon system and SeaRAM launchers. U.S. Navy and Raytheon sources describe it as a lightweight, quick-reaction, fire-and-forget weapon for close defense against anti-ship missiles and other air or surface threats, while Red Sea reporting documents a German frigate firing a RIM-116 against Houthi drones in 2024.
M940 MPT-SD cartridge, 20 mm multi-purpose tracer self-destruct cartridge, MunitionsMunitionsM940 MPT-SD cartridge20 mm multi-purpose tracer self-destruct cartridgeThe M940 MPT-SD is a U.S. 20x102 mm multi-purpose tracer self-destruct cartridge for the land-based Phalanx / C-RAM firing chain. Northrop Grumman identifies M940-1 and M940-2 as C-RAM-fired rounds, Army ammunition material describes LPWS/C-RAM employing M940 against incoming rockets, artillery shells, and mortar rounds, and FY2027 budget material lists AC34 M940 w/MK7 Link procurement through Northrop Grumman and General Dynamics option lines.
Harpoon Coastal Defense System (HCDS), Mobile coastal anti-ship missile system, Naval SystemsNaval SystemsHarpoon Coastal Defense System (HCDS)Mobile coastal anti-ship missile systemHarpoon Coastal Defense System (HCDS) is a land-based Harpoon launch-system package built around mobile launcher transporter units, radar trucks, command-and-launch equipment, and RGM-84L-4 Harpoon Block II missiles. U.S. records identify Boeing as the principal contractor for Taiwan's HCDS sale, document follow-on launcher and missile-package contracts, and separately record two Harpoon coastal defense systems funded for Ukraine after Russia's full-scale invasion.
Mobile coastal launcher, Truck-mounted mobile coastal launcher for anti-ship cruise missiles, Naval SystemsNaval SystemsMobile coastal launcherTruck-mounted mobile coastal launcher for anti-ship cruise missilesThe Houthi mobile coastal launcher is a road-mobile shore-launch arrangement for anti-ship cruise missiles, built around recovered Yemeni C.801 launch equipment, trucks, and surface-search radars. It links the Al-Mandab-1/C-801 family to 2014 Yemen Civil War coastal defense and later appears in 2023 Red Sea Crisis reporting as Houthi truck-mounted anti-ship missiles and launchers threatened shipping from Houthi-controlled Yemen.
