MK 31 RAM Launcher

Also known as
  • MK-31 RAM Launcher
  • RAM MK-31 Guided Missile Launching System
  • RAM MK 31 Guided Missile Weapon System
  • MK 31 Guided Missile Weapon System
  • MK 49 Guided Missile Launching System

The MK 31 RAM Launcher is the shipboard launcher and weapon-system layer for the Rolling Airframe Missile family. Raytheon describes the MK 31 guided missile weapon system as the 21-round MK 49 launching system plus MK 44 missile round pack, while Red Sea reporting on German frigate Hessen documents RAM/RIM-116 combat use in EUNAVFOR Aspides.

MK 31 RAM Launcher, Surface-to-air missile launcher, Air Defense
Image source: Mk31 Rolling Airframe Missile Launcher photo

Role in Conflicts

Profile / Specs

Profile

Origin
United States / Germany
Type
Surface-to-air missile launcher
Service note
1990s-present
Designed
1970s-1990s
Produced
1990s-present

Specifications

System
MK 31 RAM Guided Missile Weapon System
Role
Ship self defense
Missile capacity
21
Round pack
MK 44 guided missile round pack
Launching system
MK 49 guided missile launching system
Associated missile
RIM-116 Rolling Airframe Missile
Contractor
Raytheon Missile Systems
Integration
Uses target and pointing information from host-ship sensors
System Architecture

The MK 31 is the weapon-system layer around the RAM missile rather than only a bare deck mount. Raytheon describes the MK 44 guided missile round pack and MK 49 guided missile launching system as the two elements that comprise the MK 31 guided missile weapon system.

Magazine and launcher

The MK 49 launching system holds 21 RAM missiles in the MK 31 weapon system.

Ship integration

The system is designed to use target and pointing data from existing ship sensors rather than a dedicated sensor set.

SeaRAM relationship

SeaRAM combines Phalanx-derived sensors with a RAM launcher, while the MK 31 configuration depends on the host ship's combat system for engagement information.

Associated Missile

The launcher exists to fire the RAM missile round used by the ship self-defense system.

Launched itemItem typeLaunch evidence
RIM-116 Rolling Airframe Missile, Ship-launched surface-to-air missile, MunitionsRIM-116 Rolling Airframe MissileShip-launched surface-to-air missile

Raytheon describes the MK 44 guided missile round pack and MK 49 launching system, holding 21 missiles, as the elements that comprise the MK 31 guided missile weapon system.

Sources: RAM Missile - Raytheon Emirates

Carrier Ships

Cataloged ship classes document RAM launcher fits across U.S. and German surface combatants.

CarrierCarrier typeCarriage evidence
Freedom-class Littoral Combat Ship, Freedom-variant littoral combat ship, Naval SystemsFreedom-class Littoral Combat ShipFreedom-variant littoral combat ship

The 2025 NAVSEA historical evaluation for USS Sioux City lists one MK 31 RAM Launcher in the ship's armament.

Sources: USS Sioux City (LCS-11) Naval Historical Evaluation

Braunschweig-class / K130 corvette, Corvette class, Naval SystemsBraunschweig-class / K130 corvetteCorvette class

Bundeswehr lists two RIM-116 RAM launchers as the Braunschweig-class close-range air-defense fit.

Sources: Bundeswehr: Korvetten der Braunschweig-Klasse

Sachsen class / F124 frigate, Air-defense frigate class, Naval SystemsSachsen class / F124 frigateAir-defense frigate class

Bundeswehr lists two RIM-116 RAM launchers on the Sachsen class for close air defense and missile interception.

Sources: Fregatten der Sachsen-Klasse | Bundeswehr

Timeline

MK 31 RAM Launcher Key Events

  1. Ship self-defense requirement emerges

    JHU APL's RAM development history traces the program to a 1973 Chief of Naval Operations requirement for defense against anti-ship cruise missiles.

    Sources: Rolling Airframe Missile Development, Test, Evaluation, and Integration

  2. U.S.-German engineering development begins

    The RAM program entered full-scale engineering development as a U.S.-German cooperative effort, with General Dynamics selected as prime contractor and German industry supporting the work.

    Sources: Rolling Airframe Missile Development, Test, Evaluation, and Integration

  3. Initial U.S. Navy fleet deployment

    JHU APL describes initial RAM Block 0 development leading to U.S. Navy fleet deployment in 1993.

    Sources: Rolling Airframe Missile Development, Test, Evaluation, and Integration

  4. Latin American launcher delivery

    Raytheon reported delivery of a RAM launcher to the Mexican Navy for the POLA offshore patrol vessel program in 2018.

    Sources: RAM Missile - Raytheon Emirates

  5. Hessen uses RAM in Red Sea defense

    Naval News and The War Zone reported that German frigate Hessen used its RAM/RIM-116 system while intercepting Houthi-controlled drones during EUNAVFOR Aspides operations.

    Sources: Missile Woes For German Navy Amid Red Sea Operation, German Frigate Mistakenly Fires On MQ-9, Downs Two Houthi Drones

Media

MK 31 RAM Launcher Videos

MK 31 RAM Launcher Images

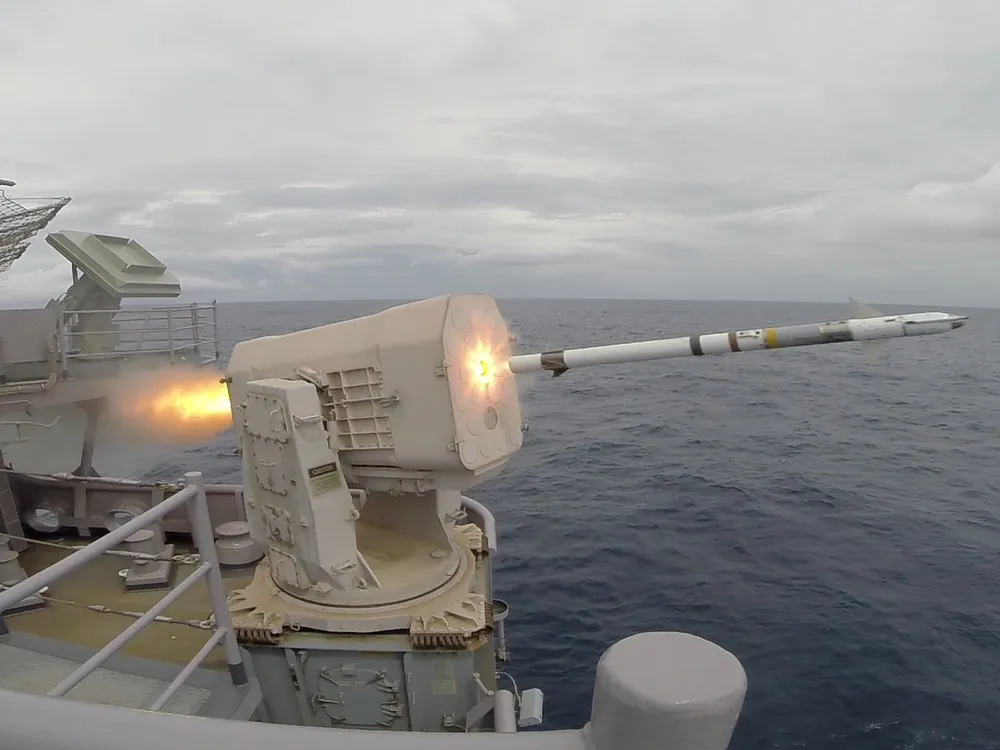

MK 31 RAM Launcher, Surface-to-air missile launcher, Air Defense - view 1
Source: Mk31 Rolling Airframe Missile Launcher photo
MK 31 RAM Launcher, Surface-to-air missile launcher, Air Defense - view 2
Source: Mk31 Rolling Airframe Missile Launcher photo
