RIM-116 Rolling Airframe Missile

Also known as
  • RIM-116 RAM
  • Rolling Airframe Missile
  • RAM missile
  • RAM Block 0
  • RAM Block 1
  • RAM Block 1A
  • RAM Block 2
  • RAM Block 2B
  • RIM-116A
  • RIM-116B
  • RIM-116C
  • RIM-116E

The RIM-116 Rolling Airframe Missile is a U.S.-German ship self-defense missile used with the MK 31 RAM guided missile weapon system and SeaRAM launchers. U.S. Navy and Raytheon sources describe it as a lightweight, quick-reaction, fire-and-forget weapon for close defense against anti-ship missiles and other air or surface threats, while Red Sea reporting documents a German frigate firing a RIM-116 against Houthi drones in 2024.

RIM-116 Rolling Airframe Missile, Ship-launched surface-to-air missile, Munitions

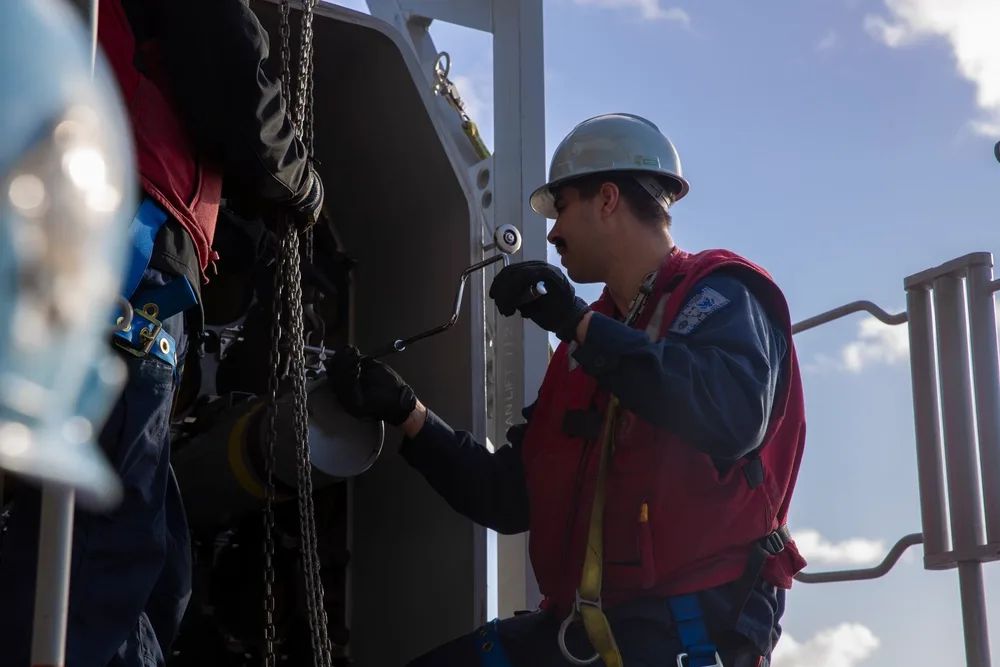

Image source: Sailors load rolling airframe missile launcher photo

Role in Conflicts

Profile / Specs

Profile

Origin
United States / Germany
Type
Ship-launched surface-to-air missile
Service note
1990s-present
Designer
U.S.-German RAM program
Designed
1970s-1990s
Produced
1980s-present

Specifications

Role
Ship self-defense missile
Launch systems
MK 31 guided missile weapon system and SeaRAM
Guidance
Block-dependent passive radio-frequency and infrared homing modes
Block 1A dimensions
9.3 ft length, 5 in diameter, 17.5 in wingspan
Block 2 dimensions
9.45 ft length, 6.25 in diameter, 12.65 in wingspan
Block 2 weight
194.4 lb (88.2 kg)
Warhead
7.9 lb explosive weight in Navy Block 1A/Block 2 specifications
Block 2 changes
Larger rocket motor, advanced control section, and enhanced RF receiver
MK 49 capacity
21 missiles in the MK 49 guided missile launching system
SeaRAM capacity
11-round launcher in the MK15 Mod 32 SeaRAM Close-In Weapon System
Variants

The RAM family has moved from the original RF/IR Block 0 missile through infrared-improved Block 1A and larger, more maneuverable Block 2 rounds; later U.S. procurement records identify Block 2B guided missile round packs.

VariantConfigurationDesignation notes
Block 0Original RAM configuration

The U.S. Navy describes Block 0 as using RF midcourse guidance before switching to infrared terminal guidance, with production now complete.

Sources: RIM-116 Rolling Airframe Missile (RAM)

Block 1A / RIM-116BInfrared-improved configuration

Block 1A added autonomous infrared-all-the-way guidance for threats that do not radiate RF energy; Navy specifications list deployment in August 1999.

Sources: RIM-116 Rolling Airframe Missile (RAM)

Block 2 / RIM-116CKinematic and guidance upgrade

Block 2 added a larger rocket motor, evolved RF receiver, and four-canard control-section upgrade; the U.S. Navy lists May 2015 deployment and November 2018 approval for full-rate production.

Sources: RIM-116 Rolling Airframe Missile (RAM)

Block 2BLater guided missile round pack

U.S. contract and DSCA notices identify RAM Block 2B guided missile round packs and a possible Japanese purchase of RAM Block 2B, RIM-116E tactical missiles.

Sources: Contracts For Apr. 3, 2025, Japan - Rolling Airframe Missile Block 2B Tactical Missiles

Shipboard Launch Systems

The missile is carried in RAM launcher systems fitted to naval vessels for close-in self defense.

LauncherLauncher typeLaunch evidence

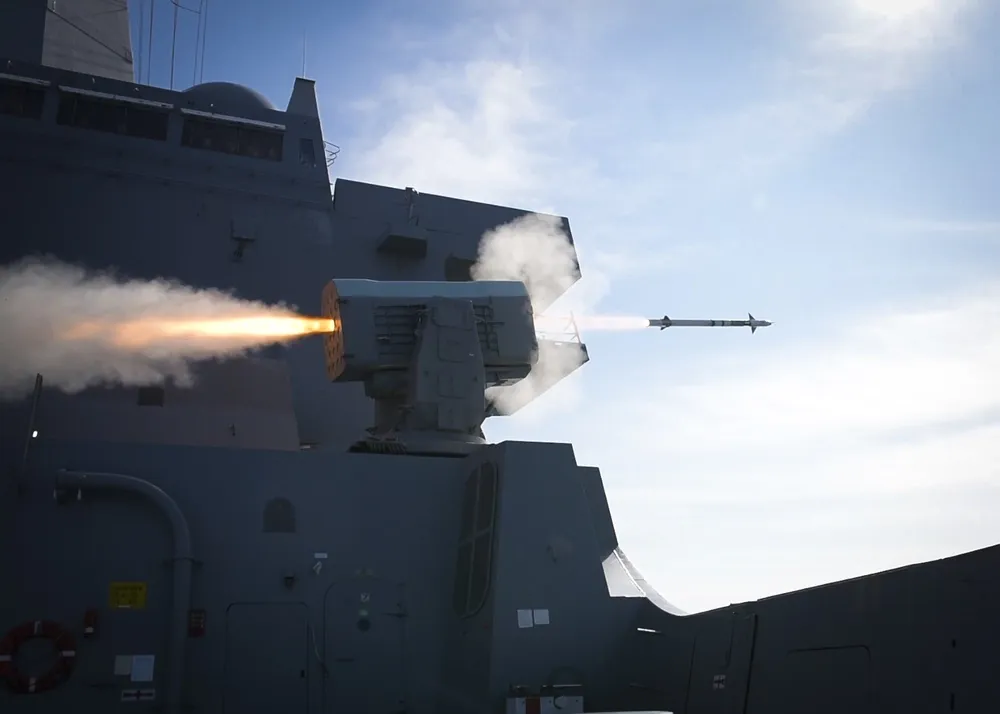

MK 31 RAM Launcher, Surface-to-air missile launcher, Air DefenseMK 31 RAM LauncherShipboard RAM launcher

Raytheon describes the MK 44 guided missile round pack and MK 49 launching system, holding 21 missiles, as the elements that comprise the MK 31 guided missile weapon system.

Sources: RAM Missile - Raytheon Emirates

Timeline

RIM-116 Rolling Airframe Missile Key Events

  1. Block 2 reaches initial operating capability

    The U.S. Navy fact file lists May 2015 for RAM Block 2 initial operating capability and identifies the upgrade's larger rocket motor, evolved RF receiver, and control-section changes.

  2. Reported Red Sea combat firing

    The War Zone reported that German frigate Hessen shot down a Houthi drone with a RIM-116 Rolling Airframe Missile while operating in the Red Sea.

  3. Japan Block 2B sale approval

    DSCA announced State Department approval for a possible Japanese purchase of RAM Block 2B, RIM-116E tactical missiles and related equipment.

  4. Block 2B procurement option

    A U.S. contract notice awarded Raytheon a fiscal 2025 option for RAM Block 2B guided missile round packs, with work split across Germany, Arizona, the United Kingdom, and other U.S. sites.

Media

RIM-116 Rolling Airframe Missile Videos

RIM-116 Rolling Airframe Missile Images

RIM-116 Rolling Airframe Missile, Ship-launched surface-to-air missile, Munitions - view 1
Source: Sailors load rolling airframe missile launcher photo
