AIM-120 AMRAAM

Also known as

AIM-120
AMRAAM
Advanced Medium-Range Air-to-Air Missile

The AIM-120 AMRAAM is Raytheon's U.S.-built, all-weather beyond-visual-range air-to-air missile family with active radar terminal homing. NAVAIR says it entered service in September 1991, and the Navy lists the F/A-18E/F Super Hornet among the aircraft that can carry it.

AIM-120 AMRAAM, Air-to-air missile, Munitions

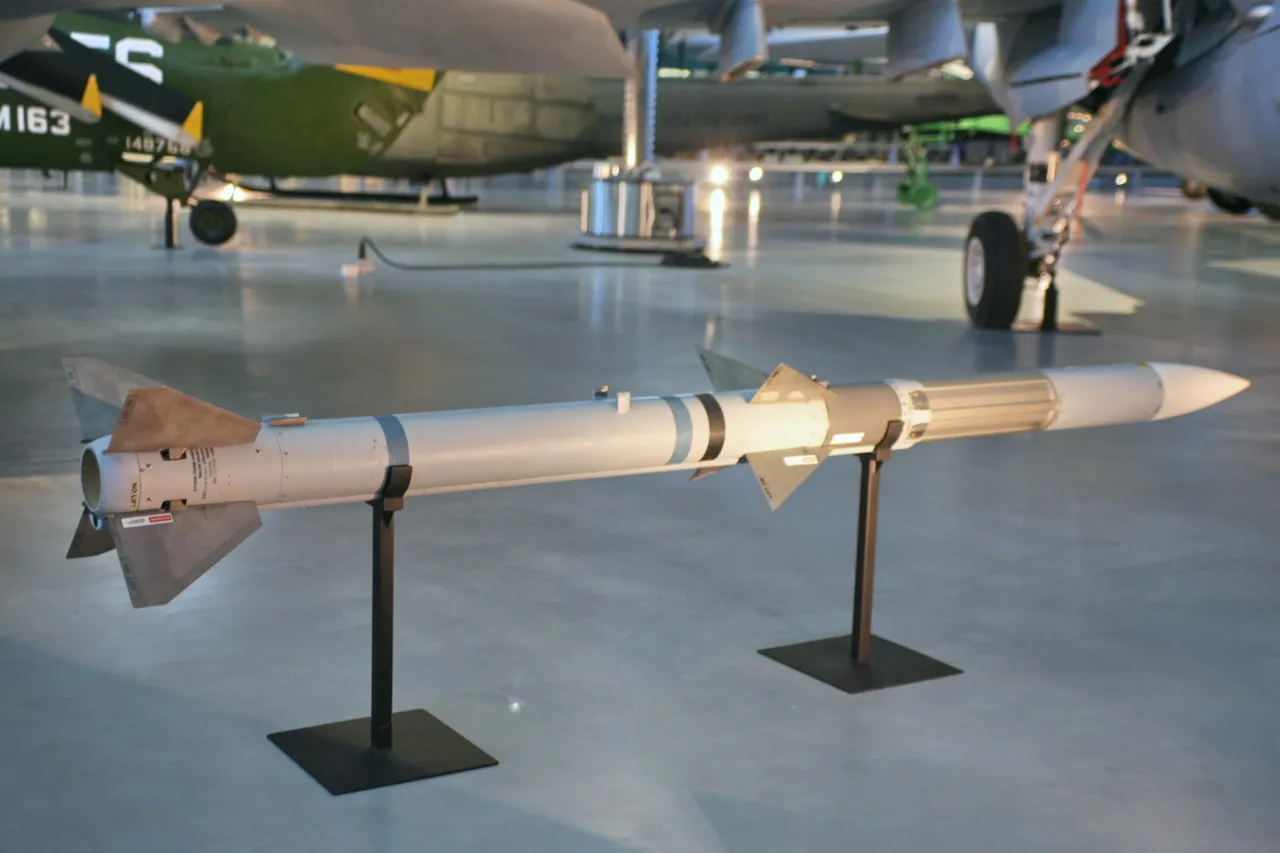

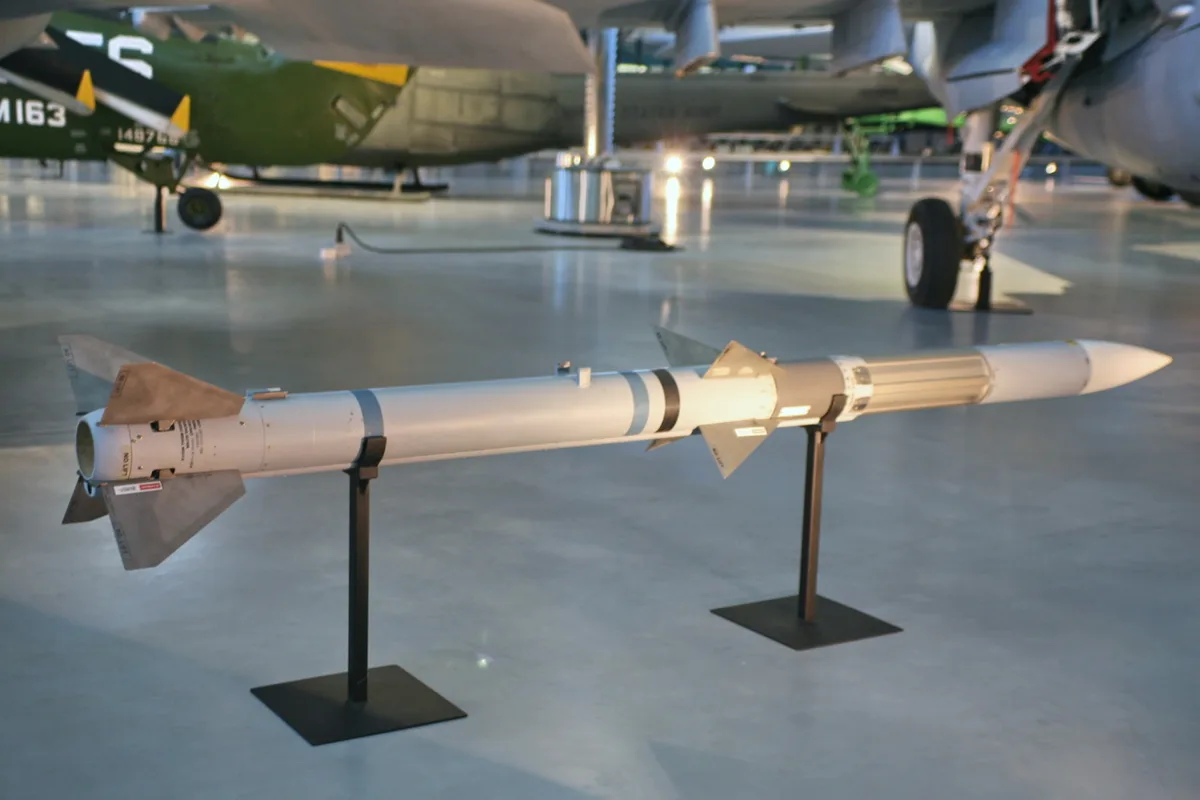

Image source: AIM-120A AMRAAM AAM.jpg

Profile / Specs

Profile

Origin: United States
Built by: Raytheon
Type: Air-to-air missile
Service note: 1991-present

air-to-air radar-guided

Specifications

Length: 12 ft (3.66 m)
Weight: 356 lb (161 kg) for AIM-120C/D variants
Wingspan: 19 in (48.3 cm) for AIM-120C/D variants
Guidance: Inertial midcourse with active radar terminal homing
Warhead: Blast fragmentation

Variants

AIM-120A
AIM-120B
AIM-120C
AIM-120D

Carrier Aircraft

NAVAIR lists the Super Hornet as one of the aircraft that can carry AIM-120 AMRAAM missiles.

Carrier

Carrier type

Carriage evidence

F/A-18E/F Super Hornet, Carrier-capable multirole strike fighter, Aircraft & UAVs

F/A-18E/F Super Hornet

Carrier-capable multirole strike fighter

NAVAIR lists AIM-120 AMRAAM missiles among the aircraft's armament options.

Sources: F/A-18E/F Super Hornet (NAVAIR)

Service And Conflict Use

Service History

In service: Operational with U.S. Navy, Marine Corps, and Air Force tactical aircraft since September 1991.
Used by: United States Navy, United States Marine Corps, United States Air Force

Media

AIM-120 AMRAAM Images

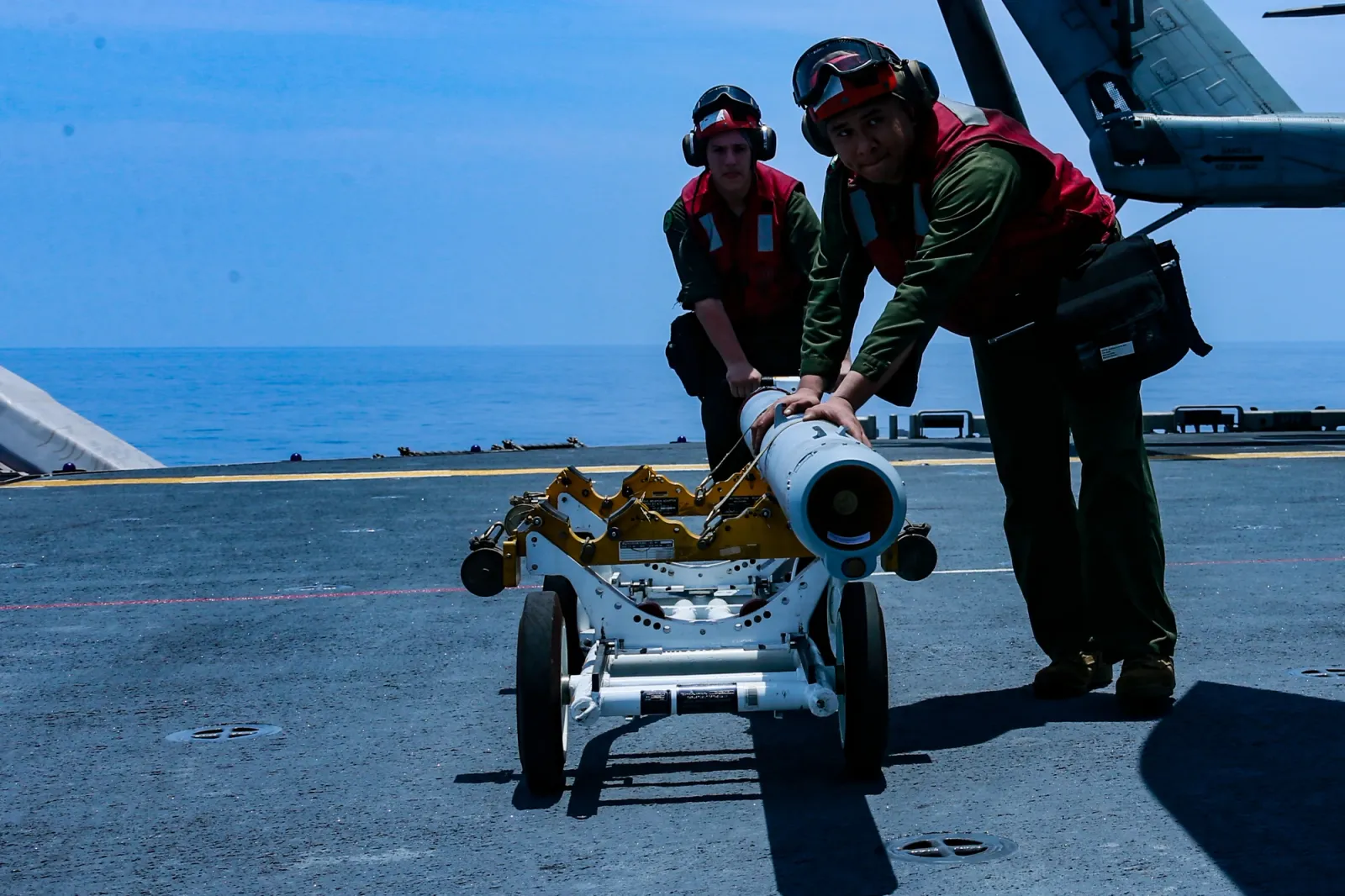

AIM-120 AMRAAM, Air-to-air missile, Munitions - view 1 — Source: AIM-120 AMRAAM loading.jpg

AIM-120 AMRAAM, Air-to-air missile, Munitions - view 2 — Source: F-15A Louisiana ANG launching AIM-120 2002.JPEG
