100 mm Type 79 naval gun

Also known as
  • Type 79 100 mm naval gun
  • Type 79 twin 100 mm gun
  • 100mm Type 79
  • 100 mm Type 79
  • H/PJ33
  • H/PJ33A
  • H/PJ33B
  • Type 79A 100 mm naval gun
  • ENG-2

The 100 mm Type 79 is a Chinese twin 100 mm dual-purpose naval gun mount used on late Cold War People's Liberation Army Navy surface combatants and export frigates. Open naval references describe 713th Research Institute development, Soviet B-34 ammunition lineage, radar-directed shipboard fire-control integration, and later Type 79A / H/PJ33A and H/PJ33B variants with more automated loading arrangements on Chinese frigate and destroyer classes.

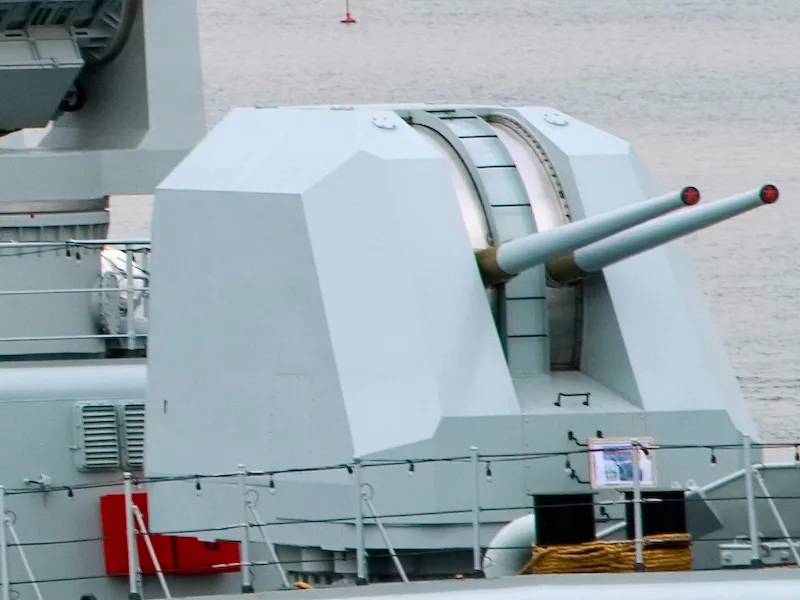

100 mm Type 79 naval gun, Twin 100 mm shipboard dual-purpose gun mount, Naval Systems
Image source: Wikimedia Commons: Chinese Type 79A turret image
Profile / Specs

Profile

Origin
People's Republic of China
Type
Twin 100 mm shipboard dual-purpose gun mount
Service note
Late Cold War and post-Cold War Chinese naval service
Designer
713th Research Institute
Designed
Late 1970s development period

Specifications

Caliber
100 mm
Barrels
2 x 100 mm L/56
Role
Dual-purpose naval gun for surface and air targets
Ammunition
Fixed 100 mm ammunition compatible with Soviet B-34-family ammunition
Mount weight
About 37 t including twin feed drums in WeaponSystems.net data
Loading
Original Type 79 with manual backup; Type 79A / H/PJ33A and later variants with automatic loading
Elevation
About -5 to +83 degrees
Traverse
About -225 to +225 degrees
Rate of fire
Variant-dependent open-source figures: about 50 rounds per minute combined for Type 79-family data, with lower platform-specific Type 79A figures and higher H/PJ33B claims reported in some secondary sources
Muzzle velocity
About 915-916 m/s
Range
About 22.5 km against surface targets and about 15 km against aircraft in open-reference data
Fire control
Type 341 / Type 343 family fire-control radar depending on source and platform
Variants

Open sources use Type 79 for the baseline twin 100 mm family, Type 79A or H/PJ33A for the lighter automated-loading improvement, and H/PJ33B for later low-observable housings and electronics updates.

VariantConfigurationDesignation notes
Type 79Baseline twin 100 mm mounting

NavWeaps and WeaponSystems.net describe the original Type 79 as a Chinese twin 100 mm mounting tied to Soviet B-34 ammunition lineage and a heavy shipboard mount.

Sources: NavWeaps: China 100 mm/56 Type 79, WeaponSystems.net: 100mm Type 79

Type 79A / H/PJ33A / ENG-2Automated loading variant

Open references distinguish the Type 79A, H/PJ33A, or ENG-2 as an improved version with a French-designed autoloader and lighter housing.

Sources: NavWeaps: China 100 mm/56 Type 79, NavWeaps: 100 mm/56 ENG-2 or Type 79A, WeaponSystems.net: 100mm Type 79

H/PJ33BLater improved-housing variant

WeaponSystems.net and naval-analysis coverage describe the H/PJ33B as a later Type 79-family mount with an angular low-observable housing and updated electronics.

Sources: WeaponSystems.net: 100mm Type 79, TopWar: Chinese naval anti-aircraft artillery

Carrier Warships

The Type 79 family is best documented in open sources through the frigate and destroyer classes that carried it, so this draft keeps the gun as a component entry rather than copying ship-level conflicts onto the mount.

CarrierCarrier typeCarriage evidence
Type 053H2G / Jiangwei I-class frigate, Guided-missile frigate and converted patrol vessel class, Naval SystemsType 053H2G / Jiangwei I-class frigateChinese guided-missile frigate class

Sea Forces labels the Type 79 100 mm twin gun on Type 053H2G / Jiangwei I-class imagery, while WeaponSystems.net identifies the Type 79 family as a Chinese twin 100 mm naval gun system.

Sources: Sea Forces: Type 053H2G Jiangwei I, WeaponSystems.net: 100mm Type 79

Type 053H3 / Jiangwei II-class frigate, Chinese guided-missile frigate class, Naval SystemsType 053H3 / Jiangwei II-class frigateChinese guided-missile frigate class

Sea Forces lists one H/PJ33A 100 mm twin gun on the Type 053H3 / Jiangwei II class, while WeaponSystems.net describes the same class with a Type 79A / H/PJ33A mount and later H/PJ33B housing.

Sources: Sea Forces: Type 053H3 Jiangwei II, WeaponSystems.net: Type-053H3 class

Type 051B / Luhai-class destroyer, Chinese People's Liberation Army Navy guided-missile destroyer class, Naval SystemsType 051B / Luhai-class destroyerChinese guided-missile destroyer

Sea Forces lists one Type 79 (H/PJ-33B) 100 mm twin naval gun on the Type 051B destroyer Shenzhen, while the Commons turret image identifies the photographed mount as a Type H/PJ33B / Type 79A turret on the same class.

Sources: Sea Forces: Type 051B Luhai, Wikimedia Commons: Chinese Type 79A turret image

Conflict-use boundary

The clearest direct firing evidence concerns the 1988 Chigua / Johnson South Reef action involving frigate 531 / Yingtan's 100 mm guns, before the catalog's normal post-1995 conflict-creation scope and before the current South China Sea Disputes metadata starts in 2012. Later ship deployments and general armament lists are carrier context rather than conflict-use rows for the gun.

Sources: Sina Military: Chigua Reef battle account, WeaponSystems.net: Type-053K class, WeaponSystems.net: 100mm Type 79, NavWeaps: China 100 mm/56 Type 79

Mounting And Loading Pattern

The Type 79 family is a twin-barrel 100 mm ship gun rather than a standalone platform. Open references separate the baseline mount from later automated Type 79A / H/PJ33A and H/PJ33B arrangements, which matters when comparing older frigates with later Chinese surface combatants. China Defence Today also identifies the Type 052 / Luhu destroyer as a Type 79A carrier.

Baseline mount

Twin 100 mm mounting with backup manual loading and mechanical-drive provisions reported for early Type 79 installations.

Automated variants

Type 79A / H/PJ33A and H/PJ33B references describe reduced crew demand, revised housings, and more automated loading arrangements.

Shipboard role

The mount provided a medium-caliber gun battery for surface targets, shore targets, and limited anti-aircraft use on frigates and destroyers.

Timeline

100 mm Type 79 naval gun Key Events

  1. Type 79 designation enters the gun family name

    WeaponSystems.net lists the 100 mm Type 79 as entering service in 1979 after late-1970s development work.

  2. Installed on Jianghu-family frigates

    WeaponSystems.net and NavWeaps connect the Type 79 family to Chinese Jianghu and Jiangwei frigate classes, including early mounts with manual loading and later automated variants.

  3. Type 053K gun use reported at Johnson South Reef

    Chinese retrospective accounts describe frigate 531 / Yingtan firing 100 mm guns during the Chigua / Johnson South Reef naval battle, while platform references identify the Type 053K 100 mm fit as twin Type 79 mounts.

  4. Automated variants appear on newer ships

    Open references describe Type 79A / H/PJ33A and H/PJ33B variants as later automated or improved members of the family used on Chinese frigates and destroyers.

Media

100 mm Type 79 naval gun Images

100 mm Type 79 naval gun, Twin 100 mm shipboard dual-purpose gun mount, Naval Systems - view 1
Source: Wikimedia Commons: HQ-7 and Type 79A turret image
100 mm Type 79 naval gun, Twin 100 mm shipboard dual-purpose gun mount, Naval Systems - view 2
Source: Wikimedia Commons: Qingdao weapons-system image
