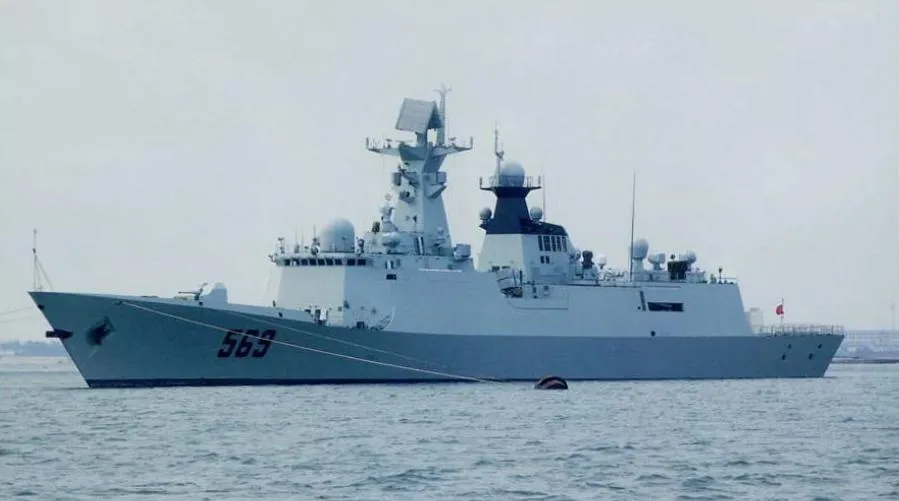

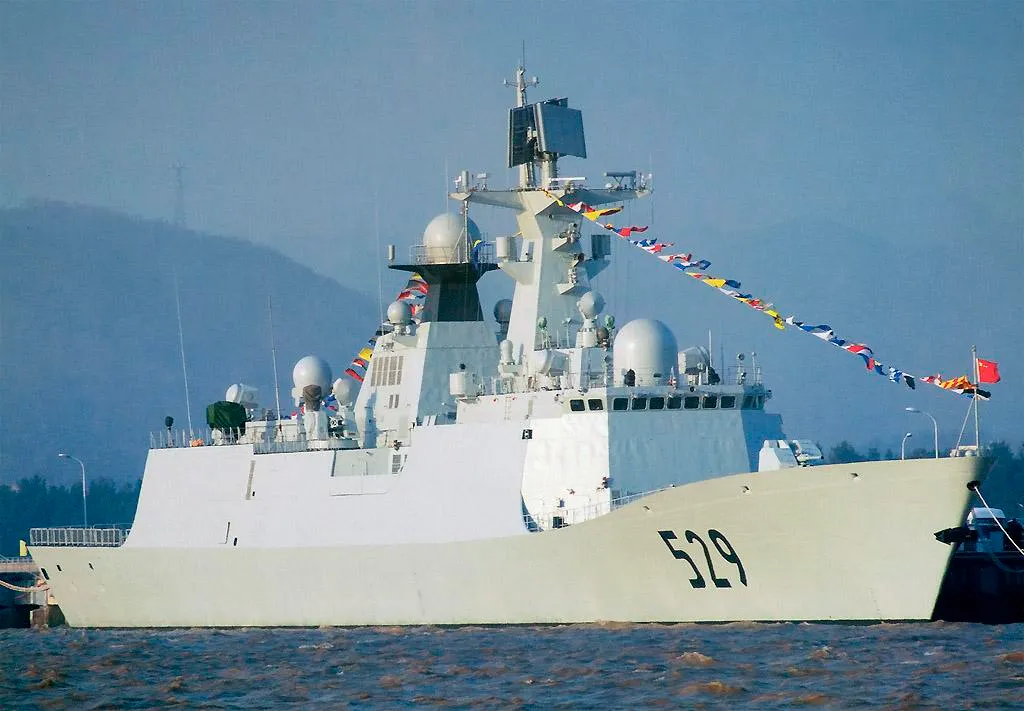

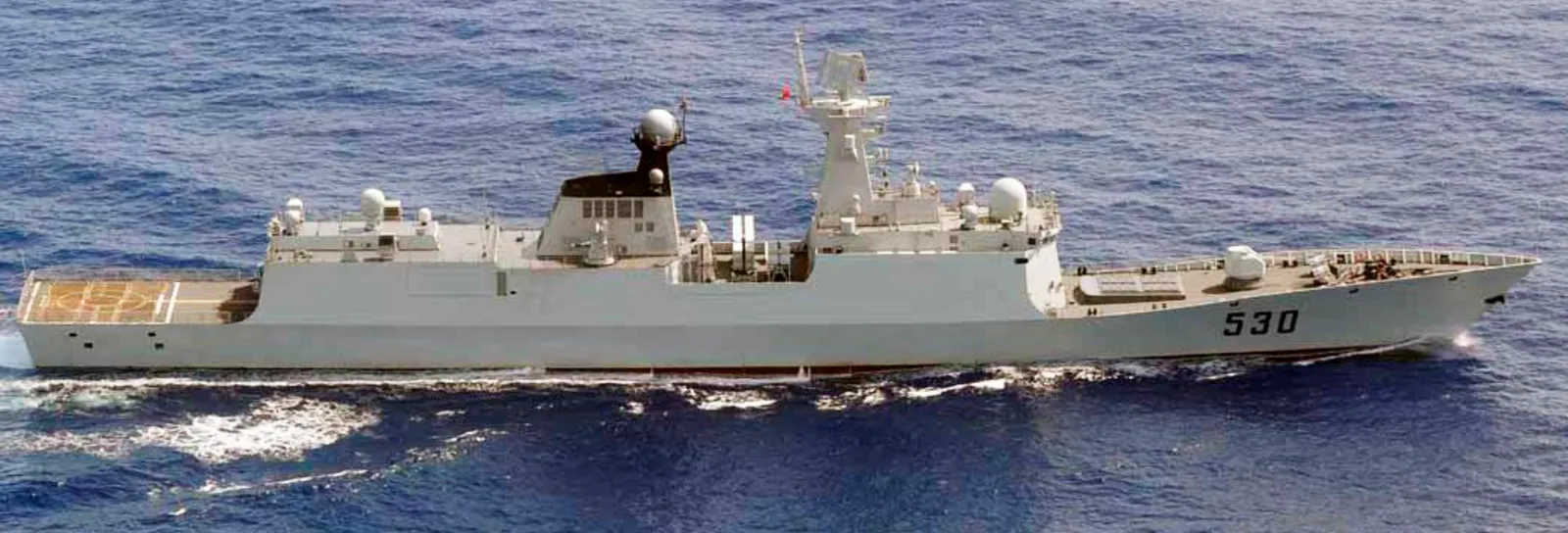

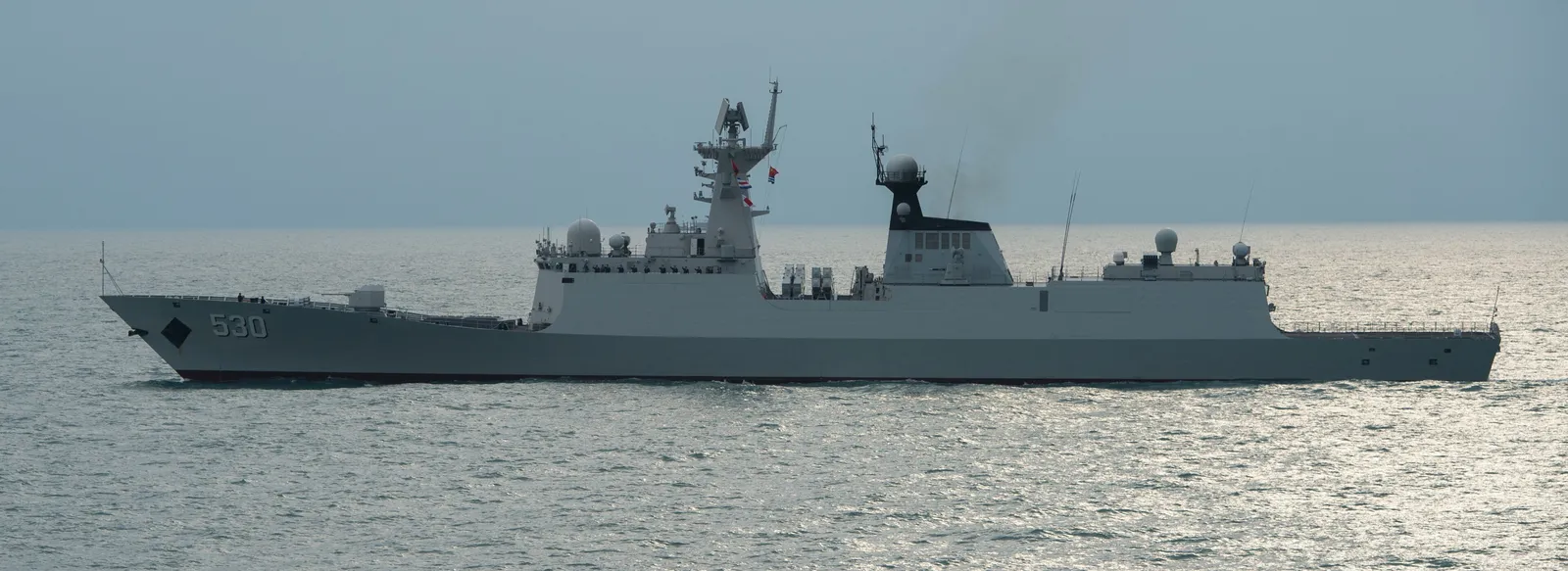

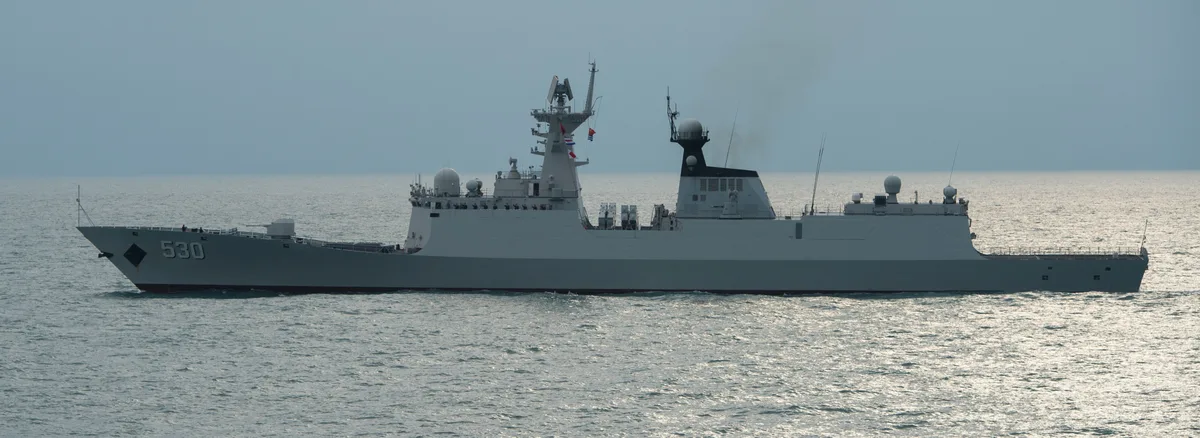

The Type 054A / Jiangkai II-class frigate is a Chinese multi-role guided-missile frigate class that developed the two-ship Type 054 design into a serial PLAN escort with medium-range vertical-launch air defense, anti-ship missiles, anti-submarine weapons, and helicopter facilities. Later batches and export derivatives kept the same basic escort concept while changing sensors, close-in defenses, aviation support, and customer-specific weapons.
The Type 054A turned the limited two-ship Type 054 line into a high-volume PLAN escort by retaining the general frigate layout while adding a bow vertical-launch system, a more capable sensor fit, and stronger point defenses.
Serial-production PLAN frigate for escort, patrol, anti-surface, anti-air, and anti-submarine tasks.
China SignPost and USNI describe the class as a mainstay PLAN surface combatant rather than a one-off export design.
Open sources count 30 baseline ships by the end of the first run, followed by later PLAN batches and export Type 054A/P hulls.
The exact total depends on whether improved 054AG and Pakistan's 054A/P ships are grouped with the baseline class.
The Type 054AG keeps the 054A family in production while the larger Type 054B introduces a new-generation frigate design.
Naval News treats the Type 054B as a larger successor, not simply another 054A batch.
Public sources use Type 054A for the baseline PLAN Jiangkai II class, while later reporting separates export Type 054A/P ships and the improved Type 054AG batch. Type 054B is treated here as adjacent successor context rather than a linked same-class variant.
| Variant | Configuration | Designation notes |
|---|---|---|
 | Predecessor frigate class | The two-ship predecessor used a similar hull-form lineage but lacked the Type 054A's bow VLS air-defense arrangement. Sources: The Type 054/054A Frigate Series, Type-054A class - WeaponSystems.net |
| Type 054A / Jiangkai II | Baseline PLAN guided-missile frigate | The baseline PLAN class pairs a 32-cell HQ-16 VLS with YJ-83 anti-ship missiles, a 76 mm gun, close-in defenses, ASW weapons, and a hangar-backed helicopter deck. Sources: Type-054A class - WeaponSystems.net, China's Multipurpose FFG |
| Type 054A/P / Tughril class | Pakistan Navy export derivative | CSSC and Pakistan Navy statements described PNS Tughril as a Type 054A/P guided-missile frigate built at Hudong-Zhonghua, with four ships ordered for Pakistan. |
| Type 054AG | Improved PLAN Type 054A-family variant | Naval News reported the improved Type 054AG with a larger flight deck and hangar for Z-20-family helicopters, a new 100 mm main gun, and continued construction at Huangpu-Wenchong and Hudong-Zhonghua. |
| Type 054B / Jiangkai III | Adjacent successor context | The Type 054B is a larger successor design that shares some broad mission and weapon-family continuity but is not treated as the same class. |
The frigate's principal area-air-defense fit is the HQ-16 vertical-launch missile system.
| Launched item | Item type | Launch evidence |
|---|---|---|
 | Vertical-launch air-defense missile | GlobalSecurity identifies the Type 054A as carrying a 32-cell Red Flag-16 / HQ-16 ship-to-air missile launcher, and U.S. Navy imagery shows HQ-16 VLS launchers on Xuzhou, a Type 054A frigate. |
The class also carries canister-launched anti-ship cruise missiles for surface warfare.
| Launched item | Item type | Launch evidence |
|---|---|---|
 | Anti-ship cruise missile | WeaponSystems.net lists the Type 054A anti-ship battery as two quadruple YJ-83 launchers, and Wikimedia Commons documents YJ-83/C-803 launchers on Wuhu, a Type 054A frigate. Sources: Type-054A class - WeaponSystems.net, Wuhu (539) Frigate - YJ-83 Missile.jpg |
The class is organized around a balanced escort fit: medium-range air defense forward, canister anti-ship missiles amidships, close-in guns, ASW weapons, and a helicopter facility aft.
| Mission | System | Source-backed note |
|---|---|---|
| Air defense | HQ-16 VLS | WeaponSystems.net and GlobalSecurity identify a 32-cell vertical launcher for HQ-16-family surface-to-air missiles. |
| Surface strike | YJ-83 launchers | WeaponSystems.net lists two quadruple YJ-83 launchers, and Commons documents YJ-83/C-803 launchers on Wuhu, a Type 054A frigate. |
| Gun and close defense | 76 mm gun; Type 730 or Type 1130 CIWS | WeaponSystems.net separates earlier Type 730 close-in guns from later Type 1130 installations in the production run. |
| Anti-submarine warfare | Yu-7 tubes, ASW rockets, helicopter | The same source lists Yu-7 lightweight torpedo tubes, Type 87 ASW rockets, VLS standoff ASW rockets, and Ka-28PL or Z-9C helicopter support. |
| Sensors | Type 382, Type 344, Type 345, sonar suite | Open references describe a 3D air-search radar, surface-search radar, HQ-16 fire-control radars, hull sonar, and later towed-array or variable-depth sonar. |
China SignPost describes the Type 054 / Jiangkai I as a two-ship predecessor whose limitations helped shape the more capable Type 054A follow-on.
Sources: The Type 054/054A Frigate Series
USNI Proceedings identifies Zhoushan and Xuzhou as the first active Type 054A ships, with both commissioned in January 2008 after 2006 launches.
Sources: China's Multipurpose FFG
China SignPost assessed the class after years of anti-piracy and long-range deployments, noting its utility for lower-intensity escort missions and its limits as an intermediate fleet-defense design.
Sources: The Type 054/054A Frigate Series
CSTC/CSSC reporting described delivery of PNS Tughril, a Hudong-Zhonghua-built Type 054A/P guided-missile frigate and the first of four ordered by Pakistan.
Sources: New Chinese Frigate Delivered to Pakistan
Naval News reported the first Type 054AG launch and described visible changes including an expanded aviation area and a new 100 mm gun.
Sources: China Launches Improved Type 054AG Frigate
Naval News reported the commissioning of Luohe, the first Type 054B, as a larger new-generation frigate following the Type 054A lineage.
Sources: First Type 054B Next Gen Frigate Commissioned
