Project 956E / 956EM Sovremenny-class destroyer

Also known as
  • Sovremenny-class destroyer
  • Sovremenny class destroyer
  • Chinese Sovremenny-class destroyers
  • PLAN Sovremenny-class destroyers
  • Hangzhou class destroyer
  • Haizhou class destroyer
  • Project 956E
  • Project 956EM
  • DDG-136 Hangzhou
  • DDG-137 Fuzhou
  • DDG-138 Taizhou
  • DDG-139 Ningbo

The Project 956E and Project 956EM Sovremenny-class destroyers are four Russian-built guided-missile destroyers delivered to the People's Liberation Army Navy in two export batches. Hangzhou and Fuzhou were Project 956E ships centered on Moskit anti-ship missiles and Shtil air defense, while Taizhou and Ningbo were improved Project 956EM ships with revised combat systems, Kashtan close-in defenses, longer-range Moskit missiles, and one fewer 130 mm gun. Later Chinese refit reporting describes domestic sensors, vertical-launch HQ-16-family air defense, and YJ-12 anti-ship missiles replacing the original Russian systems on at least the first 956E pair.

Chinese Export Batch

The Chinese ships are best read as two Russian export batches followed by a Chinese modernization path. The first pair preserved the Project 956E layout on hulls completed for China, while the later 956EM pair incorporated more changes before delivery.

BatchShipsSource-backed distinction
Project 956EHangzhou (136), Fuzhou (137)First two Chinese deliveries, centered on Moskit anti-ship missiles and Shtil/SA-N-7 air defense before later refit reporting described domestic replacements.
Project 956EMTaizhou (138), Ningbo (139)Improved export ships; Forecast International describes longer-range 3M80MBE Moskit missiles, Kashtan CIWS, a revised combat-control system, and removal of the aft main-gun turret.
Modernized 956E configurationHangzhou and Fuzhou reported complete or returning after refitChinese reporting and defense press coverage describe replacement of Russian missile and electronic systems with domestic VLS, HHQ-16-family air defense, YJ-12 anti-ship missiles, and upgraded sensors.
Profile / Specs

Profile

Origin
Russia / China
Built in
Russia
Type
Russian-built guided-missile destroyers exported to the Chinese People's Liberation Army Navy
Service note
Delivered to China between 1999 and 2006, with midlife modernization reported from the mid-2010s
Produced
1996-2006 for the four Chinese ships
Number built
4 for China: two Project 956E and two Project 956EM

Specifications

Displacement
About 7,625-7,900 tonnes full load in open references
Length
About 156.4-156.5 m
Beam
About 17.2 m
Draft
About 5.2 m in Forecast International; GlobalSecurity lists 7.85 m for the Chinese Type 956 reference
Propulsion
Steam-turbine machinery with four boilers, two turbines, two shafts, and about 102,000 hp in GlobalSecurity's specification table
Speed
About 32 knots
Original anti-ship armament
Eight P-270/3M80 Moskit-family anti-ship missiles in two quadruple launchers
Original air defense
Two Shtil/SA-N-7 or SA-N-12 class missile launchers depending on variant/source
Project 956EM changes
Forecast International describes 3M80MBE Moskit missiles, Kashtan CIWS, a new combat-control system, and removal of the aft 130 mm gun turret
Reported modernization
Fuzhou was reported in 2022 with 32 HHQ-16 vertical-launch air-defense missiles, eight YJ-12 anti-ship missiles, and upgraded electronic systems
Ship List And Delivery Context
HullShipVariantDocumented delivery or completion context

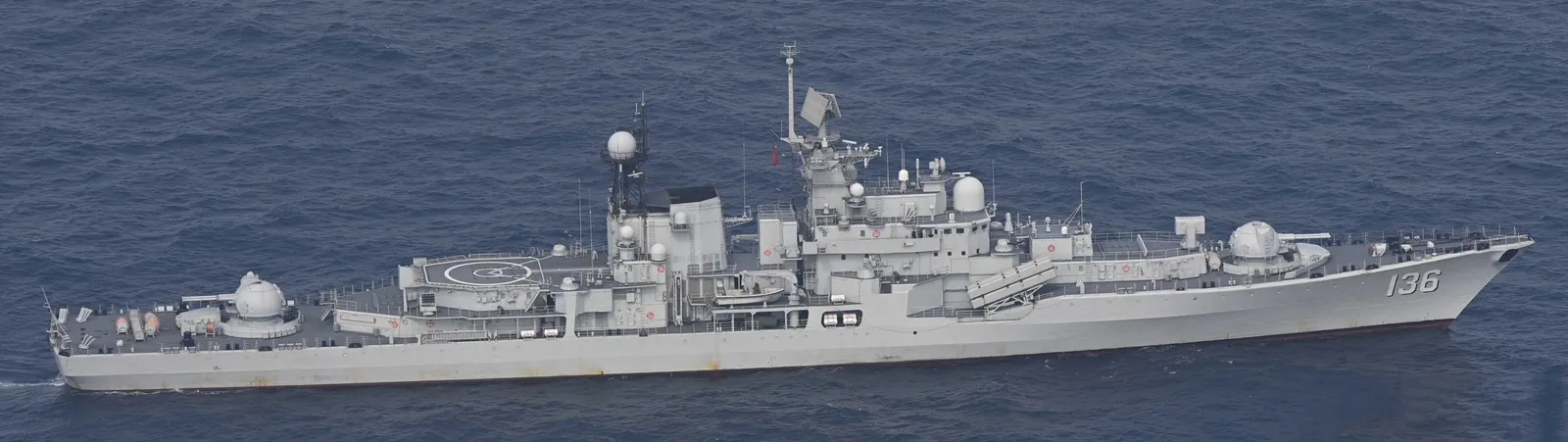

DDG-136HangzhouProject 956EForecast International says Hangzhou was delivered in December 1999 and sailed for China in March 2000.
DDG-137FuzhouProject 956EForecast International says Fuzhou followed in December 2000; Global Times later reported its return after midlife upgrade.

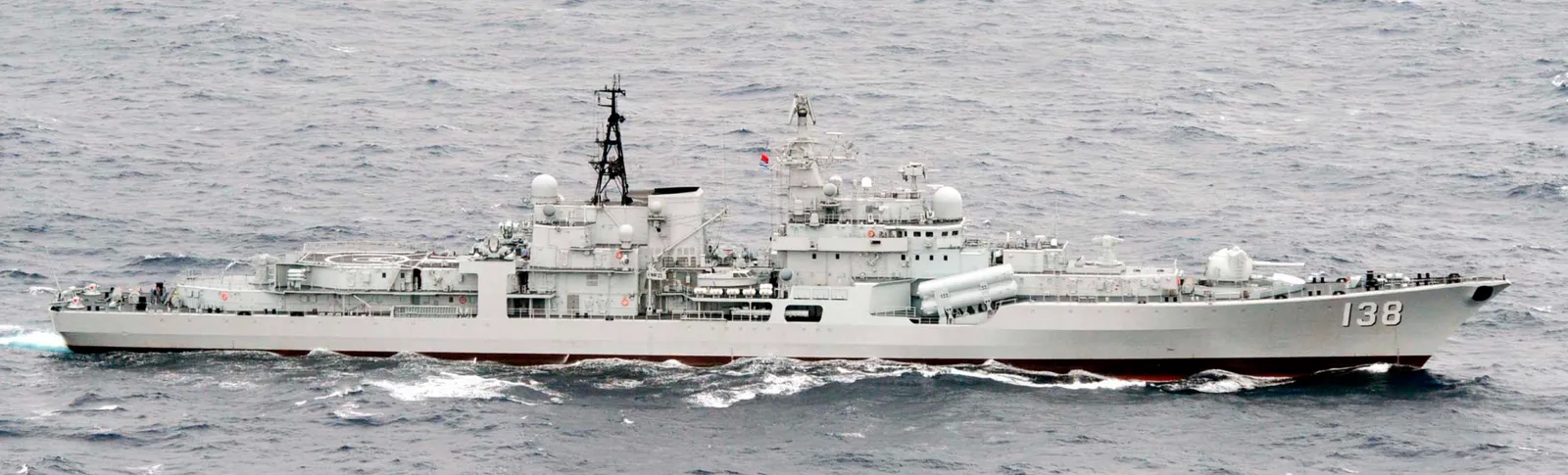

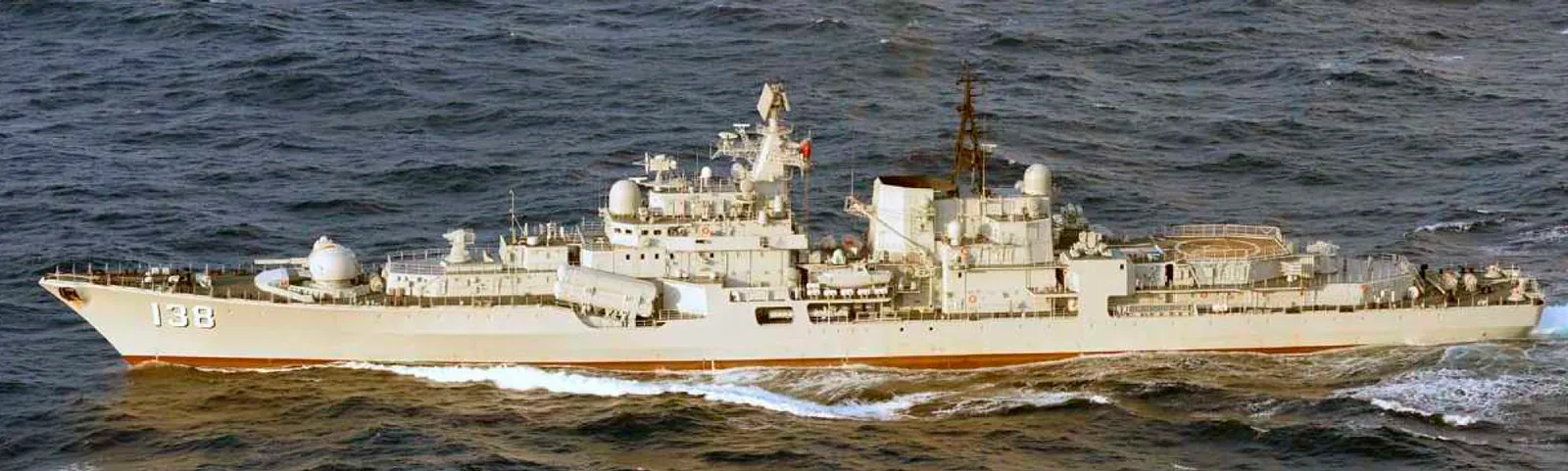

DDG-138TaizhouProject 956EMGlobalSecurity's ship list identifies Taizhou as a Project 956EM ship completed on 28 December 2005.
DDG-139NingboProject 956EMGlobalSecurity lists Ningbo as a Project 956EM ship completed in September 2006.
Variants

Open sources split the Chinese Sovremenny export ships into an initial Project 956E pair and a later Project 956EM pair; refit reporting then distinguishes the Chinese-modernized configuration from the original Russian-delivered weapon fit.

VariantConfigurationDesignation notes
Project 956EFirst Chinese export batch

Hangzhou (DDG-136) and Fuzhou (DDG-137) were the first two Chinese Sovremenny destroyers, delivered in 1999 and 2000 with Moskit anti-ship missiles and Shtil/SA-N-7 air-defense launchers.

Sources: Sovremenny - People's Liberation Army Navy, Hangzhou / Haizhou Ship List, Project 956 (Sovremenny)

Project 956EMImproved Chinese export batch

Taizhou (DDG-138) and Ningbo (DDG-139) were the later improved ships; Forecast International describes Project 956EM with a new combat-control system, 3M80MBE Moskit missiles, Kashtan close-in weapon systems, and removal of the aft 130 mm turret.

Sources: Project 956 (Sovremenny), Sovremenny - People's Liberation Army Navy, Hangzhou / Haizhou Ship List

Chinese midlife modernizationDomestic refit of the imported destroyers

2016 imagery showed Hangzhou and Fuzhou in major refit, and 2022 reporting said Fuzhou returned with a 32-cell HHQ-16 vertical-launch fit, eight YJ-12 anti-ship missiles, and upgraded electronic systems.

Sources: China's PLAN Upgrading its Project 956E Destroyers, PLA Navy's 2nd Sovremenny-class destroyer returns after upgrades

Air-Defense Missiles

Open sources separate the as-delivered Russian Shtil-family missile fit from later Chinese modernization with HQ-16-family vertical-launch missiles.

Carried itemItem typeCarriage evidence
9M38M1 surface-to-air missile, Buk-family surface-to-air missile, Munitions9M38M1 surface-to-air missileShtil-family surface-to-air missile context

RUSI describes the PLAN Sovremenny air-defense fit as 9M38 medium-range anti-air missiles launched from two aft launchers; this link uses the catalog's 9M38M1/Buk-family missile page for the original 9M38-family context rather than treating later 9M317 naval references as confirmed for these ships.

Sources: PLAN Procurement of Sovremenny-Class Destroyers

HQ-16 / LY-80, Medium-range surface-to-air missile system, Air DefenseHQ-16 / LY-80HHQ-16 shipboard air-defense missile family

Global Times reported that Fuzhou returned from refit with a 32-unit vertical-launch missile system for HHQ-16 air-defense missiles in place of its original Shtil systems; Army Recognition had earlier reported VLS installation on the 956E refit path.

Sources: PLA Navy's 2nd Sovremenny-class destroyer returns after upgrades, China's PLAN Upgrading its Project 956E Destroyers

Timeline

Project 956E / 956EM Sovremenny-class destroyer Key Events

  1. First Chinese purchase agreed

    Forecast International places China's first two-ship Project 956 purchase during Premier Li Peng's December 1996 Moscow visit, providing the acquisition path for Hangzhou and Fuzhou.

    Sources: Project 956 (Sovremenny)

  2. Hangzhou delivered

    Forecast International says Hangzhou was delivered to the Chinese Navy in December 1999 before sailing for China in March 2000.

    Sources: Project 956 (Sovremenny)

  3. Fuzhou followed

    Forecast International identifies Fuzhou as the second Chinese Project 956 ship and says it followed Hangzhou in December 2000.

    Sources: Project 956 (Sovremenny)

  4. Taizhou completed

    GlobalSecurity's ship list places Taizhou, the first Project 956EM ship for China, as completed on 28 December 2005.

    Sources: Hangzhou / Haizhou Ship List

  5. Ningbo completed

    GlobalSecurity lists Ningbo as the second Project 956EM ship and places its completion in September 2006.

    Sources: Hangzhou / Haizhou Ship List

  6. 956E refit photographed

    Army Recognition reported imagery of Hangzhou and Fuzhou at Zhoushan during a major refit that removed original Russian sensors and missile launchers for replacement by Chinese systems.

    Sources: China's PLAN Upgrading its Project 956E Destroyers

  7. Fuzhou returns after modernization

    Global Times reported that Fuzhou had returned to active service after refit with HHQ-16 vertical-launch air-defense missiles, YJ-12 anti-ship missiles, and upgraded electronic systems.

    Sources: PLA Navy's 2nd Sovremenny-class destroyer returns after upgrades
