Naval Systems

Bremen class / F122 frigate

Also known as
  • Bremen class
  • Bremen-class frigate
  • F122 frigate
  • Type 122 frigate

The Bremen class / F122 frigate was an eight-ship German Navy frigate class built from 1979 to 1990 and retained in service until Lübeck decommissioned in 2022. Designed around anti-submarine escort work with Sea Lynx helicopters, CODOG propulsion, Harpoon anti-ship missiles, Sea Sparrow air defense, torpedo tubes, and later RAM close-defense launchers, the class also appears in the anti-ISIS record through Augsburg's Operation Counter Daesh carrier-escort deployments.

Bremen class / F122 frigate, Guided-missile frigate class, Naval Systems

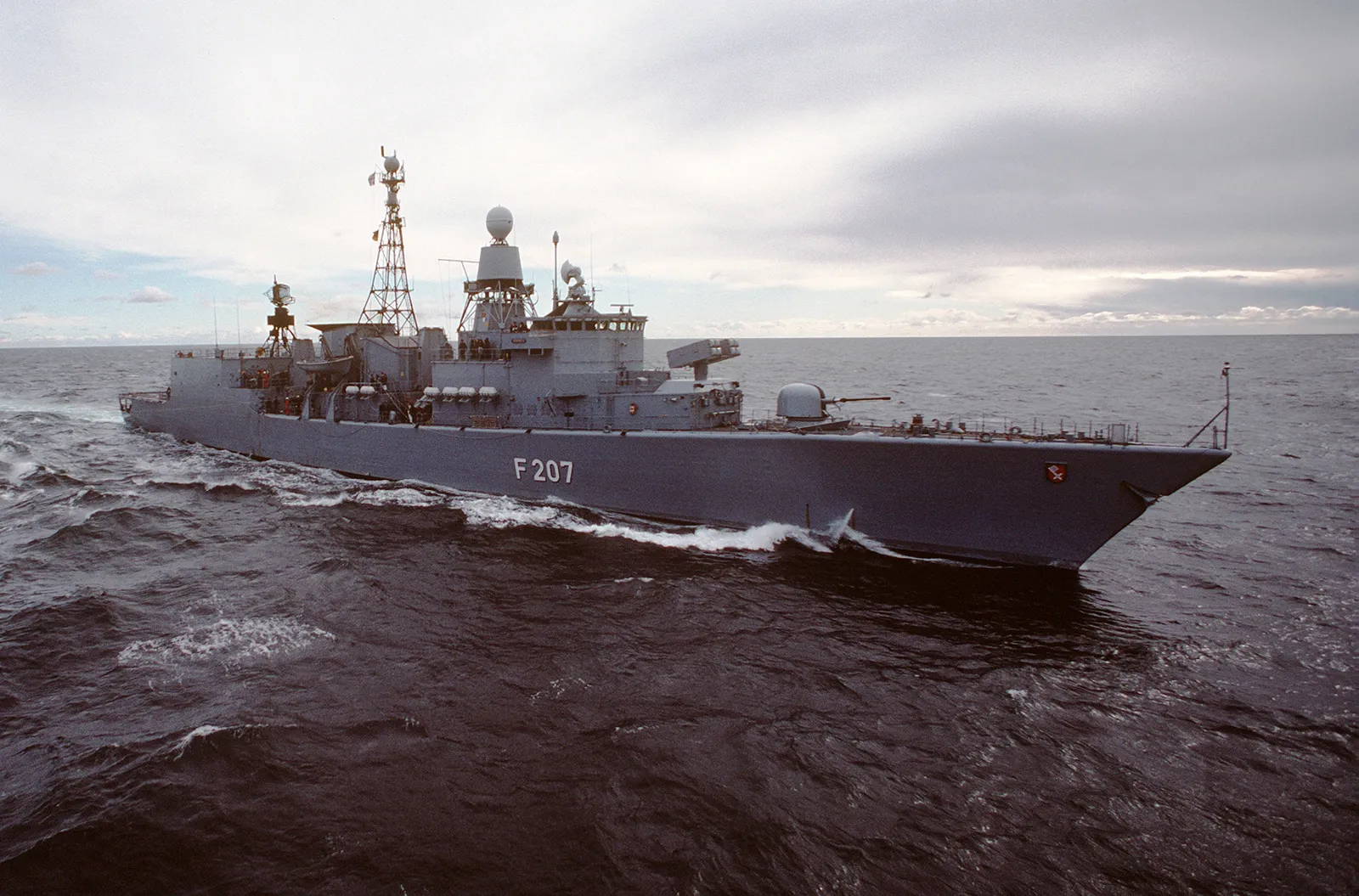

Image source: German frigate Bremen (F 207) image

Role in Conflicts

Profile / Specs

Profile

Origin
Germany
Type
Guided-missile frigate class
Service note
1982-2022
Produced
1979-1990
Number built
8

Specifications

Length
130.5 m
Beam
14.6 m
Draft
6.3 m
Displacement
about 3,680 t
Propulsion
CODOG with General Electric gas turbines and MTU diesel engines
Speed
about 30 knots
Crew
about 202 crew plus aviation detachment
Armament
Harpoon anti-ship missiles, Sea Sparrow air-defense missiles, 76 mm gun, torpedo tubes, and later RAM launchers
Aviation
Facilities for two Sea Lynx helicopters
Ship List And Service Dates

The Bremen class comprised eight German Navy Type 122 frigates. Official Bundeswehr material lists all eight as decommissioned, with Lübeck the final ship to leave service on 15 December 2022.

PennantShipBuilderCommissionedDecommissioned
F207BremenBremer Vulkan, Bremen7 May 198228 March 2014
F208NiedersachsenAG Weser, Bremen15 October 198226 June 2015
F209Rheinland-PfalzBlohm+Voss, Hamburg3 May 198322 March 2013
F210EmdenNordseewerke, Emden7 October 198329 November 2013
F211KölnBlohm+Voss, Hamburg19 October 198431 July 2012
F212KarlsruheHowaldtswerke, Kiel19 April 198416 June 2017
F213AugsburgBremer Vulkan, Bremen3 October 198918 December 2019
F214LübeckNordseewerke, Emden19 March 199015 December 2022
Design And Late-Service Fit

The Type 122 design was based on the Dutch Kortenaer class but used a different propulsion system and hangar layout. It was procured primarily for anti-submarine warfare, while also carrying anti-surface weapons and point air defenses.

Aviation

The class carried facilities for two Sea Lynx Mk88A helicopters, a feature the Bundeswehr describes as a first for German Navy frigates and now standard across its frigate classes.

Late-service sensors

Bundeswehr's late-service F122 data listed TRS-3D multifunction radar, STIR fire-control radar, DSQS 21 bow sonar, MSP 500 video/infrared tracking, FL 1800 S electronic-warfare equipment, and navigation radar.

Added close-defense fit

SeaForces marks the RIM-116 RAM launchers and 27 mm MLG27 gun systems as later additions to the Type 122 armament, matching the late-service Bundeswehr weapons list.

Onboard Weapon Systems

F122 references identify the class with ship-launched Harpoon anti-ship missiles, Sea Sparrow point air defense, and later RIM-116 RAM close-defense launchers.

Carried itemItem typeCarriage evidence
Harpoon, Anti-ship cruise missile family, MunitionsHarpoonAnti-ship cruise missile family

SeaForces identifies the Bremen class with two Mk.141 launchers for eight RGM-84 Harpoon surface-to-surface missiles, and Marineforum lists HARPOON missiles in the class armament.

Sources: Type 122 Bremen class Frigate, The utilisation of the frigates class 122

NATO Sea Sparrow Missile, Ship self-defense missile, MunitionsNATO Sea Sparrow MissileShip self-defense missile

SeaForces lists a Mk.29 missile launcher for RIM-7 Sea Sparrow on the Bremen class, and U.S. Navy imagery shows a NATO Sea Sparrow launch from the Bremen-class frigate Lubeck during UNITAS Gold.

Sources: Type 122 Bremen class Frigate, German frigate Lubeck launching Sea Sparrow image

RIM-116 Rolling Airframe Missile, Ship-launched surface-to-air missile, MunitionsRIM-116 Rolling Airframe MissileClose-in air-defense missile

SeaForces lists two Mk.49 launching systems for RIM-116 Rolling Airframe Missiles as a later Bremen-class addition, and Marineforum says the class was supplemented by RAM launchers during service.

Sources: Type 122 Bremen class Frigate, The utilisation of the frigates class 122

Timeline

Bremen class / F122 frigate Key Events

  1. Lead ship laid down

    Bremen (F207), the class lead ship, was laid down at Bremer Vulkan in Bremen.

  2. Bremen enters service

    Bremen commissioned as the first Type 122 frigate in German Navy service.

  3. Eight-ship class commissioned

    The eight Bremen-class frigates entered service between 1982 and 1990, with Lübeck commissioning last.

  4. Class withdrawals begin

    Köln became the first Bremen-class frigate to leave service.

  5. Final Lübeck deployment ends

    Lübeck returned to Wilhelmshaven from its final Aegean deployment before decommissioning.

  6. Final ship decommissioned

    Lübeck was decommissioned at Wilhelmshaven, closing the Bremen-class chapter in German Navy service.

Media

Bremen class / F122 frigate Videos

Bremen class / F122 frigate Images

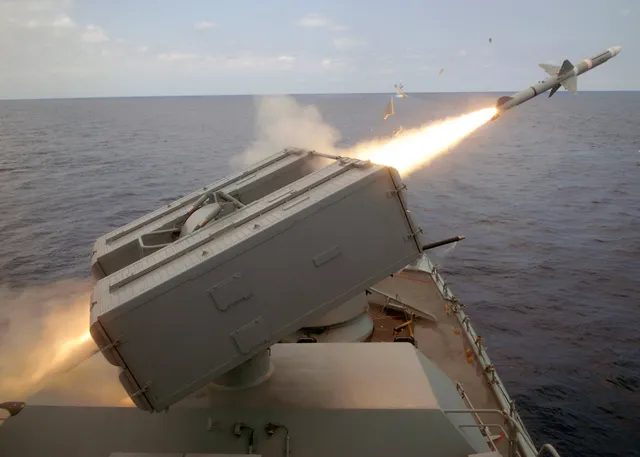

Bremen class / F122 frigate, Guided-missile frigate class, Naval Systems - view 1

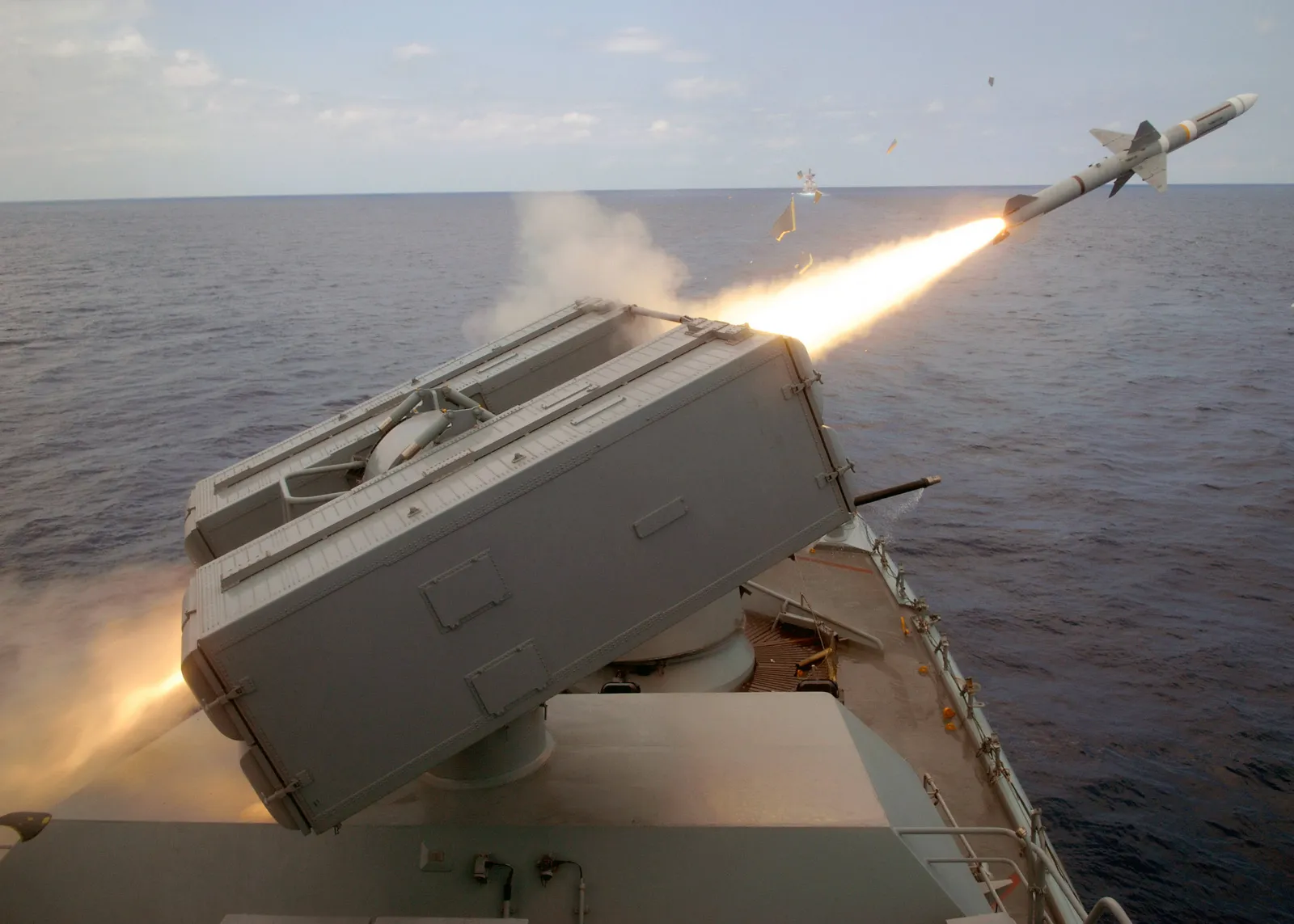

Source: German frigate Lubeck launching Sea Sparrow image
