Naval Systems

Type 052C / Luyang II-class destroyer

Also known as
  • Type 052C destroyer
  • Luyang II-class destroyer
  • Lanzhou class
  • Luyang II
  • DDG-170 Lanzhou
  • DDG-171 Haikou

The Type 052C, also known as the Luyang II-class destroyer, is a Chinese People's Liberation Army Navy guided-missile destroyer class built around area air defense and long-range maritime presence. Public sources describe it as the PLAN's first class to combine a fixed AESA radar, vertically launched HHQ-9 missiles, YJ-62 anti-ship missiles, and a helicopter facility; direct conflict coverage now includes Gulf of Aden escort deployments, a 2018 South China Sea FONOP encounter, and August 2022 Taiwan Strait crisis exercises.

Type 052C / Luyang II-class destroyer, Chinese People's Liberation Army Navy air-defense destroyer class, Naval Systems
Image source: Category:Type 052C destroyers

Role in Conflicts

South China Sea Disputes
Area DenialDeterrence
Side
People's Republic of China

The Type 052C / Luyang II-class destroyer Lanzhou was documented approaching USS Decatur during a September 30, 2018 South China Sea freedom-of-navigation operation near Gaven and Johnson Reefs.

2022 Fourth Taiwan Strait Crisis
Deterrence
Side
People's Republic of China

The Type 052C destroyer Changchun was documented in PLA exercises around Taiwan in August 2022, including anti-submarine activity southwest of Taiwan with its embarked Ka-28 helicopter.

Class Profile

The Type 052C is the PLAN's Luyang II air-defense destroyer class. It moved the Type 052 line from the mixed Russian-Chinese systems of the preceding Luyang I into a Chinese area-air-defense configuration built around Type 346 fixed AESA radar panels, HHQ-9 vertical launchers, YJ-62 anti-ship missiles, close-in guns, torpedo tubes, and a helicopter deck and hangar.

Radar fit

Type 346 four-panel AESA radar gave the class a modern fleet air-defense search and fire-control profile.

Primary SAM loadout

48 HHQ-9 missiles are carried in eight six-round vertical launchers, with six launcher groups forward and two aft.

Surface strike armament

Eight YJ-62/C-602 anti-ship missiles in two quad launchers give the class a dedicated anti-surface battery.

Aviation and ASW fit

The aft hangar and flight deck support a Z-9 or Ka-28 helicopter, supplementing sonar, torpedo tubes, and close-range self-defense weapons.

Profile / Specs

Profile

Origin
China
Type
Chinese People's Liberation Army Navy air-defense destroyer class
Service note
Entered service in 2004 and remains in Chinese naval service
Produced
2002-2015
Number built
6
Developed from
Type 052B / Luyang I-class destroyer
Developed into
Type 052D / Luyang III-class destroyer

Specifications

Displacement
About 7,000 tons full load
Length
About 155 meters / 509 feet
Beam
About 17 meters / 56 feet
Draft
About 6 meters / 20 feet
Speed
About 29-30 knots
Range
About 4,500 nautical miles at 15 knots
Crew
About 280 personnel
Sensors
Type 346 four-panel AESA radar, air-search radars, hull-mounted sonar, and likely towed-array sonar accommodation
Armament
48 HHQ-9 surface-to-air missiles, 8 YJ-62 anti-ship missiles, 100 mm gun, Type 730 CIWS, and torpedo tubes
Aviation
Aft hangar and landing deck for one Z-9 or Ka-28 helicopter
Propulsion
Combined diesel or gas (CODOG) with two gas turbines and two diesels
Variants

The Type 052C is the Luyang II member of the PLAN Type 052 destroyer line, following the Type 052B/Luyang I and preceding the Type 052D/Luyang III.

VariantConfigurationDesignation notes
Type 052B / Luyang I-class destroyer, Chinese People's Liberation Army Navy guided-missile destroyer class, Naval SystemsType 052B / Luyang I-class destroyerPredecessor Type 052 destroyer family member

USNI places the Luyang II in the Type 052 destroyer lineage after the Type 052B/Luyang I.

Sources: Air-Defense Destroyers for the PLAN

Type 052D / Luyang III-class destroyer, Chinese People's Liberation Army Navy guided-missile destroyer class, Naval SystemsType 052D / Luyang III-class destroyerFollow-on Type 052 destroyer family member

USNI identifies the Luyang III / Type 052D as the follow-on class to the Luyang II / Type 052C.

Sources: Air-Defense Destroyers for the PLAN

Missiles Launched

The Type 052C combines long-range area air defense with a separate anti-ship missile battery.

Launched itemItem typeLaunch evidence
HQ-9, Long-range surface-to-air missile system, Air DefenseHQ-9Naval surface-to-air missile family

USNI describes the Luyang II / Type 052C class as carrying 48 HHQ-9 missiles in eight six-round vertical launchers.

Sources: Air-Defense Destroyers for the PLAN

YJ-62 anti-ship cruise missile, Chinese subsonic anti-ship cruise missile, MunitionsYJ-62 anti-ship cruise missileAnti-ship cruise missile

USNI describes the class as carrying eight YJ-62/C-602 missiles in two quad launchers for anti-surface warfare.

Sources: Air-Defense Destroyers for the PLAN

Timeline

Type 052C / Luyang II-class destroyer Key Events

  1. First Type 052C hulls begin construction

    Lanzhou and Haikou began construction at Jiangnan Shipyard as the first two Luyang II air-defense destroyers.

    Sources: Air-Defense Destroyers for the PLAN

  2. Lanzhou launched

    The first Type 052C, Lanzhou, was launched at Jiangnan Shipyard.

    Sources: Luyang II / Type 052C Multirole Destroyer

  3. Lead ship enters PLAN service

    Lanzhou joined the fleet in 2004, followed by Haikou in 2005.

    Sources: Air-Defense Destroyers for the PLAN

  4. Second batch enters service

    Changchun, Zhengzhou, Jinan, and Xi'an entered PLAN service, completing the six-ship class.

    Sources: Air-Defense Destroyers for the PLAN

  5. Mid-life overhaul context documented

    CMSI translated Chinese discussion of Lanzhou entering mid-life overhaul and upgrade work.

    Sources: CMSI Translation #11: Mid-Life Overhaul and Upgrade of the Type 052C Guided Missile Destroyer

Media

Type 052C / Luyang II-class destroyer Videos

Type 052C / Luyang II-class destroyer Images

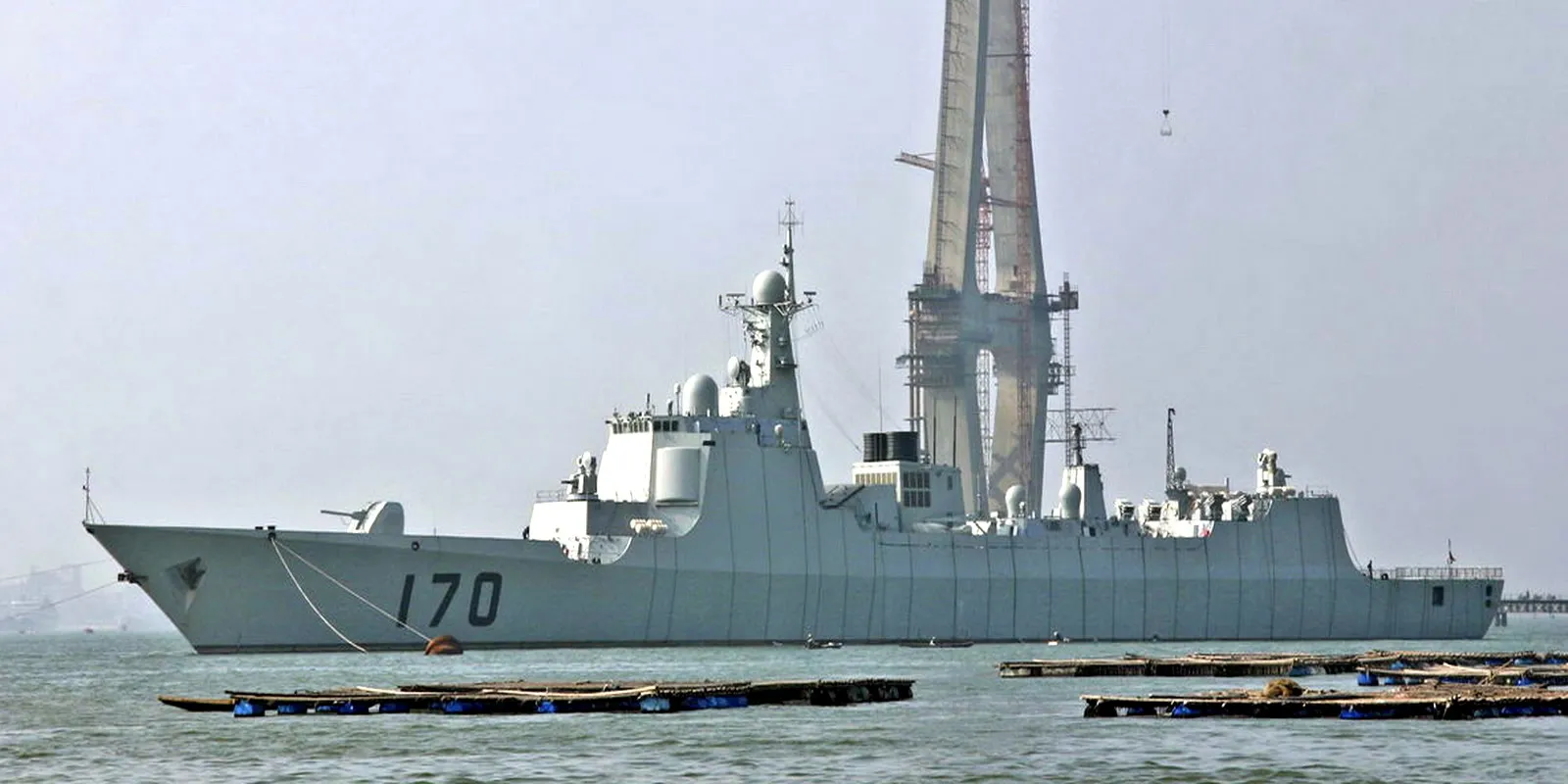

Type 052C / Luyang II-class destroyer, Chinese People's Liberation Army Navy air-defense destroyer class, Naval Systems - view 1
Source: Luyang II (Type 052C) Class Destroyer.JPG

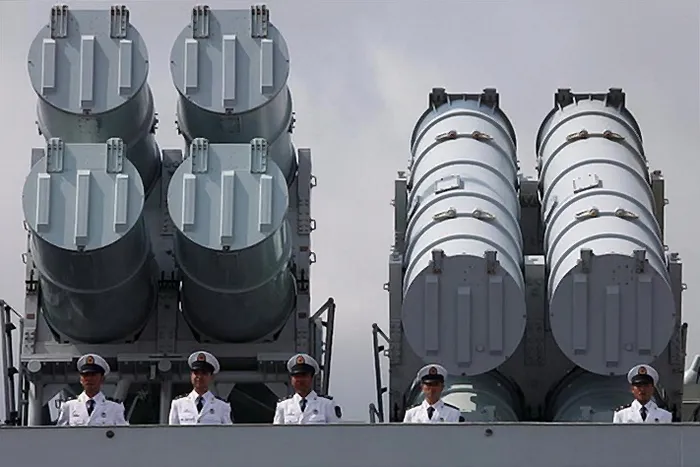

Type 052C / Luyang II-class destroyer, Chinese People's Liberation Army Navy air-defense destroyer class, Naval Systems - view 2
Source: Anti-ship missile launchers on CNS Haikou (DDG-171).jpg

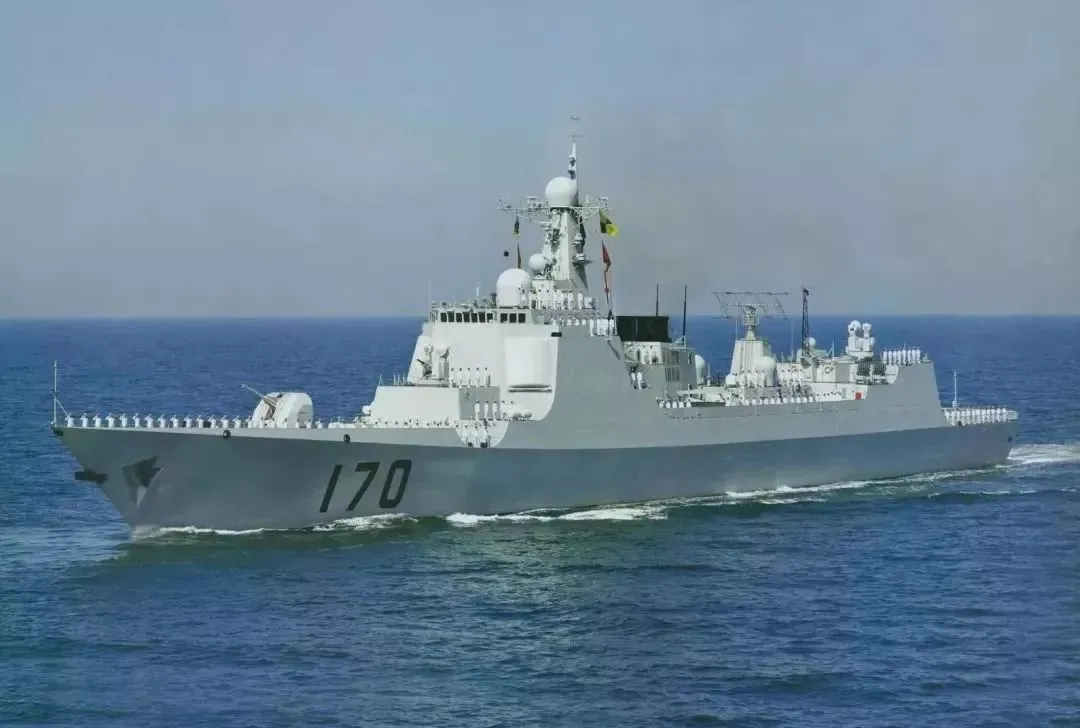

Type 052C / Luyang II-class destroyer, Chinese People's Liberation Army Navy air-defense destroyer class, Naval Systems - view 3
Source: Type 052C destroyer.jpg
