Naval Systems

Type 051B / Luhai-class destroyer

Also known as
  • Type 051B destroyer
  • Type 051B
  • Luhai-class
  • Luhai-class destroyer
  • Shenzhen class
  • Chinese destroyer Shenzhen

The Type 051B, also called the Luhai class, is a single-ship Chinese People's Liberation Army Navy guided-missile destroyer class built around Shenzhen (DDG 167). Dalian Shipbuilding Industry Company built the experimental, modular destroyer as a bridge toward later PLAN surface combatants, and Shenzhen is directly documented in China's 2009 Gulf of Aden counter-piracy escort mission.

Type 051B / Luhai-class destroyer, Chinese People's Liberation Army Navy guided-missile destroyer class, Naval Systems

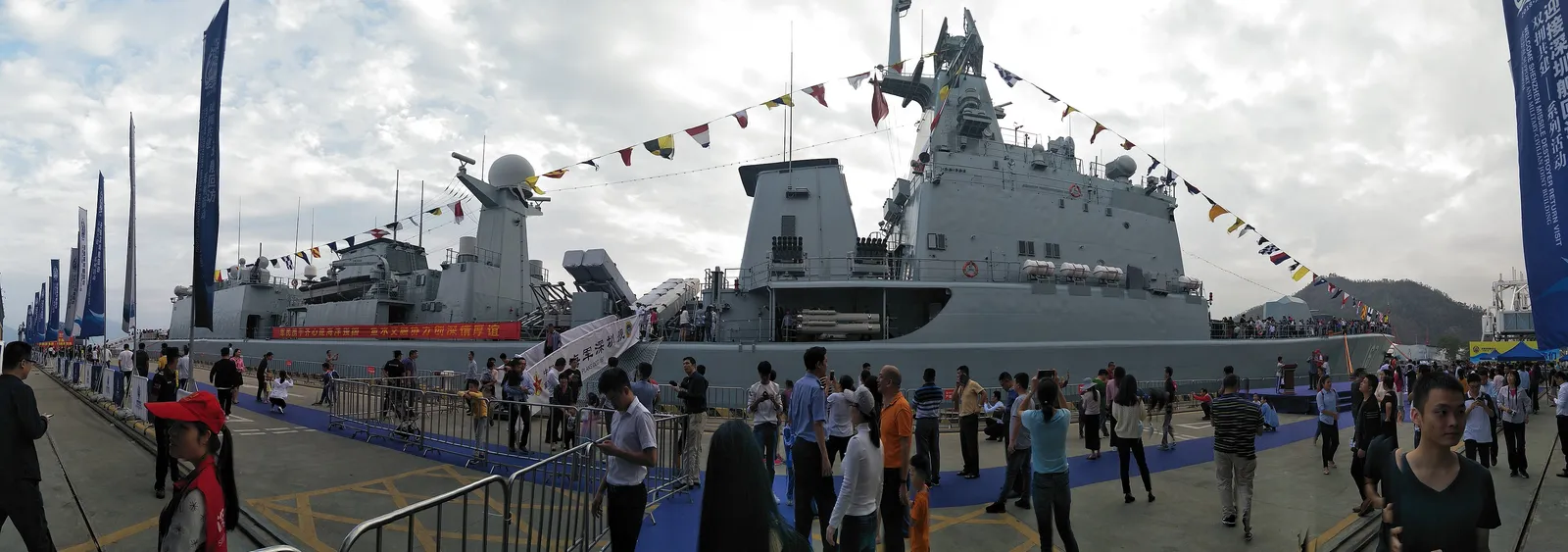

Image source: Chinese destroyer Shenzhen DDG167.jpg

Role in Conflicts

Class Snapshot

The Type 051B / Luhai class is best understood as one experimental destroyer rather than a production family. Shenzhen combined a larger indigenous hull, fleet-command ambitions, and later refit work that made the ship a visible bridge between older PLAN destroyers and later air-defense surface combatants.

Ship count

One completed hull: Shenzhen (DDG 167).

Builder

Dalian Shipbuilding Industry Company.

Service proof

Documented in the 2009 Gulf of Aden counter-piracy escort mission.

Modernized fit

Public reporting describes VLS air-defense, close-in defense, sensor upgrades, and later YJ-12 launchers.

Profile / Specs

Profile

Origin
China
Type
Chinese People's Liberation Army Navy guided-missile destroyer class
Service note
Commissioned in 1999; the sole ship was later modernized and remains a notable PLAN surface combatant reference point
Produced
1996-1997
Number built
1

Specifications

Displacement
About 6,600 tons full load
Length
155 meters
Beam
17.2 meters
Draft
6 meters
Speed
About 31 knots
Range
About 14,000 nautical miles
Complement
About 250
Propulsion
Two steam turbines driving two shafts
Armament
Refitted example carried HQ-16 SAMs, YJ-12 anti-ship missiles, a 100 mm gun, Type 1130 CIWS, and torpedo tubes
Sensors
Type 382 air-search radar, Type 360S search radar, Type 344 fire-control radar, and hull-mounted/towed-array sonar
Missile Fit

Published references describe Shenzhen's missile outfit changing from its original canister-launched anti-ship and point-defense fit to a modernized VLS air-defense and heavier anti-ship loadout.

Launched itemItem typeLaunch evidence
HQ-16 / LY-80, Medium-range surface-to-air missile system, Air DefenseHQ-16 / LY-80Naval surface-to-air missile

The modernization replaced the original HQ-7 launcher with a vertical launch system; Army Recognition identifies that VLS as the 32-cell HHQ-16/HQ-16 air-defense fit.

Sources: Navy upgrades missile destroyer, Chinese Navy Type 051B destroyer upgraded with 16 container launchers for YJ-12 supersonic anti-ship missile

YJ-83 anti-ship cruise missile, Subsonic anti-ship cruise missile, MunitionsYJ-83 anti-ship cruise missilePre-refit anti-ship missile

Open references identify Shenzhen's earlier anti-ship armament as YJ-83/C-801/C-802-family canister-launched missiles before later reporting showed YJ-12 launchers.

Sources: Type 051B Luhai class Guided Missile Destroyer DDG China PLAN Navy, Type 051B Luhai-class / Luyang-class Multirole Destroyer

Unlinked modernized weapons

The refit also added close-in weapon systems and later imagery/reporting showed YJ-12 launchers, but no publishable catalog records exist yet for the YJ-12, HQ-7, Type 1130/H/PJ-11, or the specific radar fits.

Sources: Navy upgrades missile destroyer, Chinese Navy Type 051B destroyer upgraded with 16 container launchers for YJ-12 supersonic anti-ship missile

2009 Escort Task Force

China's second Gulf of Aden escort group paired Shenzhen with the newer Type 054A frigate Huangshan and the replenishment ship Weishanhu for counter-piracy escort work.

Compatible itemItem typeCompatibility evidence
Type 054A / Jiangkai II-class frigate, Chinese People's Liberation Army Navy multi-role frigate class, Naval SystemsType 054A / Jiangkai II-class frigateCounter-piracy task-force frigate

China Daily and Xinhua identified FFG-570 Huangshan, a Type 054A frigate, as Shenzhen's partner in the second Gulf of Aden escort flotilla.

Sources: Two fleets of naval escort ships meet in Gulf of Aden, China sends 3rd naval fleet for anti-piracy mission

Timeline

Type 051B / Luhai-class destroyer Key Events

  1. Shenzhen launched

    The sole Type 051B hull, Shenzhen (DDG 167), was launched at Dalian before entering PLAN service.

    Sources: Type 051B Luhai-class / Luyang-class Multirole Destroyer, Chinese Navy Type 051B destroyer upgraded with 16 container launchers for YJ-12 supersonic anti-ship missile

  2. Sole Luhai-class destroyer enters service

    China Daily describes Shenzhen as the only Type 051B / Luhai-class ship and says it entered South Sea Fleet service in 1999.

    Sources: Navy upgrades missile destroyer

  3. Second Chinese escort flotilla arrives in the Gulf of Aden

    Xinhua reported that Shenzhen and Huangshan arrived in the Gulf of Aden to relieve the first Chinese escort fleet in pirate-threatened waters off the Horn of Africa.

    Sources: Two fleets of naval escort ships meet in Gulf of Aden

  4. Major modernization begins

    China Daily reported that Shenzhen began a major weapons and electronics upgrade in 2014, later emerging with new weapons and a streamlined superstructure.

    Sources: Navy upgrades missile destroyer

  5. YJ-12 launcher fit reported

    Army Recognition reported imagery showing Shenzhen fitted with 16 launchers associated with the YJ-12 supersonic anti-ship missile.

    Sources: Chinese Navy Type 051B destroyer upgraded with 16 container launchers for YJ-12 supersonic anti-ship missile

Media

Type 051B / Luhai-class destroyer Videos

Type 051B / Luhai-class destroyer Images

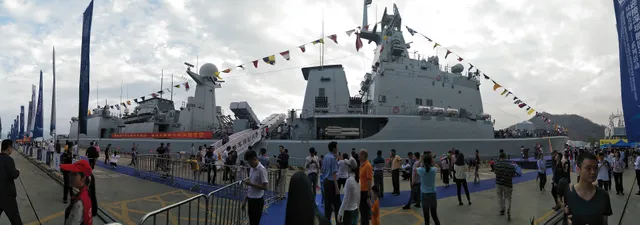

Type 051B / Luhai-class destroyer, Chinese People's Liberation Army Navy guided-missile destroyer class, Naval Systems - view 1
Source: Shenzhen (DDG 167).jpg

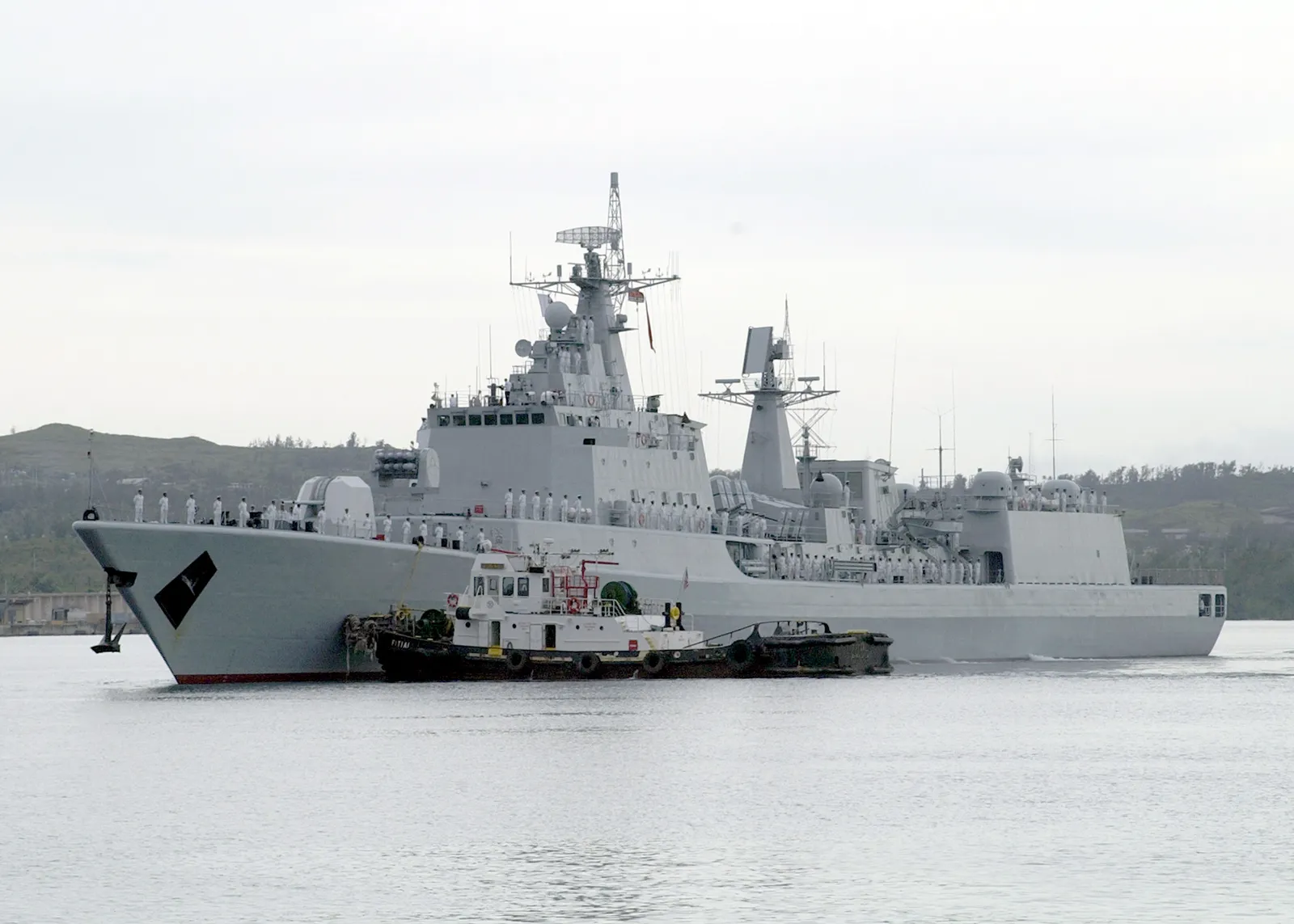

Type 051B / Luhai-class destroyer, Chinese People's Liberation Army Navy guided-missile destroyer class, Naval Systems - view 2
Source: Shenzhen (DDG 167).jpg

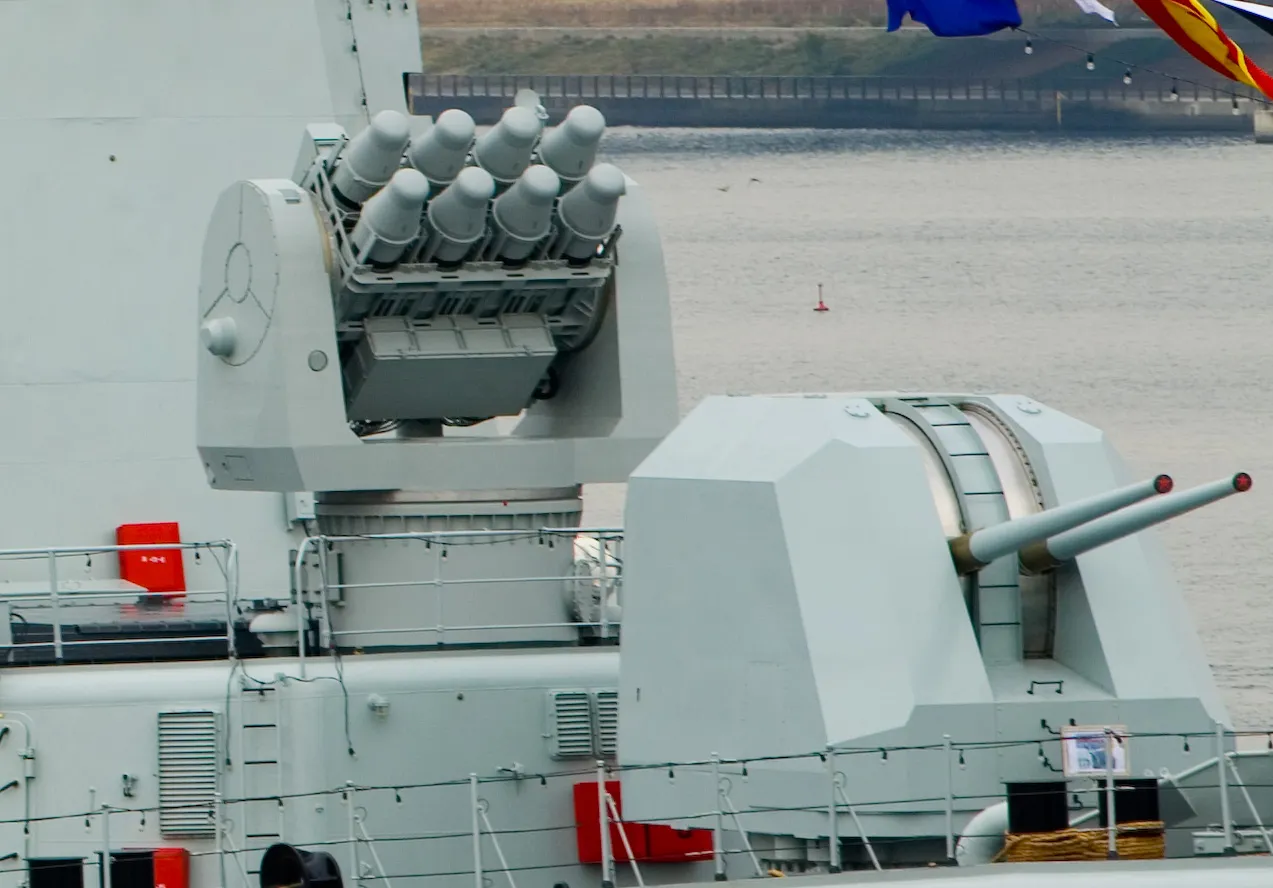

Type 051B / Luhai-class destroyer, Chinese People's Liberation Army Navy guided-missile destroyer class, Naval Systems - view 3
Source: Chinese HQ-7 and Type 79A 100mm turret.jpg

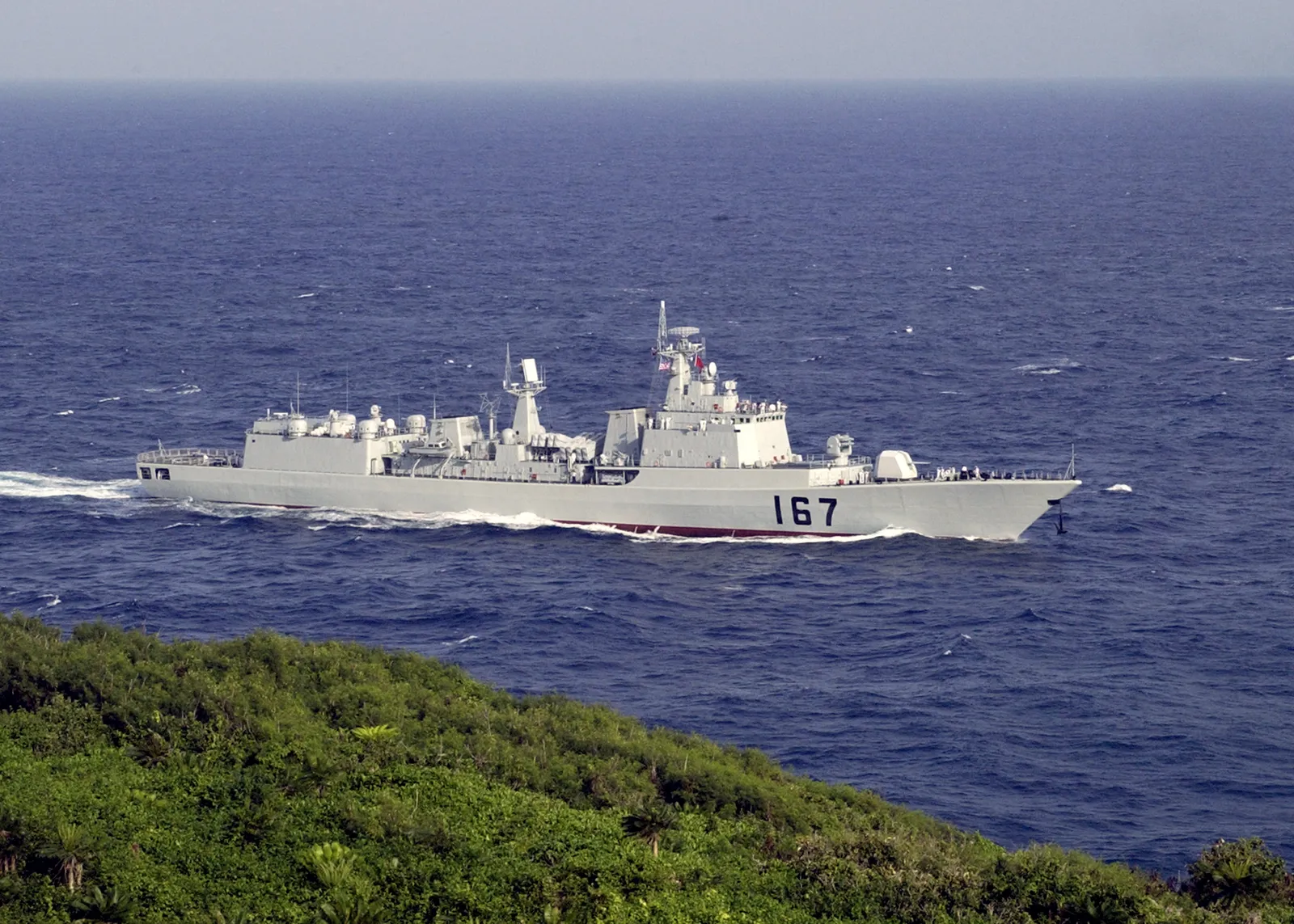

Type 051B / Luhai-class destroyer, Chinese People's Liberation Army Navy guided-missile destroyer class, Naval Systems - view 4
Source: Shenzhen (DDG 167).jpg
