Type 053H2G / Jiangwei I-class frigate

Also known as
  • Type 053H2G
  • Jiangwei I
  • Jiangwei I-class frigate
  • Type-053H2G class
  • Type 053 H2G
  • Project 055

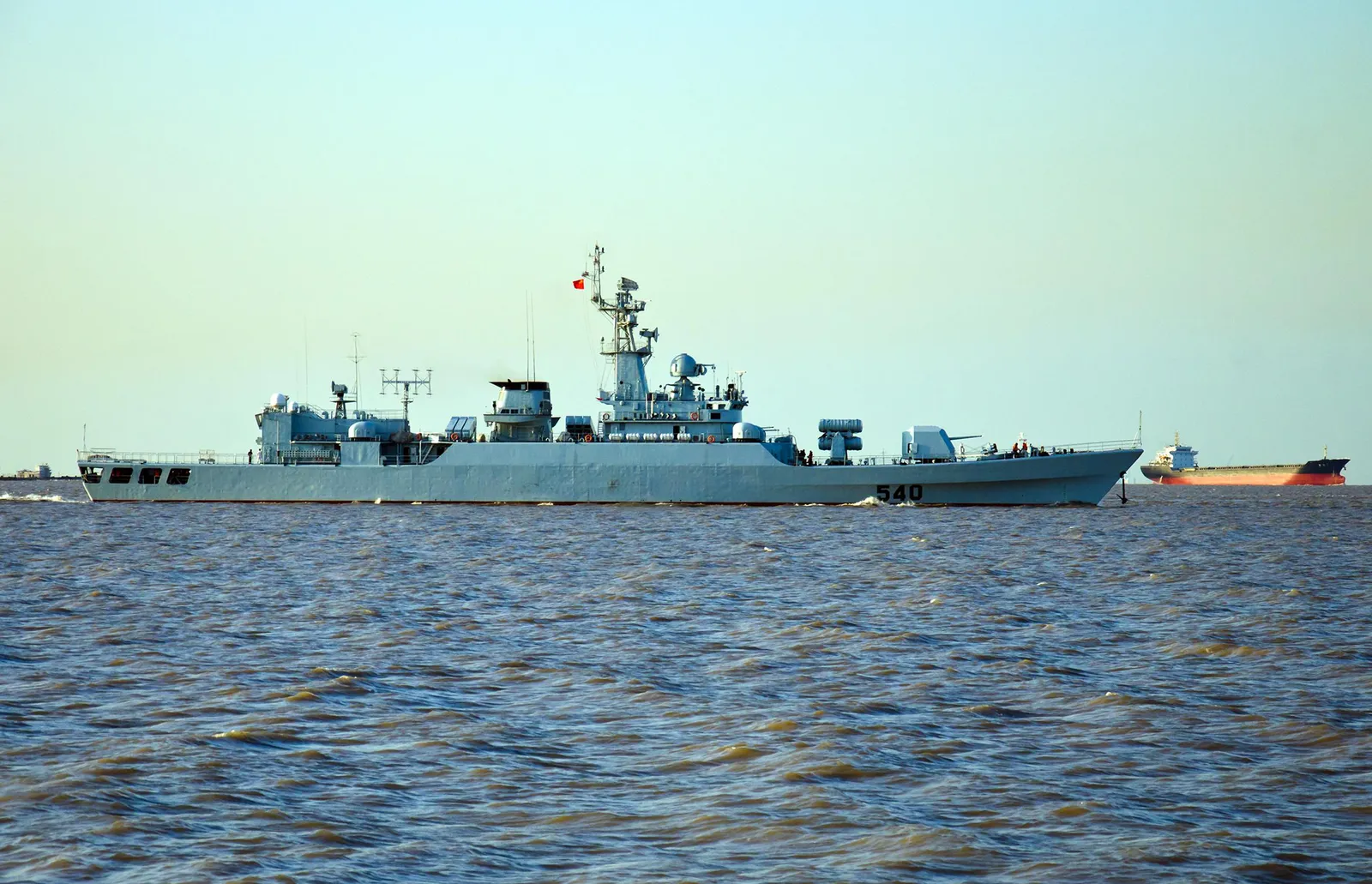

The Type 053H2G / Jiangwei I class was a small Chinese frigate class built by Hudong Shipyard and fitted in PLAN service with a 1x6 HQ-61B surface-to-air missile launcher. Open sources describe four ships built before the later Type 053H3 / Jiangwei II class, with surviving hulls later converted for China Coast Guard service or transferred to Sri Lanka.

Profile / Specs

Profile

Origin
China
Type
Guided-missile frigate and converted patrol vessel class
Service note
Built for the People's Liberation Army Navy in the early 1990s; later converted or transferred for patrol service
Designer
Chinese naval shipbuilding industry
Produced
1991-1994
Number built
Four ships
Developed into
Type 053H3 / Jiangwei II-class frigate

Specifications

Displacement
About 2,250 tonnes standard / 2,393 tonnes full load
Length
About 112 m
Speed
About 28 knots
Range
About 5,000 miles
Crew
About 170 in frigate configuration
Original air-defense fit
1x6 HQ-61B surface-to-air missile launcher
Launched Missiles

The class is useful in the catalog as the shipboard platform most closely associated with the HQ-61B naval launcher fit.

Launched itemItem typeLaunch evidence
HQ-61B, Short-range ship-launched surface-to-air missile, MunitionsHQ-61BShip-launched surface-to-air missile

Weaponsystems.net lists the Type 053H2G class with a 1x6 HQ-61B short-range surface-to-air missile launcher, while GlobalSecurity describes the HQ-61B shipboard launch and fire-control arrangement.

Sources: Weaponsystems.net: Type-053H2G class, GlobalSecurity: HQ-61 / RF-61 / SD-1 / Model Type 571 / CSA-N-2

C-802/Noor anti-ship cruise missile, Anti-ship cruise missile, MunitionsC-802/Noor anti-ship cruise missileAnti-ship missile

The frigate class also carried triple box launchers for the YJ-83 / C-802 anti-ship missile family in its PLAN combat fit.

Sources: Weaponsystems.net: Type-053H2G class

Original Fit And Later Service

The Type 053H2G class entered Chinese naval service as a compact multi-role frigate with HQ-61B local air-defense missiles and anti-ship missiles. Later reporting describes the class leaving front-line PLAN frigate service, with former hulls converted for China Coast Guard patrol work or transferred to Sri Lanka.

PLAN fit

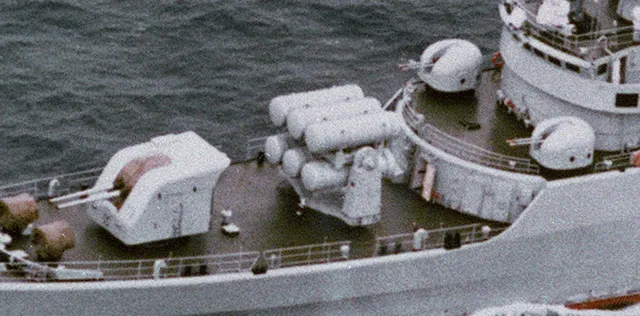

The original combat fit included a 1x6 HQ-61B launcher and YJ-83 / C-802-family anti-ship missile launchers.

Conversion pattern

The Diplomat reported in 2015 that Type 053H2G hulls were being converted into China Coast Guard cutters with much of the frigate armament removed.

Exported hull

Naval News reported that the former PLAN Tongling, a Jiangwei I / Type 053H2G frigate, arrived for Sri Lankan service in 2019.
