AK-130 naval gun

Also known as
  • AK-130
  • A-218
  • ZIF-94
  • 130 mm/70 AK-130
  • 130mm AK-130
  • AK-130-MR-184

The AK-130 is a Soviet 130 mm twin-barrel automatic naval gun mount built for destroyers and cruisers, pairing high-volume shipboard fire with MR-184 fire-control support. Its catalog conflict record is narrow: public reports in 2024 documented Russian forces adapting AK-130 naval-gun hardware and ammunition onto an M-46 towed-artillery carriage in Ukraine.

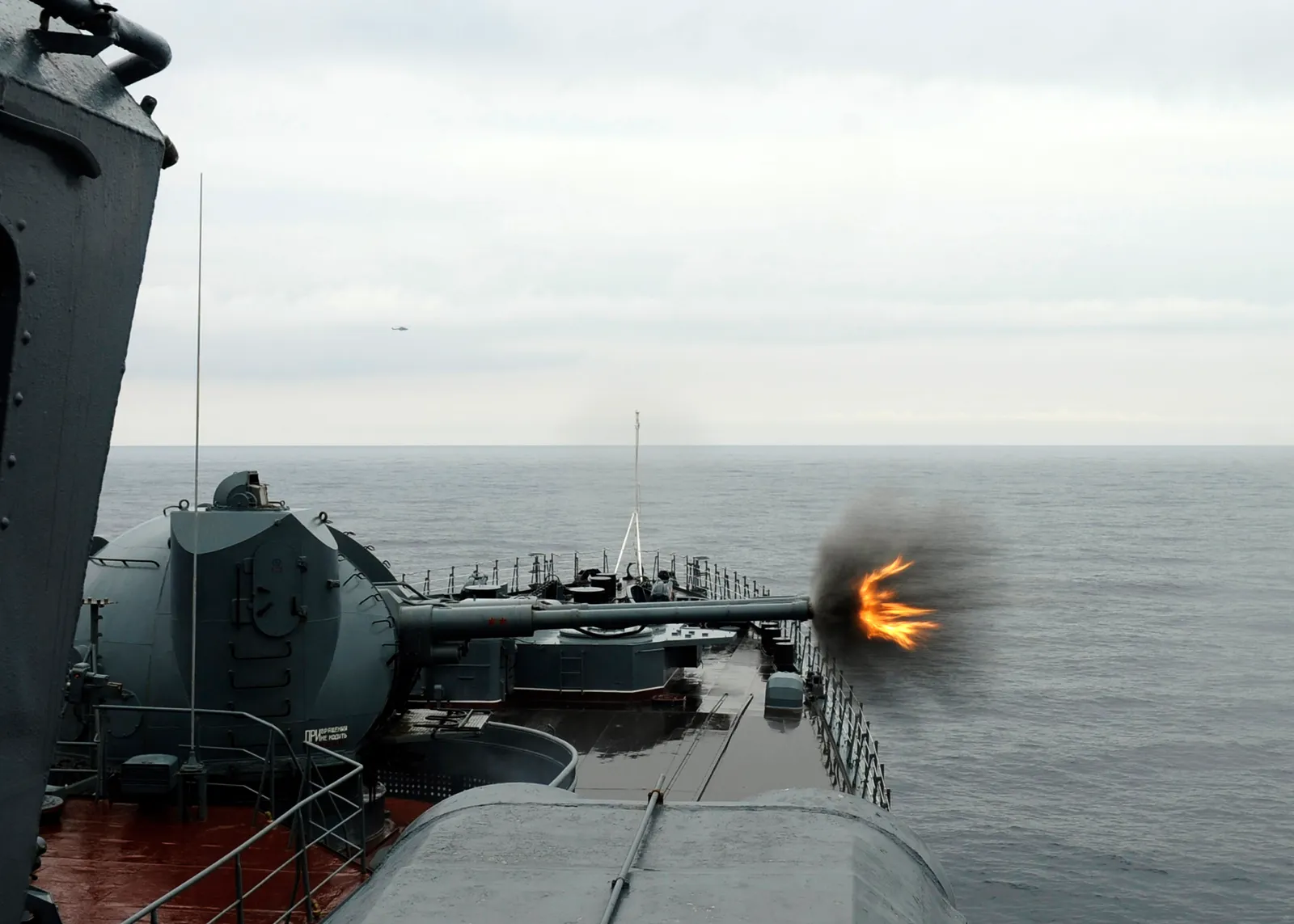

AK-130 naval gun, 130 mm twin-barrel automatic naval gun, Naval Systems
Image source: Commons U.S. Navy AK-130 Firing Image

Role in Conflicts

Profile / Specs

Profile

Origin
Soviet Union
Built by
Arsenal
Type
130 mm twin-barrel automatic naval gun
Service note
Late Cold War naval system; adopted into Soviet service in 1985 and later documented in a Russian land-artillery adaptation in Ukraine
Designer
PO Arsenal / KB Arsenal
Designed
Single-barrel A-217 work began before the twin AK-130 / ZIF-94 configuration entered service in 1985
Produced
Early 1980s through the 1990s in Soviet and Russian service inventories
Number built
About 45 produced, according to WeaponSystems.net

Specifications

Caliber
130 mm / 70 caliber
Configuration
Twin-barrel, triaxially stabilized automatic naval gun mount
Fire control
MR-184 / MP-184 radar, TV guidance, laser ranging, ballistic calculation, and target-selection equipment
Rate of fire
10-40 rounds per minute per gun in NavWeaps data; WeaponSystems.net gives 10-35 rounds per minute per barrel
Maximum range
About 23 km against surface targets; about 15 km against aircraft; about 8 km against missiles
Muzzle velocity
About 850 m/s
Ammunition
Fixed 130 mm rounds; HE and anti-aircraft projectile types are listed in open reference sources
Mount weight
About 100 tons for the twin mount in NavWeaps data
Elevation and traverse
-12 to +80 degrees elevation; about +/-200 degrees train
Gun Mount And Fire Control

The AK-130 is best understood as a complete shipboard mount rather than only a barrel. NavWeaps describes a twin automatic mount controlled by the MP-184/MR-184 fire-control radar system, while WeaponSystems.net identifies MR-184 radar, TV guidance, laser range finding, an automatic loader, and below-deck ammunition stowage as central parts of the system.

Primary role

Dual-purpose naval artillery for surface, coastal, and air-target engagements from large surface combatants.

Ukraine adaptation

The documented 2024 land-use case was a field adaptation that moved AK-130-family gun hardware and ammunition onto an M-46 carriage.

Evidence limit

The conflict row is tied to the reported hybrid artillery system, not to routine shipboard AK-130 fire in the Black Sea.

Sources: NavWeaps AK-130; WeaponSystems 130mm AK-130; Army Recognition Hybrid Gun; Militarnyi Hybrid Naval-Towed Systems.

Variants

Public references treat the AK-130 as the twin 130 mm naval mount selected after single-gun development work did not meet the required rate of fire.

VariantConfigurationDesignation notes
A-217Single-barrel development gun

NavWeaps describes A-217 as the single-gun design that preceded the twin AK-130 / ZIF-94 mount.

Sources: NavWeaps AK-130

AK-192Single-gun successor concept

WeaponSystems.net identifies AK-192 as a single-gun mount developed after AK-130 but not placed in production at the time of its account.

Sources: WeaponSystems 130mm AK-130

H/PJ-38 130 mmChinese derivative

NavWeaps describes the Chinese H/PJ-38 as a single-barrel gun derived from the AK-130 line for Type 052D destroyers.

Sources: NavWeaps AK-130

Documented Carrier Class

The AK-130 was built primarily as a shipboard weapon for Soviet and Russian surface combatants.

CarrierCarrier typeCarriage evidence
Project 1164 Atlant / Slava-class guided-missile cruiser, Guided-missile cruiser, Naval SystemsProject 1164 Atlant / Slava-class guided-missile cruiserGuided-missile cruiser

WeaponSystems.net states that all three Project 1164 Atlant / Slava-class cruisers carry an AK-130 gun turret on the bow.

Sources: WeaponSystems 130mm AK-130

Improvised Land Carriage

The 2024 Ukraine reporting describes the land-use adaptation as a hybrid rather than a standard naval installation.

Compatible itemItem typeCompatibility evidence
M-46, 130 mm towed field gun, ArtilleryM-46130 mm towed field-gun carriage

Army Recognition reported that Russian forces used an M-46 carriage fitted with AK-130 130 mm naval-gun hardware in Ukraine.

Sources: Army Recognition Hybrid Gun

Timeline

AK-130 naval gun Key Events

  1. Single-gun development begins

    NavWeaps dates PO Arsenal's initial A-217 single-gun development work to 1967, before the twin-mount solution was selected.

    Sources: NavWeaps AK-130

  2. AK-130 enters service

    NavWeaps and WeaponSystems.net both place the AK-130 in service in 1985 after development of the twin 130 mm automatic naval mount.

    Sources: NavWeaps AK-130, WeaponSystems 130mm AK-130

  3. Hybrid land-use footage appears

    Army Recognition and Militarnyi reported on footage of a Russian hybrid system in Ukraine combining M-46 carriage elements with AK-130 naval-gun hardware and ammunition.

    Sources: Army Recognition Hybrid Gun, Militarnyi Hybrid Naval-Towed Systems

Media

AK-130 naval gun Images

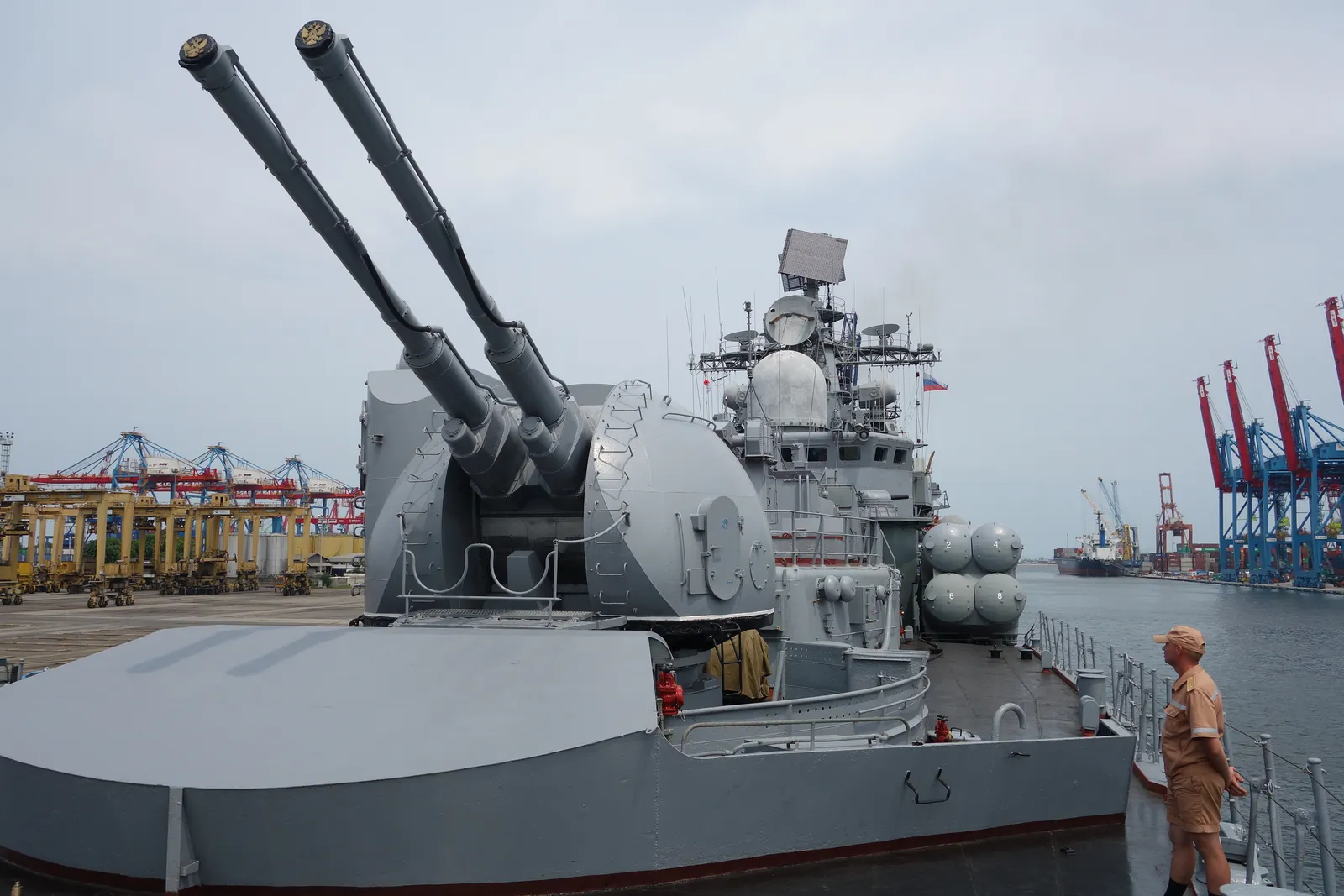

AK-130 naval gun, 130 mm twin-barrel automatic naval gun, Naval Systems - view 1
Source: Commons AK-130 Bystryy Image
