HumAngle documented Chinese W-85 heavy machine guns among 12.7 mm HMGs recovered from Boko Haram and ISWAP-linked forces in northeast Nigeria, including a June 2021 Nigerian military recovery from an ISWAP squad in the Lamboa area of Borno State; the reporting describes W-85 and Type 85 guns as usually truck-mounted anti-personnel and anti-aircraft weapons.
Infantry Weapons
W85 heavy machine gun
Also known as
- W-85
- W85
- W85 HMG
- Norinco W-85
- QJC-88
- QJC88
- QJC 88
- Norinco QJC88
- Type 88 tank heavy machine gun
- Type 88 vehicle-mounted machine gun
- CS/LM3
- W95A
The W85 is a Chinese 12.7x108 mm heavy machine gun associated with Norinco export channels and the QJC-88 vehicle-mounted variant. It is lighter than many older DShK-pattern heavy machine guns and can be used from tripod, pintle, vehicle, or improvised pickup mounts. Conflict reporting documents W85-family guns with ISWAP-linked forces in Nigeria, Ukrainian mobile anti-drone teams, YPG/SDF improvised armor in Syria, Iraqi PMU militias, and Wagner-linked imagery from Mali, while sources caution that export paths and quantities are often unclear.
Role in Conflicts
- Side
- Ukraine
The Armourer's Bench documented W85/W85-family heavy machine guns with Ukrainian forces from late October 2022 onward, including Territorial Defence and mobile fire-team pickup mounts used for engaging Shahed/Geran-type one-way attack UAVs; the article notes that the number and origin of the guns remain unclear.
Role details
Oryx documented a YPG/SDF improvised armored Sturmpanzer in Syria fitted with a forward ball-mounted 12.7 mm W85 heavy machine gun as part of its fire-support armament.
Role details
Amnesty International's report on Iraqi Popular Mobilization Unit armament, drawing on ARES-verified imagery from 2015-2016, reported PMU militia groups deploying Russian and Chinese DShK/DShKM and W85 heavy machine guns during the war against Islamic State in Iraq.
Times of India and Deutsche Welle reporting identified a Norinco W85 heavy machine gun mounted on a 4x4 pickup in Wagner-linked imagery from Mali, placing the weapon in the Malian conflict environment through Russian mercenary or Malian military-linked equipment use.
Profile / Specs
Profile
- Origin
- China
- Built by
- Norinco
- Type
- 12.7 mm heavy machine gun
- Service note
- 1980s Chinese heavy machine gun design still encountered in modern conflicts
- Designer
- Chinese state ordnance industry
- Designed
- Early 1980s
- Unit cost
- Not publicly standardized
- Produced
- 1985-present
- Number built
- Not publicly confirmed
Specifications
- Caliber
- 12.7x108 mm
- Operation
- Gas-operated, air-cooled, belt-fed, automatic-only heavy machine gun firing from an open bolt
- Feed
- Belt-fed; 50-round belts reported for the QJC-88 configuration
- Weight
- 18.5 kg gun body; about 39 kg with tripod assembly
- Overall length
- 1,500 mm reported for the QJC-88 tank machine gun
- Rate of fire
- Approximately 550-600 rounds per minute
- Muzzle velocity
- Approximately 850 m/s
- Mounting
- Infantry tripod, pintle or vehicle mount, and improvised gun-truck mount in conflict reporting
- Sights
- Iron sights with provision for optical or anti-aircraft sights
Design And Mounting
The W85 record is useful because the same design family appears in several mounting contexts rather than as a single infantry gun. Public references separate the tripod/export gun from the QJC-88 vehicle-mounted configuration, while conflict reporting shows the type adapted to pickup trucks, improvised armored vehicles, and mobile anti-drone teams.
Infantry and export gun

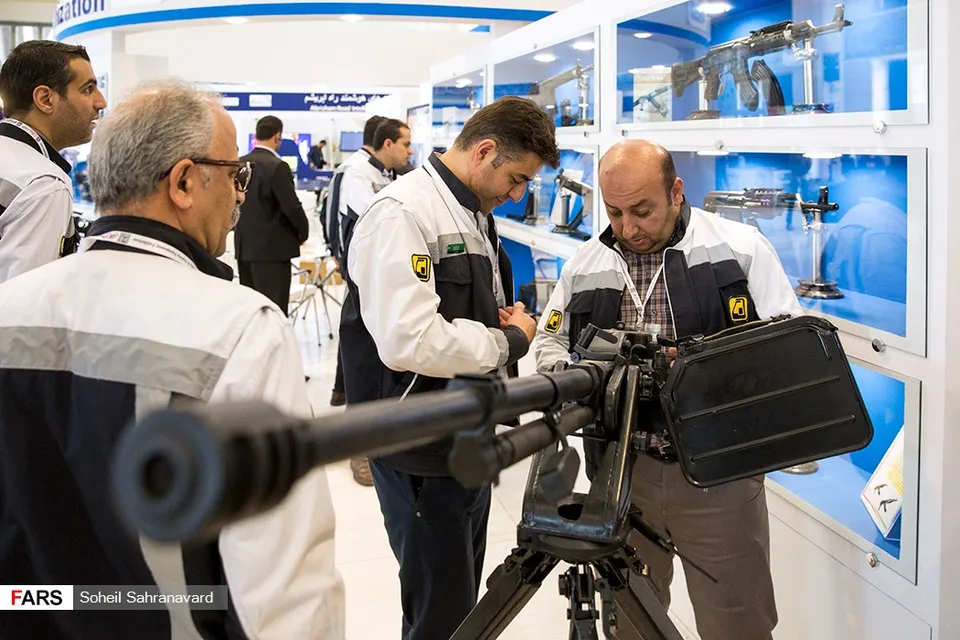

The W-85 was designed as a lightweight 12.7x108 mm heavy machine gun for tripod or universal mounts, but public references describe it as an export-oriented path rather than the PLA's chosen infantry HMG.
Vehicle configuration

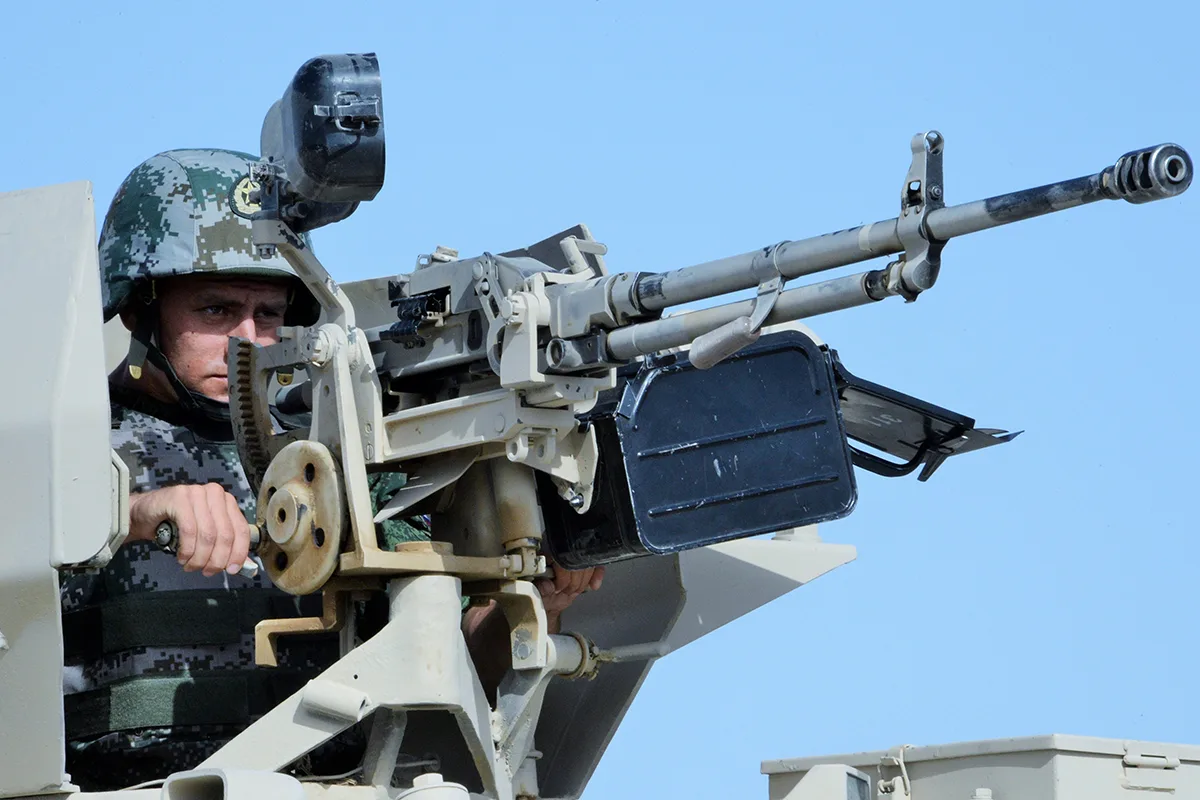

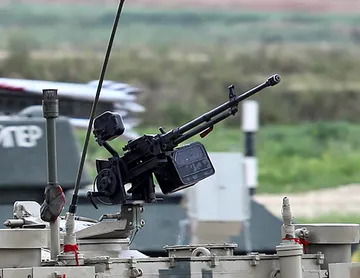

The QJC-88 version is described as the vehicle or tank-mounted W85-family gun, using a solenoid-fired arrangement and a pintle or cradle mount on armored vehicles.
Conflict adaptation
Sourced conflict examples include Ukrainian pickup-mounted anti-drone teams, a YPG/SDF improvised armored vehicle in Syria, PMU militia heavy-machine-gun inventories in Iraq, and insurgent gun-truck use in northeast Nigeria.
Variants
The W85 family is split between the original lightweight infantry/export gun and the QJC-88 vehicle-mounted version adopted for Chinese armored vehicles. The Type 85/QJG-85 is an adjacent Chinese lightweight HMG branch, while CS/LM3 is reported as a 12.7x99 mm export designation.
| Variant | Configuration | Designation notes |
|---|---|---|
| W-85 | Original 12.7x108 mm lightweight heavy machine gun | Modern Firearms, Small Arms Defense Journal, and WeaponSystems.net describe the W-85 as a lightweight Norinco design that survived mainly as an export/commercial gun after the PLA did not adopt it as a tripod infantry weapon. Sources: W-85 HMG, Indigenous Machine Guns of China: Part Two - Heavy Machine Guns, Norinco QJC88 |
| QJC-88 / Type 88 tank heavy machine gun | Chinese vehicle-mounted heavy machine gun | Small Arms Defense Journal and WeaponSystems.net describe the QJC-88 as the vehicle or tank-mounted W85-family configuration, with solenoid firing and armored-vehicle mounting. Sources: Indigenous Machine Guns of China: Part Two - Heavy Machine Guns, Norinco QJC88 |
| CS/LM3 | 12.7x99 mm export chambering | WeaponSystems.net identifies CS/LM3 as the later export designation for a W85-family model chambered for 12.7x99 mm NATO ammunition, previously known as W95A. Sources: Norinco QJC88 |
 | Adjacent Chinese lightweight HMG branch | The Type 85/QJG-85 is not the same gun as the W85; sources describe W85 as developed in parallel with, and losing the infantry role to, the Type 85. The linked catalog record tracks the Type 77/Type 85 branch. Sources: Indigenous Machine Guns of China: Part Two - Heavy Machine Guns, Norinco QJC88 |
Ammunition Fired
The baseline W85 and QJC-88 configurations are documented around the Soviet-origin 12.7x108 mm heavy machine-gun cartridge.
| Ammunition | Ammunition type | Firing evidence |
|---|---|---|
 | Heavy machine-gun cartridge | Modern Firearms, Small Arms Defense Journal, Military Factory, and WeaponSystems.net identify the W85/QJC-88 family as firing 12.7x108 mm ammunition. Sources: W-85 HMG, Indigenous Machine Guns of China: Part Two - Heavy Machine Guns, NORINCO W-85 (QJC-88) Heavy Machine Gun, Norinco QJC88 |
Timeline
W85 heavy machine gun Key Events
Production period begins
Military Factory and WeaponSystems.net both list 1985 as the beginning of W85/QJC-88 production.
Sources: NORINCO W-85 (QJC-88) Heavy Machine Gun, Norinco QJC88
ISWAP recovery reported in Borno State
HumAngle reported that Nigerian forces had recovered W85 and Type 85 heavy machine guns from an ISWAP squad in the Lamboa area earlier in 2021.
Sources: Arms Seizures, Destruction Shadow Nigeria's War Against Terror Groups In Northeast
First Ukraine sighting reported
The Armourer's Bench traces the first reported W85 sighting in Ukraine to late October 2022 on a pickup-mounted technical.
Sources: Chinese Heavy Machine Guns in Ukraine
Ukrainian mobile fire-team photos
The same source notes February 2025 photos from the 122nd Separate Territorial Defense Brigade showing a mobile fire team with a W85 alongside other heavy machine guns.
Sources: Chinese Heavy Machine Guns in Ukraine
