Infantry Weapons

Type 80/PKM-T80 general-purpose machine gun

Also known as
  • Type 80 GPMG
  • M80
  • M80 GPMG
  • PKM-T80
  • PKM T80
  • Norinco Type 80

The Type 80 is a Chinese PKM-pattern, belt-fed 7.62×54mmR general-purpose machine gun also encountered under M80 and PKM-T80 designations. Direct conflict evidence spans Small Arms Survey documentation of Type 80 guns with South Sudanese anti-government militias in 2011, Conflict Armament Research records of Chinese M80 guns captured from Islamic State forces in Syria in 2014, and AP reporting on Type 80 or PKM-T80 weapons with Hamas fighters in Gaza.

Type 80/PKM-T80 general-purpose machine gun, 7.62×54mmR general-purpose machine gun, Infantry Weapons

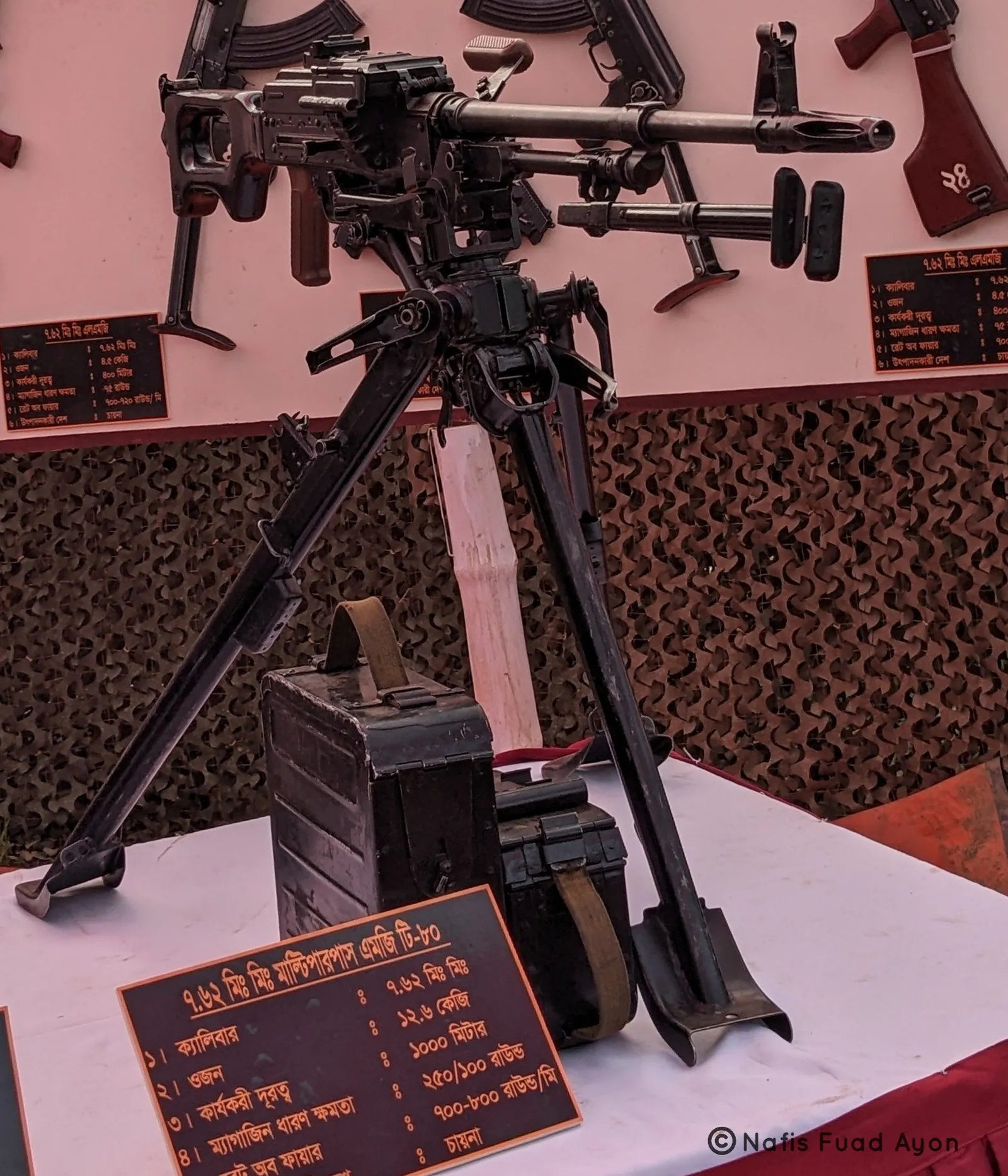

Image source: File:Bangladesh Army Type 80 machine gun on display.jpg

Role in Conflicts

Profile / Specs

Profile

Origin
China
Built by
Norinco
Type
7.62×54mmR general-purpose machine gun
Service note
Introduced in 1983 and still in service
Designed
1980
Produced
1983-present
Developed from
Soviet PKM/PK general-purpose machine gun

Specifications

Caliber
7.62×54mmR
Operation
Gas-operated, air-cooled, belt-fed, fully automatic
Weight
12.6 kg
Length
1,192 mm
Rate of fire
700-800 rounds per minute
Muzzle velocity
846 m/s
Max effective range
1,500 m
Feed
100-, 200-, or 250-round belts/boxes
Variants

The entry groups closely related PKM-pattern labels: Type 80 for the Chinese gun, M80 for a Chinese export or cache designation seen in conflict-tracing reports, and PKM-T80 for Iranian copies reported in Gaza.

VariantConfigurationDesignation notes
PKM/PK, 7.62 mm general-purpose machine gun, Infantry WeaponsPKM/PKOriginal Soviet family

Military Factory describes the Type 80 as a Chinese machine gun patterned on the Soviet PKM family.

Sources: NORINCO Type 80 General Purpose Machine Gun (GPMG)

Ammunition Fired

The Type 80/M80/PKM-T80 family is documented as a belt-fed 7.62x54R or 7.62x54mmR general-purpose machine gun.

AmmunitionAmmunition typeFiring evidence
7.62x54mmR cartridge, Rimmed full-power rifle cartridge, Munitions7.62x54mmR cartridgeRimmed full-power rifle cartridge

CAT-UXO identifies the Type 80 as a 7.62x54mmR gas-operated, belt-fed weapon, and Small Arms Survey notes Chinese 7.62x54R ammunition accompanying Type 80 guns captured from SSLM/A forces.

Sources: Type 80 GPMG, Small Arms Survey Reaching for the Gun

Designation Notes

Sources use three labels for the same PKM-pattern family. Type 80 is the Chinese designation, M80 appears in conflict-tracing records for Chinese guns, and PKM-T80 is the Iranian copy designation reported in Gaza.

LabelSource contextReader note
Type 80Chinese PKM-pattern gun in specifications and South Sudan tracing evidencePrimary designation used for the Chinese-produced weapon.
M80Conflict Armament Research reporting on Islamic State captures in SyriaDocumented as a Chinese PK/PKM-pattern designation in conflict-tracing records.
PKM-T80AP reporting on Hamas weapons in GazaReported as an Iranian copy name for the Type 80 pattern; the source notes that Chinese and Iranian versions can be difficult to distinguish visually.
Timeline

Type 80/PKM-T80 general-purpose machine gun Key Events

  1. Type 80 enters service

    Military Factory gives 1983 as the Chinese Type 80's introduction year after its 1980 design period.

    Sources: NORINCO Type 80 General Purpose Machine Gun (GPMG)

  2. SSDM/A Type 80 documented in Jonglei

    Small Arms Survey documented a Type 80 machine gun associated with SSDM/A forces at Phom el Zeraf, Jonglei state.

    Sources: Small Arms Survey Reaching for the Gun

  3. SSLM/A Type 80 guns documented in Unity

    Small Arms Survey documented four relatively new Chinese-made Type 80 machine guns with SSLM/A forces after fighting in Riyak Payam, Mayom County, Unity state.

    Sources: Small Arms Survey Reaching for the Gun

  4. M80 guns captured from Islamic State forces

    Conflict Armament Research documented Chinese M80 7.62x54R general-purpose machine guns captured from Islamic State forces by YPG fighters near Avdoke, Syria, in July 2014.

    Sources: Islamic State Weapons in Iraq and Syria

  5. AP reports Type 80 and PKM-T80 weapons with Hamas

    AP identified Type 80 machine guns among Hamas-held weapons and described the Iranian PKM-T80 as a copy designation for the same pattern.

    Sources: Who builds the weapons that Hamas fighters use

Media

Type 80/PKM-T80 general-purpose machine gun Images

Type 80/PKM-T80 general-purpose machine gun, 7.62×54mmR general-purpose machine gun, Infantry Weapons - view 1

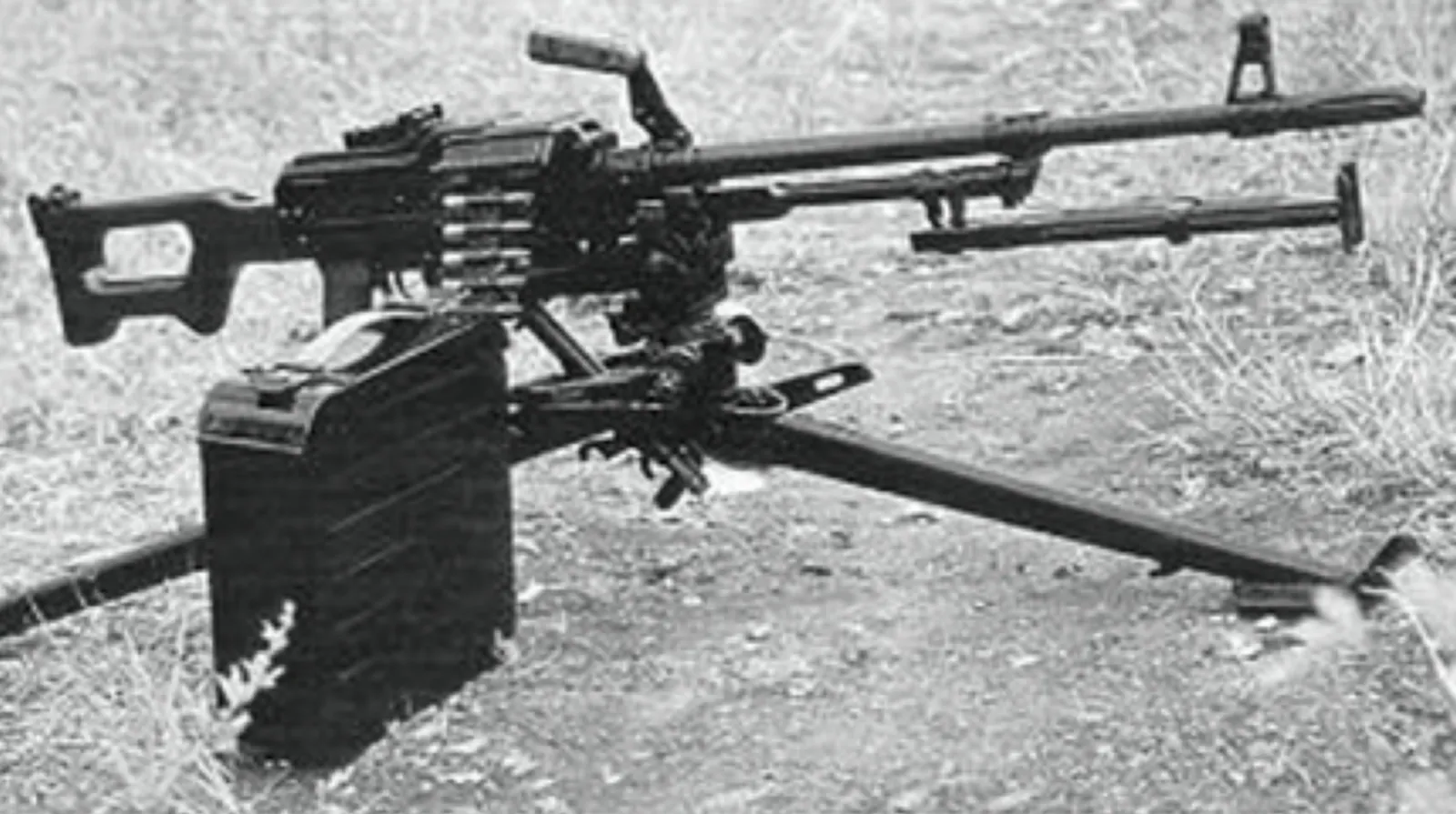

Source: File:Chinese pkms.png
Type 80/PKM-T80 general-purpose machine gun, 7.62×54mmR general-purpose machine gun, Infantry Weapons - view 2
Source: File:BPLA Fighter using Type 80 GPMG.png
Related Weapon Systems
PKM/PK, 7.62 mm general-purpose machine gun, Infantry WeaponsInfantry WeaponsPKM/PK7.62 mm general-purpose machine gunThe PK and lighter PKM are Soviet-designed, belt-fed 7.62x54R general-purpose machine guns used from bipods, tripods, vehicles, remote weapon stations, and improvised mounts. Their low weight for the class, non-disintegrating belt feed, quick-change barrel concept, and wide licensed-production base make the family a recurring infantry fire-support weapon in recent conflicts, with documented rows here covering Ukraine, Yemen, Syria, Iraq, Mali, Lake Chad, Gaza, Afghanistan, and Turkey's conflict with the PKK.
Type 56 assault rifle, 7.62x39mm Kalashnikov-pattern assault rifle, Infantry WeaponsInfantry WeaponsType 56 assault rifle7.62x39mm Kalashnikov-pattern assault rifleThe Type 56 is China's 7.62x39mm Kalashnikov-pattern assault rifle family, adopted in 1956, built in very large numbers, and exported widely through state, surplus, and illicit channels. Its early rifles followed the Soviet AK-47 with milled receivers, later production used AKM-style stamped receivers under the same designation, and many examples are recognizable by a permanently attached folding spike bayonet. In the 2009 Boko Haram Insurgency, Small Arms Survey and Stimson reporting link Chinese Type 56 rifles to weapons seized from Boko Haram members and to materiel captured during the 2016 Bosso camp attack in Niger.
AK-47/AKM rifle family, Selective-fire assault rifle family, Infantry WeaponsInfantry WeaponsAK-47/AKM rifle familySelective-fire assault rifle familyAK-47/AKM-family rifles are Kalashnikov-pattern small arms derived from the Soviet AK-47 and 1959 AKM modernization, usually chambered in 7.62 x 39 mm. In the post-2015 catalog they appear with FARC dissidents in Colombia, gangs in Haiti, PKK fighters, GNA scouts in Libya, insurgents in Mali, Islamic State forces in Iraq and Syria, militants in Sinai, RSF units in Sudan, Hamas fighters in Gaza, Taliban fighters in Afghanistan, Boko Haram-linked militants in the Lake Chad basin, and Houthi-linked supply chains in Yemen.
W85 heavy machine gun, 12.7 mm heavy machine gun, Infantry WeaponsInfantry WeaponsW85 heavy machine gun12.7 mm heavy machine gunThe W85 is a Chinese 12.7x108 mm heavy machine gun associated with Norinco export channels and the QJC-88 vehicle-mounted variant. It is lighter than many older DShK-pattern heavy machine guns and can be used from tripod, pintle, vehicle, or improvised pickup mounts. Conflict reporting documents W85-family guns with ISWAP-linked forces in Nigeria, Ukrainian mobile anti-drone teams, YPG/SDF improvised armor in Syria, Iraqi PMU militias, and Wagner-linked imagery from Mali, while sources caution that export paths and quantities are often unclear.

Sources

NORINCO Type 80 General Purpose Machine Gun (GPMG)Publisher: Military Factory | Note: Supports the Type 80's Chinese Norinco background, PKM-family lineage, 1983 introduction, and general performance details. | Accessed: 2026-06-20Type 80 GPMGPublisher: CAT-UXO | Note: Supports the Type 80's 7.62×54mmR caliber, gas-operated belt-fed design, and general technical background. | Accessed: 2026-06-20Islamic State Weapons in Iraq and SyriaPublisher: Conflict Armament Research | Note: 2014 War Against the Islamic State: Chinese PKM-pattern and PK-pattern M80 general-purpose machine guns were used by Islamic State forces before being captured by YPG fighters near Avdoke, Syria, in July 2014. | Accessed: 2026-06-22Small Arms Survey Reaching for the GunPublisher: Small Arms Survey | Note: 2010 Armed Insurgencies in Greater Upper Nile: documents Type 80 machine guns with SSLM/A and SSDM/A forces in Unity and Jonglei in 2011, including accompanying Chinese 7.62x54R ammunition for the SSLM/A examples. | Accessed: 2026-07-01Small Arms Survey Fighting for SpoilsPublisher: Small Arms Survey | Note: Supports background for the armed insurgencies in Greater Upper Nile after the April 2010 elections, including insurgent commanders, geography, and SPLA/government counterinsurgency context. | Accessed: 2026-07-01Who builds the weapons that Hamas fighters usePublisher: AP News | Note: 2023 Israel-Hamas War: used by Hamas fighters in Gaza, with AP identifying a Chinese Type 80 version and noting Iranian copies renamed PKM-T80. | Accessed: 2026-07-01Hamas's cobbled together weapons arsenal still proving deadly to IDF troops in GazaPublisher: The Times of Israel | Note: 2023 Israel-Hamas War: used by Hamas fighters in Gaza, with the article identifying a Chinese Type 80 version and the Iranian PKM-T80 rename. | Accessed: 2026-06-20File:Bangladesh Army Type 80 machine gun on display.jpgPublisher: Wikimedia Commons | Note: Supports image provenance and licensing for the primary Type 80 photo, which is licensed under CC BY-SA 2.0. | Accessed: 2026-06-20File:Chinese pkms.pngPublisher: Wikimedia Commons | Note: Supports image provenance and licensing for the Type 80 schematic, which is a U.S. government work in the public domain. | Accessed: 2026-06-20File:BPLA Fighter using Type 80 GPMG.pngPublisher: Wikimedia Commons | Note: Supports image provenance and licensing for a public-domain Type 80 clone photo used as a contextual gallery image. | Accessed: 2026-06-20
