S-8 rockets are documented on both sides of the war: ARES described Ukrainian B-8 pod adaptation on a Strela-10 chassis and likely S-8KOM use in a June 2014 Ukrainian air strike, while OSCE-circulated Ukrainian statements and later reporting documented S-8 rockets found near Pavlopil after Russian or Russia-backed fire; 2022 reporting also documented Russian Ka-52 and Mi-28 helicopters firing likely 80 mm S-8 rockets over Ukraine.
Role detailsMunitions
S-8 rocket family
Also known as
- S-8
- S8
- S-8KO
- S-8KOM
- S-8BM
- S-8DM
- S-8OM
- S-8OFP
- S-8OFP Broneboyshchik
- Broneboyshchik
- 80 mm unguided rocket
- B-8M1
- B-8V20A
The S-8 is a Soviet-origin 80 mm unguided air-to-surface rocket family fired from B-series pods on attack helicopters and ground-attack aircraft. The family uses warhead-specific designations for HEAT-fragmentation, concrete-piercing, thermobaric, illumination, smoke or marking, and later high-power or guided derivatives, with documented conflict use from Syria and Georgia to Darfur and Ukraine.
Role in Conflicts
Syrian Arab Air Force aircraft are documented using B-8 pods for 80 mm S-8 rockets during air-to-ground attacks, including MiG-23ML imagery from Jabal Azzawiyah, Idlib, and broader B-8 pod use by Mi-25, MiG-29, and Su-22 aircraft.
Role details- Side
- Russia and South Ossetian forces
Human Rights Watch documented Russian aircraft firing S-8 rockets at Tortiza and Akhaldaba on August 12, 2008, with civilian casualties and extensive unexploded-rocket clearance reported around Tortiza.
- Side
- Sudanese government and allied militias
The UN Panel of Experts found that S-8 Type 80 mm air-to-ground rockets were used in the Orschi attack in Darfur and assessed Sudanese Air Force Su-25 aircraft as the likely delivery mechanism.
Profile / Specs
Profile
- Origin
- Soviet Union
- Built by
- Soviet defense industryNPO Splav
- Built in
- Soviet UnionRussiaSerbia
- Type
- 80 mm unguided air-to-surface rocket family
- Service note
- Early 1970s-present
- Designer
- OKB-16 / Soviet defense industry; later S-8OFP development by NPO Splav
- Designed
- Late 1960s-1971
- Produced
- Early 1970s-present
Specifications

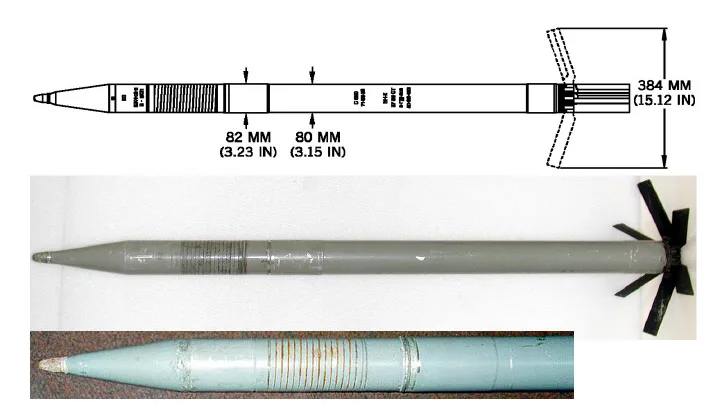

- Caliber
- 80 mm
- Guidance
- Unguided free-flight rocket in baseline S-8 service; S-8L is a later laser-guided derivative rather than the family standard
- Warhead types
- HEAT-fragmentation, concrete-piercing, thermobaric/fuel-air explosive, illumination, chaff, smoke/marking, flechette, and later high-explosive penetrating or guided derivatives
- Range
- Common variants are documented from about 1.2 to 4.5 km; later S-8OFP/S-8L reporting gives up to about 6 km
- Launch pods
- B-series aircraft pods, including 7-round and 20-round configurations; B8V20 carries 20 rockets
- Launch platforms
- Attack helicopters and ground-attack aircraft, including Su-25, Mi-8/Mi-17, Mi-24/Mi-35, Mi-28, Ka-52, and other Soviet/Russian-origin aircraft families
- S-8KOM
- About 11.2-11.3 kg loaded mass, 3.6 kg warhead, 1.3-4.0 km launch range, and up to 400 mm armor penetration in Rosoboronexport and UK GENFORCE data
- S-8BM
- 15.2 kg rocket with 7.4 kg warhead and 1.2-2.2 km launch range; UK GENFORCE lists concrete penetration up to 800 mm of steel-reinforced concrete
- S-8DM
- 11.6 kg thermobaric/fuel-air explosive rocket with 3.6 kg warhead and 1.3-3.0 km launch range in the UK GENFORCE table
- S-8OM
- 12.1 kg illumination rocket with 4.3 kg warhead, 4.0-4.5 km launch range, and 2 megacandela light output in the UK GENFORCE table
Payload And Pod Logic
The S-8 family is best read by payload and launcher interface. The rocket diameter and B-series pod context stay broadly common, while variant suffixes distinguish anti-armor, penetrating, thermobaric, illumination, countermeasure, marking, high-power, and later guided roles.
Unguided baseline
Standard S-8 rockets are unguided free-flight weapons aimed by the launch aircraft rather than by onboard guidance.

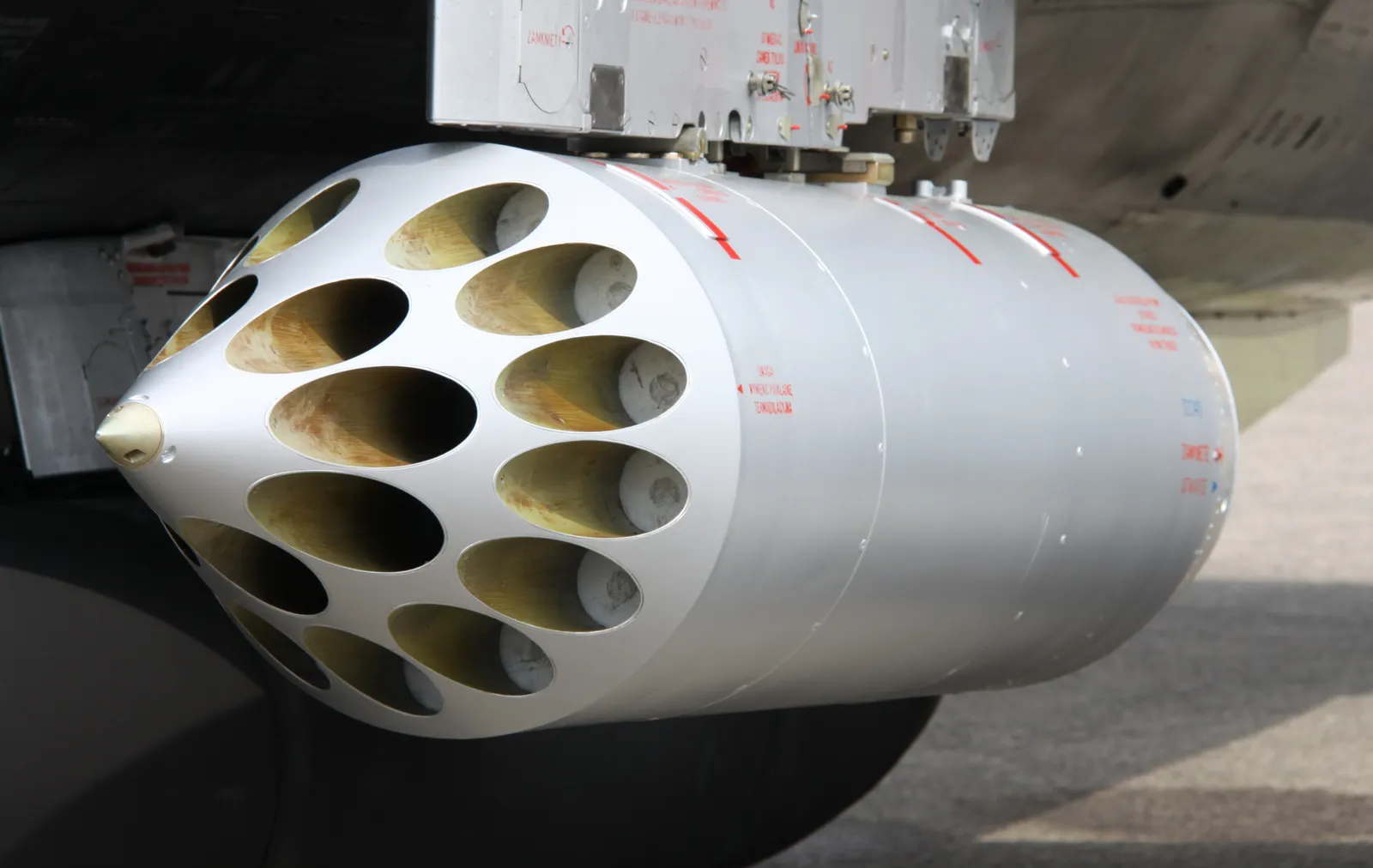

Pod carriage
B-series pods are documented with 7 or 20 rockets; Yugoimport's B8V20 helicopter launcher carries 20 80 mm rockets.
Later offshoots
S-8OFP and S-8L are later family developments, so their extra range, penetrating warhead, or guidance claims should not be projected backward onto every S-8 variant.
Variants
S-8 suffixes mainly distinguish payload and fuze roles rather than a single airframe platform: anti-armor, penetrating, thermobaric, illumination, countermeasure, marking, and later high-power or guided derivatives all share the 80 mm rocket-family context.
| Variant | Configuration | Designation notes |
|---|---|---|
| S-8KO | HEAT-fragmentation rocket | Weaponsystems.net identifies S-8KO as a common HEAT-fragmentation version for infantry, vehicles, and normal buildings. Sources: Weaponsystems.net S-8 overview |
| S-8KOM | Improved HEAT-fragmentation rocket | Rosoboronexport and EDePro describe S-8KOM as an 80 mm shaped-charge/fragmentation rocket for armored, lightly armored, unarmored materiel, and personnel targets, carried in aircraft and helicopter pods. Sources: Rosoboronexport S-8KOM product page, EDePro S8-KOM datasheet |
| S-8BM | Concrete-piercing rocket | The UK GENFORCE table lists S-8BM as an 80 mm rocket with a 15.2 kg rocket weight, 7.4 kg warhead, 1.2-2.2 km launch range, and concrete penetration up to 800 mm of steel-reinforced concrete. |
| S-8DM | Thermobaric/fuel-air explosive rocket | The UK GENFORCE table lists S-8DM as an 80 mm rocket with an 11.6 kg rocket weight, 3.6 kg warhead, 1.3-3.0 km launch range, and about 6 kg TNT equivalent effect. |
| S-8OM | Illumination rocket | The UK GENFORCE table lists S-8OM as an 80 mm illumination rocket with a 12.1 kg rocket weight, 4.3 kg warhead, 4.0-4.5 km launch range, and 2 megacandela light output. |
| S-8OFP Broneboyshchik | High-explosive penetrating derivative | Rostec identifies S-8OFP as an NPO Splav 80 mm unguided rocket developed from the S-8 for tactical and army aircraft, with compatible carrier aircraft including Su-25, Mi-8, Mi-28, Ka-50, and Ka-52 families. |
| S-8L | Laser-guided derivative | Later reporting described S-8L as an 80 mm laser-guided derivative for aircraft, helicopters, and UAV carriers; this page treats it as a guided offshoot rather than the baseline unguided S-8 standard. |
Carrier Aircraft
S-8 rockets are pod-launched aircraft rockets, with sources documenting both fixed-wing and rotary-wing carriage across Soviet/Russian and export aircraft families.
| Carrier | Carrier type | Carriage evidence |
|---|---|---|
 | Ground-attack aircraft | Weaponsystems.net identifies the Su-25 as the main fixed-wing aircraft for S-8 use, and Rostec lists the Su-25 among S-8OFP airborne platforms. Sources: Weaponsystems.net S-8 overview, Rostec IDEX 2013 S-8OFP press release |
 | Utility and armed transport helicopter family | Yugoimport lists Mi-8/Mi-17 helicopters and modifications as carriers for B8V20 launchers firing 80 mm unguided airborne rockets. Sources: Yugoimport B8V20 rocket launcher |
 | Attack helicopter and armed assault transport | Yugoimport lists Mi-24/Mi-35 helicopters and modifications as carriers for B8V20 launchers firing 80 mm unguided airborne rockets. Sources: Yugoimport B8V20 rocket launcher |
 | Attack helicopter | Yugoimport lists Mi-28H helicopters and modifications as B8V20 launcher carriers, and TWZ described Russian Mi-28N helicopters in Ukraine firing likely 80 mm S-8 rockets. Sources: Yugoimport B8V20 rocket launcher, TWZ Russian Helicopters Lobbing Rockets Over Ukraine |
 | Attack and reconnaissance helicopter | Yugoimport lists Ka-52 helicopters and modifications as B8V20 launcher carriers, and TWZ described Russian Ka-52 helicopters in Ukraine firing likely 80 mm S-8 rockets. Sources: Yugoimport B8V20 rocket launcher, TWZ Russian Helicopters Lobbing Rockets Over Ukraine |
Timeline
S-8 rocket family Key Events
S-8 design and trials phase
Weaponsystems.net places the design project in the late 1960s and Soviet state trials in 1971.
Sources: Weaponsystems.net S-8 overview
Production and service era begins
Weaponsystems.net lists early-1970s service entry and early-1970s-to-present production for the Soviet/Russian 80 mm rocket family.
Sources: Weaponsystems.net S-8 overview
S-8OFP shown by NPO Splav at IDEX
Rostec reported that NPO Splav, a Techmash division, presented the 80 mm S-8OFP unguided rocket as an advanced development of the S-8 family.
Sources: Rostec IDEX 2013 S-8OFP press release
Syrian B-8 pod use expands
Bellingcat reported Syrian Arab Air Force Mi-25, MiG-29, and Su-22 use of B-8 pods for 80 mm S-8 rockets from October 2013, with earlier S-8 impacts reported at Arsal in June 2013.
Sources: Bellingcat Syrian Arab Air Force S-8
S-8 rocket found near Pavlopil
A Ukrainian statement circulated through the OSCE recorded the discovery of an S-8 unguided rocket near Pavlopil, likely launched from a makeshift ground launcher.
Sources: OSCE Ukraine FSC Statement Pavlopil S-8
Two S-8 rockets destroyed near Pavlopil
Interfax-Ukraine reported that Ukrainian forces found and destroyed two S-8 unguided aircraft rockets near residential buildings and Ukrainian military positions by Pavlopil.
Sources: Interfax-Ukraine Pavlopil S-8 report
S-8L guided derivative reported
Financial Express reported that Kalashnikov displayed the S-8L, an 80 mm guided derivative intended for aircraft, helicopters, and UAVs that can carry S-8 rockets.
Sources: Financial Express Kalashnikov Army-2021 report
Russian helicopter rocket-lobbing reported in Ukraine
TWZ reported Russian Ka-52 and Mi-28N helicopters firing likely unguided 80 mm S-8 rockets over Ukraine in a lofted firing profile shaped by Ukrainian air-defense threats.
Sources: TWZ Russian Helicopters Lobbing Rockets Over Ukraine
Media
S-8 rocket family Images
