GMLRS guided rocket

Also known as
  • Guided Multiple Launch Rocket System
  • GMLRS
  • M30 GMLRS
  • M30A1 GMLRS Alternative Warhead
  • M30A2 GMLRS Alternative Warhead
  • M31 GMLRS Unitary
  • M31A1 GMLRS Unitary
  • M31A2 GMLRS Unitary

GMLRS is the GPS-aided, inertial-guided 227 mm rocket family fired from HIMARS and M270 launchers. It gives MLRS-family launchers a six-rocket pod of precision 227 mm munitions, with documented U.S. combat use from Iraq through Afghanistan and Operation Inherent Resolve and Western-supplied GMLRS pods central to Ukrainian long-range precision fires in the 2014 Russia-Ukraine War.

GMLRS guided rocket, 227 mm guided artillery rocket, Munitions

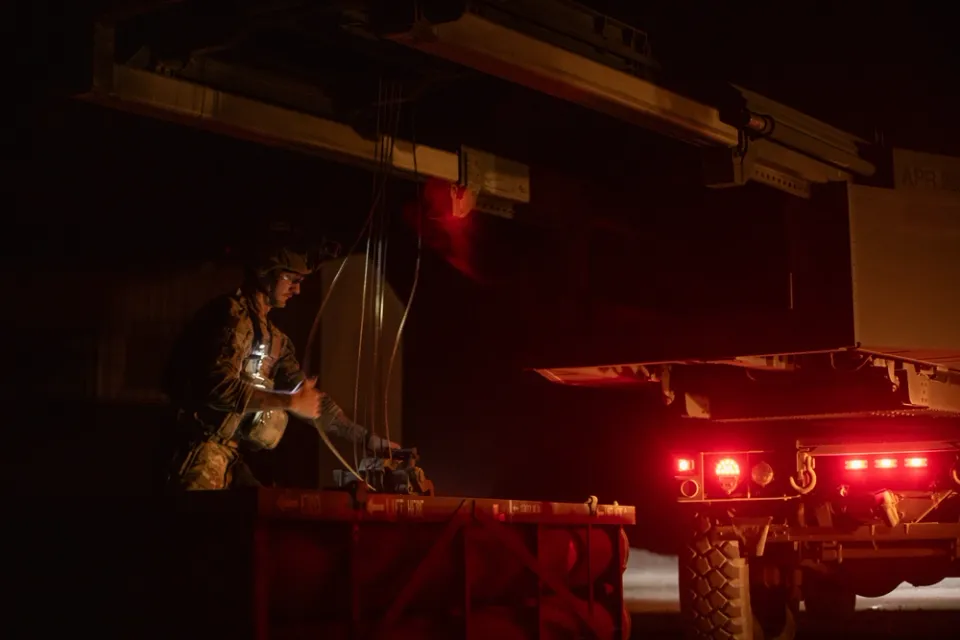

Image source: Rocket Launched During Training Exercise

Role in Conflicts

Profile / Specs

Profile

Origin
United States
Type
227 mm guided artillery rocket
Service note
2005-present service family; documented with U.S. and Ukrainian HIMARS/M270-family operations
Designer
Lockheed Martin
Designed
1990s-2000s development family
Unit cost
Varies by lot and variant
Produced
2000s-present
Number built
At least 75,000 delivered by Lockheed Martin, with continued standard and extended-range GMLRS production

Specifications

Caliber
227 mm guided rocket family
Guidance
GPS/PPS-aided inertial guidance
Launch platforms
M142 HIMARS and M270-family launchers, including M270A1/M270A2 where supported
Standard range
70+ km for standard GMLRS variants
Minimum range
15 km for M30A2 and M31A2 export-notified variants
Extended range
ER GMLRS reaches about 150 km; 2026 Army test engaged area targets beyond 100 km
Unitary warhead
Single 200-pound high-explosive warhead in GMLRS Unitary
Warhead options
Unitary high-explosive and alternative-warhead fragmentation variants
Pod load
Six GMLRS rockets per launch pod; HIMARS carries one pod and M270 carries two
Designation Guide

GMLRS is better understood as a guided rocket family than as one fixed round. The main public designations separate warhead type and range class.

DesignationWarhead or range classCatalog note
M30A1/A2Alternative warheadArea-effects GMLRS rocket documented in DOT&E testing and fired from MLRS-family launchers; M30A2 adds an insensitive-munition propulsion system.
M31A1/A2Unitary warheadSingle-warhead GMLRS family member; the acquisition report identifies a 200-pound high-explosive warhead and Federal Register material identifies M31A2 as the IMPS successor.
ER GMLRSExtended-range rocketArmy qualification work places the extended-range family in the roughly 150 km class while retaining HIMARS and M270A2 compatibility.
Variants

GMLRS designations split mainly by warhead and range: M30-series rockets cover alternative-warhead forms, M31-series rockets cover unitary-warhead forms, and ER GMLRS extends the range class.

VariantConfigurationDesignation notes
M30A1/A2 GMLRS Alternative WarheadArea-effects alternative-warhead rocket

DOT&E identifies GMLRS-AW as a GPS-aided inertial-guided rocket for area effects from MLRS-family launchers; export-notification material describes M30A2 as the IMPS successor to M30A1.

Sources: DOT&E FY2014 GMLRS-AW Report, Federal Register Finland GMLRS Notification

M31A1/A2 GMLRS UnitaryUnitary high-explosive rocket

The Selected Acquisition Report describes GMLRS Unitary as a 70+ km round with a single 200-pound high-explosive warhead for point targets; export-notification material identifies M31A2 as the IMPS successor and a primary munition for HIMARS and M270A1/M270A2 launchers.

Sources: GMLRS SAR December 2019, Federal Register Finland GMLRS Notification

Extended-Range GMLRSLonger-range GMLRS development

The U.S. Army reports ER GMLRS qualification work for the roughly 150 km range class while retaining HIMARS and M270A2 compatibility.

Sources: Army ER GMLRS Qualification

Launch Platforms

GMLRS is the primary 227 mm rocket family for the MLRS launcher family and is documented with both HIMARS and M270-series launchers.

Firing weaponWeapon typeFiring evidence

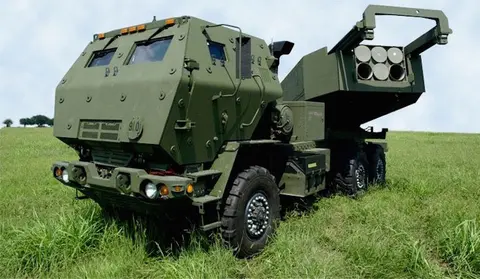

M142 HIMARS, Wheeled multiple rocket launcher and tactical missile launcher, ArtilleryM142 HIMARSWheeled launcher

HIMARS carries one six-rocket GMLRS or ER GMLRS pod; the Army's 2026 ER GMLRS Alternative Warhead test was fired from a HIMARS launcher.

Sources: Lockheed Martin GMLRS Product Page, Army ER GMLRS Qualification

M270 MLRS, Tracked multiple launch rocket system, ArtilleryM270 MLRSTracked launcher

The M270 family carries two six-rocket pods; Army and export-notification material specifically support M270A1/M270A2 compatibility for GMLRS-family rounds.

Sources: Lockheed Martin GMLRS Product Page, Federal Register Finland GMLRS Notification

Timeline

GMLRS guided rocket Key Events

  1. First GMLRS Unitary combat firing

    The 2019 Selected Acquisition Report records a September 2005 Iraq mission in which eight GMLRS Unitary rockets were fired from more than 50 km against enemy positions.

    Sources: GMLRS SAR December 2019

  2. Afghanistan firing record described

    DVIDS reported that Battery B, 1st Battalion, 181st Field Artillery Regiment fired more than 400 GMLRS rockets during an Afghanistan rotation.

    Sources: DVIDS GMLRS in Afghanistan

  3. 50,000th GMLRS production milestone

    The U.S. Army and Lockheed Martin marked the 50,000th GMLRS rocket, highlighting continued production across the guided rocket family.

    Sources: Army 50,000th GMLRS Rocket

  4. HIMARS and GMLRS sent to Ukraine

    The United States announced HIMARS for Ukraine and described the launcher package as carrying six GPS-guided GMLRS rockets.

    Sources: DOD HIMARS and GMLRS to Ukraine

  5. 75,000th GMLRS delivery reported

    Lockheed Martin reported delivery of the 75,000th GMLRS rocket to the U.S. Army while production continued to ramp for growing demand.

    Sources: Lockheed Martin Delivers 75K GMLRS Rockets

  6. ER GMLRS alternative-warhead qualification

    The U.S. Army said an ER GMLRS Alternative Warhead test at White Sands engaged area targets beyond 100 km and supported qualification work for the 150 km class rocket.

    Sources: Army ER GMLRS Qualification
