Naval Systems

MG-757 Anapa-M anti-saboteur sonar

Also known as
  • MG-757 Anapa-M
  • MG-757.1 Anapa-M
  • Anapa-ME anti-saboteur sonar
  • Anapa-ME
  • Anapa-M
  • Anapa anti-saboteur sonar
  • MG-757 Anapa-ME

MG-757 Anapa-M, also described as Anapa-ME, is a Russian shipborne anti-saboteur sonar built by Taganrog Plant Priboy for harbor-defense and close ship-protection work. It is described as detecting and tracking combat swimmers or diver-propulsion targets, passing target coordinates to anti-saboteur grenade-launcher control systems, and appearing in the sensor fits of several Russian patrol, corvette, frigate, and mine-countermeasures classes.

MG-757 Anapa-M anti-saboteur sonar, Anti-saboteur sonar, Naval Systems
Image source: Anapa-ME - Weapons.rf
Profile / Specs

Specifications

Detection range
200-300 m for a swimmer; 300-400 m for an underwater delivery vehicle
Minimum detection range
25 m
Scan sector
360°
Simultaneous tracked targets
At least 4
Crew
1 operator
Ready time
3 minutes
Power
1,000 W
Continuous operation
120 hours
Operating depth
Up to 60 m
Range resolution
5 m or better
Bearing resolution
4° or better
Shipboard Installations

Open ship-reference sources list Anapa-M or Anapa-ME among the electronics fits of several Russian surface-ship classes.

CarrierCarrier typeCarriage evidence
Grachonok-class anti-sabotage patrol boat (Project 21980), Anti-sabotage patrol boat, Naval SystemsGrachonok-class anti-sabotage patrol boat (Project 21980)Anti-sabotage patrol boat

KCHF.RU describes the Project 21980 / Grachonok electronics fit as including MG-757 Anapa-M anti-saboteur sonar and separately calls it the boat's towed sonar array.

Sources: Anti-Saboteur Boat P-350 - Project 21980 / Grachonok Class

Project 21631 Buyan-M-class guided-missile corvette, Guided-missile corvette, Naval SystemsProject 21631 Buyan-M-class guided-missile corvetteGuided-missile corvette

RussianShips.info lists MG-757 Anapa-M anti-saboteur sonar in the Project 21631 electronics fit alongside radar, navigation, and decoy equipment.

Sources: Project 21631 - RussianShips.info

Alexandrit class / Project 12700, Coastal mine countermeasures vessel, Naval SystemsAlexandrit class / Project 12700Coastal mine countermeasures vessel

RussianShips.info lists the Anapa anti-saboteur sonar among the Alexandrit-class electronics fit.

Sources: Project 12700 - RussianShips.info

Project 20380 / Steregushchiy-class corvette, Missile corvette, Naval SystemsProject 20380 / Steregushchiy-class corvetteMissile corvette

RussianShips.info lists MG-757 Anapa-M anti-saboteur sonar in the Project 20380-family electronics fit with the ship's sonar, navigation, optical, and combat-information systems.

Sources: Project 20380 - RussianShips.info

Project 11356R / Admiral Grigorovich-class frigate, Guided-missile frigate, Naval SystemsProject 11356R / Admiral Grigorovich-class frigateGuided-missile frigate

RussianShips.info lists MG-757.1 Anapa-M anti-saboteur sonar for the Russian Project 11356R hull-number range.

Sources: Project 11356 - RussianShips.info

Project 11661 Gepard-class frigate, Frigate class, Naval SystemsProject 11661 Gepard-class frigateFrigate class

RussianShips.info notes MG-757 Anapa-M sonar added to Tatarstan, the lead Russian Project 11661 / Gepard-class frigate.

Sources: Project 11661 - RussianShips.info

Detection And Control Tasks

The Anapa-ME product description frames the sonar as a close-protection sensor rather than a stand-alone weapon: it searches underwater approaches, classifies detected targets, tracks them automatically, measures target coordinates, and can feed those coordinates into anti-saboteur grenade-launcher control systems.

TaskCatalog contextSupported detail
DetectionClose harbor and ship protectionDesigned to find underwater swimmers moving with fins or diver-propulsion equipment.
TrackingOperator workloadThe listed fit supports automated target tracking and at least four simultaneous tracked targets.
Weapon cueingCounter-saboteur responseThe system can provide current target coordinates to an anti-saboteur grenade-launcher control system.

Source: Anapa-ME - Weapons.rf.

Media

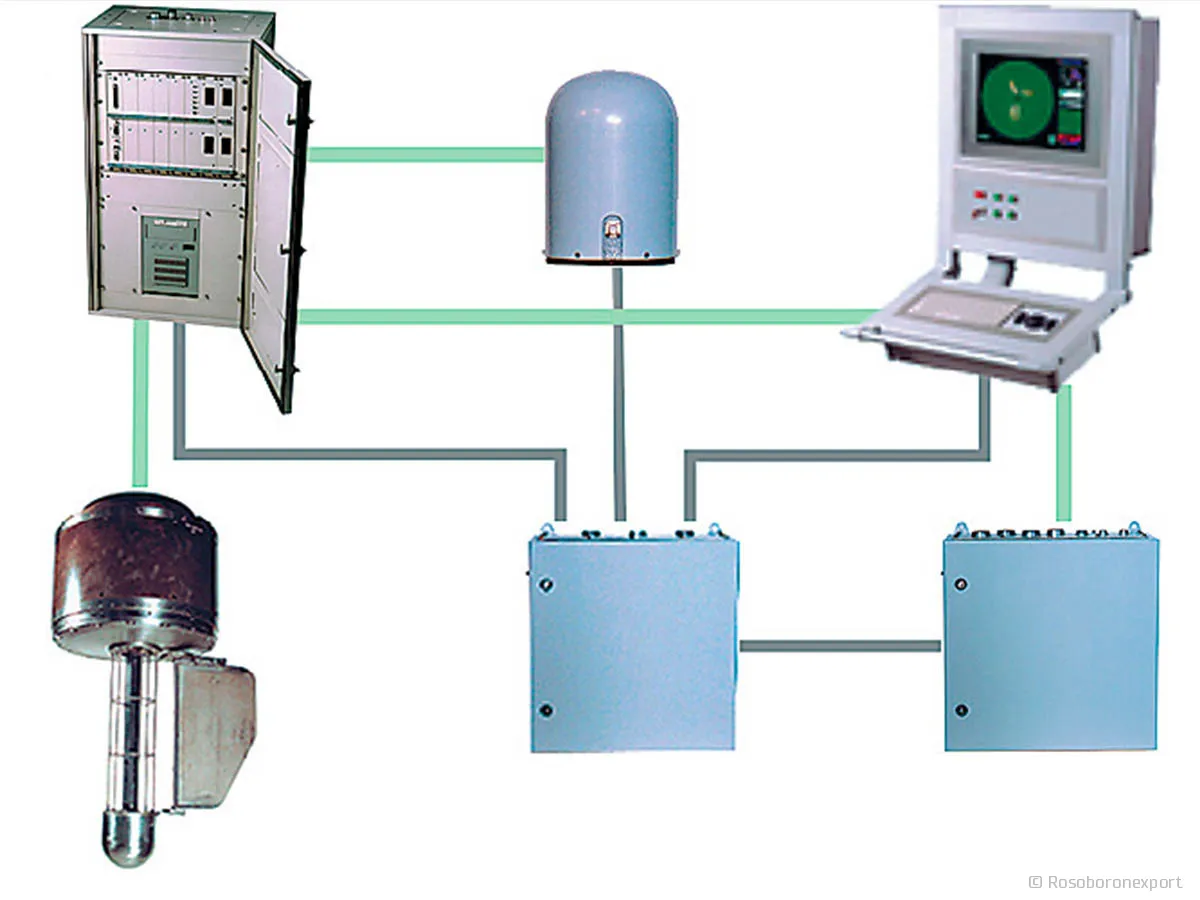

MG-757 Anapa-M anti-saboteur sonar Images

MG-757 Anapa-M anti-saboteur sonar, Anti-saboteur sonar, Naval Systems - view 1
Source: Anapa-ME - Weapons.rf
