PTM-4M

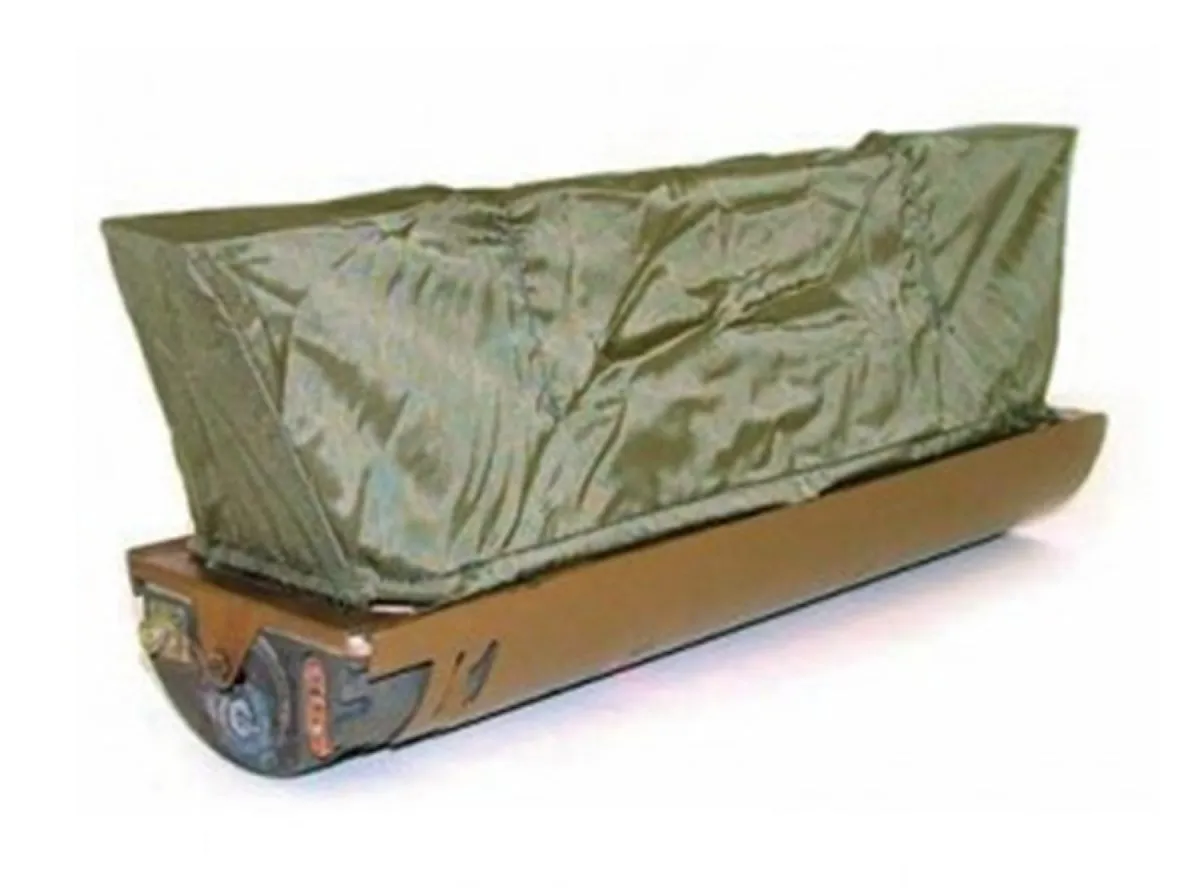

The PTM-4M is a Russian scatterable anti-vehicle mine from the PTM-4 family, using a shaped-charge warhead and magnetic-influence fuzing for remote minefield emplacement. Human Rights Watch documented a PTM-4M-marked delivery canister in Kharkiv Oblast in May 2022, and mine-monitoring sources list the type among Russian antivehicle mines used during the Russia-Ukraine War.

Russia-Ukraine WarRussia

Conflict side: Russia
Built by: AO NIII (Scientific Research Engineering Institute)
Built in: Russia

PTM-4M, Scatterable magnetic-influence anti-vehicle mine, Infantry Weapons

Profile

Type: Scatterable magnetic-influence anti-vehicle mine
Conflict side: Russia
Origin: Russia
Service note: Modern Russian remote-mining munition documented in Ukraine from 2022

anti-tank minescatterableremote mining

Service History

In service: Russian remote-mining service; documented in Ukraine in 2022
Used by: Russian Armed Forces
Wars: Russia-Ukraine War

Production History

Designer: AO NIII (Scientific Research Engineering Institute)
Designed: PTM-4 family disclosed publicly by Russian industry in 2019; PTM-4M canister markings documented from 2021 production
Built by: AO NIII (Scientific Research Engineering Institute)
Built in: Russia
Produced: By 2021 for documented PTM-4M-marked delivery canisters
Variants: PTM-4, PTM-4M, PTM-4R

Specifications

Mine type: Scatterable underbelly shaped-charge anti-vehicle mine
Fuze: Non-contact magnetic-influence fuze with self-destruct and self-deactivation features
Warhead: Shaped-charge / high-explosive charge; PTM-4 family references list 1.4 kg TG-40 explosive
Weight: PTM-4 family references list 3.25 kg per mine
Dimensions: PTM-4 family references list 350 x 110 x 55 mm
Delivery: Remote deployment by mine-dispensing canister, vehicle or helicopter-mounted systems, and rocket-mounted dispensers
Self-destruct: PTM-4 family references list selectable 8, 12, 24, or 48 hour self-destruct settings

Conflict Usage

Russia-Ukraine War: Side: Russia

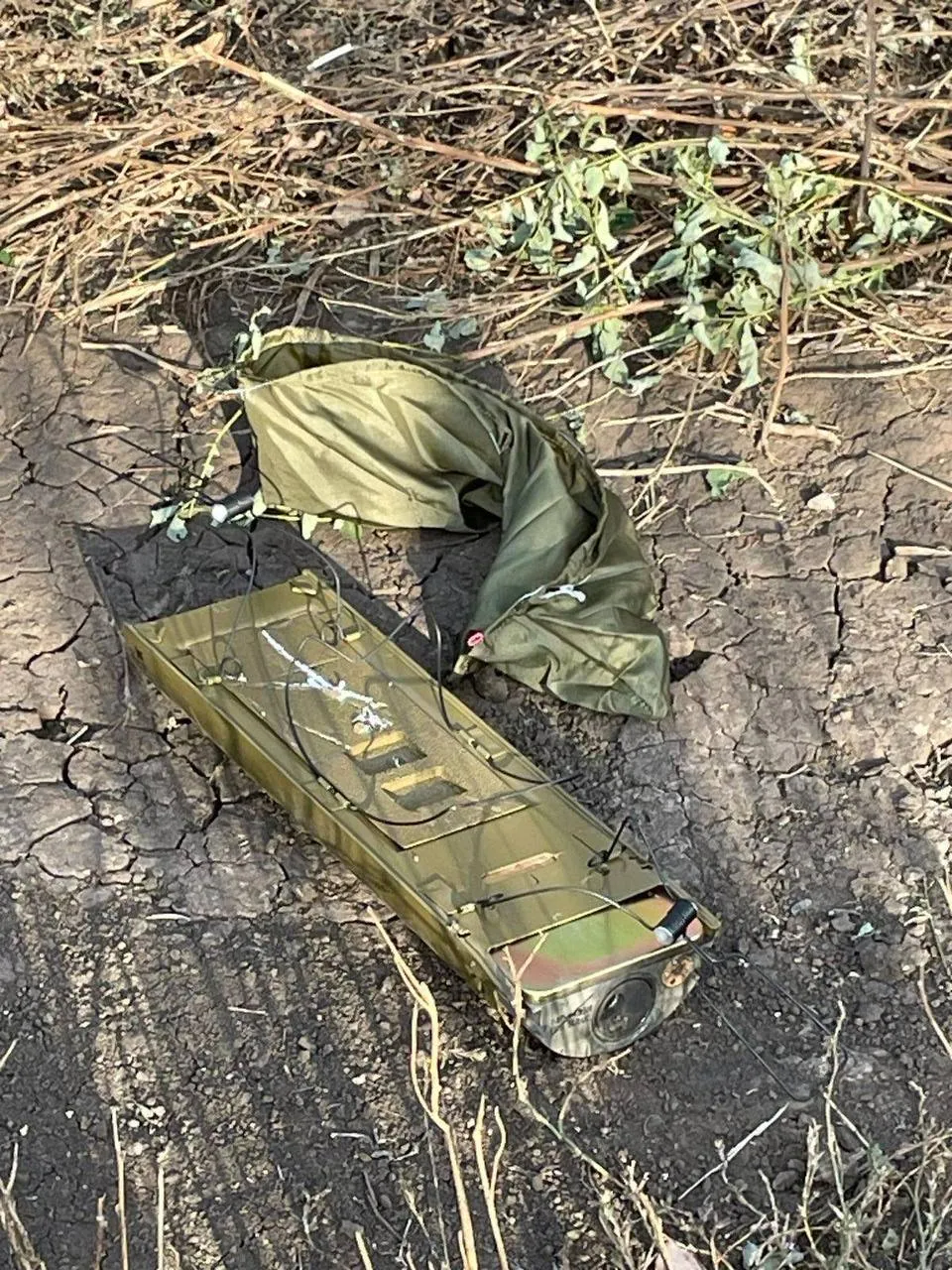

Documented in Ukraine after Kharkiv-region police photographed a PTM-4M-marked delivery canister at Elitne on May 30, 2022; mine-monitoring sources list it among Russian-origin antivehicle mines used after the full-scale invasion.
