Naval Systems

Grachonok-class anti-sabotage patrol boat (Project 21980)

Also known as
  • Grachonok-class patrol boat
  • Grachonok-class anti-saboteur ship
  • Project 21980
  • Project 21980 Grachonok

The Grachonok-class anti-sabotage patrol boat, Russian Project 21980, is a small Russian naval security craft designed by KB Vympel and built at several Russian shipyards to protect basing areas, ports, and critical maritime infrastructure. The class combines sonar and electro-optical surveillance with grenade launchers, a 14.5 mm heavy machine gun, and Igla MANPADS, making it a compact diver-hunting and harbor-defense platform.

Grachonok-class anti-sabotage patrol boat (Project 21980), Anti-sabotage patrol boat, Naval Systems

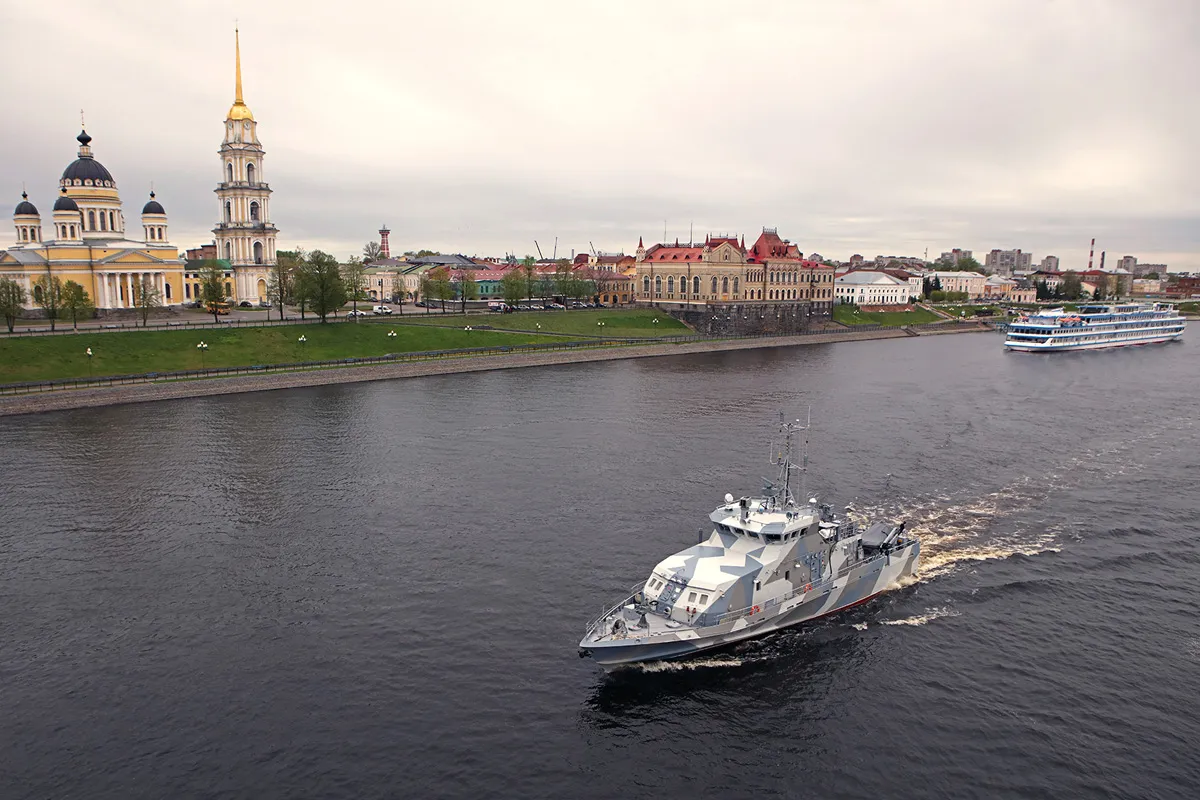

Image source: Катер проекта 21980 «Грачонок» в Рыбинске.jpg

Role in Conflicts

2014 Russia-Ukraine War
Force Protection
Side
Russia

Russian forces fielded Project 21980 Grachonok anti-sabotage boats for maritime force protection around the Kerch Bridge and naval basing areas; Ukrainian sources reported strikes on a Grachonok near the Kerch Strait on 29-30 April 2026 and near Kaspiysk on 17-18 May 2026.

Role details
Profile / Specs

Profile

Origin
Russia
Type
Anti-sabotage patrol boat
Service note
2009-present
Designer
KB Vympel
Designed
2000s
Produced
2008-present
Number built
28 completed, with four additional units listed as building or planned by RussianShips.info in 2026

Specifications

Displacement
138.69 tonnes
Length
31.04 m
Beam
7.4 m
Draft
1.86 m
Crew
8
Speed
23 knots
Endurance
5 days
Range
200 nautical miles at 16 knots
Propulsion
2 diesel engines in a twin-shaft arrangement
Sensors
MR-231 Pal/PAL navigation radar, MTK-201M3 electro-optical television system, Kalmar sonar complex, and MG-757 Anapa-M anti-saboteur sonar
Armament
9K38 Igla MANPADS with 9M39 missiles, 14.5 mm MTPU-1 Zhalo heavy machine gun, DP-65A grenade launcher, DP-64 grenade launcher, diving chamber, and Falcon or Marlin-350 underwater remotely operated vehicle
Variants

Public references use Project 21980 for the in-service Russian boats and Project 21980E for an export-oriented modification.

VariantConfigurationDesignation notes
Project 21980EExport-oriented special-purpose boat

RussianShips.info lists Project 21980E as an unrealized export variant rather than a separate in-service class.

Sources: Anti-saboteur boats - Project 21980

Carried Sensors And Weapons

Open naval references list Project 21980 boats with close-protection sensors and short-range defensive weapons for harbor and base security.

Carried itemItem typeCarriage evidence
MG-757 Anapa-M anti-saboteur sonar, Anti-saboteur sonar, Naval SystemsMG-757 Anapa-M anti-saboteur sonarAnti-saboteur sonar

KCHF.RU and RussianShips.info list MG-757 Anapa-M anti-saboteur sonar in the Project 21980 electronics fit.

Sources: Anti-Saboteur Boat P-350 - Project 21980 / Grachonok Class, Anti-saboteur boats - Project 21980

Igla, Man-portable infrared-homing surface-to-air missile system, Air DefenseIglaMan-portable air-defense missile

KCHF.RU and RussianShips.info list 9K38 Igla launchers with 9M39 missiles among the Project 21980 armament fit.

Sources: Anti-Saboteur Boat P-350 - Project 21980 / Grachonok Class, Anti-saboteur boats - Project 21980

Timeline

Grachonok-class anti-sabotage patrol boat (Project 21980) Key Events

  1. Series production begins

    Zelenodolsk Shipyard described Project 21980 anti-sabotage boats as being built for the Russian Navy from 2008 onward.

    Sources: Zelenodolsk Shipyard Project 21980 launch announcement

  2. Class enters service

    The class overview on Wikipedia lists the Grachonok class as in commission from 2009.

    Sources: Grachonok-class patrol boat

  3. Ninth boat launched

    Vympel reported the launch of a ninth Grachonok-class boat and said it was the fifth such boat the yard had built for the Ministry of Defense.

    Sources: Ninth Grachonok launched at Vympel

Media

Grachonok-class anti-sabotage patrol boat (Project 21980) Videos

Grachonok-class anti-sabotage patrol boat (Project 21980) Images

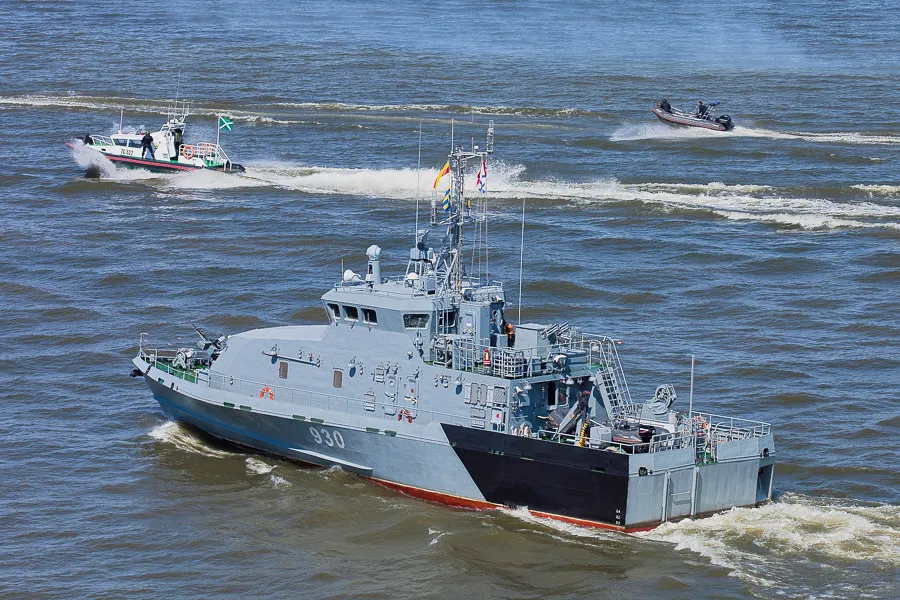

Grachonok-class anti-sabotage patrol boat (Project 21980), Anti-sabotage patrol boat, Naval Systems - view 1
Source: «П-351».jpg

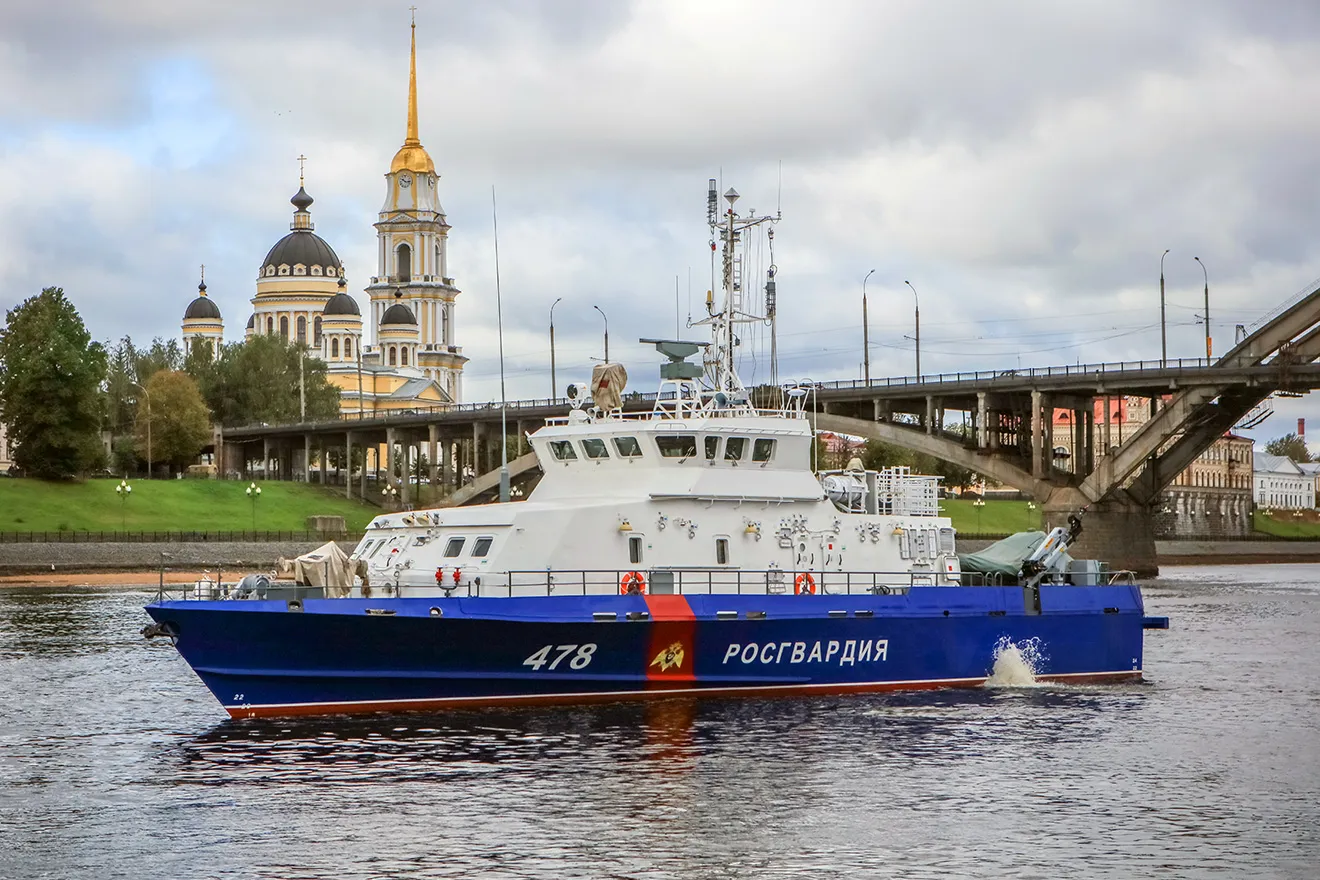

Grachonok-class anti-sabotage patrol boat (Project 21980), Anti-sabotage patrol boat, Naval Systems - view 2
Source: Катер проекта 21980 «Грачонок» в Рыбинске.jpg
