DVIDS and Army reporting documented U.S. soldiers using M203 grenade launchers in Iraq for suppressive and protective fire during convoy, patrol, and urban engagements, with additional 2009-2011 imagery and reporting showing continued range and non-lethal-round training in theater.
Role detailsInfantry Weapons
M203 40 mm grenade launcher
Also known as
- M203
- M203 grenade launcher
- Launcher, Grenade, 40mm, M203
- Colt M203
The M203 is a U.S.-origin 40 mm under-barrel grenade launcher developed as an M16-family accessory and later adapted to M4 carbines and rail-mounted configurations. Documented conflict evidence spans U.S. and NATO use in Iraq and Afghanistan, Philippine government use at Marawi, U.S. 40 mm support for Ukraine, IDF firing in Gaza, and a Colombian Army seizure from a FARC dissident structure in Caqueta.
Role in Conflicts
DVIDS documented U.S. Marines firing and loading M203 grenade launchers during June-July 2013 operations in Helmand province, including a cordon-and-search operation in Habib Abad and Operation Grizzly after enemy fire.
Role details- Side
- Philippine government forces
- Role in conflict
- Squad-level grenade support in urban fighting
Philippine government forces fielded M203 grenade launchers as squad-level grenade support during Marawi's urban fighting, with Philippine Marine Corps and Security Reform Initiative sources describing M203s as providing firepower to troops or AFP units in the battle.
- Side
- Ukraine
USAASC reported that U.S. ammunition support for Ukraine included low-velocity M433 HEDP rounds fired from M203 and M320 grenade launchers, while later open-source reporting documented Colt and LMT M203 launchers with Ukrainian SOF and GUR-linked personnel.
Role details- Side
- Israel

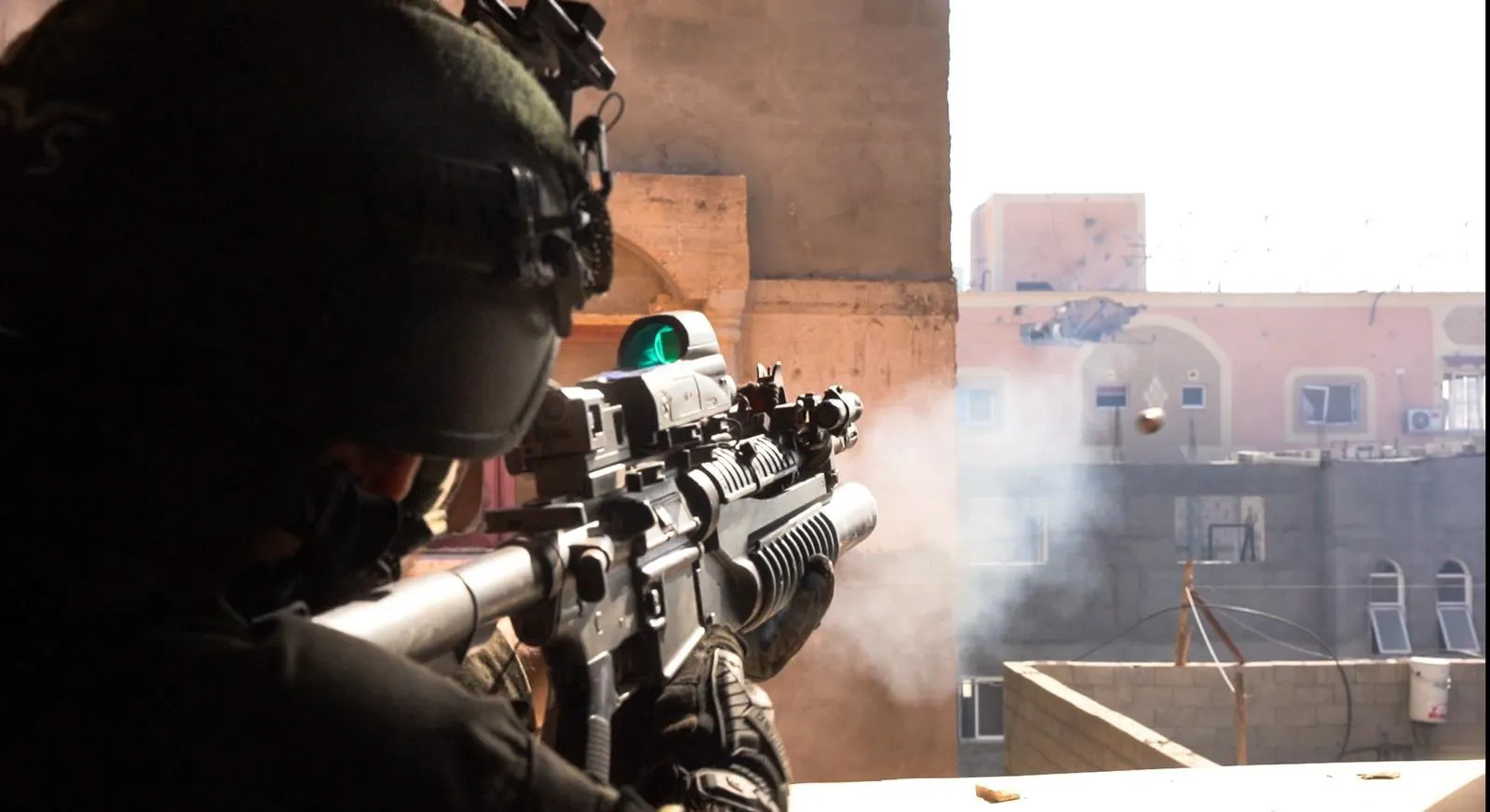

IDF troops fired M203 grenade launchers in Gaza during the 2023 Israel-Hamas War, with battlefield video showing the launcher in use against Hamas positions.
Role details- Role in conflict
- Dissident squad grenade launcher
Colombian Army reporting and Colombian media described an M203 grenade launcher, 40 mm grenades, and other weapons seized after combat with the FARC dissident Rodrigo Cadete structure in Caqueta.
Profile / Specs
Profile
- Origin
- United States
- Built by
- Colt
- Type
- Under-barrel grenade launcher
- Service note
- Cold War to present
- Designer
- AAI Corporation
- Designed
- 1967-1968
- Produced
- 1969-present
Specifications
- Caliber
- 40 x 46 mm
- Weight
- 1.36 kg unloaded; Colt rail-mounted models list about 1.0-1.22 kg unloaded
- Operation
- Single shot, breech load
- Barrel length
- 9 in or 12 in, depending on model
- Sighting system
- Quadrant sight or leaf sight
- Ammunition role
- Low-velocity 40 mm high-explosive, HEDP, and special-purpose cartridges
- Host weapons
- M16-family rifles, M4/M4A1 carbines, and compatible rail-mounted platforms
Variants
The M203 family is separated mainly by host-weapon fit, mounting hardware, and barrel length rather than by a different grenade caliber.
| Variant | Configuration | Designation notes |
|---|---|---|
| M203A1 | M4-adapted launcher | Small Arms Survey identifies M203A1 as an M4-adapted model in the M203 family. Sources: Small Arms Survey M203 sheet |
| M203A2 | Quick-release M4/M16A4 launcher | Small Arms Survey distinguishes the M203A2 by its quick-release attachment, while PEO Soldier imagery describes M203A2 mounting under the M16A4 rifle or M4 carbine. Sources: Small Arms Survey M203 sheet, PEO M203A2 Commons image |
| Colt Launcher System | Stand-alone M203 derivative | Small Arms Survey lists the Colt Launcher System as a U.S. M203-family stand-alone variant. Sources: Small Arms Survey M203 sheet |
Host Rifles and Carbines
M16- and M4-family rifle records show the M203 family as a mounted grenade-launcher accessory rather than a stand-alone infantry weapon.
| Compatible item | Item type | Compatibility evidence |
|---|---|---|
 | M16-series rifle | Small Arms Survey describes the M203 as a tactical accessory developed for the M16 series, and the PEO Soldier image identifies the M203A2 as mountable under the M16A4 rifle. Sources: Small Arms Survey M203 sheet, PEO M203A2 Commons image |
 | M4/M4A1 carbine | PEO Soldier states that the M4/M4A1 can mount the M203A2 grenade launcher, while Small Arms Survey identifies M203A1 and M203A2 as M4-adapted models. Sources: PEO Soldier M4/M4A1 Carbine, Small Arms Survey M203 sheet |
Host Rifles and 40 mm Ammunition
The M203 is best understood as a launcher-and-rifle system: sources describe it as an M16-family accessory that was later adapted for M4 carbines and rail-mounted configurations, while modern Colt and U.S. Army sources keep the 40 mm low-velocity ammunition relationship central.
| Topic | Documented detail | Reader context |
|---|---|---|
| Original host family | Small Arms Survey describes the M203 as a tactical accessory to the M16 series. | This is why the launcher is commonly seen mounted under M16-pattern rifles rather than as a stand-alone weapon. |
| M4 adaptation | Small Arms Survey identifies M203A1 and M203A2 as models adapted for the shorter M4, and PEO Soldier identifies M203A2 mounting under the M4 carbine. | The M4 relationship explains the shorter and quick-release variants used on later U.S. carbines. |
| 40 mm low-velocity rounds | USAASC identifies M433 HEDP as a low-velocity round fired from M203 and M320 grenade launchers. | The launcher remains tied to low-velocity 40 mm ammunition rather than high-velocity automatic-grenade-launcher cartridges. |
Timeline
M203 40 mm grenade launcher Key Events
Late-1960s M16 accessory development
AAI developed the M203 in the late 1960s as a tactical accessory for the M16-series rifle family.
Sources: Small Arms Survey M203 sheet
M203 documented at Basra range
DVIDS documented U.S. Army M203 firing during tactical range training at Normandy Range Complex in Basra, Iraq.
Sources: DVIDS Basra M203 range training
Operation Grizzly M203 image
DVIDS documented a U.S. Marine loading an M203 after enemy fire during Operation Grizzly in Helmand province.
Sources: DVIDS Operation Grizzly M203
Ukraine 40 mm resupply described
USAASC described U.S. 40 mm ammunition support for Ukraine, including M433 HEDP rounds fired from M203 and M320 grenade launchers.
Sources: USAASC Smarter Resupply
