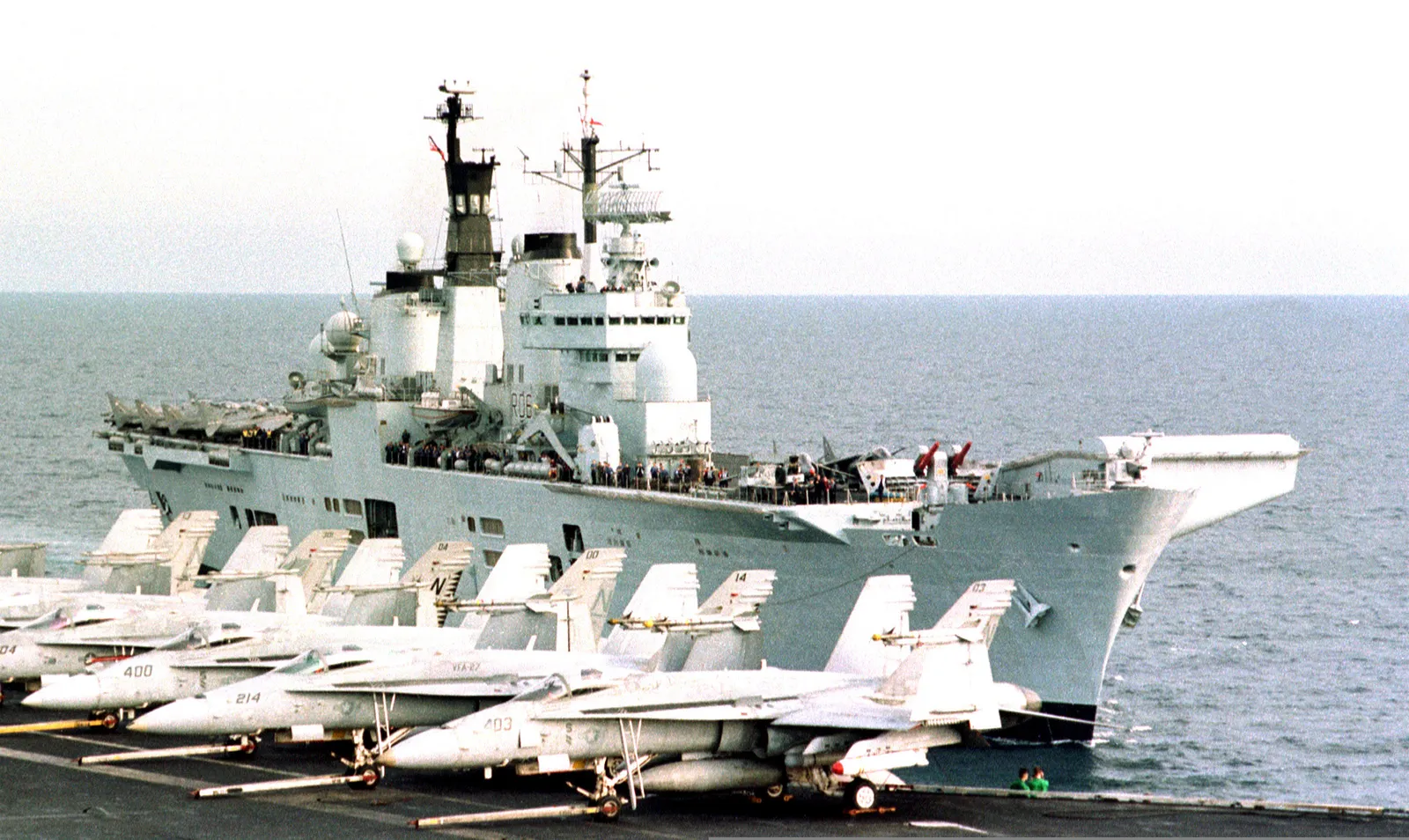

A Defense Department image record places HMS Illustrious in the Persian Gulf in April 1998 with USS John C. Stennis while both carriers supported Operation Southern Watch, the coalition enforcement of the southern Iraq no-fly zone.
Naval Systems
HMS Illustrious (R06)
Also known as
- Illustrious R06
- R06 HMS Illustrious
- Invincible-class aircraft carrier HMS Illustrious
- Lusty
HMS Illustrious (R06) was a Swan Hunter-built Invincible-class light aircraft carrier that entered Royal Navy service in 1982 and later served as a helicopter and commando carrier. Public military records tie her to Operation Southern Watch, Operation Palliser, Afghanistan-era tasking, and later evacuation/support operations, while UK disposal records trace her 2014 decommissioning and 2017 recycling.
Role in Conflicts
UK government and Defence Equipment & Support histories identify Illustrious as supporting the 2000 Sierra Leone evacuation and Operation Palliser, the British intervention that helped stabilize Freetown during the civil war.
UK government and Defence Equipment & Support histories record Illustrious as involved in the Afghanistan conflict in 2001 after the September 11 attacks; the compact catalog row does not treat this as evidence of carrier-launched combat sorties.
Profile / Specs
Profile
- Origin
- United Kingdom
- Built by
- Swan Hunter
- Type
- Invincible-class light aircraft carrier and helicopter carrier
- Service note
- 1982-2014 Royal Navy service
- Designed
- 1970s
- Produced
- 1976-1982
- Number built
- One HMS Illustrious; three Invincible-class ships overall
Specifications
- Class
- Invincible class
- Length
- 211 m overall
- Beam
- 36 m extreme
- Full-load displacement
- 22,000 tonnes
- Lightweight displacement
- 16,000 tonnes
- Propulsion
- Four Rolls-Royce Olympus TM3B gas turbines driving two shafts
- Speed
- 30+ knots
- Original aircraft fit
- Sea Harrier and Sea King aircraft in a light-carrier air group
- Helicopter carrier capacity
- Up to 20 helicopters and 600 fully equipped personnel after the 2011 Rosyth conversion
Embarked Aircraft And Helicopters
Illustrious shifted from a Sea Harrier-era light carrier into a helicopter and commando carrier, so only cataloged aircraft with source-backed shipboard context are linked here.
| Carried item | Item type | Carriage evidence |
|---|---|---|

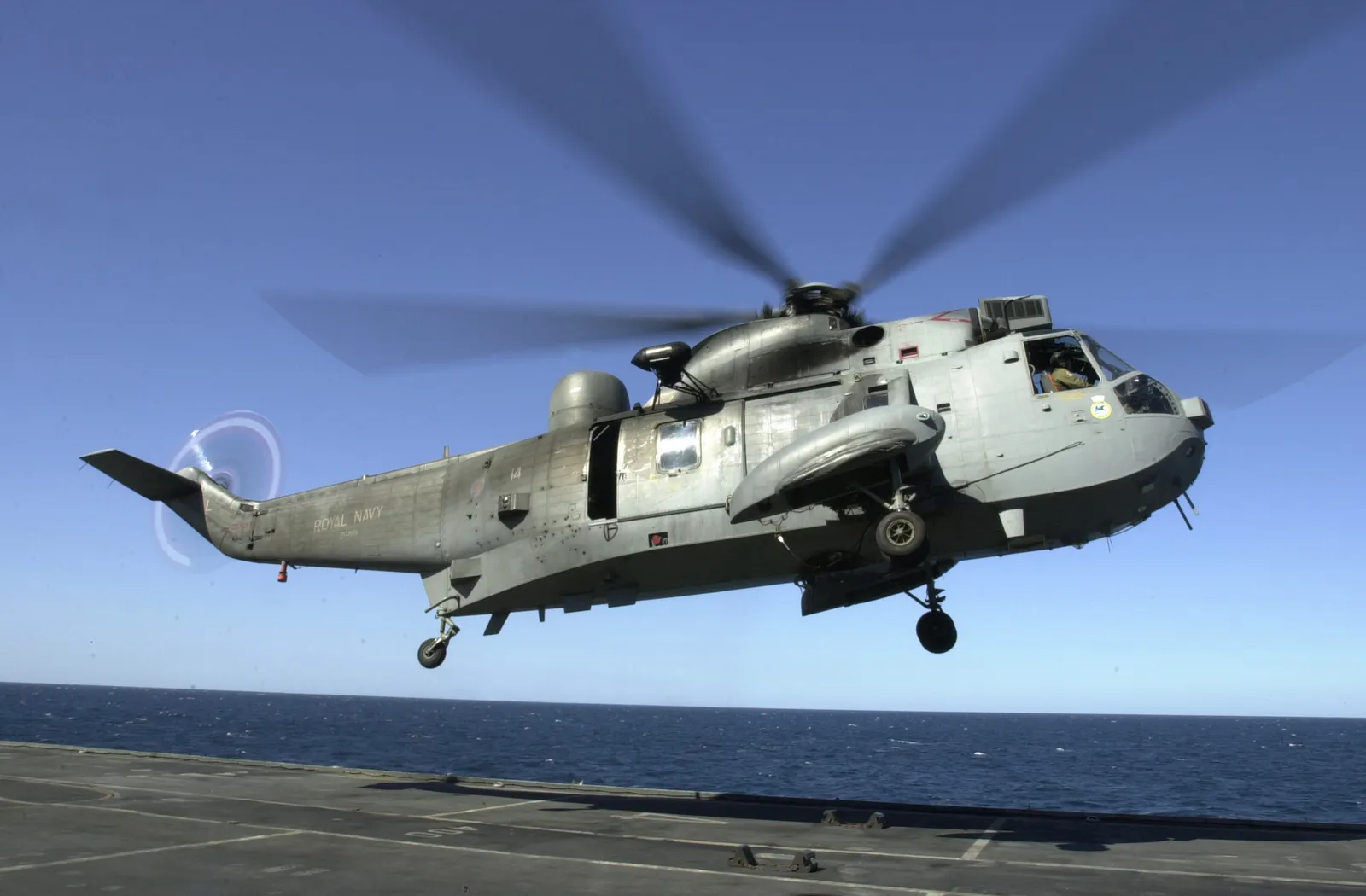

 | Shipborne helicopter | Tyne Built Ships lists Sea King aircraft in Illustrious's air group, and GOV.UK records Sea Kings embarked during the ship's 2012 helicopter-carrier training. Sources: Illustrious 1982, HMS Illustrious Trains in Tough Arctic Conditions |
 | Heavy-lift helicopter | GOV.UK identified Illustrious as the UK's high-readiness helicopter and commando carrier able to deploy Chinook helicopters during her late-service role. |
 | Attack helicopter | GOV.UK reported Apache training aboard Illustrious while HMS Ocean was in maintenance and separately listed Apache among helicopter types the ship could deploy. Sources: Apaches Return to HMS Illustrious, MOD Seeks Ideas to Preserve HMS Illustrious |

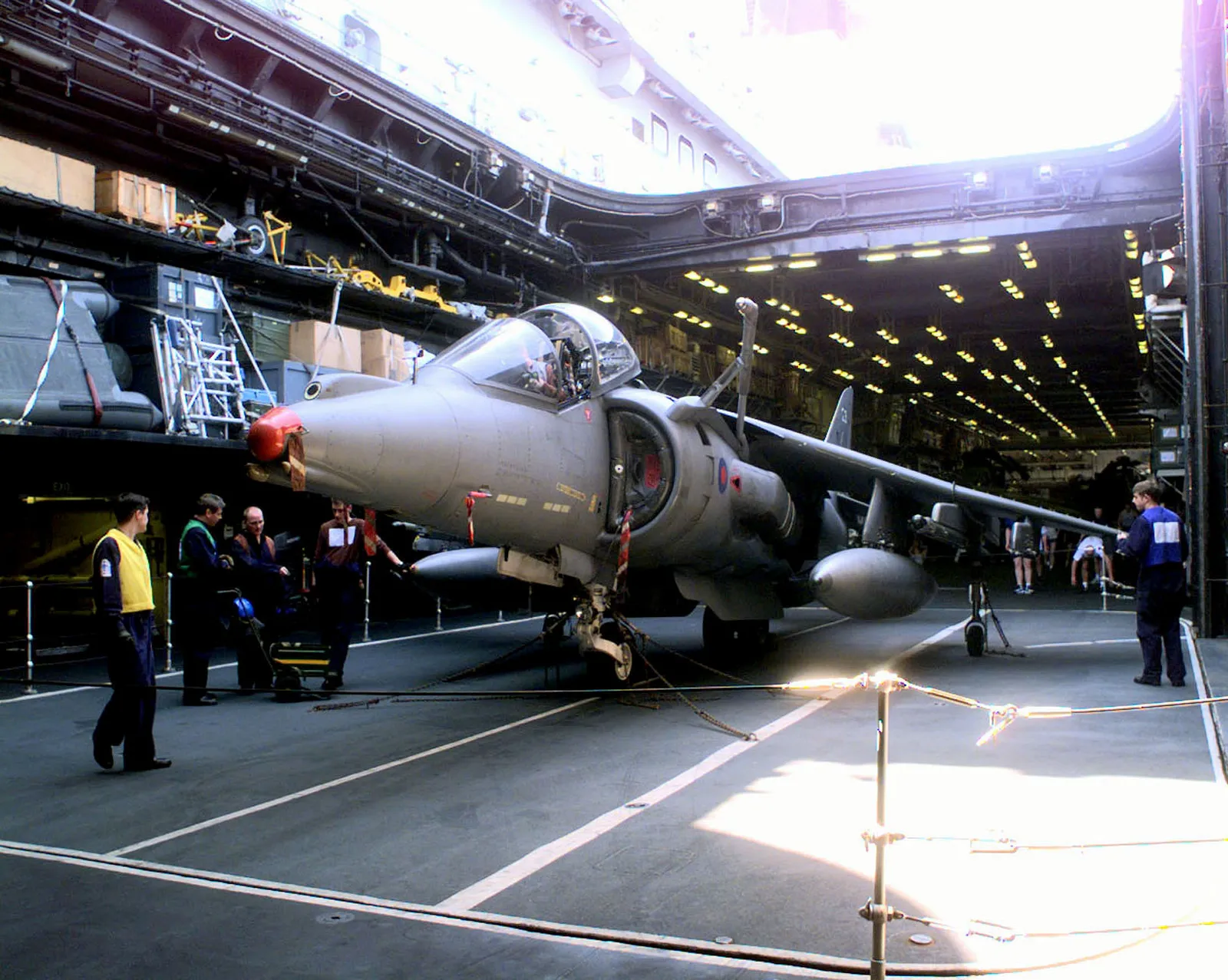

 | STOVL strike aircraft | Illustrious hosted U.S. Marine Harriers during a 2007 U.S.-led joint task force exercise; this link covers that AV-8B-specific exercise, not Royal Navy Sea Harrier service. |
Shipboard Close-In Defense
| Carried item | Item type | Carriage evidence |
|---|---|---|
 | Close-in weapon system | Tyne Built Ships records 20 mm Vulcan-Phalanx CIWS among Illustrious's original shipboard weapons before later refit changes. Sources: Illustrious 1982 |
Timeline
HMS Illustrious (R06) Key Events
Keel laid at Wallsend
Tyne Built Ships records the keel date for Illustrious as 1 October 1976 and identifies Swan Hunter Shipbuilders Ltd as the builder.
Sources: Illustrious 1982
Launched
Illustrious was launched from Swan Hunter's Wallsend yard on 1 December 1978.
Sources: Illustrious 1982, Recycling of the Former HMS Illustrious
Completed
Tyne Built Ships lists completion on 20 June 1982, while Defence Equipment & Support records the ship as part of the Royal Navy's Invincible-class light carrier force.
Sources: Illustrious 1982, Recycling of the Former HMS Illustrious
Operation Southern Watch deployment documented
A Defense Department image record places Illustrious with USS John C. Stennis in the Persian Gulf while supporting Operation Southern Watch.
Sources: DVIDS: HMS Illustrious in the Persian Gulf
Operation Palliser begins
Australian Army Research Centre history dates Operation Palliser to 5 May-15 June 2000; UK government histories identify Illustrious with the Sierra Leone evacuation and Palliser support.
Sources: Rapid Intervention in Sierra Leone, MOD Seeks Ideas to Preserve HMS Illustrious, Recycling of the Former HMS Illustrious
Returned after helicopter-carrier upgrade
GOV.UK reported that Illustrious returned to Portsmouth after a 16-month, GBP40 million Rosyth program that modified the ship into a helicopter and commando carrier.
Sources: HMS Illustrious Returns After Upgrade
Post-refit training begins
GOV.UK reported that Illustrious began intensive training as the UK's future on-call helicopter carrier, with Lynx and Merlin aircraft operating from her deck.
Sources: HMS Illustrious Begins Training After Refit
Operational service ends
Defence Equipment & Support records 1 August 2014 as the date Illustrious ceased operational service.
Sources: Recycling of the Former HMS Illustrious
Decommissioned at Portsmouth
GOV.UK and Defence Equipment & Support record the 28 August 2014 decommissioning ceremony at Portsmouth Naval Base after a 32-year career.
Sources: HMS Illustrious Takes Final Bow, Recycling of the Former HMS Illustrious
Final tow from Portsmouth
Defence Equipment & Support records the former carrier leaving Portsmouth under tow for Leyal Ship Recycling in Turkey.
Sources: Recycling of the Former HMS Illustrious
Recycling completed
Defence Equipment & Support reported that Leyal had completely dismantled and recycled the former HMS Illustrious by 22 June 2017.
Sources: Recycling of the Former HMS Illustrious
Related Weapon Systems
