AH-64 Apache attack helicopter

The AH-64 Apache is a U.S. twin-engine attack helicopter family designed by Hughes Helicopters and continued through McDonnell Douglas and Boeing production. Built around a two-person crew, nose-mounted sensors, a 30 mm chain gun, rockets, and guided missiles, it has direct source-backed combat use from Desert Storm and Iraq to Afghanistan, Sinai, Yemen, Gaza, Lebanon, anti-ISIS operations, and recent U.S. operations against Iran.

AH-64 Apache attack helicopter, Twin-engine attack helicopter, Aircraft & UAVs

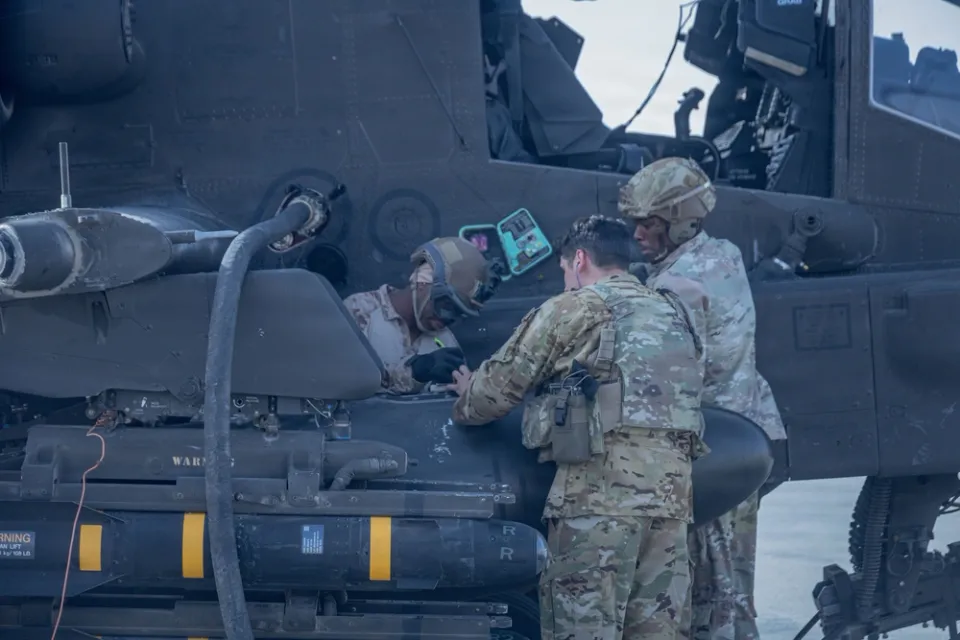

Image source: US Army Latvia Hydra-70 article

Role in Conflicts

Profile / Specs

Profile

Origin
United States
Type
Twin-engine attack helicopter
Service note
1980s-present; AH-64E variant in current U.S. Army service
Designer
Hughes Helicopters
Designed
1970s
Produced
1980s-present
Number built
More than 2,875 Apaches across A through E models, according to Boeing

Specifications

Crew
2
Length
48.2 feet (14.7 meters)
Rotor diameter
48 feet (14.6 meters)
Maximum operating weight
23,000 pounds (10,433 kilograms)
Maximum level flight speed
150+ knots (279+ kph)
Service ceiling
20,000 feet (6,096 meters)
Armament
Up to 16 Hellfire missiles, 76 2.75-inch rockets, and 1,200 30 mm chain gun rounds
Design And Mission Context

The Apache family combines a tandem two-person cockpit, target-acquisition and night-vision sensors, a turreted 30 mm cannon, rockets, and guided missiles into an attack-helicopter system built for close combat, armed reconnaissance, and precision attack. Its catalog record is broad because the same U.S.-origin family spans Hughes design work, McDonnell Douglas production history, Boeing modernization, and multiple operator-specific variants.

Lineage

Hughes Helicopters designed the Apache; Boeing sources identify McDonnell Douglas as the heritage company that delivered the first production AH-64A, with Boeing continuing production and modernization.

Combat roles

Direct sources document radar-site attack, close air support, overwatch, interdiction, force protection, and anti-ISIS support roles across the conflicts listed on this page.

Modernization

The AH-64E branch adds updated mission systems and remains the current production/remanufacture path; Boeing describes Version 6.5 as the next open-systems step for launched effects and future battlefield integration.

Variants

The family page covers the U.S.-origin AH-64 line as a whole. Separate catalog pages track selected operator-specific and current-production branches where the sources support a narrower service record.

VariantConfigurationDesignation notes
AH-64AOriginal production Apache

Boeing identifies the first production Apache as an A-model aircraft delivered to the U.S. Army in January 1984.

Sources: Boeing delivers 2500th AH-64 Apache

AH-64A Peten attack helicopter, Attack helicopter, Aircraft & UAVsAH-64A Peten attack helicopterIsraeli AH-64A branch

The Peten page covers Israeli AH-64A service and upgrade context separately from the broader Apache family record.

Sources: Boeing AH-64 Apache

AH-64D LongbowRadar-equipped Apache Longbow

Boeing says Apache Longbow production began in 1996 and the first Apache Longbows were delivered in 1997.

Sources: Boeing delivers 100th AH-64D Apache Longbow

AH-64D Saraph attack helicopter, Attack helicopter, Aircraft & UAVsAH-64D Saraph attack helicopterIsraeli AH-64D Longbow branch

The Saraph page tracks Israeli AH-64D combat use, local naming, and carried-weapon evidence.

Sources: Boeing AH-64 Apache

AH-64E Apache attack helicopter, Twin-engine attack helicopter, Aircraft & UAVsAH-64E Apache attack helicopterCurrent Boeing production and remanufacture variant

U.S. Army and Boeing sources describe the AH-64E as the modern Apache variant with upgraded mission systems, sensors, and networked attack-reconnaissance capability.

Sources: AH-64E Apache Attack Helicopter, Boeing AH-64 Apache

AH-64E Version 6.5Modernization configuration

Boeing says Version 6.5 is intended to add an open systems interface and keep the AH-64E aligned with launched effects and other future battlefield integrations.

Sources: Transforming the AH-64 Apache for the future

Carried Weapons

Boeing and U.S. Army sources describe the Apache as a carrier for guided missiles, rockets, and its turreted 30 mm gun system.

Carried itemItem typeCarriage evidence
AGM-114 Hellfire missile family, Air-to-surface missile family, MunitionsAGM-114 Hellfire missile familyAir-to-ground missile family

DVIDS imagery documents Hellfire loading on an AH-64E Apache, and Boeing lists Hellfire missiles as a standard Apache ordnance family.

Sources: Loading a Hellfire in Kunduz, Boeing AH-64 Apache

Hydra-70 rocket system, 2.75-inch air-launched rocket family, MunitionsHydra-70 rocket system2.75-inch rocket system

U.S. Army reporting from Latvia documents AH-64 Apache crews loading and firing Hydra-70 rockets during live-fire training.

Sources: US Army Latvia Hydra-70 article

AGM-179A JAGM, Air-to-surface precision-guided missile, MunitionsAGM-179A JAGMAir-to-surface precision-guided missile

The U.S. Army reported AH-64E Apache crews firing AGM-179A JAGM during operational testing in Florida.

Sources: Army JAGM operational test

M230 30 mm chain gun, 30 mm autocannon, Aircraft & UAVsM230 30 mm chain gun30 mm chain gun

Army and ammunition sources identify the Apache's M230 gun and its 30 mm ammunition as core close-combat armament.

Sources: AH-64E Apache Attack Helicopter, PEO Ammunition 2017

M789 high-explosive dual-purpose round, 30 mm high-explosive dual-purpose cartridge, MunitionsM789 high-explosive dual-purpose round30 mm HEDP round

General Dynamics describes the M789 HEDP round as operable in the M230 chain-gun turret used on Apache helicopters.

Sources: 30mm x 113 Ammunition Suite - MP - M788 TP - M977 TP-T - M789 HEDP

Transport Aircraft

Strategic airlift sources document Apache helicopters being moved by outsize transport aircraft for theater deployments.

CarrierCarrier typeCarriage evidence
C-5 Galaxy, Strategic airlifter / transport aircraft family, Aircraft & UAVsC-5 GalaxyOutsize cargo transport aircraft

U.S. Air Forces in Europe says two C-5M Galaxies delivered Army AH-64 Apache helicopters to Europe.

Sources: USAF supports Army helicopter delivery to Europe

Timeline

AH-64 Apache attack helicopter Key Events

  1. YAH-64 prototype first flight

    A U.S. Senate resolution and Boeing lineage sources identify September 30, 1975, as the first flight date for the Apache prototype.

    Sources: Senate Apache resolution, Boeing AH-64 Apache

  2. First production Apache delivered

    Boeing says the first production AH-64A Apache was delivered to the U.S. Army in January 1984 after rolling off the Mesa production line.

    Sources: Boeing delivers 2500th AH-64 Apache

  3. Task Force Normandy opens Desert Storm

    Army University Press describes eight Army AH-64 Apache helicopters destroying Iraqi early-warning radar sites in the opening minutes of Operation Desert Storm.

    Sources: Task Force Normandy

  4. Apache Longbow deliveries begin

    Boeing says Apache Longbow production began in 1996 and first deliveries followed in 1997.

    Sources: Boeing delivers 100th AH-64D Apache Longbow

  5. AH-64D Block III redesignated AH-64E

    A Director, Operational Test and Evaluation report states that the Army redesignated AH-64D Apache Block III as AH-64E in September 2012.

    Sources: DOT&E AH-64E report

  6. Boeing announces 2,500th Apache delivery

    Boeing announced delivery of its 2,500th AH-64 Apache, an E-model aircraft for the U.S. Army, from the Mesa production line.

    Sources: Boeing delivers 2500th AH-64 Apache

  7. Version 6.5 modernization flight testing begins

    Boeing says Version 6.5 took its first flight in 2023 as part of the AH-64E modernization path.

    Sources: Transforming the AH-64 Apache for the future

Media

AH-64 Apache attack helicopter Videos

AH-64 Apache attack helicopter Images

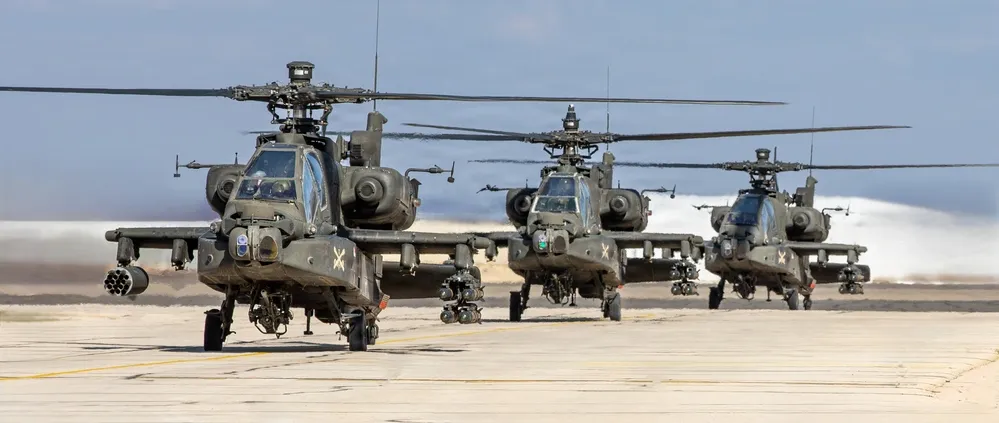

AH-64 Apache attack helicopter, Twin-engine attack helicopter, Aircraft & UAVs - view 1
Source: US Army Latvia Hydra-70 article

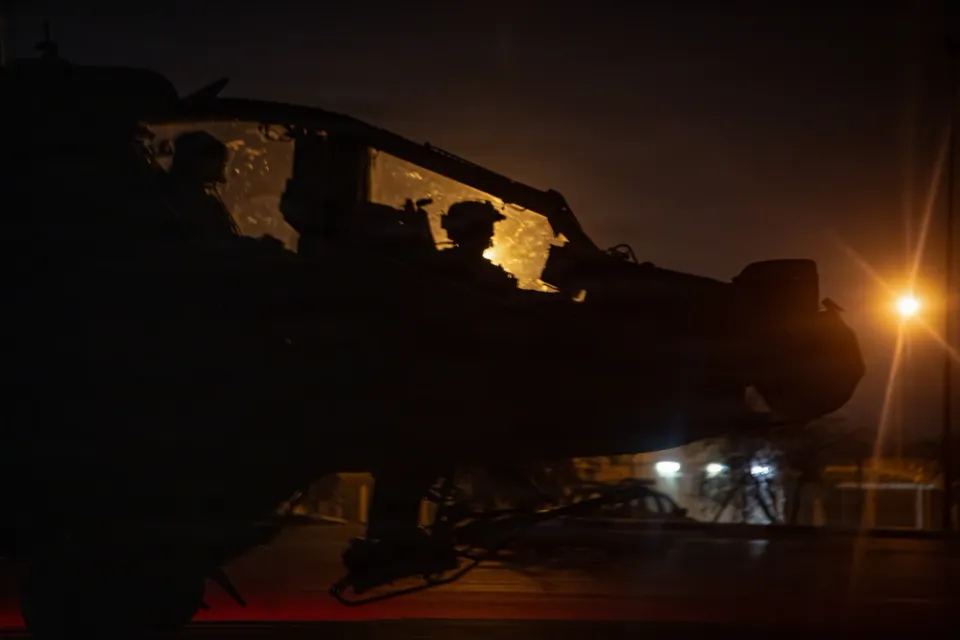

AH-64 Apache attack helicopter, Twin-engine attack helicopter, Aircraft & UAVs - view 2
Source: US Army Latvia Hydra-70 article

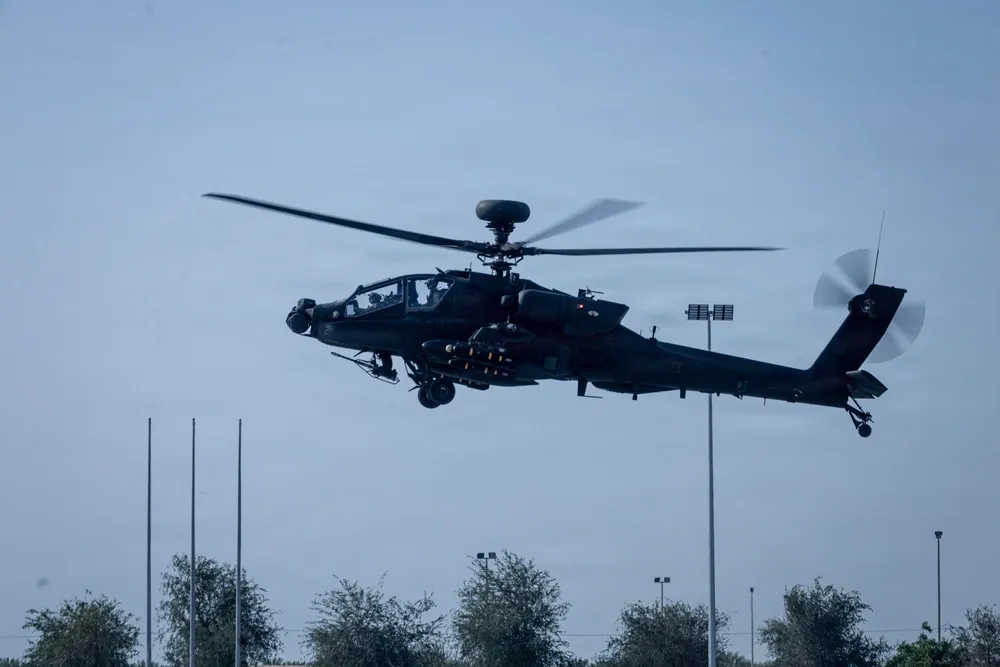

AH-64 Apache attack helicopter, Twin-engine attack helicopter, Aircraft & UAVs - view 3
