M230 30 mm chain gun

Also known as
  • M230 Area Weapon System
  • M230 Bushmaster Chain Gun
  • 30x113 mm M230

The M230 30 mm chain gun is an externally powered 30x113 mm autocannon built around Apache helicopter fire support, later adapted into M230LF and XM914 ground counter-UAS variants. Northrop Grumman describes the aviation M230 as the original medium-caliber Chain Gun and the M230LF as a lightweight ground and sea-platform weapon; direct sources document Apache M230 fielding in Afghanistan, Iraq, Operation Inherent Resolve, Israeli Apache use in the 2023 Israel-Hamas War, and M230LF-based Slinger systems ordered for Ukraine.

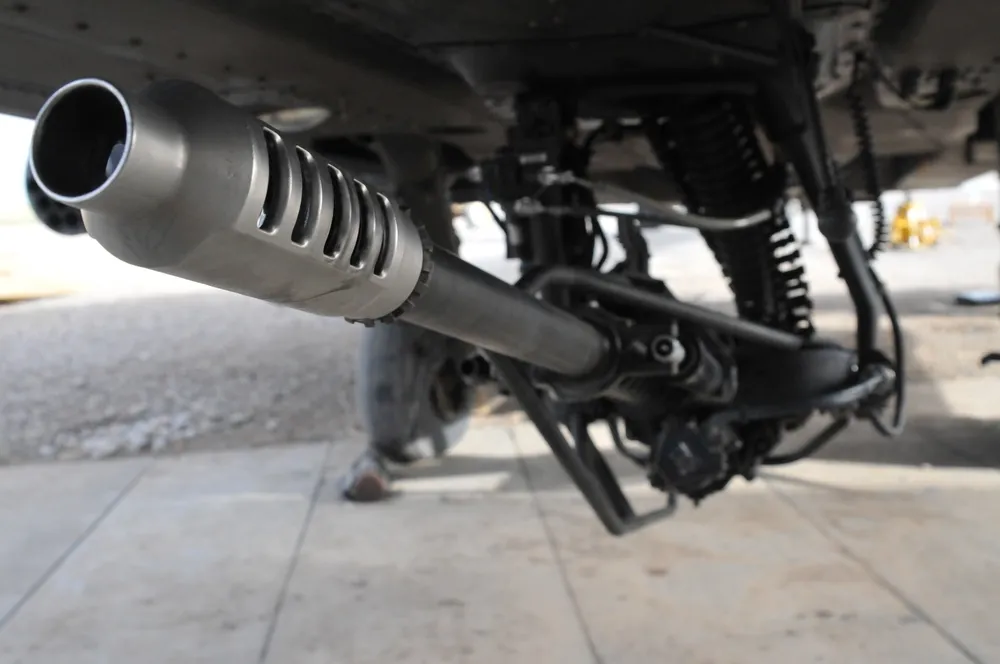

M230 30 mm chain gun, 30 mm autocannon, Aircraft & UAVs
Image source: DVIDS Chain Gun Preparation

Role in Conflicts

Profile / Specs

Profile

Origin
United States
Type
30 mm autocannon
Service note
Cold War / post-Cold War
Designer
Hughes / McDonnell Douglas

Specifications

Caliber
30x113 mm
Drive
Externally powered, electric drive
Rate of Fire
625 +/- 25 rounds per minute
Weight
59.5 kg
Effective Range
Up to 4,000 meters
Feed System
Linkless
Mount
AH-64 Apache nose turret
Variants

The record covers close M230LF/XM914 family members where sources identify them as part of the same 30x113 mm Bushmaster chain-gun line.

VariantConfigurationDesignation notes
M230LFLink-fed ground and sea-platform variant

Northrop Grumman says the M230LF brings 30 mm lethality to lightweight ground platforms and fires 30x113 mm ammunition, including proximity rounds for counter-small-UAS use.

Sources: Northrop Grumman 30x113mm Bushmaster Chain Guns

XM914U.S. Army M230LF variant

Northrop Grumman identifies XM914 as an M230LF variant adopted for IM-SHORAD and M-LIDS, while Army AL&T discusses XM914 ammunition work for those ground systems.

Sources: Northrop Grumman 30x113mm Bushmaster Chain Guns, Need for Speed

Carrier Platforms

The M230 is most closely associated with the AH-64 Apache, while development material and special-operations sources also place the chain gun family on armed Black Hawk DAP configurations.

CarrierCarrier typeCarriage evidence
AH-64 Apache attack helicopter, Twin-engine attack helicopter, Aircraft & UAVsAH-64 Apache attack helicopterAttack helicopter

Northrop Grumman's product page and Army gunnery coverage both tie the chain gun to the Apache's nose-mounted 30 mm weapon system.

Sources: Northrop Grumman M230 30mm Bushmaster Chain Gun, Maximum Impact: Apache 30mm Gunnery with the 10th Mountain Division

MH-60L Direct Action Penetrator, Special operations gunship helicopter, Aircraft & UAVsMH-60L Direct Action PenetratorSpecial operations gunship helicopter

Late-1980s M230 development material describes the LW30mm M230 as already in wide use on MH-60DAP Black Hawks, and the linked DAP record covers that armed special-operations helicopter configuration.

Sources: Development of a LW30mm M230 Percussion Prime Chain Gun

Ammunition Fired

Army ammunition documents tie the Apache M230 to a compact 30x113 mm cartridge family.

AmmunitionAmmunition typeFiring evidence
M789 high-explosive dual-purpose round, 30 mm high-explosive dual-purpose cartridge, MunitionsM789 high-explosive dual-purpose round30x113 mm HEDP combat cartridge

The Army's FY2007 supplemental ammunition book identifies M789 as the only qualified combat cartridge for the Apache helicopter's M230 chain gun and lists M788 as the matching target-practice round.

Sources: Army Procurement: Ammunition FY 2007 Supplemental

Ground Counter-UAS Mounts

M230LF/XM914 variants moved the chain-gun family from aircraft into vehicle-mounted counter-UAS systems.

CarrierCarrier typeCarriage evidence
Mobile LIDS (M-LIDS), Mobile counter-UAS system, Air DefenseMobile LIDS (M-LIDS)Mobile counter-UAS system

Northrop Grumman identifies XM914 as an M230LF variant adopted for M-LIDS, while Army AL&T describes XM914 ammunition work for M-LIDS and M-SHORAD ground systems.

Sources: Northrop Grumman 30x113mm Bushmaster Chain Guns, Need for Speed

30x113 Ammunition And Mounts

The M230 family is easiest to read as a 30x113 mm chain-gun line spanning the Apache nose turret, the M230LF/XM914 ground variant, and a small ammunition family. Army and manufacturer sources distinguish combat, training, and counter-UAS uses without treating every cartridge or mount as the same catalog item.

ItemRoleSupported context
M789 high-explosive dual-purpose round, 30 mm high-explosive dual-purpose cartridge, MunitionsM789 HEDPCombat cartridgeArmy FY2007 data identifies M789 as the only qualified combat cartridge for the Apache M230 and lists a $71.35 FY2007 unit cost.
M788 TPTarget-practice cartridgeArmy FY2007 data lists M788 as the M230 target-practice cartridge with an $18.12 FY2007 unit cost.
M230LF / XM914Link-fed ground variantNorthrop Grumman and Army AL&T connect the ground variant to M-LIDS, M-SHORAD, and counter-small-UAS ammunition work.
EOS SlingerCounter-drone gun mountEOS said its first Ukraine export systems used a lightweight 30 mm cannon configuration based on the M230LF and were ordered for U.S.-announced 30 mm gun trucks.

Sources: Army Procurement: Ammunition FY 2007 Supplemental; Northrop Grumman 30x113mm Bushmaster Chain Guns; Need for Speed; EOS confirms first Slinger exports to Ukraine.

Timeline

M230 30 mm chain gun Key Events

  1. Early Apache service

    The standard LW30mm M230 chain gun was already widely used with AH-64 Apaches and MH-60DAP Blackhawks by the early 1980s.

    Sources: Development of a LW30mm M230 Percussion Prime Chain Gun

  2. Percussion-prime tests

    The late-1980s M230 Percussion Prime program test-fired more than 4,000 rounds without incident during summer 1988 testing.

    Sources: Development of a LW30mm M230 Percussion Prime Chain Gun

  3. Northern Iraq Apache operations

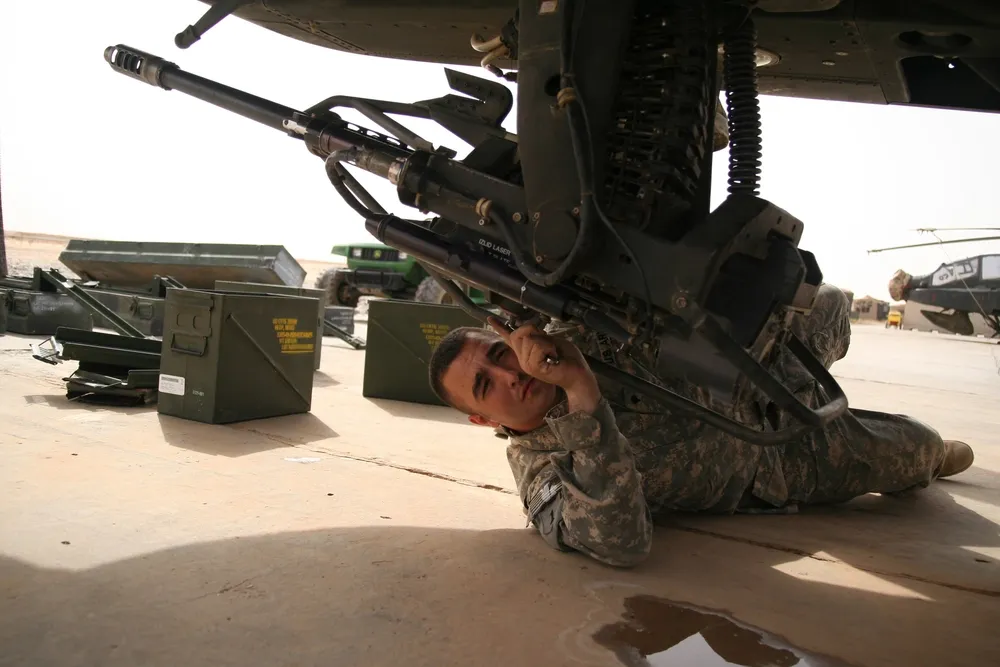

    DVIDS documented AH-64D Apache armament crews adjusting a 30 mm M230 chain gun while sustaining air operations in northern Iraq.

    Sources: DVIDS Pass the Ammunition

  4. Erbil OIR standby

    A DVIDS image from Erbil, Iraq showed an AH-64 M230 loaded and on standby for air-support missions under Combined Joint Task Force - Operation Inherent Resolve.

    Sources: DVIDS Task Force Dragon Erbil Iraq

  5. Jalalabad mission preparation

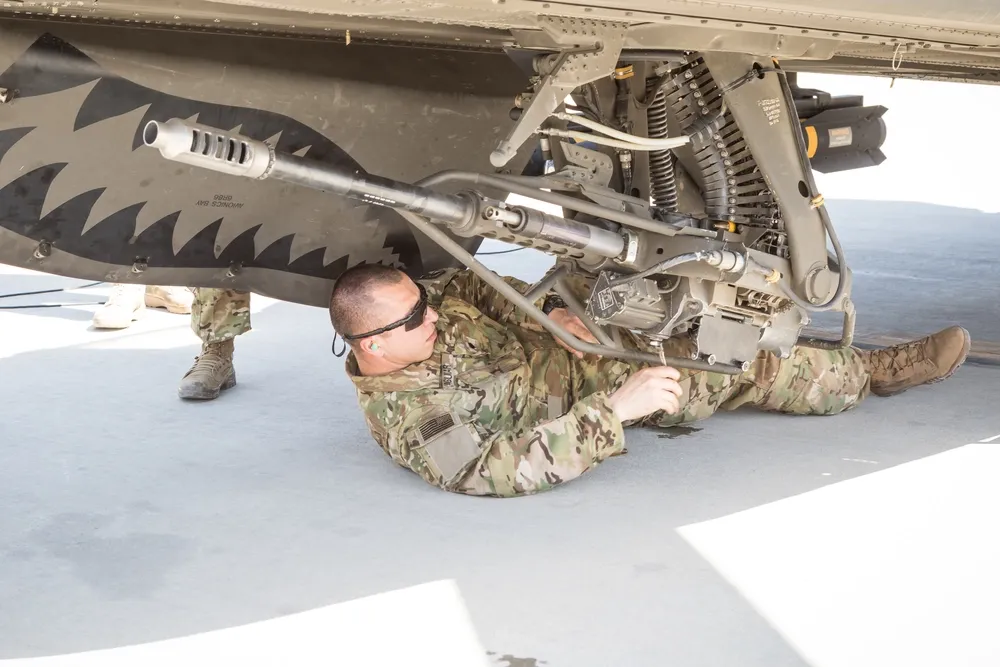

    DVIDS photographed a Task Force Tigershark ground crew preparing an AH-64E Apache M230 chain gun for an Operation Freedom's Sentinel mission in Afghanistan.

    Sources: DVIDS Chain Gun Preparation

  6. Ukraine 30 mm gun-truck package

    The Defense Department announced counter-UAS 30 mm gun trucks for Ukraine; EOS later said the first Slinger systems for that package used the M230LF lightweight 30 mm cannon configuration.

    Sources: DOD Ukraine Security Assistance April 2023, EOS confirms first Slinger exports to Ukraine

  7. XM914 ammunition work

    Army AL&T described XM914 30 mm chain-gun ammunition work for ground systems including M-LIDS and M-SHORAD, with M789-derived XM1198 developed for anti-drone use.

    Sources: Need for Speed

  8. Fort Drum gunnery

    Army coverage of Apache 30mm gunnery at Fort Drum described the M230 Area Weapon System as a high-rate precision-fire gun and noted live-fire evaluation with engineers and crews.

    Sources: Maximum Impact: Apache 30mm Gunnery with the 10th Mountain Division

Media

M230 30 mm chain gun Videos

M230 30 mm chain gun Images

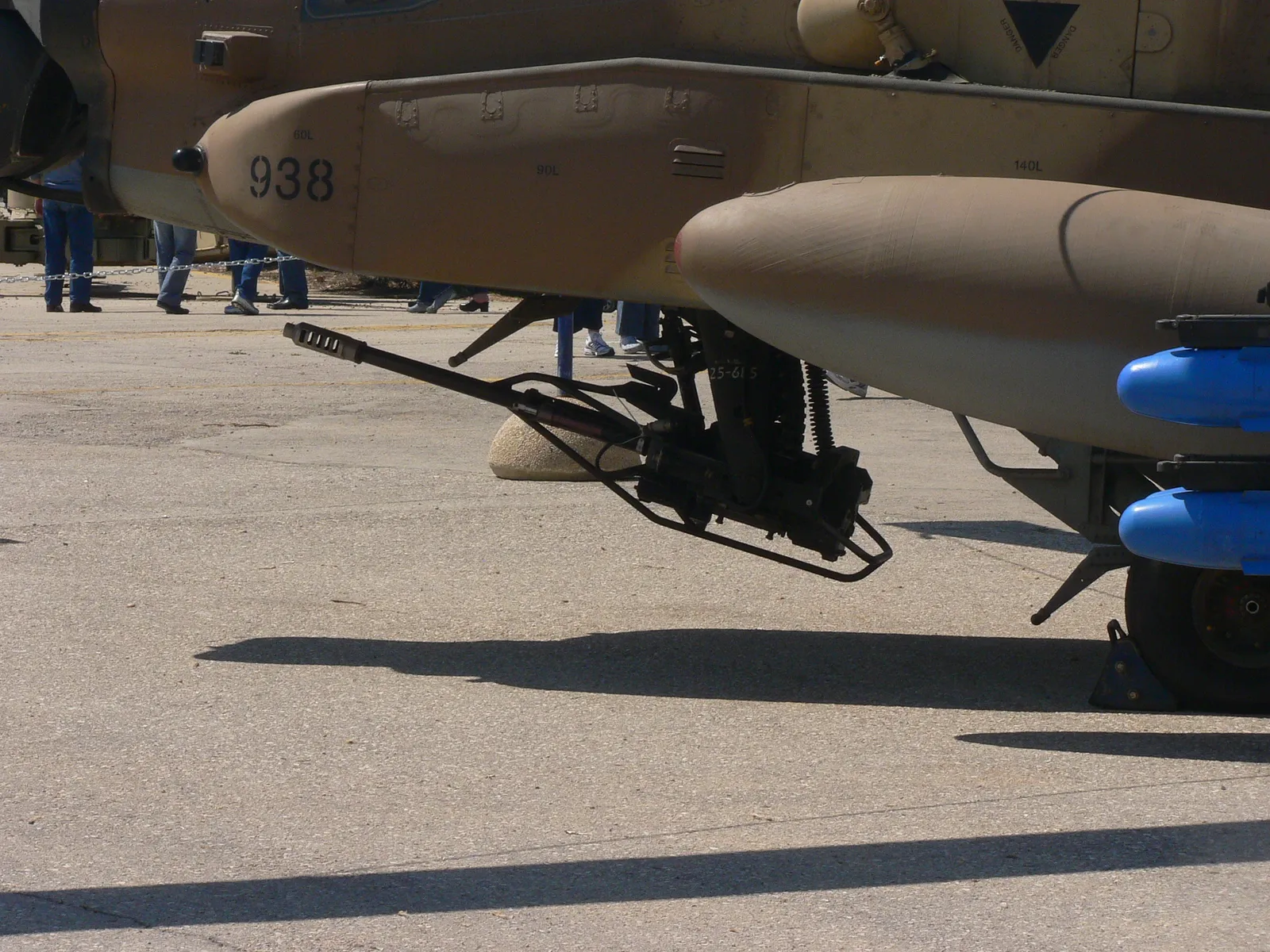

M230 30 mm chain gun, 30 mm autocannon, Aircraft & UAVs - view 1
Source: Wikimedia Commons AH-64Apache002.jpg

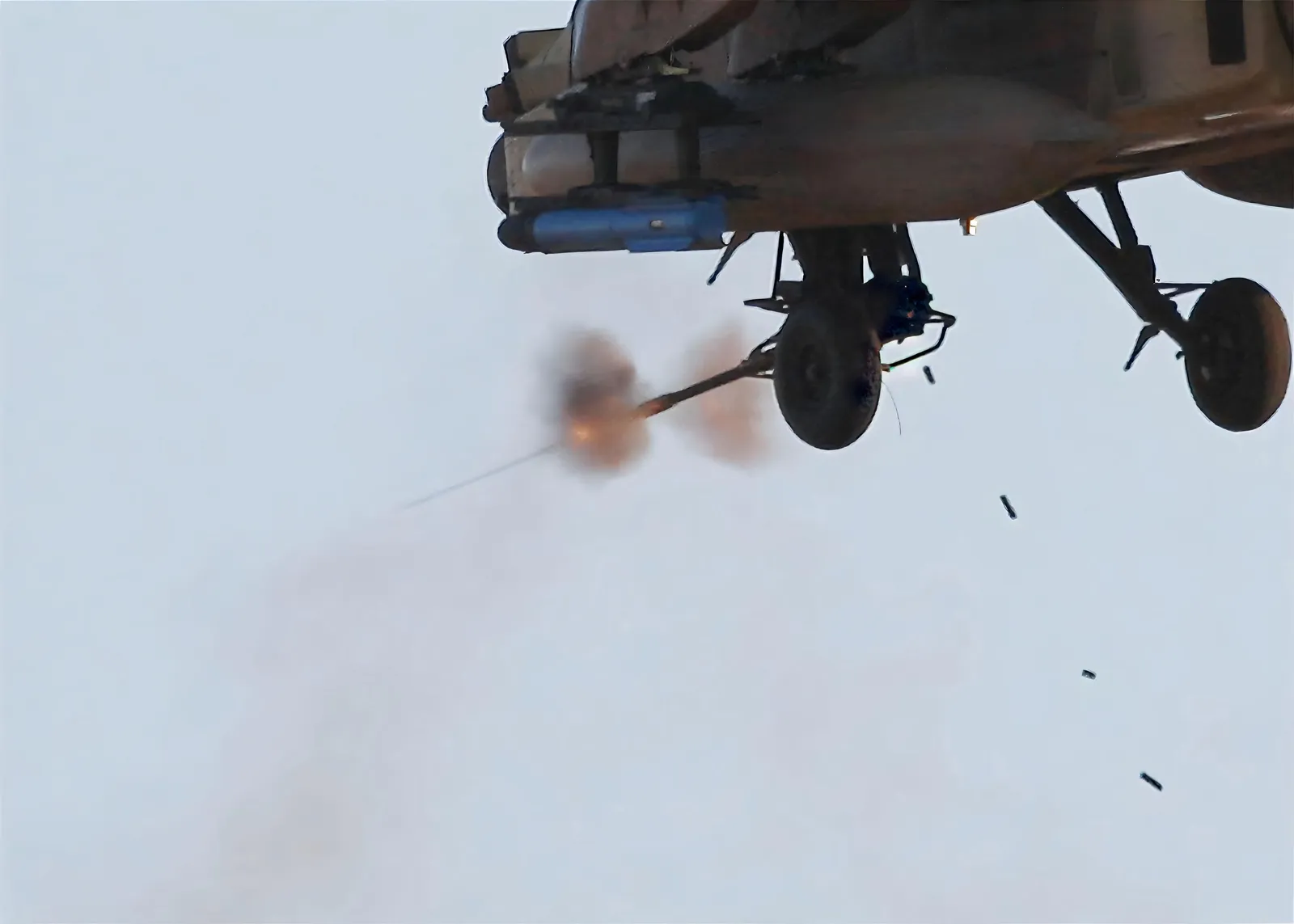

M230 30 mm chain gun, 30 mm autocannon, Aircraft & UAVs - view 2
Source: Wikimedia Commons AH-64D Apache Attack.jpg
M230 30 mm chain gun, 30 mm autocannon, Aircraft & UAVs - view 3
Source: DVIDS Chain Gun Preparation
M230 30 mm chain gun, 30 mm autocannon, Aircraft & UAVs - view 4
Source: DVIDS Chain Gun Preparation
M230 30 mm chain gun, 30 mm autocannon, Aircraft & UAVs - view 5
Source: DVIDS Chain Gun Preparation
Related Weapon Systems
M789 high-explosive dual-purpose round, 30 mm high-explosive dual-purpose cartridge, MunitionsMunitionsM789 high-explosive dual-purpose round30 mm high-explosive dual-purpose cartridgeThe M789 is a U.S. 30x113 mm high-explosive dual-purpose cartridge for the Apache helicopter's M230/AV-30 chain gun and SOCOM MH-60 Black Hawk gunship use. Army budget documents identify it as the Apache M230's qualified combat cartridge, with a shaped-charge liner for light-armor defeat and a steel projectile body for anti-personnel effects. The Army tied M789 replenishment to Operation Freedom's Sentinel combat expenditures in Afghanistan and later used the legacy cartridge as the baseline for Apache counter-UAS and proximity-ammunition testing.
AH-64 Apache attack helicopter, Twin-engine attack helicopter, Aircraft & UAVsAircraft & UAVsAH-64 Apache attack helicopterTwin-engine attack helicopterThe AH-64 Apache is a U.S. twin-engine attack helicopter family designed by Hughes Helicopters and continued through McDonnell Douglas and Boeing production. Built around a two-person crew, nose-mounted sensors, a 30 mm chain gun, rockets, and guided missiles, it has direct source-backed combat use from Desert Storm and Iraq to Afghanistan, Sinai, Yemen, Gaza, Lebanon, anti-ISIS operations, and recent U.S. operations against Iran.
AGM-114 Hellfire missile family, Air-to-surface missile family, MunitionsMunitionsAGM-114 Hellfire missile familyAir-to-surface missile familyThe AGM-114 Hellfire is a U.S. precision missile family developed for helicopter anti-armor missions and later adapted across UAVs, gunships, ships, and special-purpose strike roles. Cataloged combat use spans Desert Storm Apache strikes, Operation Iraqi Freedom aviation engagements, counter-ISIS and counterterrorism drone operations, Israeli helicopter fire in 2023, Ukrainian counter-drone Tempest vehicles assessed with AGM-114L Longbow missiles, and the secretive AGM-114R9X kinetic variant reported in low-collateral targeted strikes.
AH-64E Apache attack helicopter, Twin-engine attack helicopter, Aircraft & UAVsAircraft & UAVsAH-64E Apache attack helicopterTwin-engine attack helicopterThe AH-64E Apache is Boeing's Echo-model Apache variant, developed from the AH-64D Block III remanufacture program and built around improved engines, sensors, networking, and a two-person attack-helicopter weapons station. Direct source-backed conflict records place AH-64E aircraft with U.S. Army units in Operation Inherent Resolve, the 2001 War in Afghanistan's Operation Freedom's Sentinel phase, and Operation Epic Fury during the 2020 United States-Iran Conflict.
