Air Defense

Mobile LIDS (M-LIDS)

Also known as
  • M-LIDS
  • Mobile LIDS
  • Mobile-LIDS
  • Mobile Low, Slow, Small Unmanned Aircraft System Integrated Defeat System
  • Mobile Low, Slow, Small UAS Integrated Defeat System
  • Mobile Low, Slow, Unmanned Aircraft Integrated Defense System

Mobile LIDS (M-LIDS) is the U.S. Army's mobile Low, Slow, Small Unmanned Aircraft System Integrated Defeat System. Leonardo DRS is the lead systems integrator for a mobile counter-UAS section that combines Raytheon KuRFS/Ku720 radar and Coyote effectors, Northrop Grumman FAAD C2, SRC electronic warfare, a Coyote launcher vehicle, and an XM914 30 mm chain gun defeat layer.

Mobile LIDS (M-LIDS), Mobile counter-UAS system, Air Defense
Image source: M-LIDS live-fire image
Profile / Specs

Specifications

Platform
Two M-ATV vehicles in the current mobile section; Increment 2.1 is being developed for a single Stryker vehicle
Threat set
Low, slow, small Group 1-3 UAS and one-way attack drones
Sensors
KuMRFS-M or mobile Ku720 radar, electro-optical/infrared camera, direction-finding sensors, and FAAD C2 integration
Kinetic defeat
Coyote interceptors and a 30 mm XM914 chain gun on the RIwP turret
Non-kinetic defeat
SRC electronic-warfare layer, including CUAEWS context in LIDS reporting
Training context
Green Sands counter-UAS training for deploying Base Defense Operations Center crews
Layered Mobile Architecture

M-LIDS is best read as a mobile counter-UAS section rather than a single weapon. The public record separates the system into detection, control, electronic attack, and kinetic defeat layers that can be trained and employed together for base-defense and maneuver protection.

Detection

RTX identifies KuRFS and the mobile Ku720 radar option as the LIDS detect layer, while SRC and Army reporting place radar acquisition and direction-finding sensors in the mobile architecture.

Control

FAAD C2 ties the counter-UAS picture to the engagement process; Green Sands training has included FAAD C2 and base-defense crew tasks for deploying units.

Defeat

Coyote interceptors, the XM914 30 mm chain gun, and SRC electronic warfare give the section missile, gun, and non-kinetic defeat options against small UAS threats.

Variants

Public sources describe M-LIDS as the mobile member of the wider LIDS family and identify Increment 2 and Increment 2.1 as the main mobile configurations now visible in open reporting.

VariantConfigurationDesignation notes
M-LIDS Increment 2Two-vehicle M-ATV mobile section

Leonardo DRS says Increment 2 became an Army ACAT III program of record in March 2022; National Defense and CENTCOM Citadel describe the current mobile system as two M-ATVs that deploy as a pair.

Sources: U.S. Army Taps Leonardo DRS to Provide Additional M-LIDS Counter-UAS Platforms, Army Counter-Drone System Gets Stryking Makeover, M-LIDS provides US Army with mobile protection from drones

M-LIDS Increment 2.1Single Stryker development configuration

National Defense reported that Increment 2.1 is intended to move the same M-LIDS capability from paired M-ATVs onto one Stryker vehicle with a smaller crew.

Sources: Army Counter-Drone System Gets Stryking Makeover

Fixed Site LIDS (FS-LIDS), Fixed-site counter-UAS system, Air DefenseFixed Site LIDS (FS-LIDS)Fixed-site LIDS family member

SRC and RTX describe LIDS as a family that can be configured in fixed-site and mobile forms with shared sensor, command-and-control, electronic-warfare, and Coyote defeat layers.

Sources: LIDS Family of Systems Brochure, Meet the US Army's LIDS: A sure shot against drones

Kinetic Defeat Layer

M-LIDS uses a layered kinetic package rather than relying on a single gun or missile.

Compatible itemItem typeCompatibility evidence
Coyote counter-UAS interceptor / drone, Counter-UAS interceptor drone, Air DefenseCoyote counter-UAS interceptor / droneCounter-UAS interceptor

Leonardo DRS says M-LIDS is a two-vehicle capability with kinetic and non-kinetic defeat, and the SRC brochure places Coyote in the mobile LIDS architecture.

Sources: U.S. Army Taps Leonardo DRS to Provide Additional M-LIDS Counter-UAS Platforms, LIDS Family of Systems Brochure

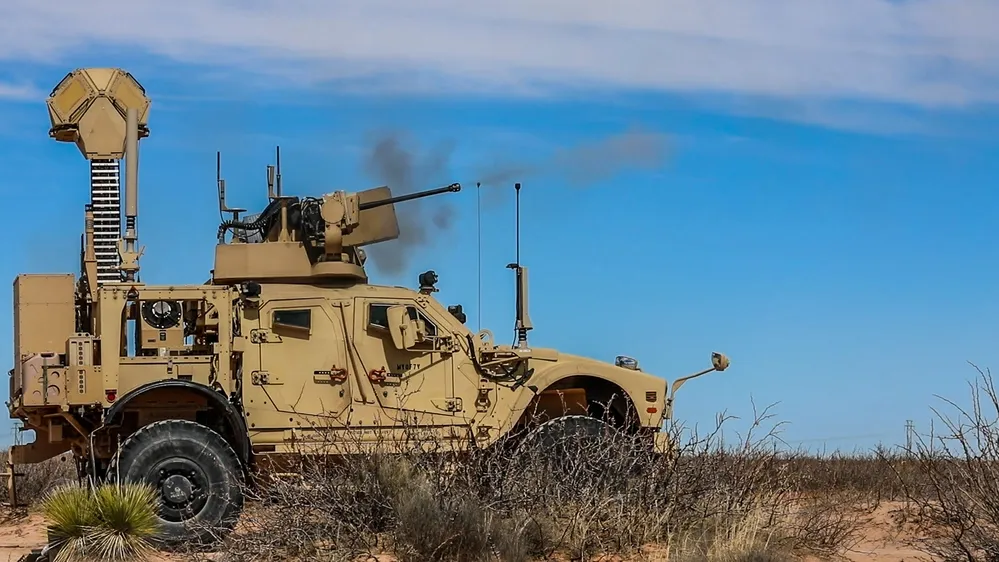

Mobile Coyote launcher system, Mobile Coyote missile launcher vehicle, Air DefenseMobile Coyote launcher systemMobile Coyote launcher vehicle

The linked launcher record covers the M-LIDS kinetic defeat vehicle that carries the Coyote launcher within the mobile LIDS architecture.

Sources: LIDS Family of Systems Brochure, USARCENT Trains Deploying Soldiers in counter-UAS

M230 30 mm chain gun, 30 mm autocannon, Aircraft & UAVsM230 30 mm chain gun30 mm chain gun family

Leonardo DRS identifies the XM914 30 mm cannon on Moog's RIwP turret as part of M-LIDS, and Army ammunition reporting describes M-LIDS as an XM914-equipped ground system.

Sources: U.S. Army Taps Leonardo DRS to Provide Additional M-LIDS Counter-UAS Platforms, NEED FOR SPEED

Sensors And Control

M-LIDS is a system of systems in which radar, command-and-control, and electronic attack cue the defeat layer.

Compatible itemItem typeCompatibility evidence
KuRFS radar, Counter-UAS and counter-RAM radar, Support EquipmentKuRFS radarCounter-UAS radar family

RTX says LIDS uses KuRFS and its mobile Ku720 option for detection, while SRC and Army reporting place KuMRFS-M or radar acquisition inside the M-LIDS architecture.

Sources: Meet the US Army's LIDS: A sure shot against drones, LIDS Family of Systems Brochure, Mastering the skies: First Army advances counter-UAS training

Timeline

Mobile LIDS (M-LIDS) Key Events

  1. Increment 2 becomes a program of record

    Leonardo DRS said the Army identified M-LIDS Increment 2 as an ACAT III program of record and directed accelerated deliveries.

    Sources: U.S. Army Taps Leonardo DRS to Provide Additional M-LIDS Counter-UAS Platforms

  2. USARCENT trains deploying units

    Army Central described M-LIDS as a wheeled counter-UAS vehicle in Green Sands training for soldiers preparing to deploy into the CENTCOM region.

    Sources: USARCENT Trains Deploying Soldiers in counter-UAS

  3. Army details XM914 ammunition work

    DEVCOM AC described M-LIDS as one of the ground systems that needed a compatible 30 mm anti-drone round for the XM914 chain gun.

    Sources: NEED FOR SPEED

  4. CENTCOM Citadel profiles mobile system

    CENTCOM Citadel described M-LIDS as a two-M-ATV mobile counter-drone system with sensors, FAAD C2, Coyote interceptors, CUAEWS, and a 30 mm XM914 chain gun.

    Sources: M-LIDS provides US Army with mobile protection from drones

  5. First Army advances counter-UAS training

    First Army described M-LIDS as a dual-vehicle solution with radar acquisition and electromagnetic warfare capabilities during counter-UAS training at McGregor Range.

    Sources: Mastering the skies: First Army advances counter-UAS training

Media

Mobile LIDS (M-LIDS) Videos

Mobile LIDS (M-LIDS) Images

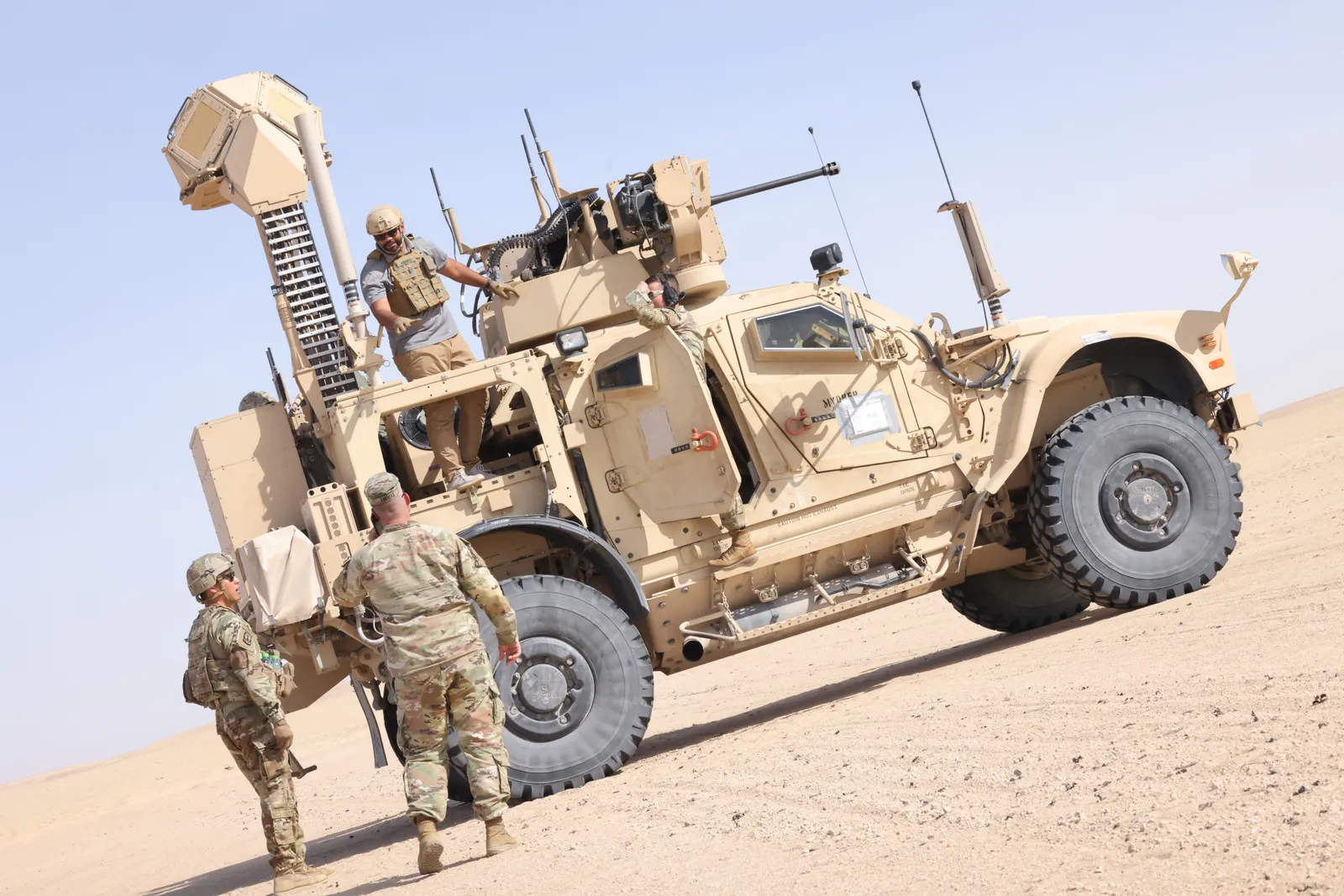

Mobile LIDS (M-LIDS), Mobile counter-UAS system, Air Defense - view 1
Source: M-LIDS live-fire image
Related Weapon Systems
Fixed Site LIDS (FS-LIDS), Fixed-site counter-UAS system, Air DefenseAir DefenseFixed Site LIDS (FS-LIDS)Fixed-site counter-UAS systemFixed Site LIDS (FS-LIDS) is the U.S. Army's fixed-site Low, Slow, Small Unmanned Aircraft System Integrated Defeat System, built to protect bases and other static sites from small drones. Official SRC, RTX, Army, and U.S. arms-sale reporting describe it as a layered counter-UAS architecture that combines radar and EO/IR sensors, FAAD C2 command-and-control, electronic-warfare defeat, fixed Coyote launchers, and Coyote Block 2 interceptors.
MH-60L Direct Action Penetrator, Special operations gunship helicopter, Aircraft & UAVsAircraft & UAVsMH-60L Direct Action PenetratorSpecial operations gunship helicopterThe MH-60L Direct Action Penetrator is a 160th Special Operations Aviation Regiment gunship conversion of the UH-60L/MH-60 Black Hawk, trading troop-carrying capacity for modular cannons, rockets, guided missiles, sensors, and night-raid support. Venezuela conflict reporting documents DAP Black Hawks in U.S. special operations use, while also noting that current operational DAPs are MH-60M airframes derived from the same mission configuration.
Mobile Autonomous Launcher, Single-vehicle land launcher that carries two or three canisterised BrahMos missiles, Support EquipmentSupport EquipmentMobile Autonomous LauncherSingle-vehicle land launcher that carries two or three canisterised BrahMos missilesThe Mobile Autonomous Launcher is BrahMos Aerospace's road-mobile land launcher for the BrahMos missile family. It is built on a high-mobility 12x12 carrier, carries two or three canisterised missiles depending on configuration, and combines protected crew space, fire control, command, control, communications, and power systems for single or salvo launch from one vehicle.
