Armored Vehicles

FV430 Bulldog

Also known as
  • FV432 Bulldog
  • FV430 Mk3 Bulldog
  • FV432 Mk3 Bulldog
  • FV432 Mark 3 Bulldog
  • Bulldog 2

The FV430 Bulldog is the upgraded Mark 3 form of Britain's FV432 tracked armored personnel carrier, rebuilt with a diesel powerpack, automatic transmission, and additional protection after the Iraq War exposed the limits of older APC fleets. British forces fielded upgraded Bulldogs in Iraq, and the same family later appeared in UK military aid and Ukrainian front-line evacuation work during the 2014 Russia-Ukraine War.

FV430 Bulldog, Tracked armored personnel carrier, Armored Vehicles

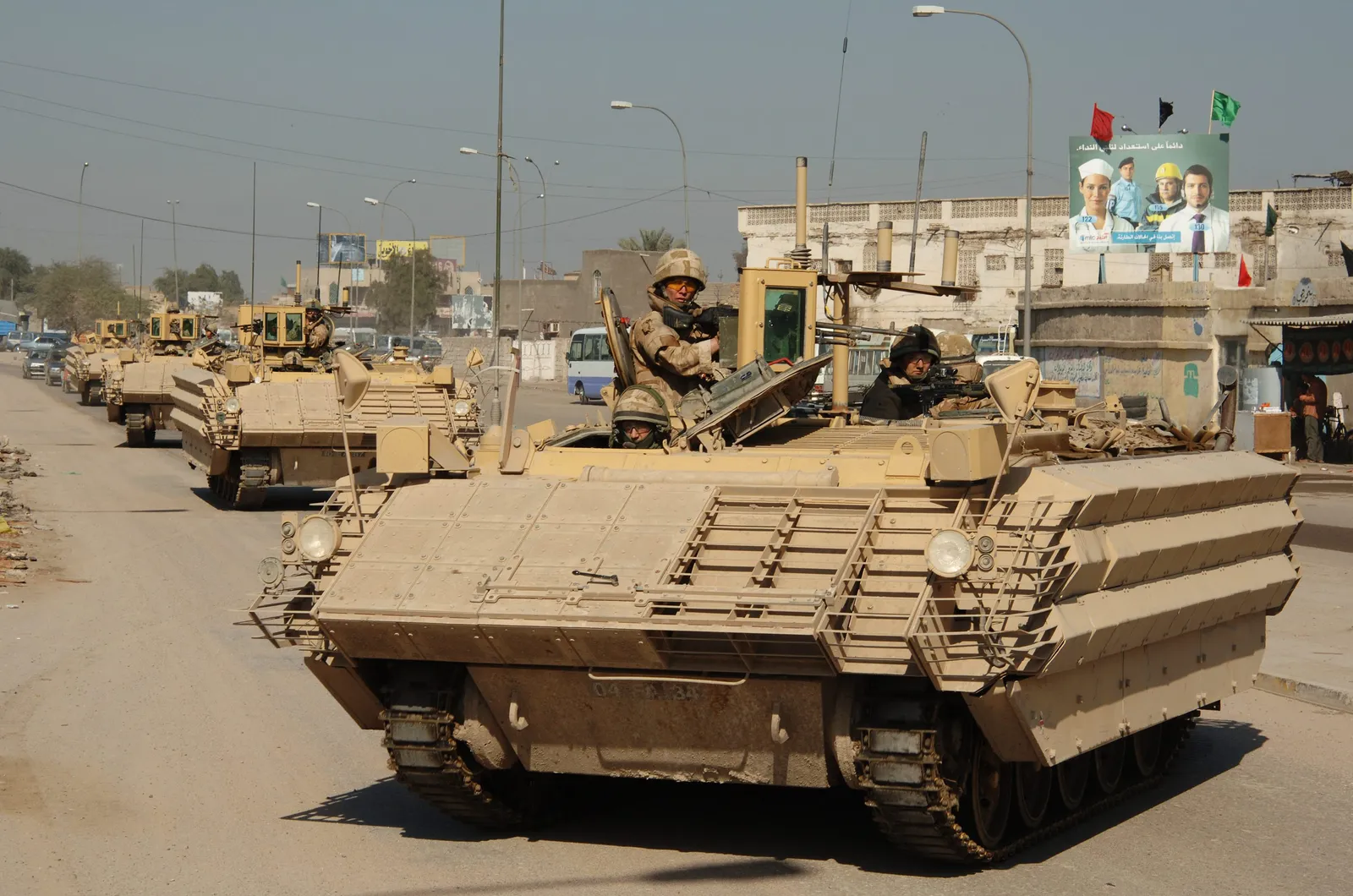

Image source: The first delivery of the upgraded FV430 Mk3 Bulldog vehicles MOD 45147088

Role in Conflicts

Profile / Specs

Profile

Origin
United Kingdom
Type
Tracked armored personnel carrier
Service note
FV430 family introduced in the 1960s; Bulldog applies to upgraded Mark 3 vehicles
Designer
GKN Sankey
Designed
FV432 family developed for British service in the early 1960s
Unit cost
Not publicly standardized for upgraded or donated vehicles
Produced
Original FV432 production in the 1960s and early 1970s; Bulldog Mark 3 upgrades entered service from 2006-2007
Number built
Bulldog conversions were upgrade programs rather than new-build vehicles; a 2025 UK parliamentary answer listed 750 FV430 Bulldog series vehicles distributed to Army units

Specifications

Crew and passengers
Two crew members and up to ten passengers
Armament
7.62 mm General Purpose Machine Gun; some upgraded vehicles fitted with turret or additional weapons depending on role
Mobility
Tracked armored personnel carrier with strong cross-country performance; Rheinmetall lists maximum range as 480 km
Speed
The Tank Museum lists 52.2 kph for its FV432 Mark 3 Bulldog 2 example
Weight
The Tank Museum lists 15.3 tonnes for its FV432 Mark 3 Bulldog 2 example
Powerpack
Bulldog Mark 3 upgrade fitted a six-cylinder diesel engine and automatic transmission
Protection
Upgraded Bulldog vehicles received additional armor and survivability improvements for Iraq-era service
Variants

Bulldog is the FV432 Mark 3 upgrade within the larger FV430 family; mission variants use the same tracked hull for command, ambulance, mortar, and support roles.

VariantConfigurationDesignation notes
FV430 Mk3 command vehicleCommand-post configuration

Rheinmetall lists command vehicles among Bulldog variants in service.

Sources: Bulldog - Armoured Personnel Carrier

FV430 Mk3 81 mm mortar carrierMortar carrier

Rheinmetall lists 81 mm mortar carriers among Bulldog variants in service.

Sources: Bulldog - Armoured Personnel Carrier

FV430 Mk3 ambulanceArmored casualty evacuation

Rheinmetall lists ambulance variants, and Ukrainian reporting later documented Bulldog-family vehicles adapted for front-line medical evacuation.

Sources: Bulldog - Armoured Personnel Carrier, Azov's 12th Brigade turns British Bulldog into armored battlefield guardian

FV430 Mk3 recovery vehicleRecovery support

Rheinmetall lists recovery vehicles among Bulldog variants in service.

Sources: Bulldog - Armoured Personnel Carrier

Carried Weapons

Rheinmetall lists the Bulldog with a 7.62 mm general-purpose machine gun and also describes Bulldog variants used as 81 mm mortar carriers.

Carried itemItem typeCarriage evidence
7.62 mm machine gun, Belt-fed general-purpose / vehicle-mounted 7.62 mm machine gun class, Infantry Weapons7.62 mm machine gunGeneral-purpose machine gun

Rheinmetall says the Bulldog is armed with a 7.62 mm General Purpose Machine Gun.

Sources: Bulldog - Armoured Personnel Carrier

81/82 mm mortar, 81/82 mm crew-served medium mortar, Artillery81/82 mm mortar81 mm mortar

Rheinmetall says Bulldog variants are in service as 81 mm mortar carriers; this relationship refers to the 81 mm branch of the 81/82 mm mortar family page.

Sources: Bulldog - Armoured Personnel Carrier

Timeline

FV430 Bulldog Key Events

  1. FV432 family enters British service

    The Tank Museum places the FV432/FV430 family in British service from the 1960s, before the later Bulldog upgrade program.

    Sources: Bulldog

  2. Upgraded Bulldogs reach Basra units

    MOD imagery records first delivery of upgraded FV430 Mk3 Bulldog vehicles to British units at Basra Palace during Operation Telic.

    Sources: The first delivery of the upgraded FV430 Mk3 Bulldog vehicles MOD 45147088

  3. Up-armored Bulldog reported in Iraq

    Defense Update reported British forces in Iraq fielding the up-armored FV430 Mk3 Bulldog as a protected vehicle upgrade.

    Sources: British Forces in Iraq Field an Up-Armored Bulldog

  4. UK names Bulldog in Ukraine package

    The UK Defence Secretary named Bulldog among additional armored and protected vehicles being sent to Ukraine.

    Sources: Defence Secretary oral statement on war in Ukraine

  5. Ukrainian medical-evacuation adaptation reported

    Euromaidan Press reported Azov's 12th Brigade adapting a British Bulldog-family APC for front-line casualty evacuation.

    Sources: Azov's 12th Brigade turns British Bulldog into armored battlefield guardian

Upgrade And Service Context

Bulldog is best read as an FV432 life-extension and survivability upgrade rather than a clean-sheet APC. Sources connect the same upgraded hull family to Iraq-era protected mobility, later British inventory management, and Ukrainian battlefield evacuation work.

AreaSourced detailReader context
Upgrade packageThe Tank Museum identifies Bulldog as the FV432 Mark 3 upgrade with a six-cylinder diesel engine, automatic transmission, and additional armor.The name marks a rebuilt FV432/FV430-family vehicle, not a separate new-build armored vehicle family.
Iraq serviceMOD image metadata records upgraded FV430 Mk3 Bulldogs delivered to British units at Basra Palace, and Defense Update described British forces fielding the up-armored Bulldog in Iraq.This provides direct conflict-use support for 2003 Iraq War coverage.
Ukraine serviceThe UK named Bulldog in a 2023 armored-vehicle package for Ukraine, and later reporting documented a Bulldog-family APC adapted for front-line casualty evacuation.The conflict role is protected mobility and medical evacuation rather than a new infantry fighting vehicle role.

Source-backed context from The Tank Museum, MOD/Wikimedia Commons metadata, Defense Update, UK MOD, and Euromaidan Press.

Media

FV430 Bulldog Videos

FV430 Bulldog Images

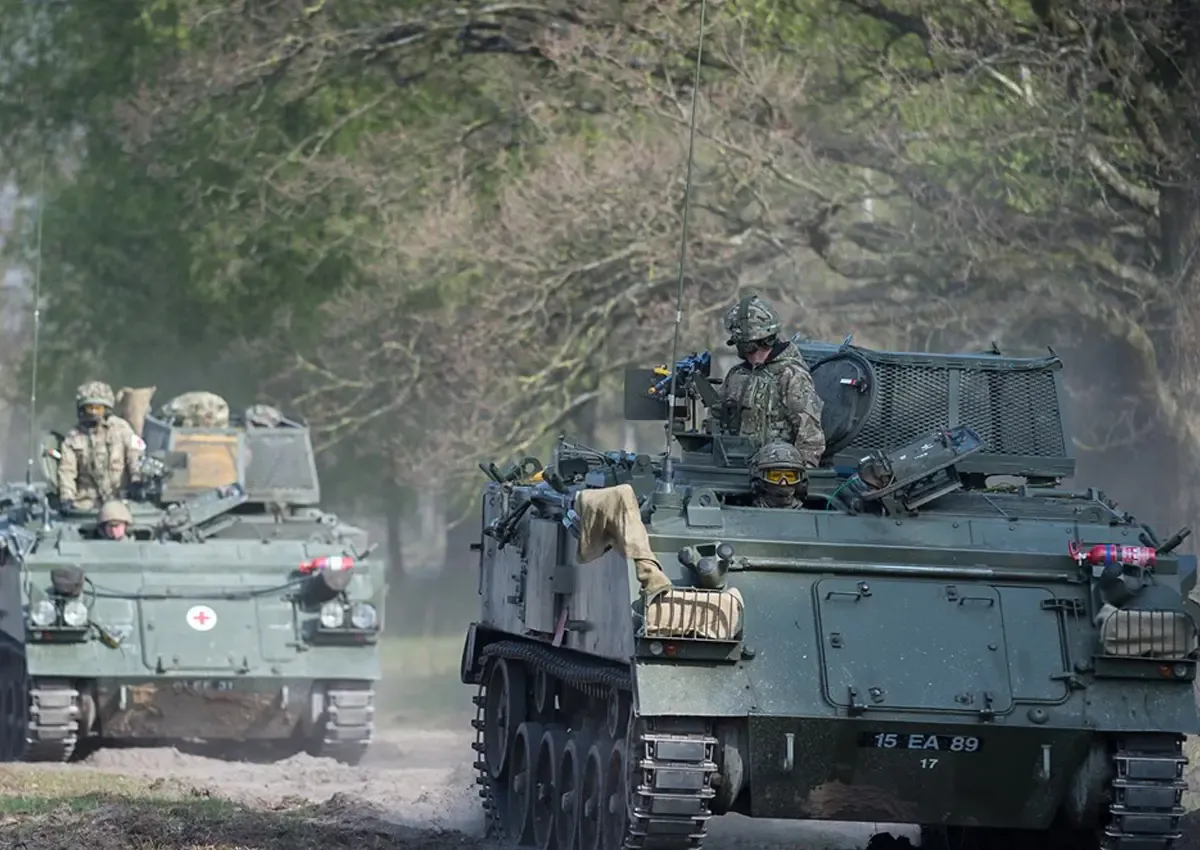

FV430 Bulldog, Tracked armored personnel carrier, Armored Vehicles - view 1
Source: Bulldog FV430.webp
