Support Equipment

FV434

Also known as
  • Carrier Maintenance Full Tracked
  • FV434 Carrier, Maintenance, Full Tracked
  • FV434 armoured repair vehicle
  • FV434 armoured repair and recovery vehicle
  • FV434 ARV
  • FV434 fitters vehicle

The FV434 is the repair and recovery member of Britain's FV430 tracked armored vehicle family, built around a protected maintenance carrier rather than a troop-carrier role. Its crane, fitters' workspace, and common FV430 automotive base made it useful for field maintenance, and Ukrainian volunteer networks later sourced small numbers from the United Kingdom for battlefield repair support in the 2014 Russia-Ukraine War.

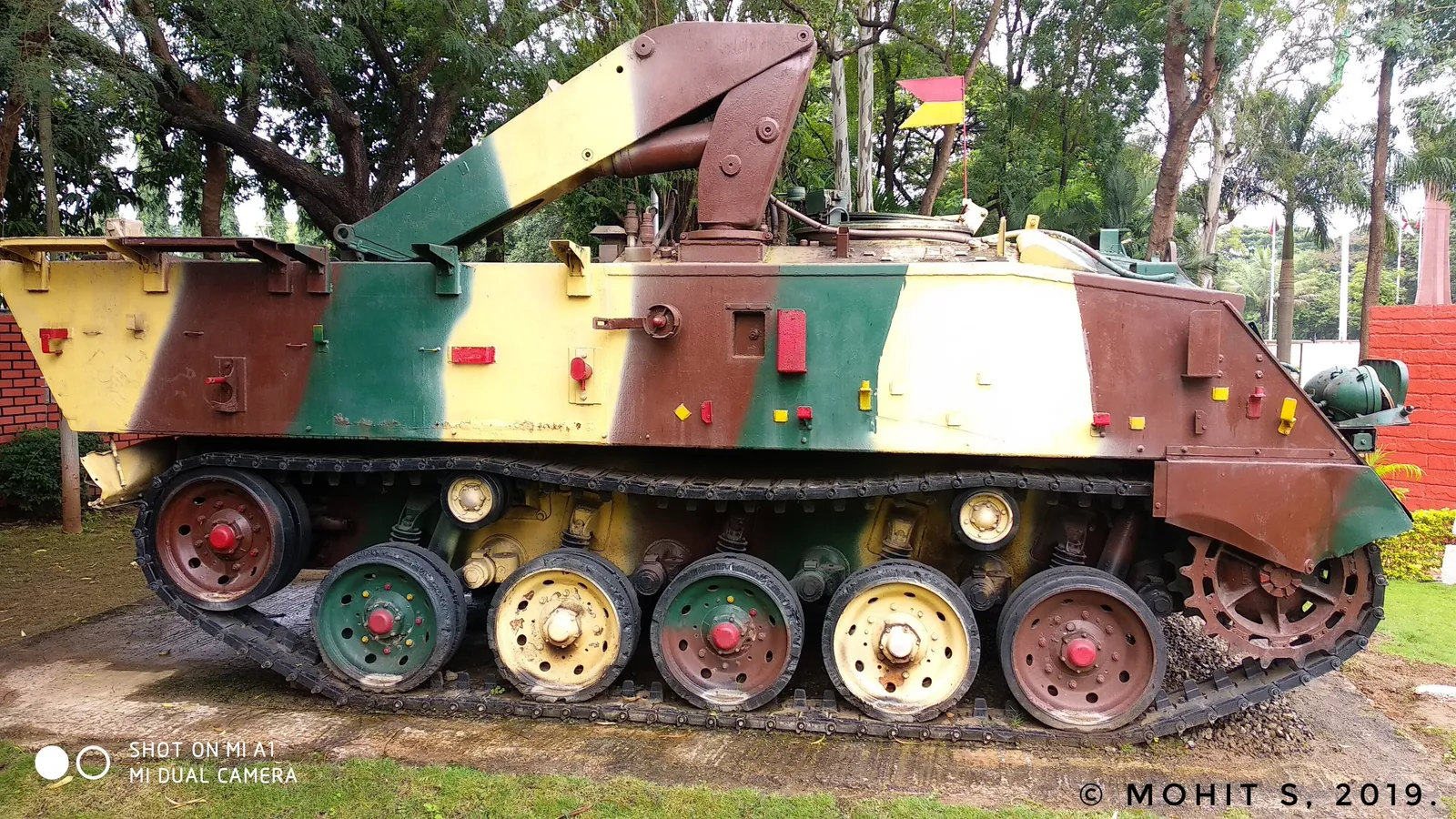

FV434, Tracked armored repair and recovery vehicle, Support Equipment
Image source: FV434 Armoured Repair Recovery Vehicle 49141087136

Role in Conflicts

Profile / Specs

Profile

Origin
United Kingdom
Built by
GKN Sankey
Type
Tracked armored repair and recovery vehicle
Service note
FV430-family support vehicle introduced in the 1960s and later transferred in small numbers to Ukraine
Designer
GKN Sankey
Designed
FV430 family developed for British service in the early 1960s
Produced
FV430-family production ran through the 1960s and early 1970s; FV434 vehicles were later retained, sold as surplus, and transferred in small batches

Specifications

Crew
Four: commander, driver, and two fitters
Primary role
Armored maintenance carrier for repairing disabled and damaged vehicles, with limited recovery capability
Crane
Hydraulically assisted crane generally described as a 3-ton class lift for field maintenance tasks
Armament
7.62 mm L7 general-purpose machine gun and smoke dischargers in standard public descriptions
Weight
About 17.5 tonnes in public reference data
Dimensions
Approximately 5.88 m long, 2.8 m wide, and 2.77 m high in public reference data
Engine
Rolls-Royce K60 multi-fuel engine, commonly listed at 240 hp
Mobility
Tracked torsion-bar suspension; public reference data lists about 47 km/h road speed and roughly 483 km range
Repair Vehicle Role

The FV434 is a support vehicle for keeping other armored vehicles moving, not a front-line fire-support platform. Its public descriptions consistently center on a hydraulically assisted crane, rear work area, and fitters' equipment for power-pack and field-repair work.

Maintenance task

Repair of disabled or damaged armored vehicles, including work on FV430-family power packs where sources identify that capability.

Recovery limit

Sources describe limited recovery capability; the vehicle is better understood as an armored maintenance carrier than a heavy recovery vehicle.

Ukraine evidence

Open reporting documents small delivered batches to Ukrainian units, but does not identify every vehicle's subsequent repair task or battlefield location.

Variants

FV434 is a mission variant within the FV430 family rather than a separate clean-sheet vehicle family.

VariantConfigurationDesignation notes
FV430 Bulldog, Tracked armored personnel carrier, Armored VehiclesFV430 BulldogUpgraded FV430-family armored personnel carrier

The Bulldog page covers upgraded FV432/FV430-family personnel carriers; FV434 uses the same family context for a maintenance and recovery mission.

Sources: UK FV numbers FOI list, Wikimedia Commons FV434 category

FV434 Mk 1Original maintenance-carrier configuration

Manual listings and FV number records preserve the maintenance-carrier designation; public sources do not provide enough standardized variant detail for a fuller mark-by-mark table.

Sources: UK FV numbers FOI list, FV430 manuals listing

FV434 Mk 1/1 BowmanBowman communications-era configuration

A public FV430 manuals index lists FV434 Mk 1 and Mk 1/1 Bowman operating and technical-description manuals.

Sources: FV430 manuals listing

FV430 Family Context

The FV434 is cataloged separately because its main function is protected field maintenance, but its identity is tied to the wider FV430 tracked-vehicle family.

Compatible itemItem typeCompatibility evidence
FV430 Bulldog, Tracked armored personnel carrier, Armored VehiclesFV430 BulldogRelated FV430-family armored vehicle

The UK FV-number list places FV432 and FV434 in the same full-tracked carrier sequence, while the FV434's support role is documented as a maintenance carrier rather than a troop carrier.

Sources: UK FV numbers FOI list, FV434 Armoured Repair Vehicle

Timeline

FV434 Key Events

  1. FV430-family maintenance carrier enters the British support fleet

    Museum and reference sources place the FV434 in the FV430 family used by REME for armored repair and recovery work from the 1960s.

    Sources: REME Corps History, FV434 Armoured Repair Vehicle

  2. UK FV-number list confirms the official designation

    A UK government FOI annex lists FV434 as Carrier, Maintenance, Full Tracked.

    Sources: UK FV numbers FOI list

  3. Volunteer purchase for Azov reported

    Gagadget reported that Azov Brigade was to receive 15 FV432 tracked APCs and two FV434 armored repair vehicles bought through volunteer fundraising and Prytula Foundation delivery support.

    Sources: Volunteers buy 17 armoured vehicles for Azov in the UK

  4. FV434 vehicles delivered to Azov Brigade

    Army Recognition reported delivery of two FV434 armored repair and recovery vehicles with 15 FV432 APCs to the 12th Special Forces Brigade Azov.

    Sources: Delivery of FV 432 and FV 434 Armored Vehicles to Ukrainian Forces

Media

FV434 Images

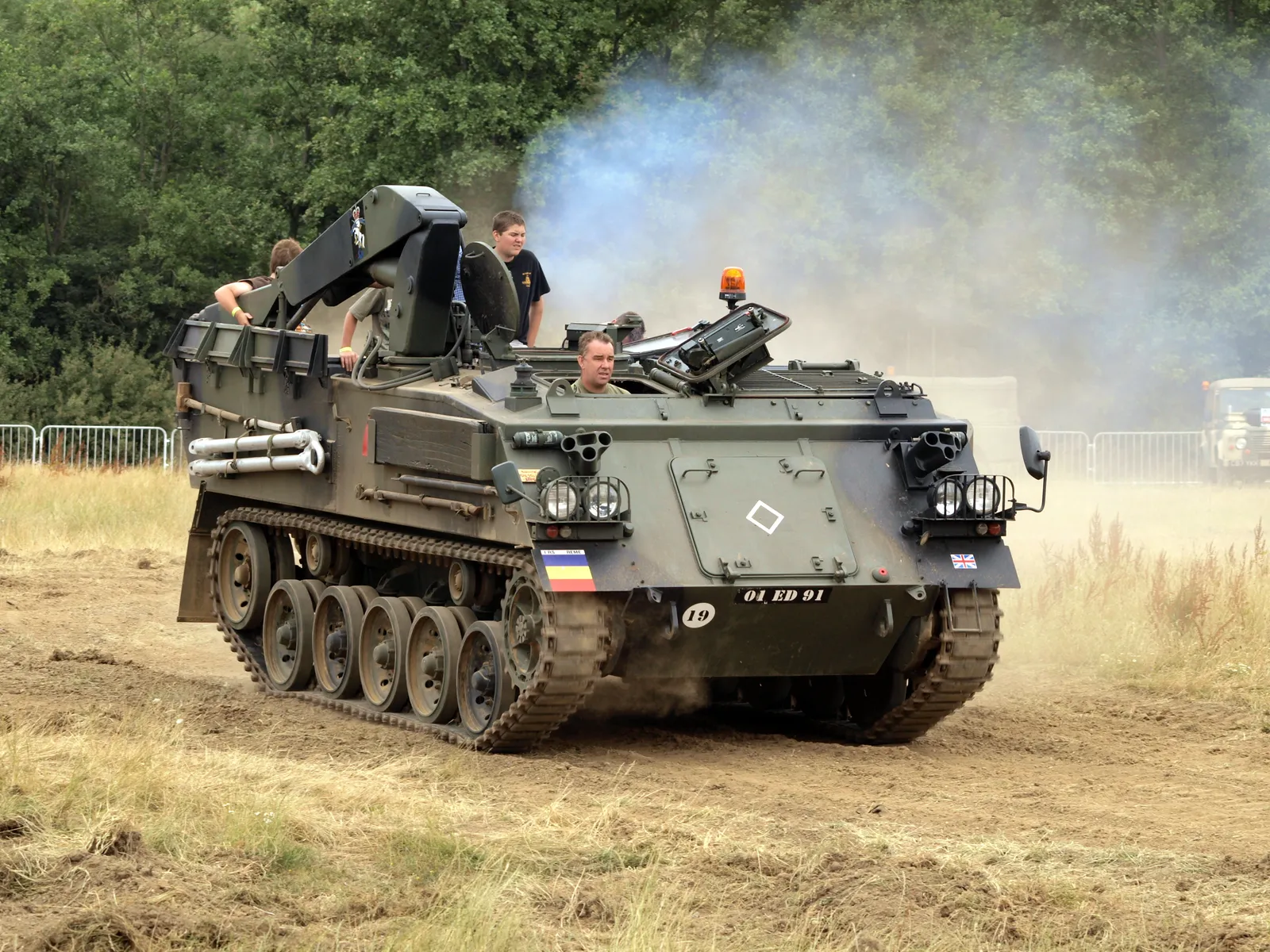

FV434, Tracked armored repair and recovery vehicle, Support Equipment - view 1
Source: FV434 fitters vehicle pic-004
