Tanks

FV101 Scorpion light tank

Also known as
  • FV101
  • FV101 Scorpion
  • Scorpion CVR(T)
  • CVR(T) Scorpion
  • Alvis Scorpion
  • Scorpion light tank
  • Scorpion 90
  • Scorpion 2

The FV101 Scorpion is a British CVR(T) light tank and reconnaissance vehicle built by Alvis around a 76 mm gun, high road speed, and a light aluminum hull. The catalog record covers Iranian Scorpion-family use in the Iran-Iraq War, British FV101 Scorpion use in the 1982 Falklands War and 1990 Gulf War, and later Boko Haram possession in the Lake Chad basin.

FV101 Scorpion light tank, Tracked light tank / reconnaissance vehicle, Tanks

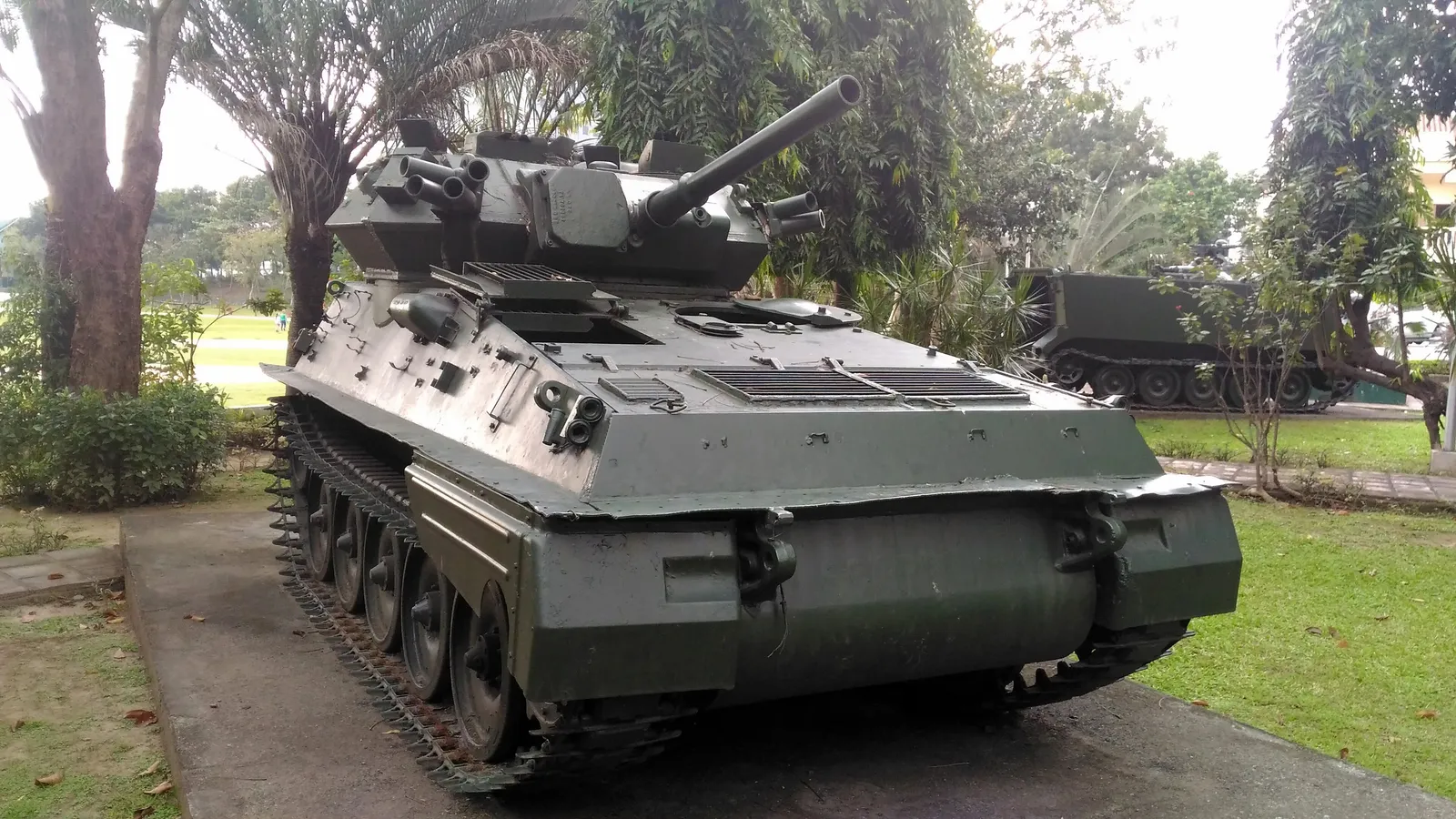

Image source: FV101 Scorpion Light Tank.jpg

Role in Conflicts

Profile / Specs

Profile

Origin
United Kingdom
Built by
Alvis
Type
Tracked light tank / reconnaissance vehicle
Service note
Introduced in 1973; combat use documented from the Iran-Iraq War through British 1982 and 1991 deployments; captured examples documented in the Lake Chad basin conflict after 2015
Designer
Alvis Vehicles
Designed
1960s
Produced
FV101 production began in 1972; Scorpion 90 export production continued into the 1990s
Number built
More than 3,000 CVR(T) Scorpion vehicles reported by museum sources

Specifications

Crew
3
Armament
76 mm L23A1 low-velocity gun with coaxial 7.62 mm machine gun
Weight
About 8,073 kg
Mobility
Tracked torsion-bar suspension; later dieselized examples used a Cummins BTA 5.9-litre diesel rated at about 190 hp with road speed over 50 mph
Protection
Light aluminum armor; FAS lists an average armor thickness of about 25 mm
Length
4.79 m hull length
Manufacturer
Alvis
Gun family
L23/L23A1 76 mm gun family with fixed ammunition compatibility inherited from the L5A1
Variants

Scorpion designations separate the original 76 mm FV101 from export and upgrade configurations built around larger guns or modernized hulls.

VariantConfigurationDesignation notes
FV101 ScorpionBaseline 76 mm CVR(T) fire-support and reconnaissance vehicle

The baseline vehicle used the 76 mm L23A1 gun in a compact Alvis turret and was accepted into British service in the early 1970s.

Sources: 76 mm L23A1 Gun - Think Defence, CVRT Scorpion FV101

Scorpion 90Export up-gunned variant

Army Recognition identifies Scorpion 90 as a variant replacing the original 76 mm gun with a 90 mm main gun.

Sources: Army Recognition FV101 Scorpion CVRT

Compatible Ammunition

Nexter's 2016 catalog lists several 76 mm ammunition types usable with the Scorpion's L23 family guns.

Compatible itemItem typeCompatibility evidence
76mm Canister M333, 76 mm canister round, Munitions76mm Canister M33376 mm canister round

Nexter explicitly lists the 76mm Canister M333 for use in the FV101 Scorpion's L23 and L23A1 guns against personnel at close quarters.

Sources: Nexter 2016 Catalog

76mm HE-T M330, 76 mm high-explosive tracer round, Munitions76mm HE-T M33076 mm high-explosive tracer round

Nexter lists this 76 mm round for use in the FV101 Scorpion light tank's L23/23A1 guns.

Sources: Nexter 2016 Catalog

76mm HEP-T M329, 76 mm fixed HESH-T / HEP-T tank-gun round, Munitions76mm HEP-T M32976 mm HESH-T round

Nexter lists this 76 mm round for use in the FV101 Scorpion light tank's L23/23A1 guns, and Think Defence ties the Scorpion to the same interchangeable 76 mm gun family.

Sources: Nexter 2016 Catalog, 76 mm L23A1 Gun - Think Defence

76mm HEP-TP-T M331, 76 mm fixed HESH-TP-T training round, Munitions76mm HEP-TP-T M33176 mm training round

Nexter lists this 76 mm training round for use in the FV101 Scorpion light tank's L23/23A1 guns.

Sources: Nexter 2016 Catalog

76mm Blank M335, 76 mm fixed blank cartridge, Munitions76mm Blank M33576 mm blank cartridge

Nexter lists this 76 mm blank cartridge for use in the FV101 Scorpion light tank's L23/23A1 guns.

Sources: Nexter 2016 Catalog

76mm SMK-T M337, 76 mm fixed smoke round, Munitions76mm SMK-T M33776 mm smoke round

Nexter lists this 76 mm smoke round for use in the FV101 Scorpion light tank's L23/23A1 guns.

Sources: Nexter 2016 Catalog

Carried Ammunition

Catalog references place the Scorpion alongside 76 mm ammunition options for its L23 family gun.

Carried itemItem typeCarriage evidence
76mm HEP-T M329, 76 mm fixed HESH-T / HEP-T tank-gun round, Munitions76mm HEP-T M32976 mm high-explosive plastic projectile

Nexter lists M329 for the L23 and L23A1 ammunition family used on the Scorpion, and Think Defence identifies the Scorpion as the platform for that interchangeable 76 mm gun family.

Sources: Nexter 2016 Catalog, 76 mm L23A1 Gun - Think Defence

Timeline

FV101 Scorpion light tank Key Events

  1. Accepted for British service

    Reference sources place Scorpion acceptance for British Army service in May 1970 after CVR(T) trials.

    Sources: Tank-AFV FV101 Scorpion

  2. FV101 production begins

    Tank-AFV places the first production Scorpions coming off the line in early 1972 before British unit fielding.

    Sources: Tank-AFV FV101 Scorpion

  3. First British operational units equipped

    The Scorpion entered British service in 1973 with armoured reconnaissance units.

    Sources: CVRT Scorpion FV101, Army Recognition FV101 Scorpion CVRT

  4. Falklands War fire-support employment

    IWM documents B Squadron FV101 Scorpions in the Falklands and describes them as among the only British armored vehicles used during the campaign.

    Sources: IWM Falklands photographs

  5. Operation Granby reconnaissance service

    British Scorpion units operated in the 1990 Gulf War as light armored reconnaissance and fire-support vehicles.

    Sources: British Army Gulf War Special Report, RAF Museum Alvis Scorpion

  6. British front-line withdrawal

    Think Defence places front-line British Army withdrawal of the 76 mm Scorpion around 1994, while export and foreign-service vehicles continued.

    Sources: 76 mm L23A1 Gun - Think Defence

Media

FV101 Scorpion light tank Videos

FV101 Scorpion light tank Images

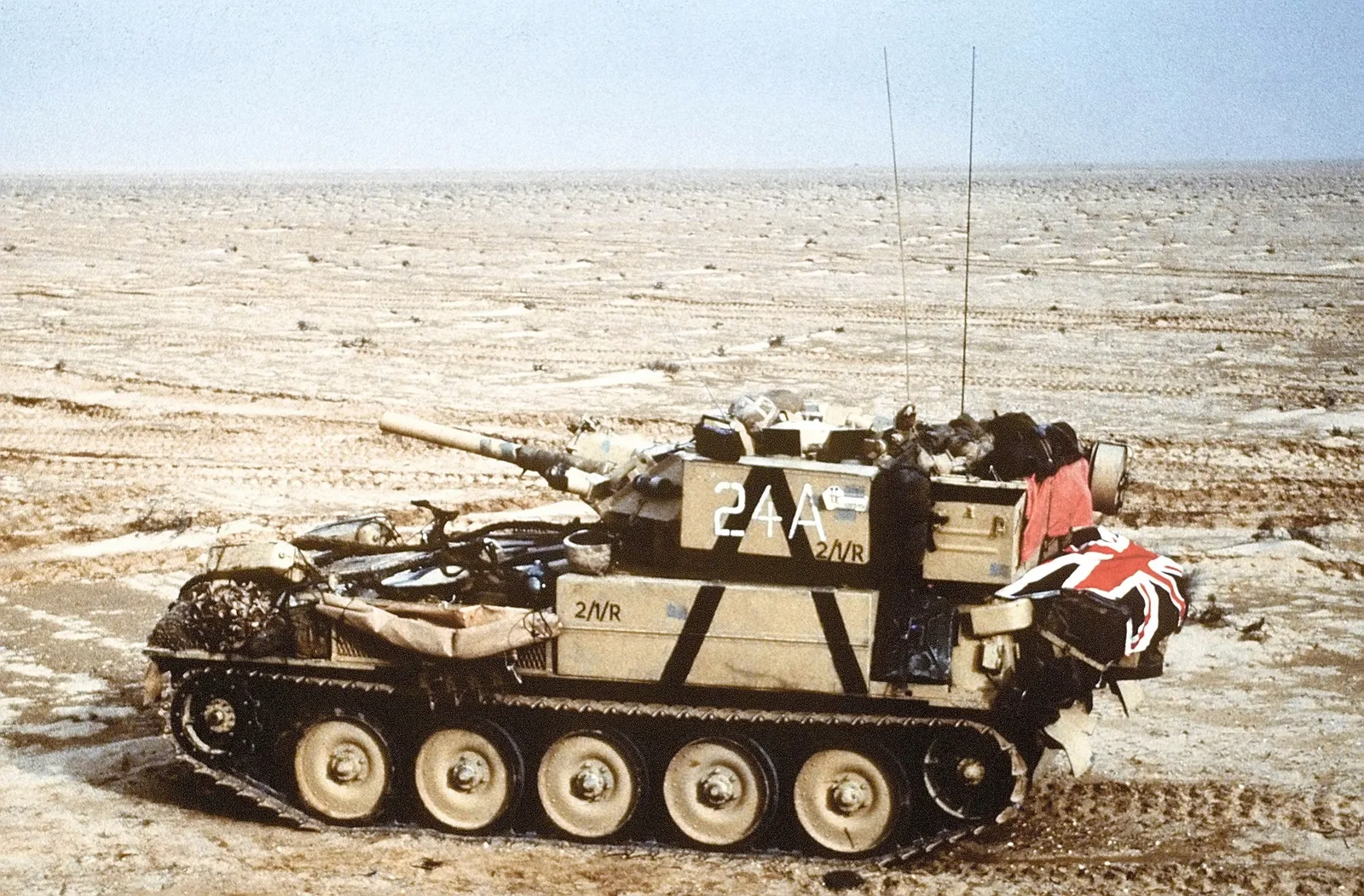

FV101 Scorpion light tank, Tracked light tank / reconnaissance vehicle, Tanks - view 1
Source: FV101 Scorpion Iraq 1991.jpg

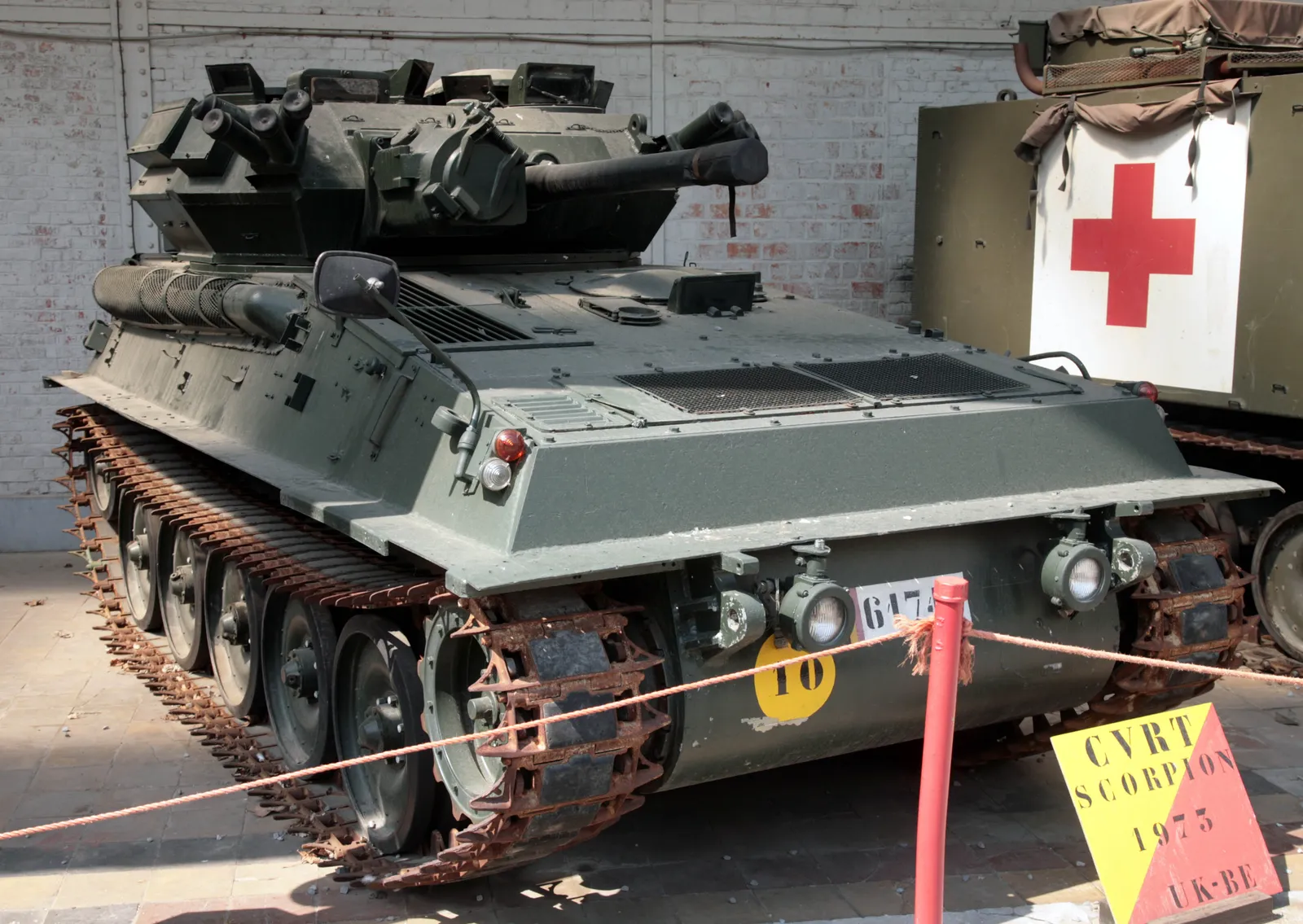

FV101 Scorpion light tank, Tracked light tank / reconnaissance vehicle, Tanks - view 2
Source: FV101 Scorpion Megapixie.jpg

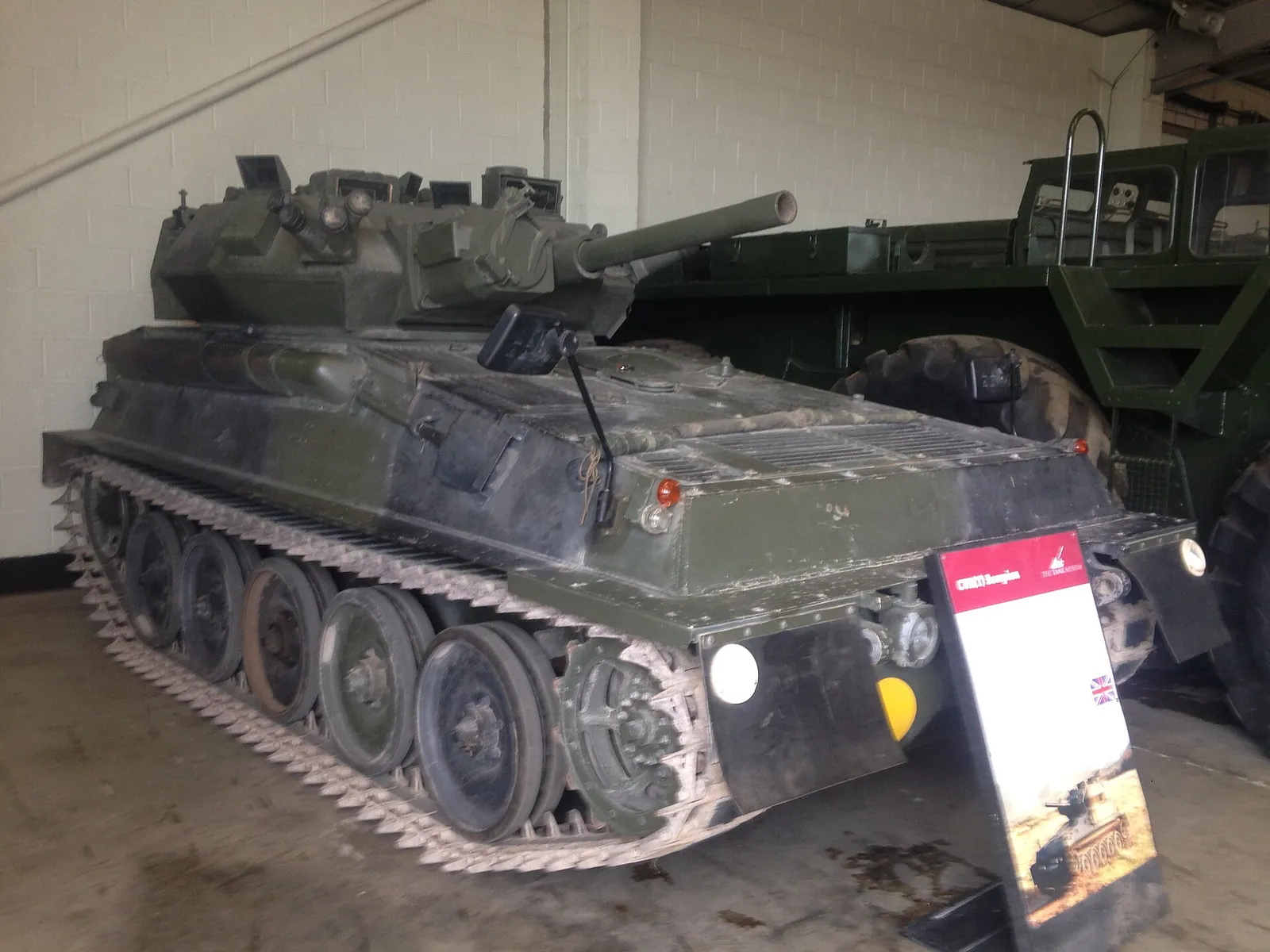

FV101 Scorpion light tank, Tracked light tank / reconnaissance vehicle, Tanks - view 3
Source: CVR(T) FV101 Scorpion.jpg
