76 mm L23A1 gun

Also known as

L23A1

The 76 mm L23A1 gun is a British low-velocity rifled tank gun developed by Royal Ordnance for the FV101 Scorpion and related CVR(T) fire-support vehicles. It was designed as a lighter derivative of the L5A1 with interchangeable fixed ammunition, hydropneumatic recoil, and a practical rate of fire of six rounds per minute.

76 mm L23A1 gun, 76 mm low-velocity tank gun, Artillery

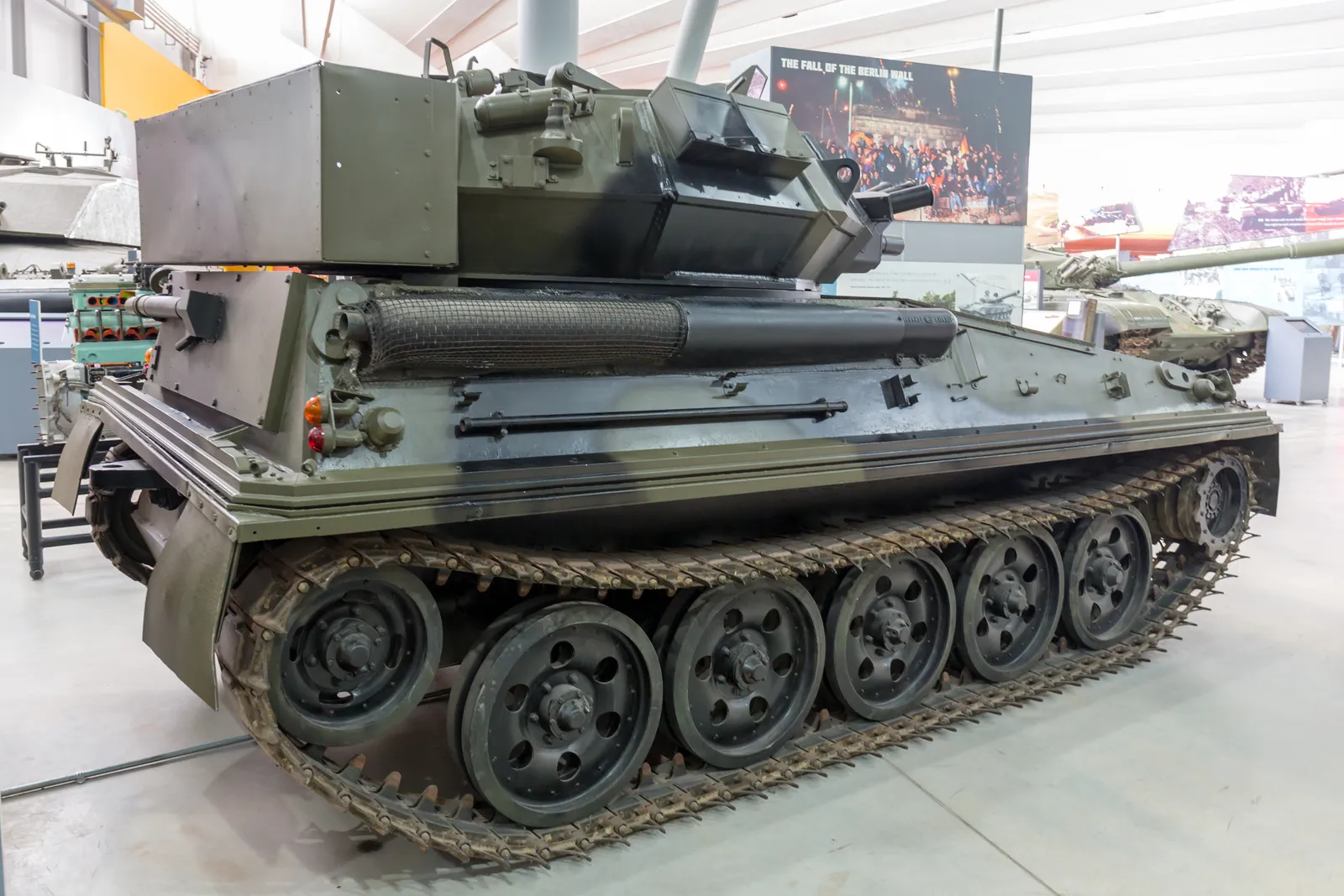

Image source: FV101 Scorpion rear-right 2017 Bovington.jpg

Profile / Specs

Profile

Origin: United Kingdom
Built by: Royal Ordnance
Type: 76 mm low-velocity tank gun
Service note: Cold War-era CVR(T) fire-support gun
Designed: 1960s
Produced: 1970s-1990s

Specifications

Calibre: 76.2 mm
Barrel length: 2,062 mm
Overall length: 2,157 mm
Weight: 150.59 kg
Recoil system: Hydropneumatic, concentric, with external replenisher
Rate of fire: 6 rounds per minute
Maximum direct-fire range: 2,200 m

Ammunition Fired

The L23A1 was developed to stay compatible with fixed 76 mm ammunition in the Scorpion family.

Ammunition

Ammunition type

Firing evidence

76mm HEP-T M329, 76 mm high-explosive plastic projectile for the L5/L23 gun family, Munitions

76mm HEP-T M329

76 mm projectile

Chemring lists M329 for the L23/23A1 gun family, and Think Defence describes the L23A1 as a lighter derivative of the L5A1 with preserved ammunition interchangeability.

Sources: Chemring Munitions Catalog, Think Defence

Service And Conflict Use

Service History

In service: Installed in the FV101 Scorpion and related CVR(T) fire-support vehicles; withdrawn from British Army service around 1994.

Media

76 mm L23A1 gun Images

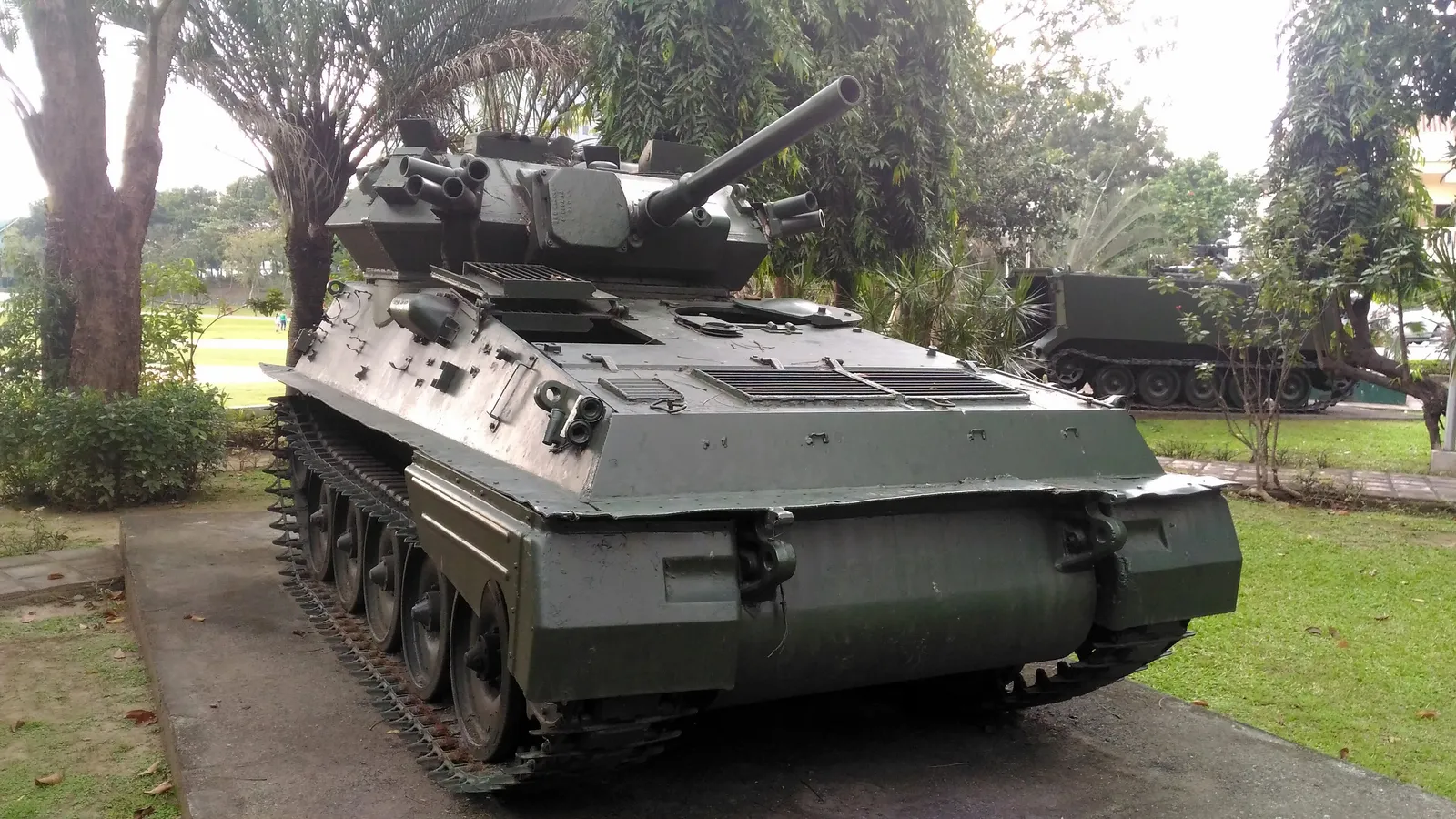

76 mm L23A1 gun, 76 mm low-velocity tank gun, Artillery - view 1 — Source: FV101 Scorpion Light Tank.jpg

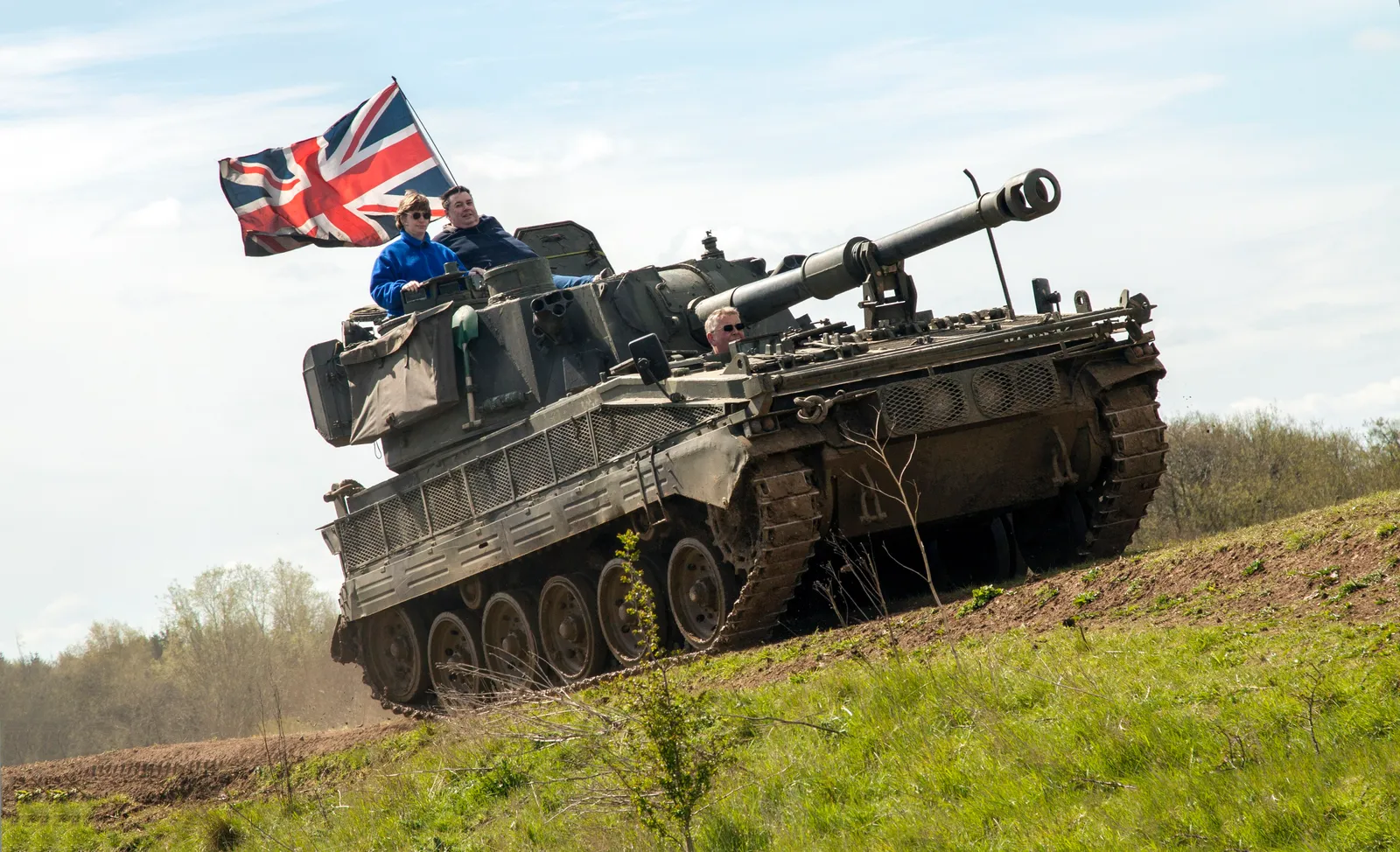

76 mm L23A1 gun, 76 mm low-velocity tank gun, Artillery - view 2 — Source: FV101 Scorpion tank - Abingdon Air & Country Show 2016.jpg

Related Weapon Systems

105 mm field guns, 105 mm towed field gun / howitzer class, Artillery

Artillery105 mm field guns105 mm towed field gun / howitzer classThe 105 mm field guns entry covers the model-unspecified 105 mm artillery used by Philippine government forces during the Battle of Marawi. Reliable Marawi studies describe Filipino gunners employing 105 mm guns in direct fire against reinforced concrete positions, an improvised urban fire-support role that helped infantry assaults when shoulder-fired breaching options were limited.

76 mm L5A1 gun, 76 mm rifled tank gun, Artillery

Artillery76 mm L5A1 gun76 mm rifled tank gunThe 76 mm L5A1 gun is a British low-pressure rifled tank gun developed by the Armament Design Establishment for the FV601 Saladin and later documented by Royal Ordnance as the vehicle's main armament. Saladin references describe a vertical sliding breech block, hydro-spring recoil mechanism, and a 76 mm ammunition family that includes HESH, HE, canister, smoke, and illuminating rounds.

120 mm high-explosive anti-tank ammunition, 120 mm high-explosive anti-tank ammunition for rifled gun-mortars, Munitions

Munitions120 mm high-explosive anti-tank ammunition120 mm high-explosive anti-tank ammunition for rifled gun-mortars120 mm high-explosive anti-tank ammunition is the direct-fire anti-armor round family used by rifled 120 mm gun-mortars such as the 2S23 Nona-SVK's 2A60 weapon. Forecast International identifies the 2A60 as firing HEAT ammunition for direct-fire applications, placing this round class within the Nona family's mixed mortar and gun role.

3BK19 high-explosive anti-tank round, 120 mm HEAT-FS-T projectile, Munitions

Munitions3BK19 high-explosive anti-tank round120 mm HEAT-FS-T projectileThe 3BK19 is a Soviet-developed 120 mm HEAT-FS-T projectile used in the 3VBK14 semi-fixed round for direct-fire anti-armor engagements. Fenix identifies it as a steel-bodied, fin-stabilised tracer projectile, while VPK and Tank Encyclopedia connect it to the 2S9 and 2S23 Nona families.

AML-90 armored car, 4x4 reconnaissance armored car with 90 mm gun, Armored Vehicles

Armored VehiclesAML-90 armored car4x4 reconnaissance armored car with 90 mm gunThe AML-90 is a French Panhard 4x4 armored reconnaissance car armed with a 90 mm low-pressure gun. Oryx documents AML-90 armored cars in Yemen's pre-war army inventory, making this entry public only for the Yemen Civil War conflict-use evidence currently sourced.

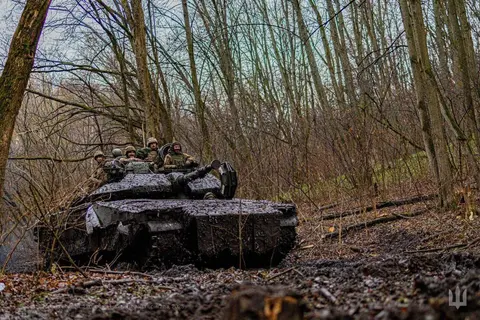

CV90, Tracked infantry fighting vehicle, Armored Vehicles
