76 mm L5A1 gun

Also known as
  • Ordnance QF 76 mm L5A1
  • 76 mm gun L5A1
  • L5A1

The 76 mm L5A1 gun is a British low-pressure rifled tank gun developed by the Armament Design Establishment for the FV601 Saladin and later documented by Royal Ordnance as the vehicle's main armament. Saladin references describe a vertical sliding breech block, hydro-spring recoil mechanism, and a 76 mm ammunition family that includes HESH, HE, canister, smoke, and illuminating rounds.

76 mm L5A1 gun, 76 mm rifled tank gun, Artillery

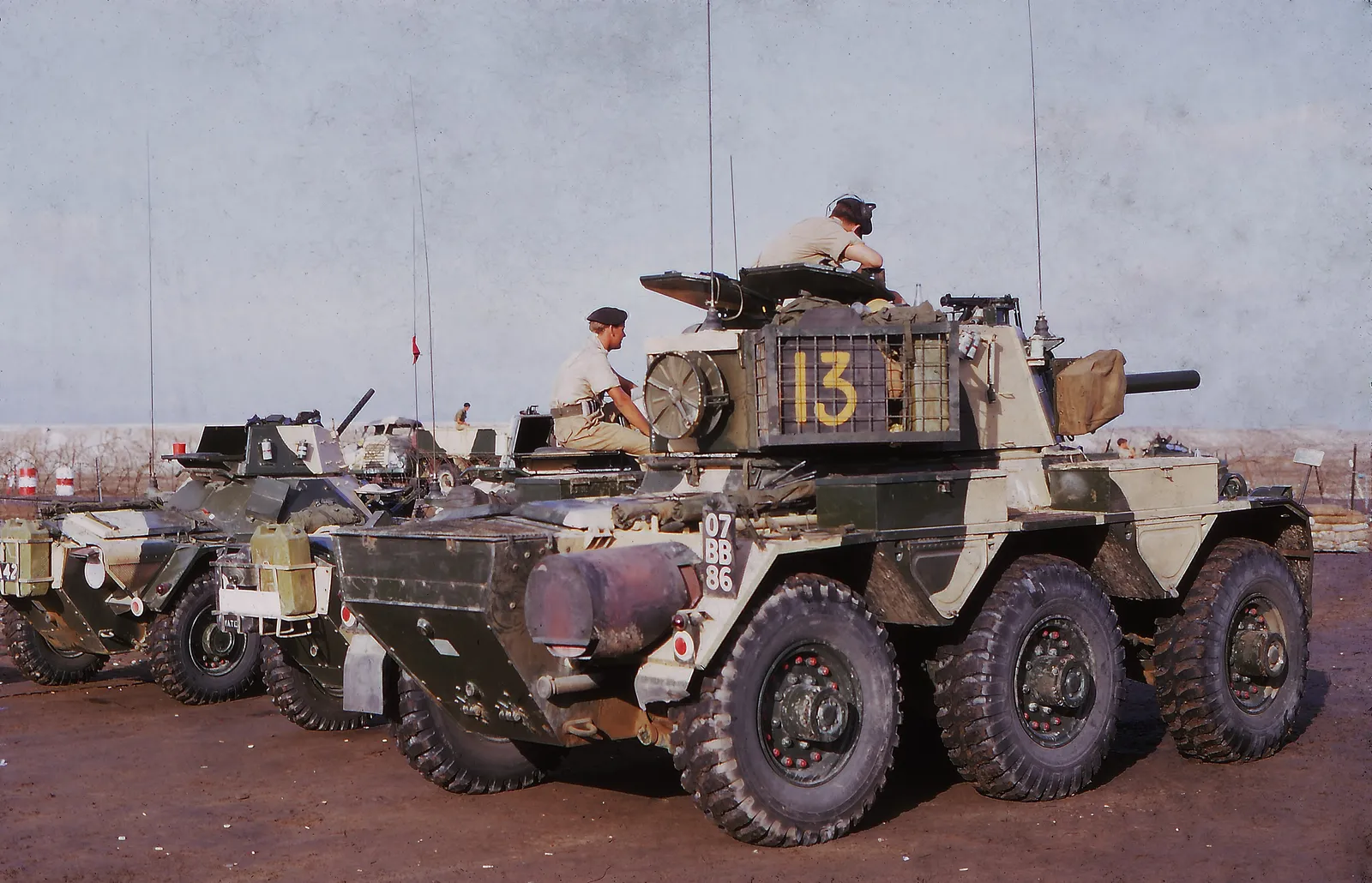

Image source: Aden, Sheikh Othman 1967
Profile / Specs

Profile

Origin
United Kingdom
Type
76 mm rifled tank gun
Service note
Late 1940s Cold War tank-gun development
Designer
Armament Design Establishment
Designed
1948-1953
Developed into
76 mm L23A1 gun

Specifications

Calibre
76 mm
Gun type
Low-pressure rifled tank gun
Breech
Vertical sliding breech block
Recoil system
Hydro-spring recoil mechanism
Ammunition
HESH, HE, smoke, and canister rounds
Effective range
Up to 1,300 m for direct fire
Variants

The L5A1 sits at the start of a small British 76 mm direct-fire gun family for light armored vehicles.

VariantConfigurationDesignation notes
76 mm L23A1 gun, 76 mm low-velocity tank gun, Artillery76 mm L23A1 gunLighter CVR(T) derivative

Saladin references describe the Scorpion's L23 gun as a lighter development from the L5A1 family with ammunition commonality.

Sources: SALADIN Reconnaissance Vehicle, Think Defence L23A1 Gun

Installed Platform

The L5A1 was the Saladin armored car's main direct-fire weapon rather than a stand-alone towed gun.

CarrierCarrier typeCarriage evidence
Alvis Saladin, 6x6 armored reconnaissance car, Armored VehiclesAlvis Saladin6x6 armored reconnaissance car

Saladin references identify the 76 mm L5A1 as the FV601 Saladin's main armament, with 42 rounds carried in the vehicle.

Sources: Think Defence Saladin Armoured Car, SALADIN Reconnaissance Vehicle

Ammunition Fired

Chemring and Nexter catalogs place the L5A1 in a 76 mm ammunition family shared with later L23/L23A1 guns.

AmmunitionAmmunition typeFiring evidence
76mm HEP-T M329, 76 mm fixed HESH-T / HEP-T tank-gun round, Munitions76mm HEP-T M32976 mm HEP-T / HESH service round

Chemring lists M329 in the 76 mm ammunition family for the L5 and L23 weapon systems used on Saladin and Scorpion vehicles.

Sources: Chemring Munitions Catalog

76mm HEP-TP-T M331, 76 mm fixed HESH-TP-T training round, Munitions76mm HEP-TP-T M33176 mm HESH training round

Chemring and Nexter list M331 as a 76 mm training round for the L5A1 and L23/L23A1 gun family.

Sources: Chemring Munitions Catalog, Nexter 2016 Catalog

76mm Canister M333, 76 mm canister round, Munitions76mm Canister M33376 mm canister round

Nexter lists M333 for the Saladin's 76 mm L5A1 gun, with a short-range anti-personnel canister role.

Sources: Nexter 2016 Catalog

76mm Blank M335, 76 mm fixed blank cartridge, Munitions76mm Blank M33576 mm blank cartridge

Nexter lists M335 for the 76 mm L5A1 on Saladin and the L23/L23A1 guns on Scorpion for training and saluting.

Sources: Nexter 2016 Catalog

76mm SMK-T M337, 76 mm fixed smoke round, Munitions76mm SMK-T M33776 mm smoke round

Nexter lists M337 as a smoke-screening, spotting, and signalling round for the L5A1 and L23/L23A1 gun family.

Sources: Nexter 2016 Catalog

Gun And Round Family

The L5A1 page works best as a component map: the gun is documented through its Saladin installation, its lighter L23A1 derivative, and a legacy 76 mm ammunition set rather than through a stand-alone battlefield role.

TopicDocumented detailCatalog link
Vehicle fitFV601 Saladin main armament with 42 rounds carried in the vehicle.Alvis Saladin, 6x6 armored reconnaissance car, Armored VehiclesAlvis Saladin
Derivative gunL23A1 was developed as a lighter CVR(T) gun while preserving 76 mm family ammunition commonality.76 mm L23A1 gun, 76 mm low-velocity tank gun, Artillery76 mm L23A1 gun
Service projectileM329 HEP-T / HESH round appears in the L5 and L23 ammunition family.76mm HEP-T M329, 76 mm fixed HESH-T / HEP-T tank-gun round, Munitions76mm HEP-T M329
Training projectileM331 is cataloged as a HESH-TP-T training round for the same gun family.76mm HEP-TP-T M331, 76 mm fixed HESH-TP-T training round, Munitions76mm HEP-TP-T M331
Close-range roundM333 canister is cataloged for Saladin and Scorpion 76 mm guns against personnel at close quarters.76mm Canister M333, 76 mm canister round, Munitions76mm Canister M333
Smoke roundM337 is cataloged for screening, spotting, and signalling with the L5A1 and L23/L23A1 family.76mm SMK-T M337, 76 mm fixed smoke round, Munitions76mm SMK-T M337

Sources: SALADIN Reconnaissance Vehicle; Chemring Munitions Catalog; Nexter 2016 Catalog.

Timeline

76 mm L5A1 gun Key Events

  1. Saladin gun requirement starts

    British Saladin development work shifted away from the older 2-pounder and toward a new 76 mm low-pressure gun that became the L5A1.

    Sources: SALADIN Reconnaissance Vehicle, Think Defence Saladin Armoured Car

  2. L5A1 development reaches production readiness

    Army Guide's Saladin profile says the 76 mm L5A1 was not ready for production until 1953, delaying the vehicle program.

    Sources: SALADIN Reconnaissance Vehicle

  3. Saladin enters field service with the L5A1

    Saladin service references place the vehicle in British service from 1959 with the 76 mm L5A1 as its main armament.

    Sources: Think Defence Saladin Armoured Car, SALADIN Reconnaissance Vehicle

  4. Legacy 76 mm ammunition cataloged

    Nexter's 2016 catalog still listed MECAR 76 mm rounds for the Saladin L5A1 and Scorpion L23/L23A1 gun family.

    Sources: Nexter 2016 Catalog

Media

76 mm L5A1 gun Videos

76 mm L5A1 gun Images

76 mm L5A1 gun, 76 mm rifled tank gun, Artillery - view 1

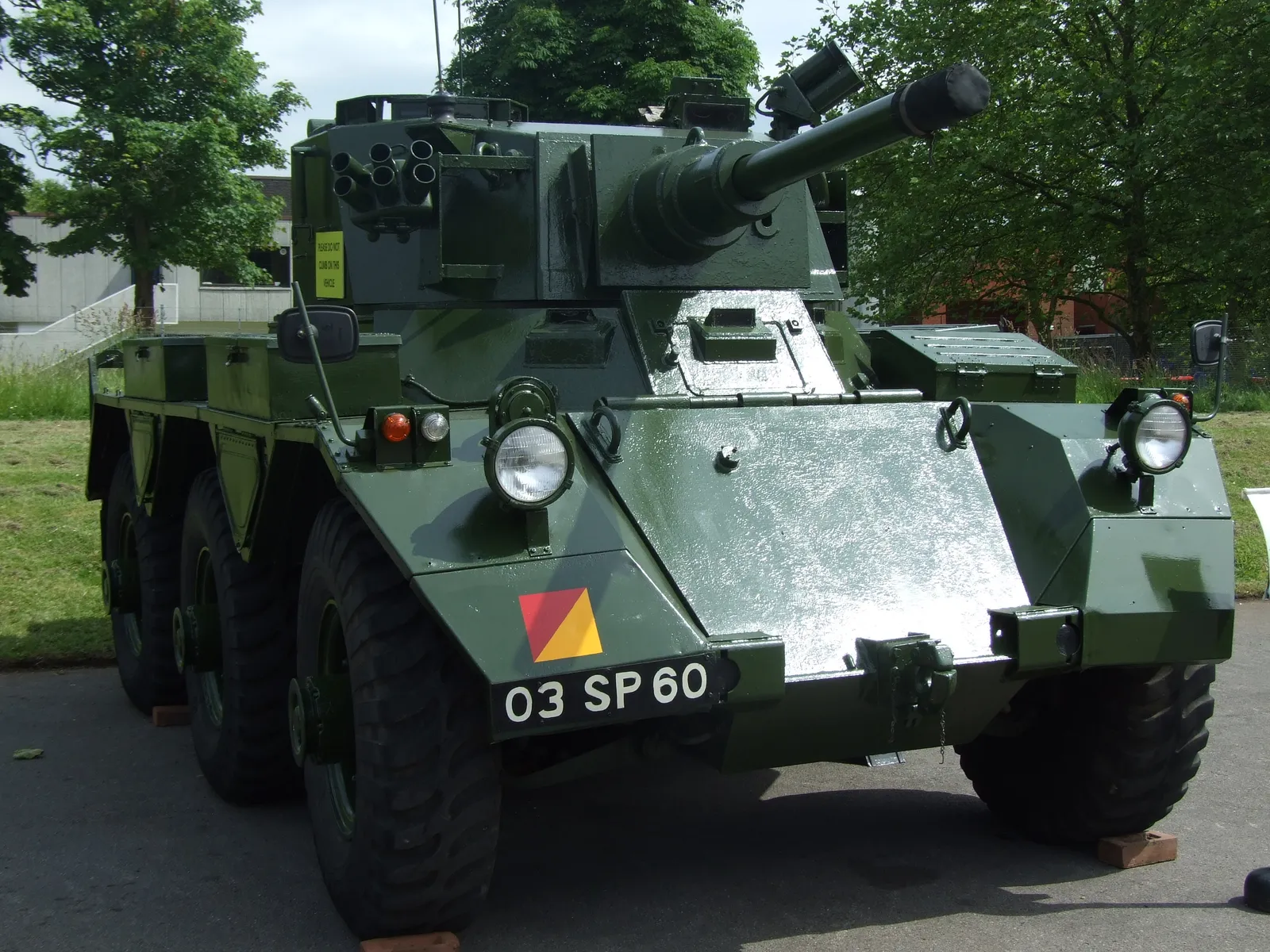

Source: Alvis Saladin Armoured Car
76 mm L5A1 gun, 76 mm rifled tank gun, Artillery - view 2

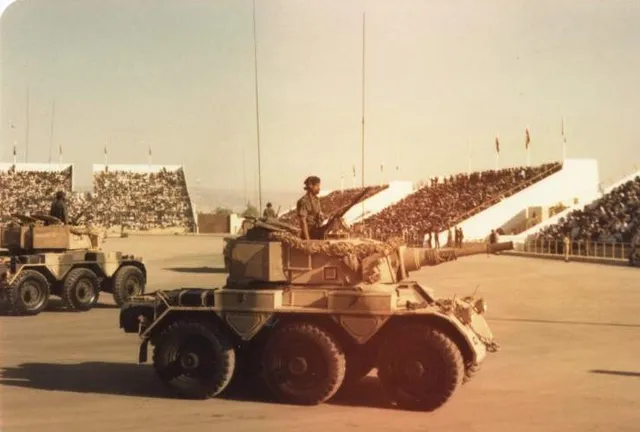

Source: Alvis FV601 Saladin, Oman 1981
