Munitions

L31 HESH round

Also known as
  • L31A7
  • L31A7 HESH
  • HESH L31
  • 120 mm L31A7 HESH
  • 120mm HESH round
  • 120 mm HESH L31
  • High-explosive squash head L31

The L31 HESH round is a British 120 mm high-explosive squash-head projectile for rifled Royal Ordnance tank guns, including the Challenger 2's L30A1. RO Defence/Jane's describes it as a general-purpose round for armor, fortifications, structures, and possible indirect fire, while 2003 Iraq War reporting documents Challenger 2 HESH fire in a 2003 Basra-area fratricide incident.

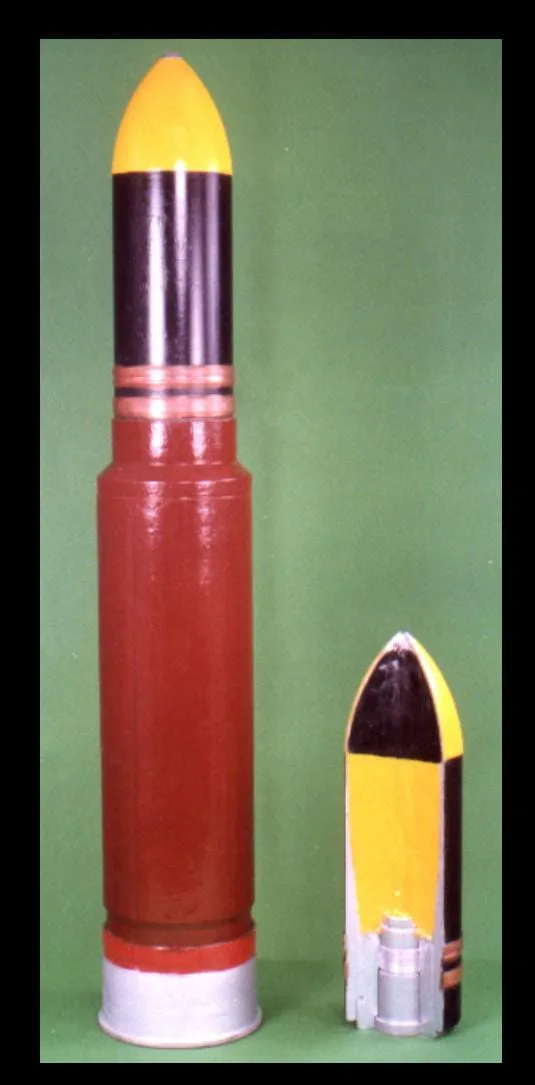

L31 HESH round, 120 mm HESH shell, Munitions
Image source: 120MM HESH Round.jpg

Role in Conflicts

Profile / Specs

Profile

Origin
United Kingdom
Type
120 mm HESH shell

Specifications

Caliber
120 mm
Projectile type
High-explosive squash head (HESH)
Designation
L31A7
Gun family
L30A1 rifled tank gun
Compatible British guns
L11 and L30A1 rifled 120 mm tank guns
Loading
Separate-loaded projectile with propelling charge and electric vent tube
Propelling charge
CP SH L3A2 for HESH, smoke, and squash-head practice rounds
Explosive fill
About 4.2 kg RDX/wax in a thin-walled projectile
Maximum range cited
Up to 8,500 m
Muzzle velocity
670 m/s
Firing Weapons

The L31 is documented in the British rifled 120 mm tank-gun ammunition family and in the Challenger 2 ammunition fit.

Firing weaponWeapon typeFiring evidence
Challenger 2, Main battle tank, TanksChallenger 2Main battle tank

Challenger 2 uses the L30A1 rifled gun, and the RO Defence/Jane's ammunition profile identifies HESH L31 in the Royal Ordnance 120 mm family used with the L11 and L30A1 gun lineage.

Sources: RO Defence 120mm tank gun ammunition, Challenger 2 Castlemartin Service Inquiry

Round And Firing Chain

The L31 is not a one-piece cartridge. In Challenger 2 service context, the projectile is loaded with a separate propelling charge and an electric vent tube that initiates the main charge in the L30A1 gun.

ElementRoleDocumented detail
L31/L31A7 projectileOperational HESH projectileRO Defence/Jane's describes a thin-walled, RDX/wax-filled squash-head projectile for armor, fortifications, structures, and possible indirect fire.
CP SH L3A2Propelling chargeThe Defence Safety Authority service inquiry identifies CP SH L3A2 as the charge used for HESH, smoke, and squash-head practice rounds in Challenger 2 main-armament context.
L4A2 electric vent tubeInitiating chargeThe same inquiry identifies the L4A2 tube vent electric as the initiating charge for the Challenger 2 L30A1 gun.
Timeline

L31 HESH round Key Events

  1. RO Defence ammunition profile

    Jane's profiled RO Defence 120 mm tank-gun ammunition and described HESH L31 as part of the rifled L11/L30A1 ammunition family.

  2. HESH fired in 2003 Iraq War incident

    Operation Iraqi Freedom reporting and the catalogd Challenger 2 Board of Inquiry record cover the Basra-area incident in which HESH rounds were fired by a British Challenger 2 crew.

  3. Challenger 2 firing-chain details published

    The Defence Safety Authority service inquiry described the Challenger 2 L30A1 gun, HESH definition, CP SH L3A2 propelling charge, and L4A2 electric vent tube.

Media

L31 HESH round Images

L31 HESH round, 120 mm HESH shell, Munitions - view 1
Source: Arjun tank's HESH round impacting an armour block.jpg
