Frankenthal class minehunter

Also known as
  • Frankenthal class
  • Frankenthal-class minehunter
  • Type 332
  • Class 332
  • MJ332
  • MJ 332
  • MJ332B
  • MJ332C
  • MJ332CL
  • MJ 332 CL
  • Frankenthal-Klasse MJ332B/C/CL
  • Minenjagdboot Frankenthal-Klasse
  • Minenjagdboote der Frankenthal-Klasse
  • Al Murjan class

The Frankenthal class is the German Navy's Type/Class 332 minehunter family, built from a Hameln-derived common platform by Lürssen, Abeking & Rasmussen, and Krögerwerft. Bundeswehr data describe ten MJ332 boats with non-magnetic steel hulls, Seefuchs/SeaFox mine-disposal drones, mine rails, diver facilities, and MJ332B, MJ332C, and MJ332CL mission fits, while former German hulls also served the UAE as Al Murjan-class mine-countermeasure vessels.

Frankenthal class minehunter, Minehunter class, Naval Systems

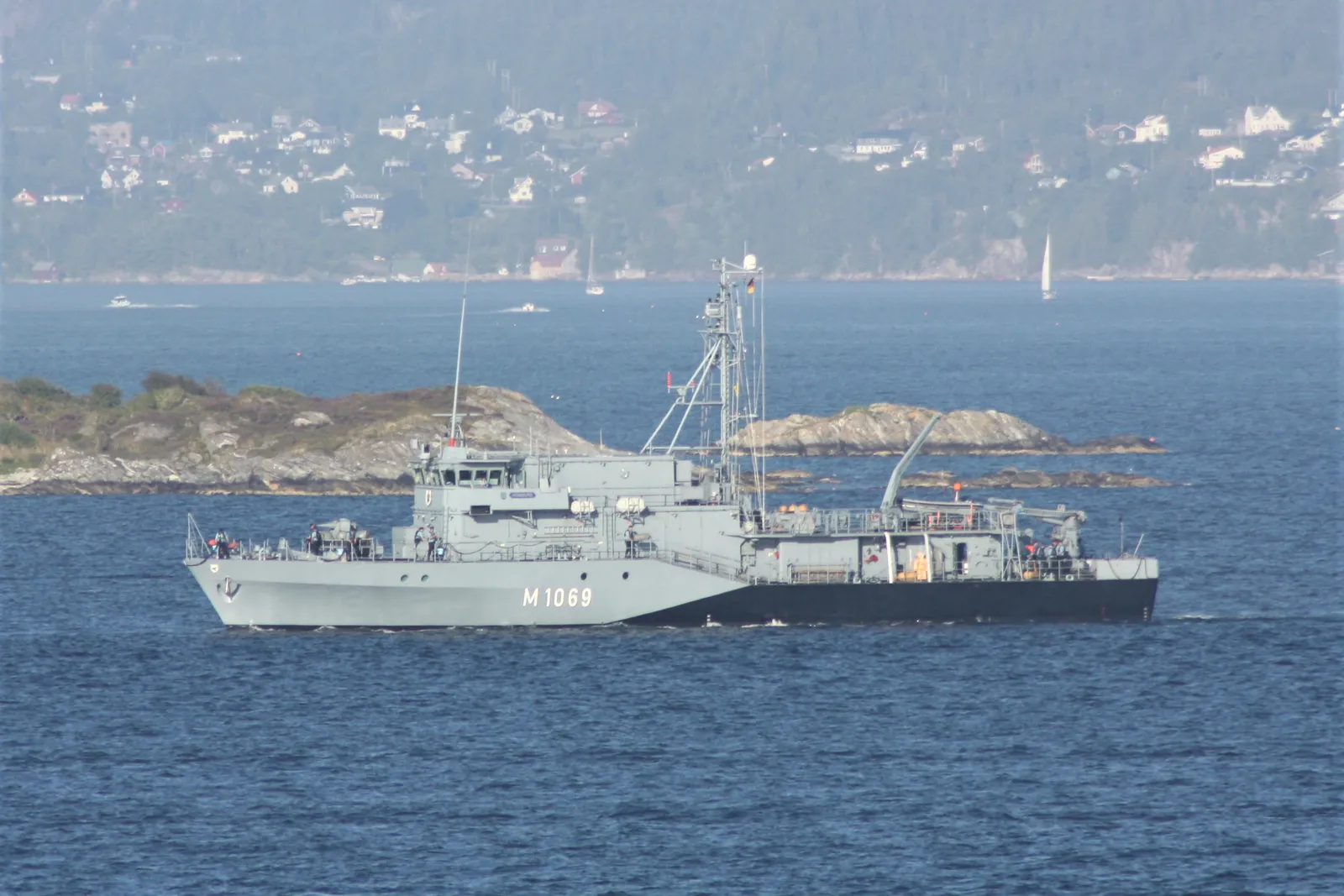

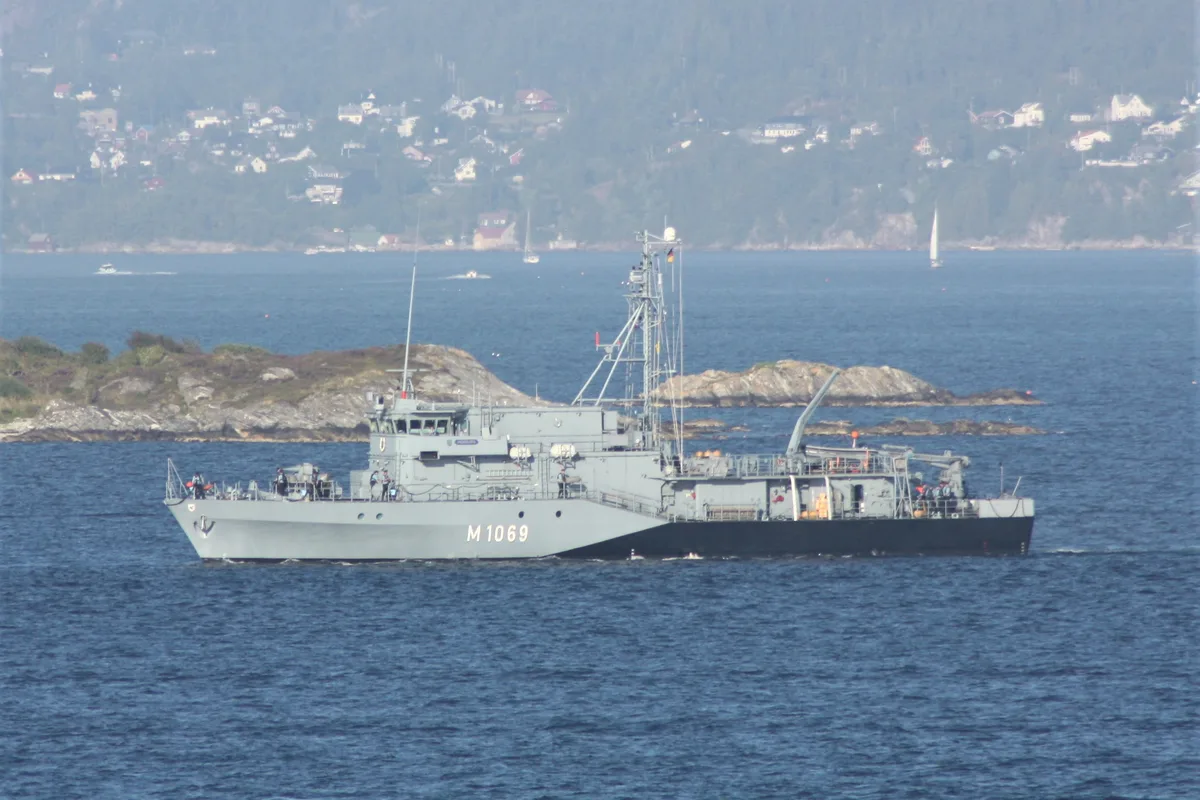

Image source: File:FGS Homburg.jpg - Wikimedia Commons

Role in Conflicts

Profile / Specs

Profile

Origin
Germany
Type
Minehunter class
Service note
1990s-present
Produced
1992-1998
Number built
10 German Navy boats
Developed from
Hameln class minesweeper common-platform design

Specifications

Displacement
650 t
Length
54.4 m
Beam
9.2 m
Draught
2.6 m
Speed
More than 18 kn
Crew
42
Propulsion
2 diesel engines, 4,100 kW total, 2 propellers
Sensors
WM20/2 search and fire-control radar and one navigation radar
Armament
1 x 27 mm MLG, 2 x 12.7 mm heavy machine guns, FIM-92 Stinger, 4 x mine rails, and Seefuchs UUV
Mine-countermeasure systems
Seefuchs/SeaFox mine-disposal underwater drone; MJ332CL boats can use up to four Seehund remotely controlled surface mine-clearance drones
Additional personnel
4 mine divers on Types 332C and 332CL; 12 mine divers on Type 332B
Modernization
IMCMS and SeaFox fitted across modernized boats; SeaCat long-range underwater reconnaissance drones procured for Class 332 integration with project completion planned for mid-2026
Mine Countermeasures Fit

The Frankenthal class combines a low-magnetic minehunter hull with unmanned systems, divers, and shipboard weapons for work in confined or shallow waters.

Mine hunting

Bundeswehr describes all ten MJ332 boats as minehunters that search for possible mines and use Seefuchs underwater drones to identify or destroy bottom and moored mines.

Clearance variants

MJ332CL boats can control up to four Seehund surface drones, while Type 332B boats are configured for larger mine-diver detachments.

Self-protection

The class uses a non-magnetic steel hull, quiet slow-speed movement, magnetic self-protection, a 27 mm MLG, heavy machine guns, and shipboard Stinger missiles.

Variants

Bundeswehr identifies the in-service Frankenthal family as MJ332B/C/CL, separating mine-diver mission boats, standard minehunter fits, and CL boats with Seehund-control capability.

VariantConfigurationDesignation notes
MJ332BMine-diver mission configuration

Bundeswehr describes two Type 332B boats as mine-diver mission boats able to embark the larger 12-diver additional personnel group.

Sources: Die Minenjagdboote der Frankenthal-Klasse - Bundeswehr

MJ332CMinehunter configuration

Bundeswehr distinguishes Type 332C from Type 332B/CL in the additional-personnel fit, listing four additional mine divers for Types 332C and 332CL.

Sources: Die Minenjagdboote der Frankenthal-Klasse - Bundeswehr

MJ332CLMinehunter and mine-clearance control configuration

Bundeswehr says three MJ332CL boats can use up to four Seehund surface drones; MarineLink describes the MJ 332 CL modernization as adding IMCMS, SeaFox, and Seehund control.

Sources: Die Minenjagdboote der Frankenthal-Klasse - Bundeswehr, Tech Upgrade for German Minehunting Vessels - MarineLink

Shipboard Guns

Bundeswehr lists the Frankenthal class with a 27 mm MLG in the standard weapons fit.

Carried itemItem typeCarriage evidence
Marineleichtgeschütz 27 mm, 27 mm remote-controlled naval gun, Naval SystemsMarineleichtgeschütz 27 mm27 mm remote naval gun

The class armament list includes one 27 mm MLG mounted on the boat.

Sources: Die Minenjagdboote der Frankenthal-Klasse - Bundeswehr

Carried Air Defense Weapons

Bundeswehr lists FIM-92 Stinger among the Frankenthal class armament fit.

Carried itemItem typeCarriage evidence
FIM-92 Stinger, Man-portable air-defense system, Air DefenseFIM-92 StingerMANPADS

Bundeswehr lists the Frankenthal class with FIM-92 Stinger among its armament fit.

Sources: Die Minenjagdboote der Frankenthal-Klasse - Bundeswehr

Laid Mines

Bundeswehr lists the Frankenthal class with four mine rails and says the boats can lay sea mines to block waterways or protect ports.

Launched itemItem typeLaunch evidence
Sea mine, Naval mine, MunitionsSea mineNaval mine

The class has four mine rails and a documented minelaying function for blocking waterways or protecting ports.

Sources: Die Minenjagdboote der Frankenthal-Klasse - Bundeswehr

Timeline

Frankenthal class minehunter Key Events

  1. Ten-ship MJ-332 order placed

    Forecast International reports a September 1988 order for ten MJ-332 ships split among Lürssen, Abeking & Rasmussen, and Krögerwerft.

    Sources: MJ-332 Frankenthal Class - Archived 4/2011 - Forecast International

  2. Rottweil commissioned

    The Bundeswehr class list shows Rottweil entering service in 1993, marking the early phase of Frankenthal-class German Navy service.

    Sources: Die Minenjagdboote der Frankenthal-Klasse - Bundeswehr

  3. Homburg commissioned

    The Bundeswehr class page lists Homburg (M1069) as entering service on 26 September 1995.

    Sources: Die Minenjagdboote der Frankenthal-Klasse - Bundeswehr

  4. Homburg joins Active Endeavour tasking

    A German situation report places Homburg/M1069 with SNMCMG2 in Operation Active Endeavour from 3 to 5 November 2014.

    Sources: Aktuelle Lage in den Einsatzgebieten der Bundeswehr 45/14

  5. MJ 332 CL modernization contract reported

    MarineLink reported the MJ 332 CL modernization project to add IMCMS, SeaFox, and Seehund-control capability to three Frankenthal-class boats.

    Sources: Tech Upgrade for German Minehunting Vessels - MarineLink

  6. Additional IMCMS upgrade contract signed

    Naval News reported a BAAINBw contract for Atlas Elektronik to equip five Frankenthal-class vessels with the latest IMCMS between 2022 and 2025.

    Sources: Atlas Elektronik Selected To Upgrade German Navy's Minehunter Vessels - Naval News

  7. SeaCat integration announced

    The Bundeswehr announced that SeaCat underwater reconnaissance drones would be integrated into class 332 minehunters, extending the class's sensing capability.

    Sources: Bundeswehr to receive new underwater reconnaissance drones

Media

Frankenthal class minehunter Videos

Frankenthal class minehunter Images

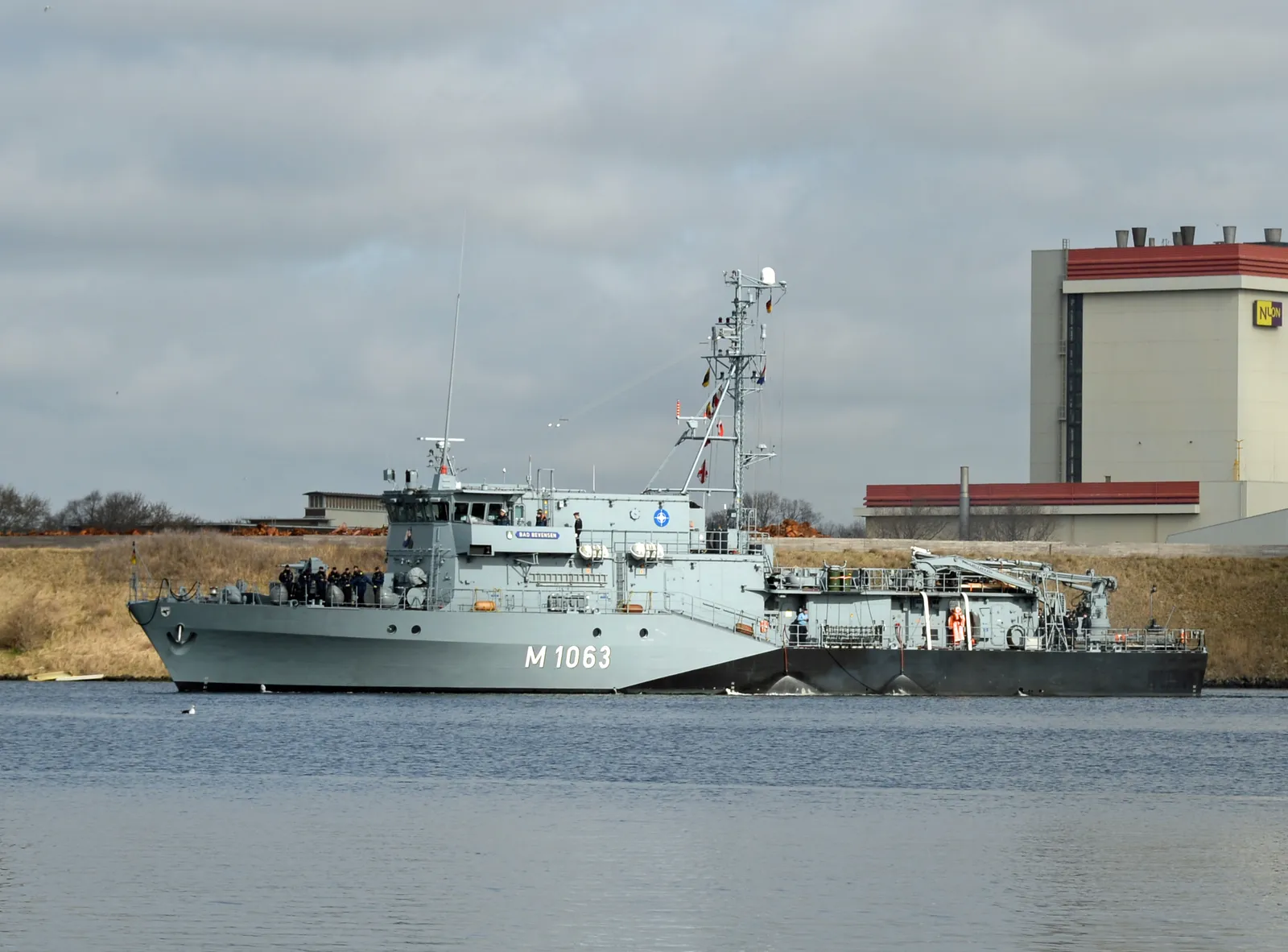

Frankenthal class minehunter, Minehunter class, Naval Systems - view 1
Source: File:M1063 Bad Bevensen Minenjagdboot der Frankenthal-Klasse der Bundeswehr (16557472387).jpg - Wikimedia Commons

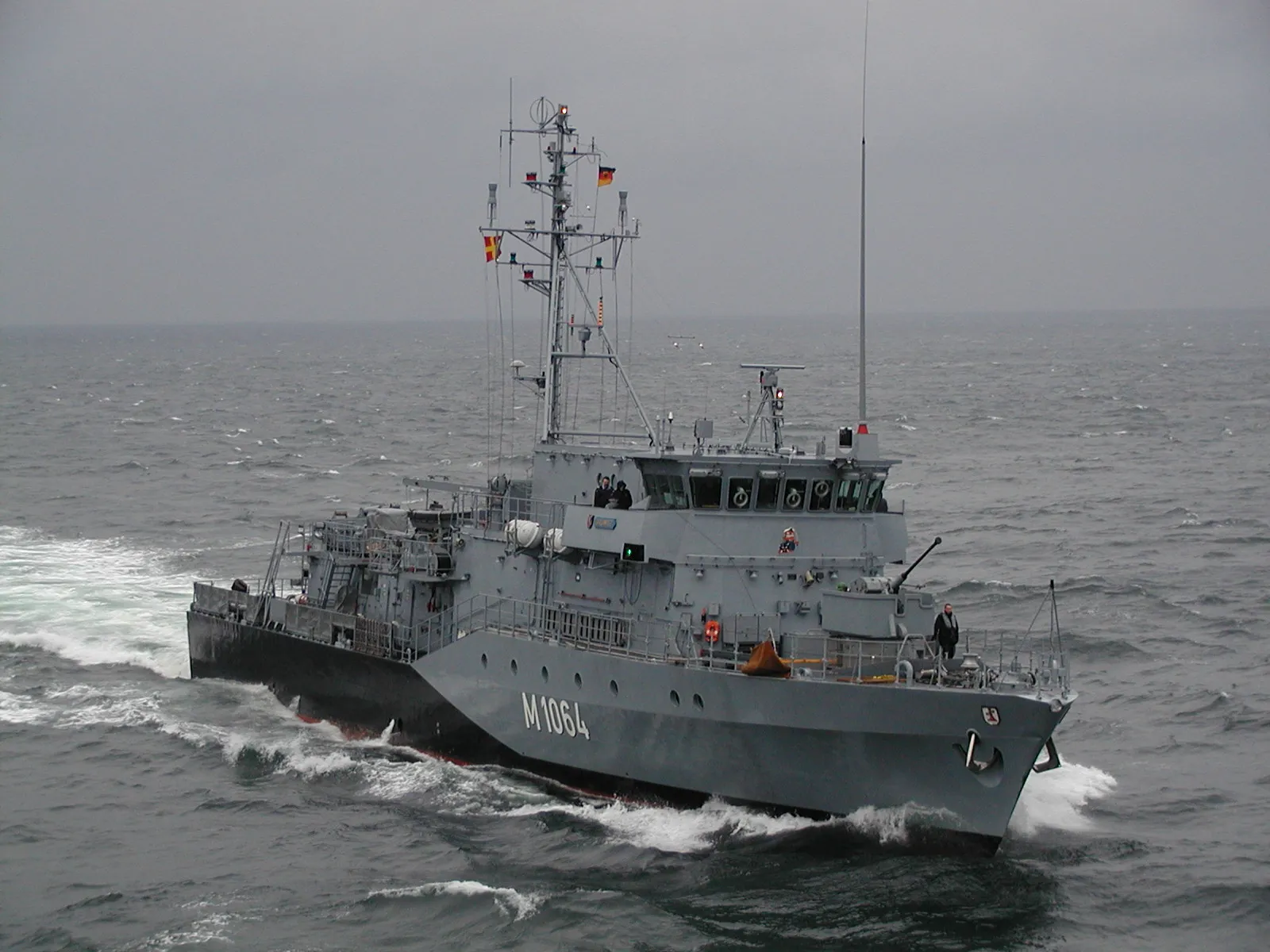

Frankenthal class minehunter, Minehunter class, Naval Systems - view 2
