Eitan wheeled armored personnel carrier

Also known as
  • Eitan
  • Eitan APC
  • Eitan 8x8
  • Eitan AFV

The Eitan is Israel's 8x8 wheeled armored personnel carrier, developed by the Defense Ministry's Tank and APC Directorate with Israeli final assembly and Oshkosh-produced hulls to replace older M113s. It entered IDF service with the Nahal Brigade in 2023, saw its combat debut during the October 7 fighting, and was later adapted in Gaza for protected troop movement and casualty evacuation.

Eitan wheeled armored personnel carrier, Wheeled armored personnel carrier, Armored Vehicles

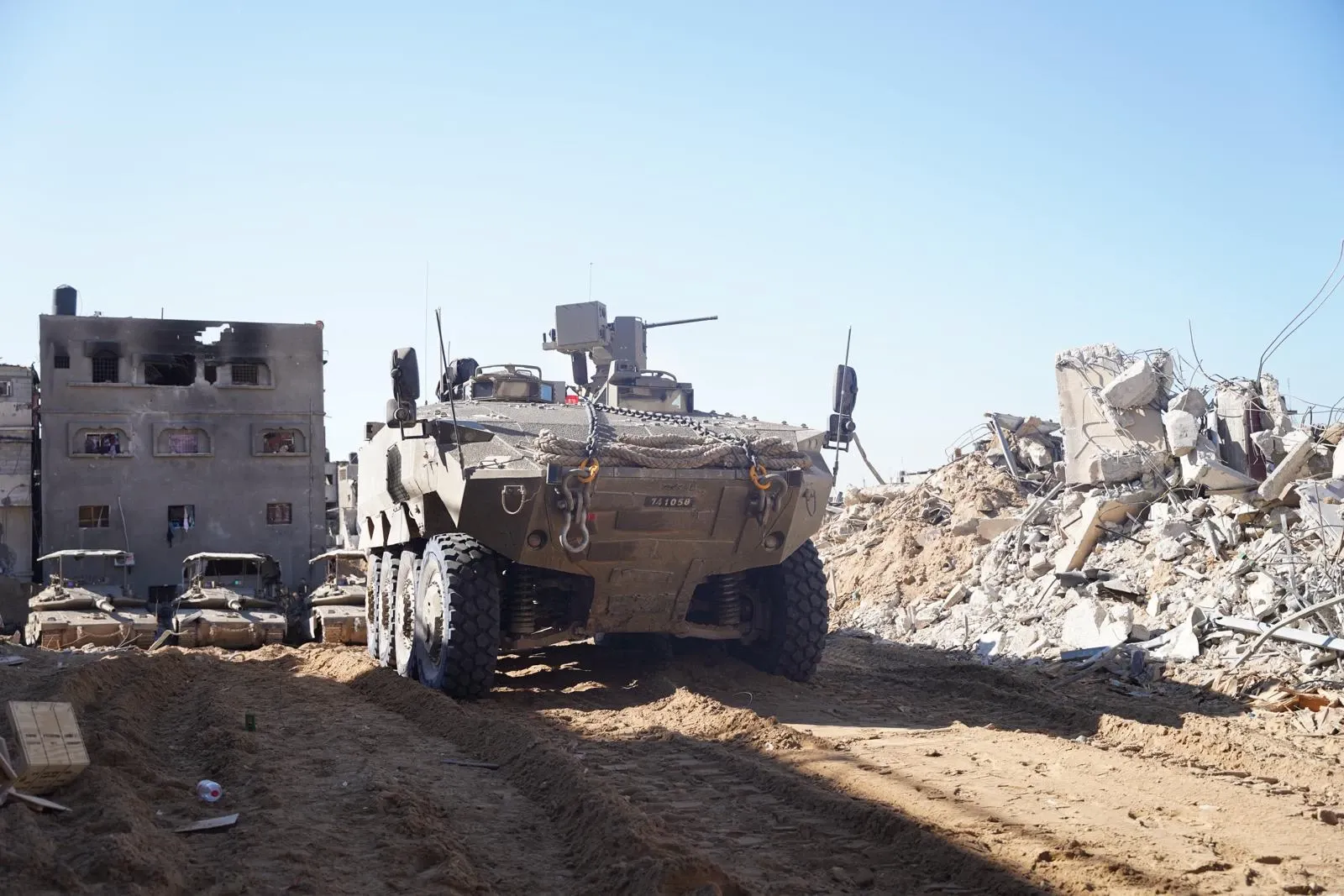

Image source: Commons Eitan front-view combat-zone photo

Role in Conflicts

Replacement Context

The Eitan was built as a modernization step, not just a new troop carrier: the Ministry of Defense says each vehicle delivered to the IDF replaces an older M113.

Legacy systemEitan roleWhy it matters
M113, Armored personnel carrier, Armored VehiclesM113Replacement APCThe Eitan brings a wheeled chassis, higher road speed, and a more survivable protected-mobility profile to the same basic infantry-transport mission.
Profile / Specs

Specifications

Wheel layout
8x8
Troop capacity
12 combat personnel
Engine power
750 hp
Road speed
Around 90 km/h
Operational endurance
Multiple days of use
Base technologies
Merkava and Namer
Armament options
Remote turret with 30 mm cannon, Spike guided missiles, and coaxial 7.62 mm machine gun
Active protection
Iron Fist active protection system integration
Situational awareness
Peripheral day/night cameras, computerized processing, touch monitors, and processors
Variants

The Eitan family centers on a wheeled APC chassis that appears in personnel-carrier, armed, command, and medical configurations.

VariantConfigurationDesignation notes
Turreted EitanArmed remote-turret configuration

Specialist reporting described a turret fit with a 30 mm cannon, Spike guided missiles, and a coaxial 7.62 mm machine gun.

Sources: Defense Update on Eitan armament

Eitan command vehicleCommand configuration

Defense Update described a command vehicle as one of the planned Eitan family variants alongside APC and infantry combat vehicle configurations.

Sources: Defense Update on Eitan armament

Eitan ambulance APCProtected casualty-evacuation adaptation

Gaza reporting described a medical adaptation able to carry two severely wounded soldiers while treatment continued during movement.

Sources: Ynet on Eitan APCs in Gaza

Launched Missiles

Defense Update described the Eitan's armament fit as including Spike guided missiles.

Launched itemItem typeLaunch evidence
SPIKE anti-tank guided-missile family, Anti-tank guided missile family, Infantry WeaponsSPIKE anti-tank guided-missile familyAnti-tank guided missile family

Defense Update described the Eitan's armament fit as including Spike guided missiles.

Sources: Defense Update on Eitan armament

Mounted Machine Guns

Defense Update said some Eitan variants would receive a lighter turret mounting a 7.62 mm machine gun.

AmmunitionAmmunition typeFiring evidence
7.62 mm machine gun, Belt-fed general-purpose / vehicle-mounted 7.62 mm machine gun class, Infantry Weapons7.62 mm machine gunMachine gun

Defense Update said some Eitan variants would receive a lighter turret mounting a 7.62 mm machine gun.

Sources: Defense Update on Eitan armament

Survivability Systems

Elbit and specialist reporting described Iron Fist Light Decoupled integration as part of the Eitan's survivability package.

Compatible itemItem typeCompatibility evidence
Iron Fist Light Decoupled active protection system, Active protection system, Support EquipmentIron Fist Light Decoupled active protection systemActive protection system

Elbit said the Israeli Ministry of Defense selected and contracted for Iron Fist Light Decoupled systems for Eitan wheeled AFVs, and specialist reporting later described Eitan integration testing.

Sources: Elbit IFLD selection for Eitan, Elbit Eitan Iron Fist contract, Defense Update on Iron Fist integration

Timeline

Eitan wheeled armored personnel carrier Key Events

  1. Eitan unveiled

    Defense Update reported the Eitan as Israel's first wheeled armored fighting vehicle and a future M113 replacement family.

    Sources: Defense Update on Eitan debut and configurations

  2. Oshkosh selected to build Eitan hulls

    Oshkosh said the Israeli Ministry of Defense had selected it to produce Eitan APC hulls, a contract the company described as worth more than $100 million.

    Sources: Oshkosh selected to produce Eitan hulls

  3. IMOD finalizes Oshkosh hull procurement

    The Israel Ministry of Defense said it had signed the Oshkosh agreement for hundreds of Eitan hulls, with hulls to move into Israeli final assembly before IDF operational use.

    Sources: Eitan APC procurement agreement finalized

  4. First Eitan APCs delivered to the Nahal Brigade

    The Israeli Ministry of Defense delivered the first Eitan APCs to the IDF Nahal Brigade and said each vehicle was replacing an older M113.

    Sources: First Eitan APCs delivered to the IDF Nahal Brigade

  5. Gaza combat debut

    Walla reported that Eitan APCs fought near Zikim on October 7, while later Ynet reporting described Gaza use for wounded evacuation and operational incursions.

    Sources: Walla on Eitan APC at Zikim, Jerusalem Post on Zikim Beach battle, Ynet on Eitan APCs in Gaza, IMOD war-efforts conference

Gaza Combat Adaptations

In Gaza, the Eitan quickly moved beyond troop transport. Reporting describes October 7 combat near Zikim, later protected evacuation missions, and a field ambulance APC adaptation.

AdaptationSource-backed detailOperational takeaway
Initial combat useReporting tied the Eitan to the October 7 fighting near Zikim.The vehicle entered the war as an operational combat platform, not only a new procurement item.
Rapid evacuationNahal Brigade soldiers used the vehicles to extract wounded troops from combat areas.The APC filled an armored casualty-evacuation role under fire.
Ambulance APCMedical teams developed an Eitan-based ambulance APC that could carry two severely wounded soldiers while treatment continued in transit.The chassis was adapted into a protected battlefield medical platform.
Scale of useReporting described more than 250 wounded evacuated, 150 blood packs administered, and eight APCs issued directly to Gaza in recent months.The vehicle was being used operationally at meaningful scale, not as a one-off test.
Media

Eitan wheeled armored personnel carrier Videos

Eitan wheeled armored personnel carrier Images

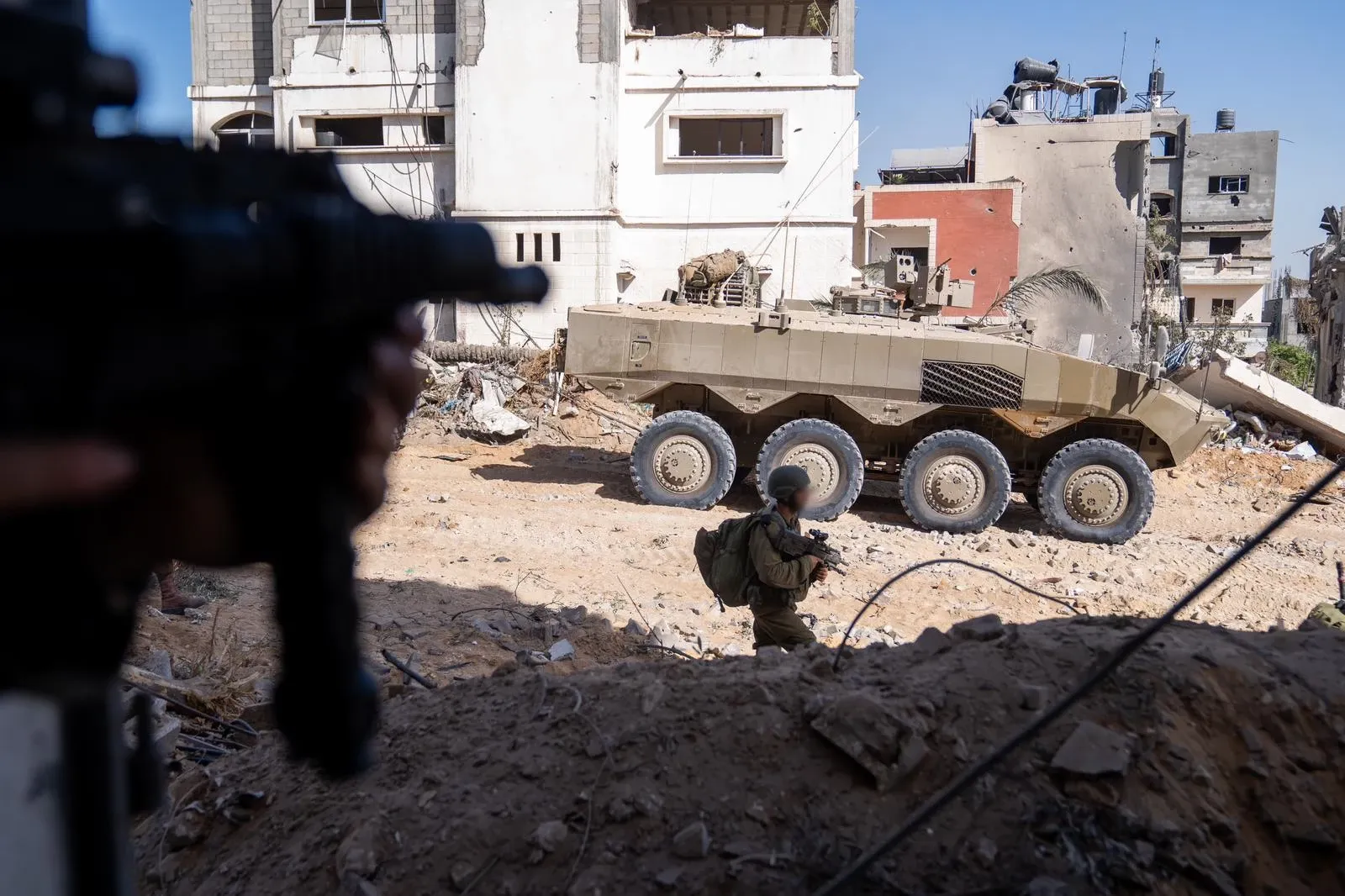

Eitan wheeled armored personnel carrier, Wheeled armored personnel carrier, Armored Vehicles - view 1
Source: Commons Eitan side-view photo

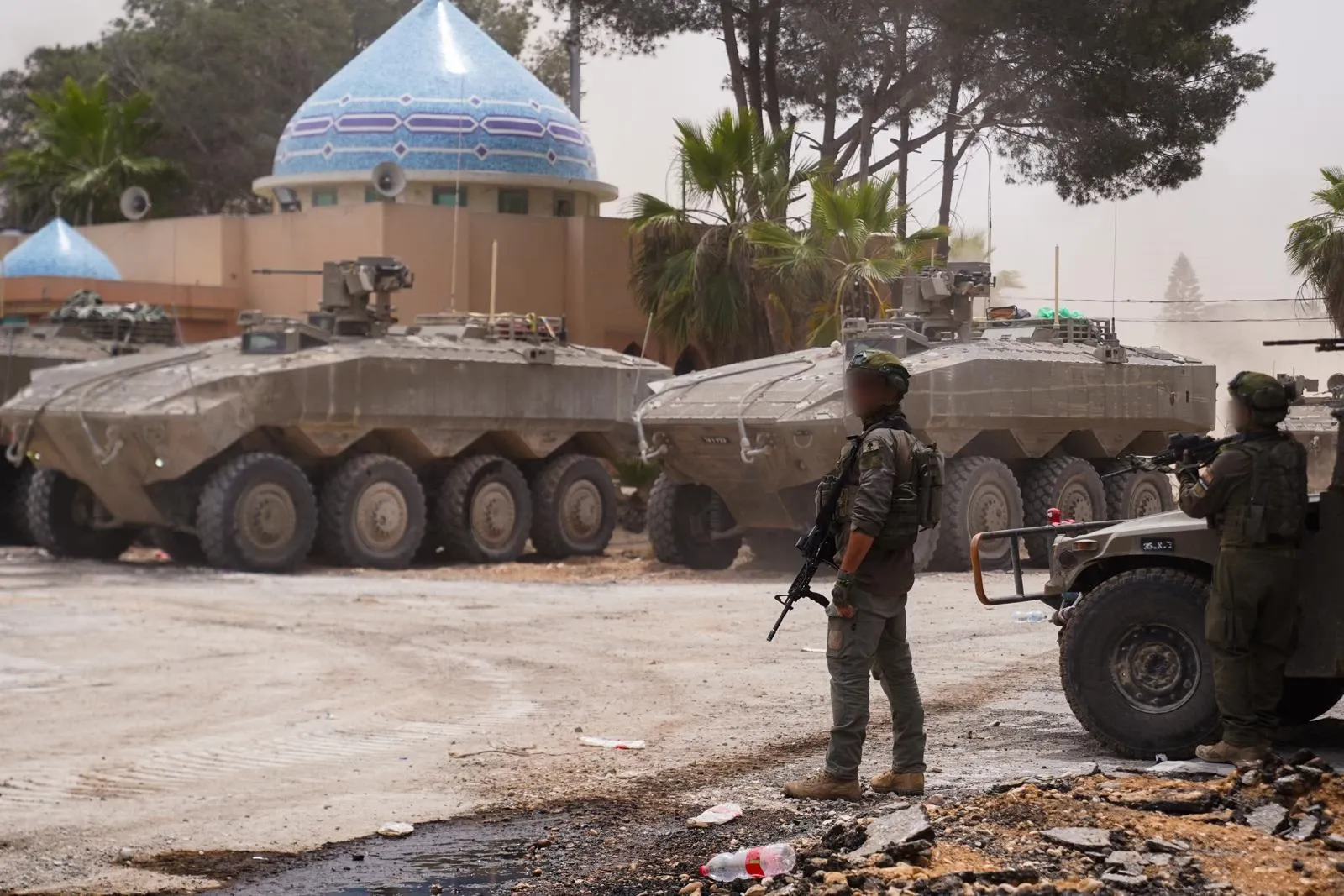

Eitan wheeled armored personnel carrier, Wheeled armored personnel carrier, Armored Vehicles - view 2
Source: Commons two-Eitan combat photo
